Product details

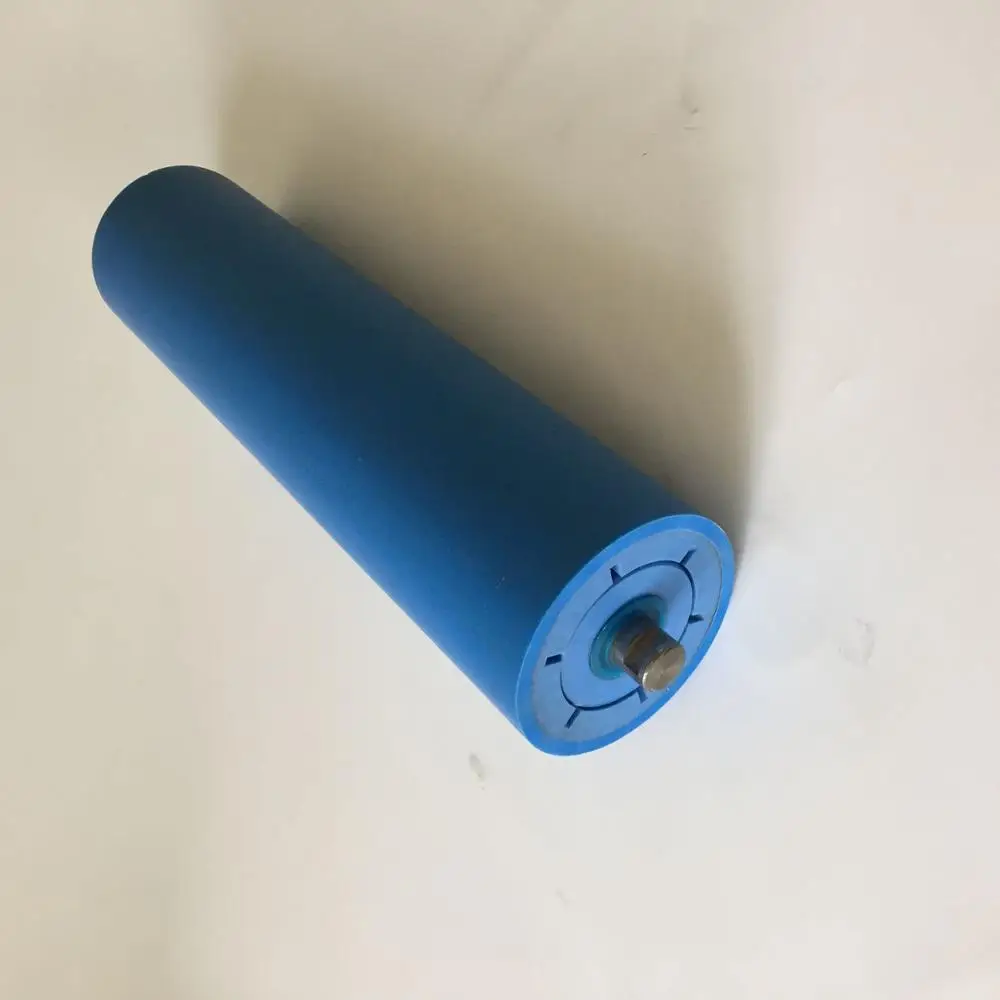

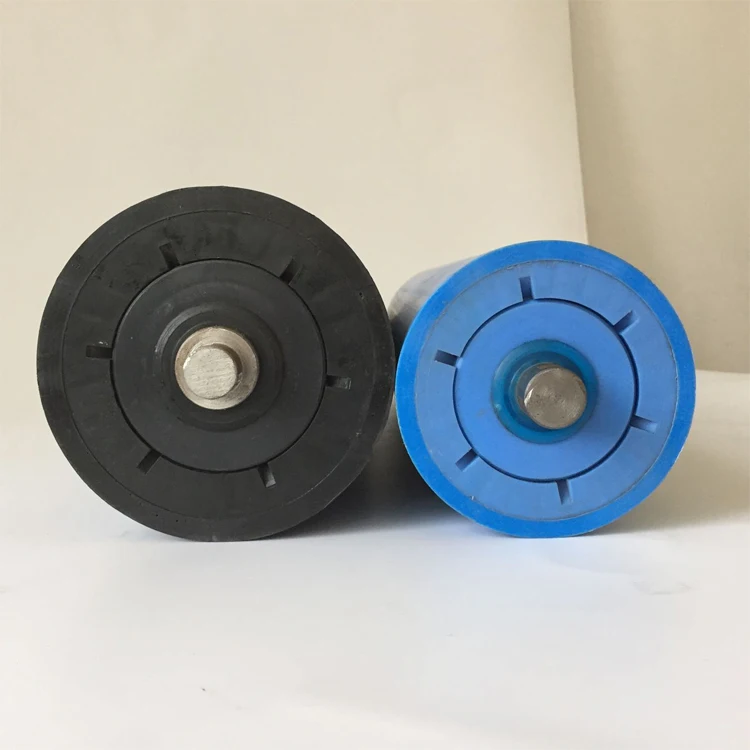

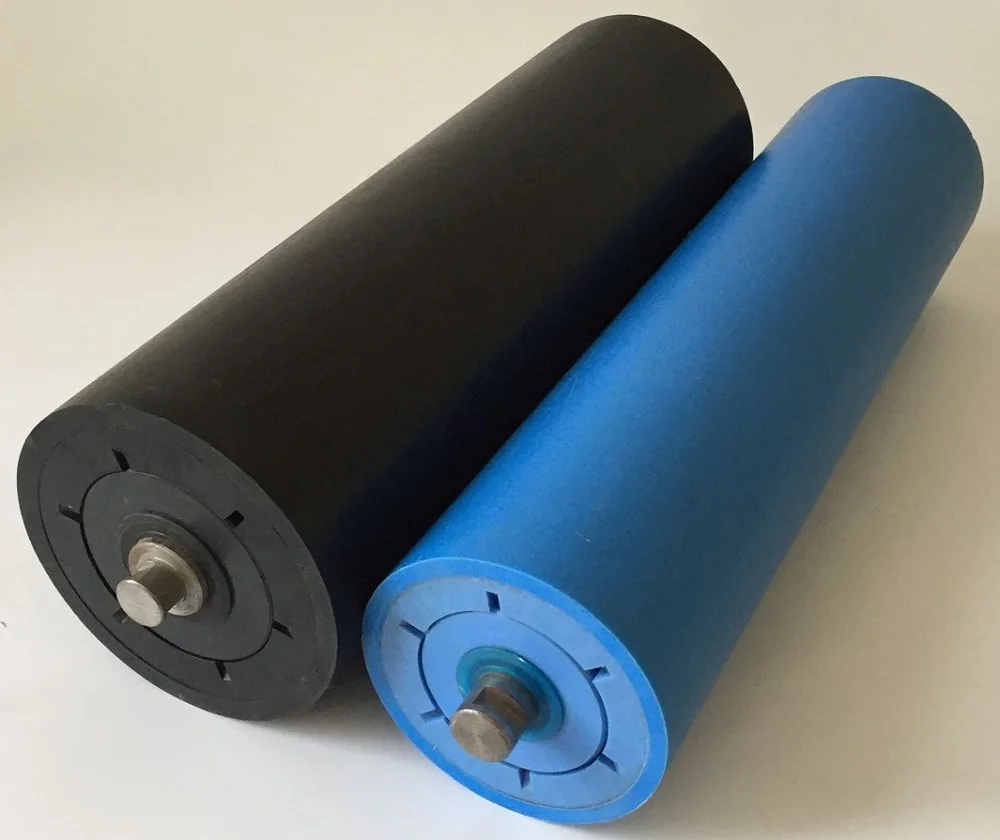

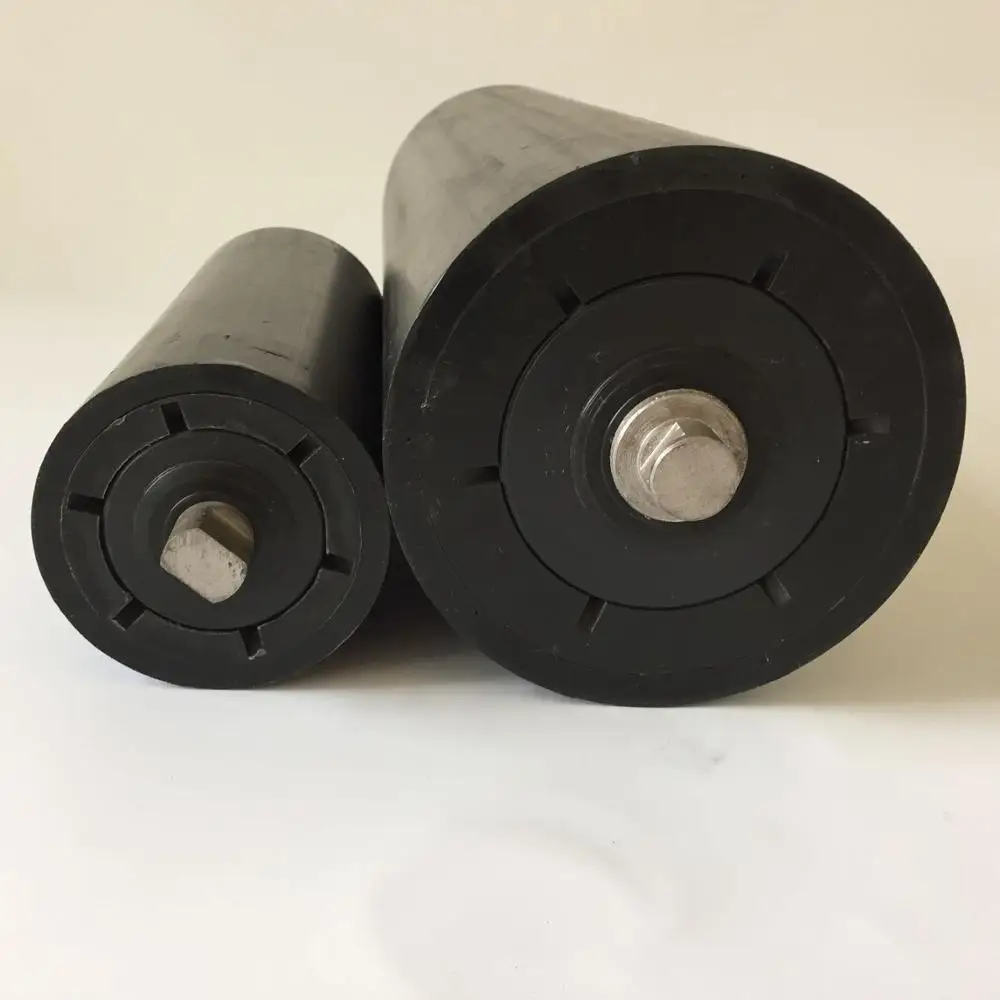

light duty plastic belt conveyor roller
We can produce steel rollers, composite rollers, HDPE rollers, Nylon rollers, plastic rollers etc

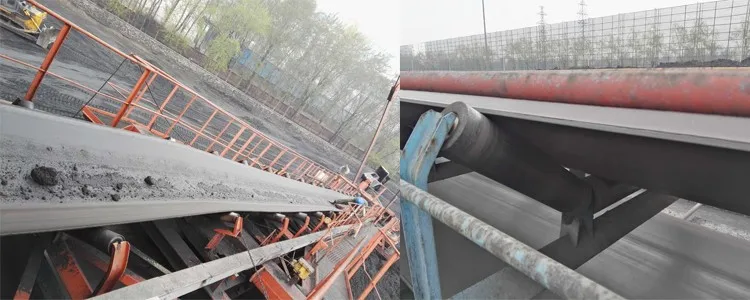

When the conveyor system which installed steel steel rollers running, some of the dust with static electrictly will often be attached to the surface of the rollers, not only corrode rollers. The uneven thickness of dust will cause the belt worn out fast, belt deviation, tearing and belt load increase. The composite rollers has no electromagnetic attraction with the dust, so dust can not adhension on the belt. It can effectively protect the conveyor belt, extending the life of the conveyor belt.

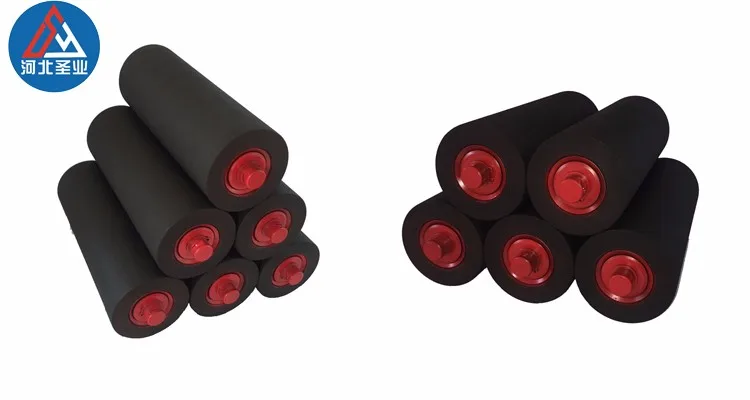

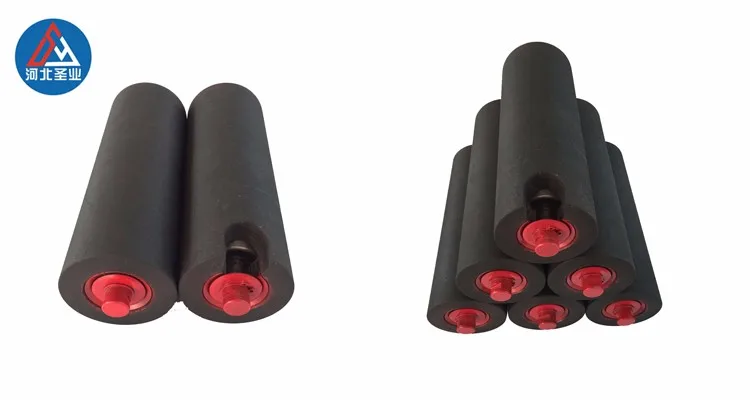

Composite rollers Advantages
1. The shell is Composite material.
2. Composite roller is made of composite shell,composite bearings seat, metal shaft, bearings and DTII type seals.
3. The roller and bearing seat are processed by special double end boring machining. The machine adopts double cutter,double system control, single knife adjustment. A clamping and cutting independent ends. Non tolerance tight fit assembly of roller body and bearing seat. The processing concentricity is less than 0.02mm.
4. Conveyor roller dia (mm): 89,108,121,127,133,152,159,178,219
Roller length 160-2800mm
Shell thickness mm 15.0-30.0mm
5. Composite conveyor rollers working life is 8-10 times longer than steel rollers.
6. Super long wear resistance life
7. Anti corrosion, anti acid and alkali
8. Anti dust adhesion, protect conveyor belt
9. TIR less than 0.1mm, lower noise
10. High anti magnetic
Composite roller shell material
The roller body is hot pressed through proprietary technology, mixed with polypropylene, Quartz sand, high hardness powders etc total 16 kinds raw materials according to special formulation.

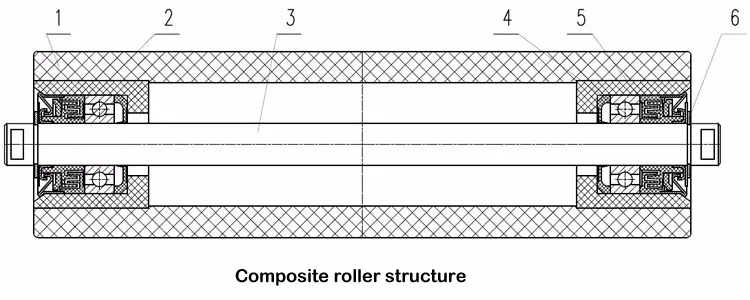

Composite roller Structure drawing
1. Roller body 2.Composite bearing housing 3. Shaft 4. Bearing 5. Seal 6. Shaft collar
Conveyor roller sizes
Roller Diameter mm
Roller length mm
Bearing
roller shell thick mm
76
160-950
6204
15.0mm-30.0mm
89
160-950
6204
102
160-950
6204
108
250-1600
6305
114
160-1753
6305
121
160-1753
6305
127
160-1753
6305
133
250-2500
6305
152
160-2500
6305 6306
159
315-2800
6305 6306
178
315-2800
6305 6306
219
315-2800
6305 6306
Conveyor rollers Revolution.
Our company has engaged in the bulk material handling conveyor system research, development and manufacture for many years.
We have accumulated rich experience in this field. In recent years, we paid lots attention on reducing the cost of transport system and enhancing transport efficiency research.

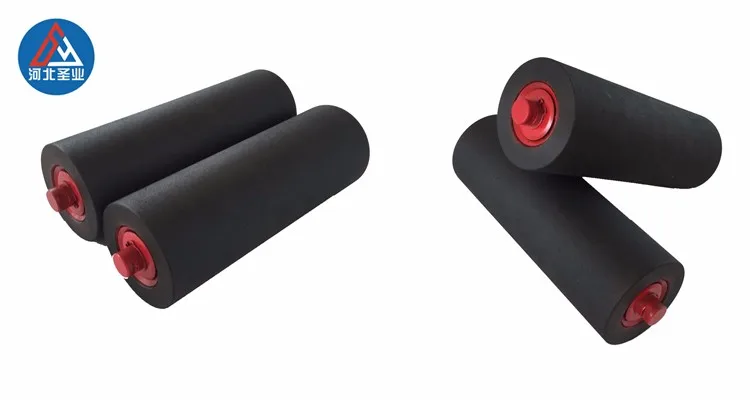

We successfully developed composite conveyor rollers and conveyor pulleys which have great advantages on anti-deformation, anti-static, anti-magnetic, anti-dust adhesion, wear resisting and super long working life. The performance of composite material rollers and pulleys is much better than steel rollers and steel pulleys. So our composite material rollers and pulleys are the revolution on bulk material handling system. At present, our composite rollers have been widely used in the related industries at National and Abroad.
About us

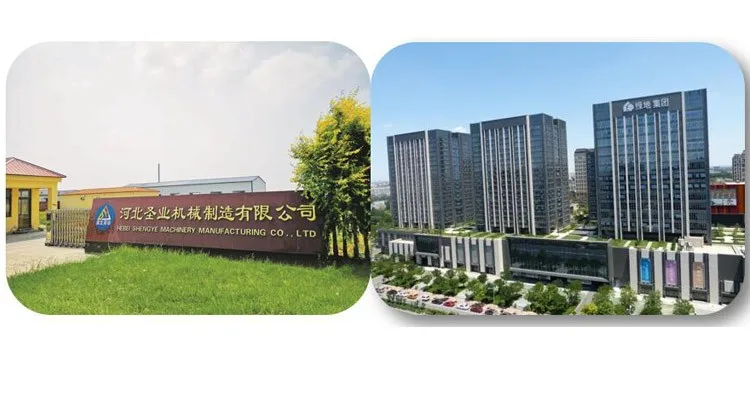

Hebei Shengye Machinery Manufacturing Co., Ltd is specialized in design and manufacture belt conveyor components, including Conveyor idlers, conveyor belts, conveyor pulleys and other spare parts, Complying with relevant Australian Standards, CEMA Standards and others to meet different clients’ demand from all over the world.
Our company has the modern production bases in Shandong and Hebei.
Our head office is located in Beijing.
What we can offer?
We are professional manufacturer of belt conveyor system and conveyor components.
