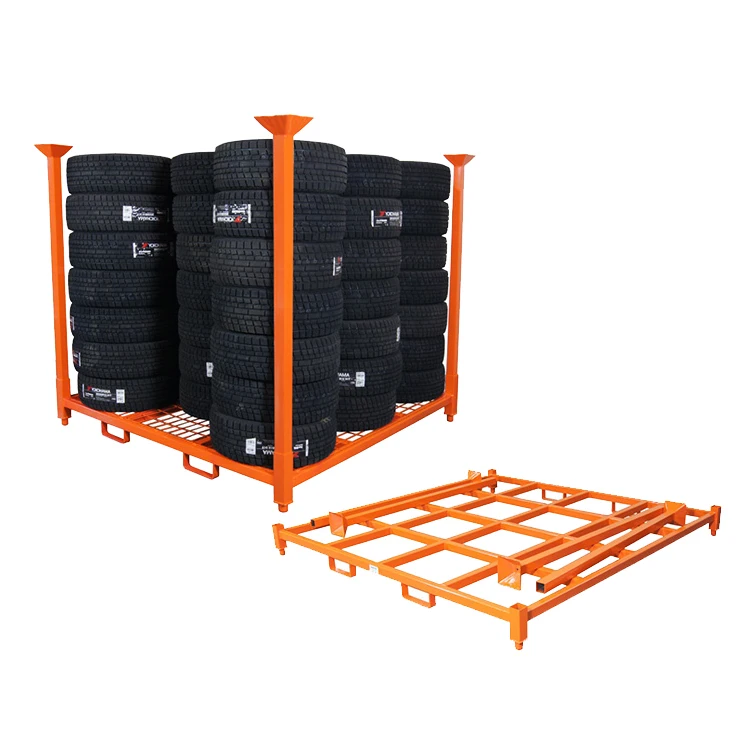

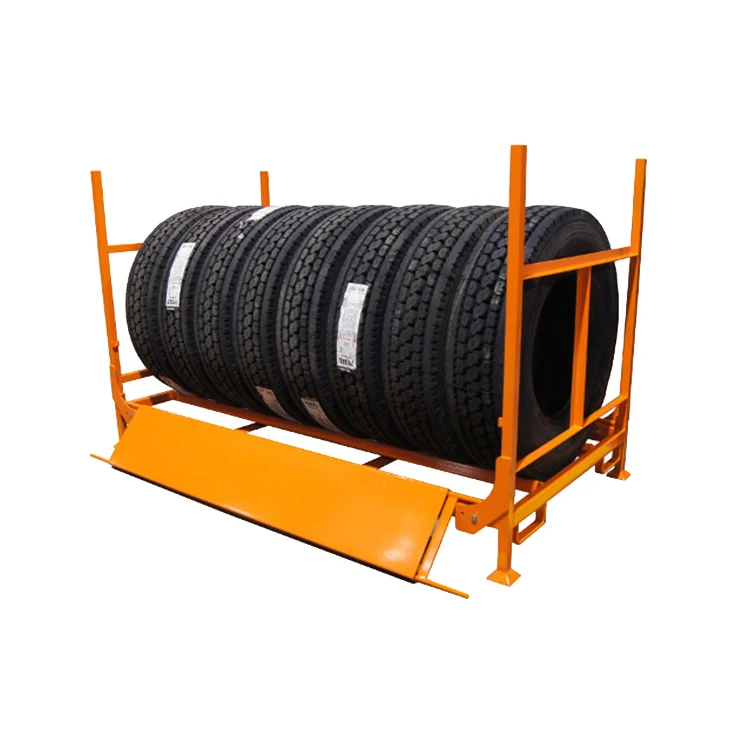

Warehouse Stackable Car Truck Metal Pallet Rack Mobile Tire Rack
- Category: >>>
- Supplier: Changchun Jida Logistics Equipment Co. Ltd.
Share on (60657254182):
Product Overview
Description
Product Description

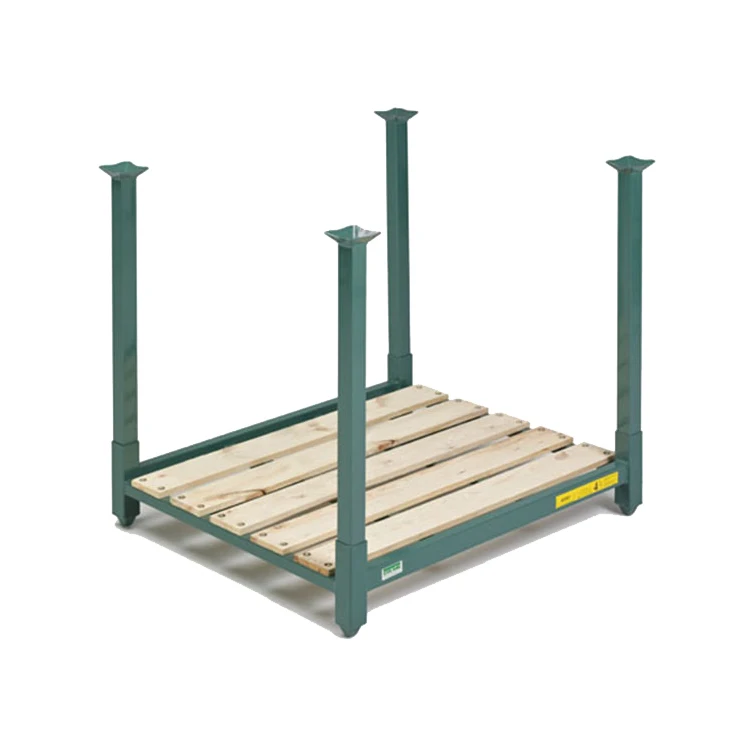

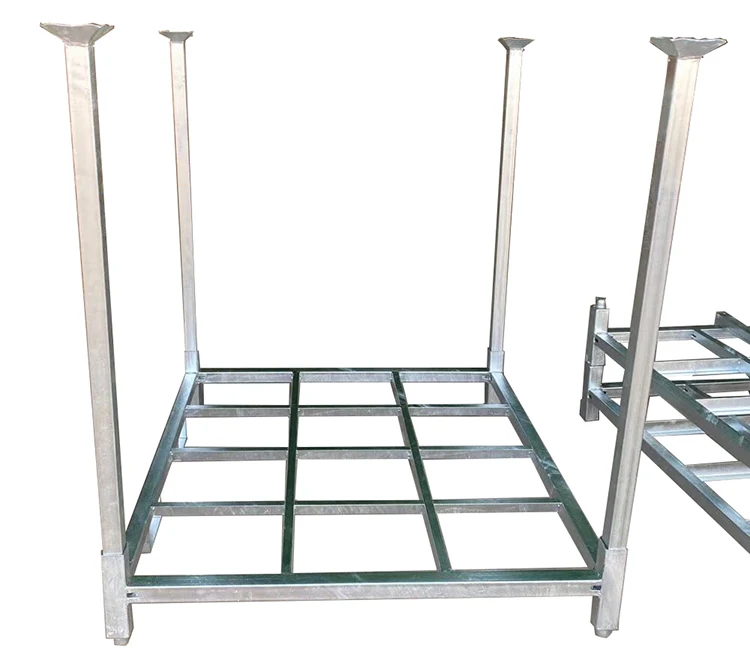

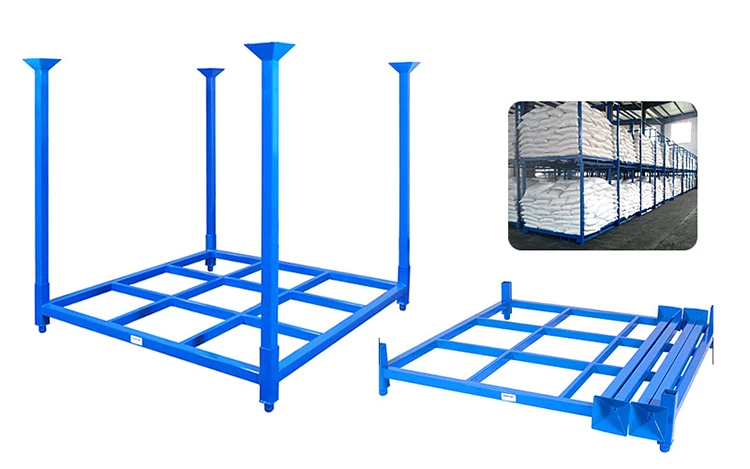

Stacking rack is mainly consist of base, four post, stacking bowl and stacking foot, often equipped with forklift hole, wire mesh,steel decking, or wooden panel.
Feature* It consists of four tubular posts, can stack 4-5 levels
* It can save space when unused
* It can be stacked and used like shelf
* Raw material use Q235B steel
* It can save space when unused
* It can be stacked and used like shelf
* Raw material use Q235B steel
Size Information
Length | Width | Height | Loading capacity | |||
500-2000mm | 500-2000mm | 700-2200mm | 500-2000kg per rack | |||
Special size or loading capacity are also available | ||||||
Main parts | Base, posts, stacking bowl, stacking foot, forklift | |||||
Can be equipped with | Wire mesh, steel decking, wooden panel | |||||

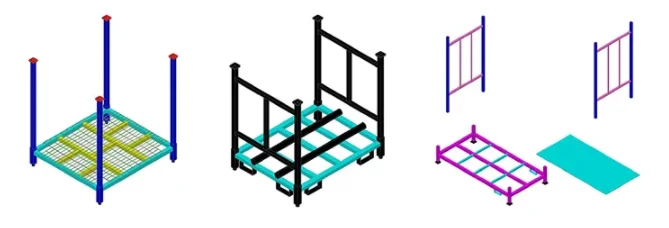

Type | Welding type, Detachable type, Collapsible type | |||||

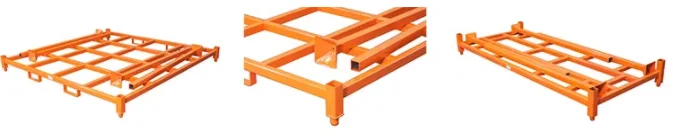

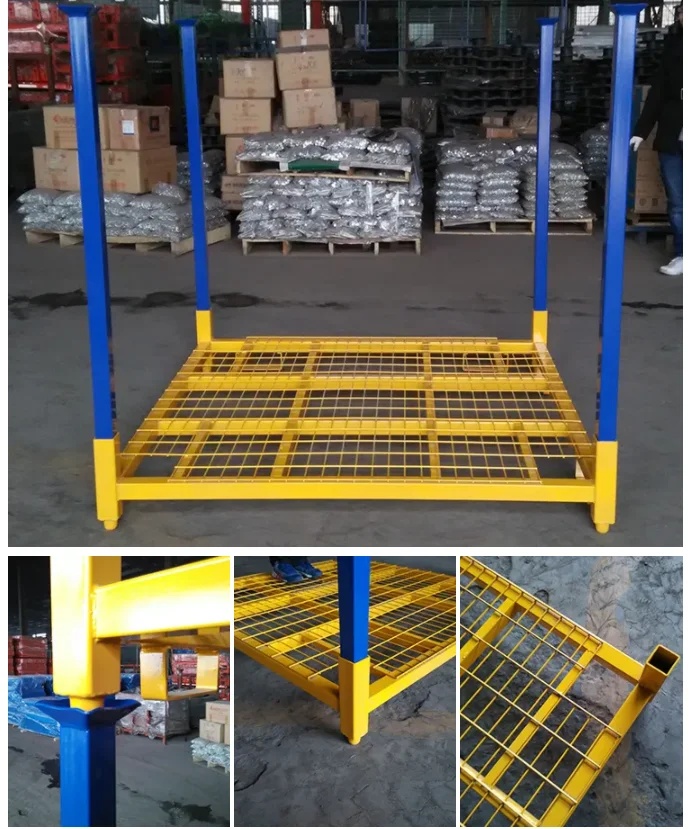

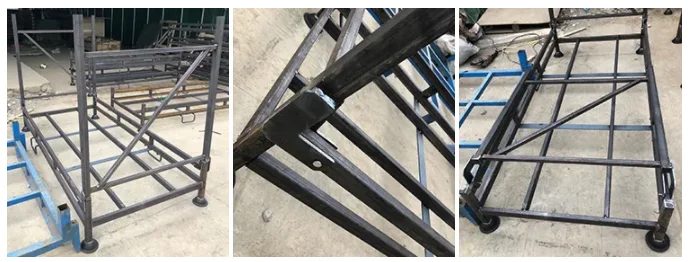

Details Images

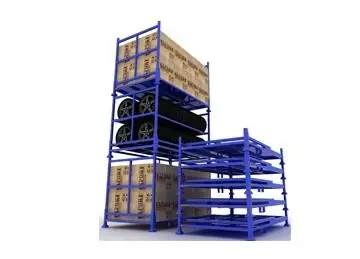

STACK RACK CHARACTERISTIC VII

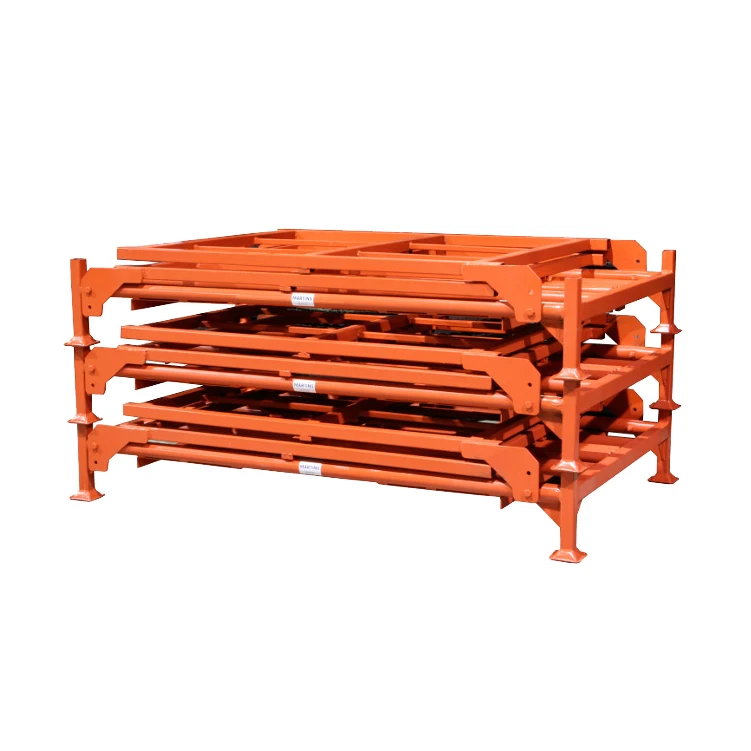

Stacking can come true whether at full or empty loading condition . It's convenient for storage and transportation.
Our Laboratory

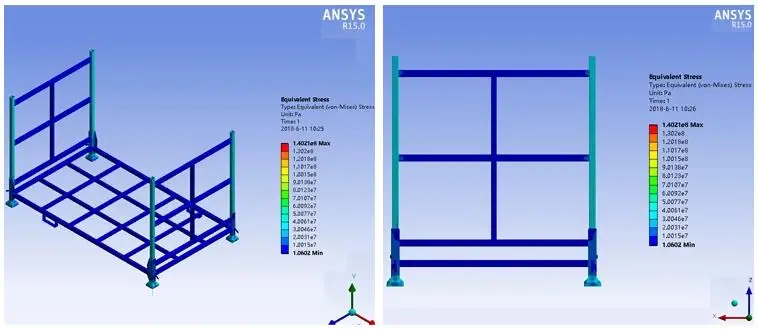

The bearing capacity of the base is 1.5 tons, and the maximum stress is 182Mpa, which is the stress concentration point. It is located at the weld joint between the support leg and the frame of the base. Most of the rest of the stress is no bigger than 40Mpa, and the allowable stress is less than 235Mpa.

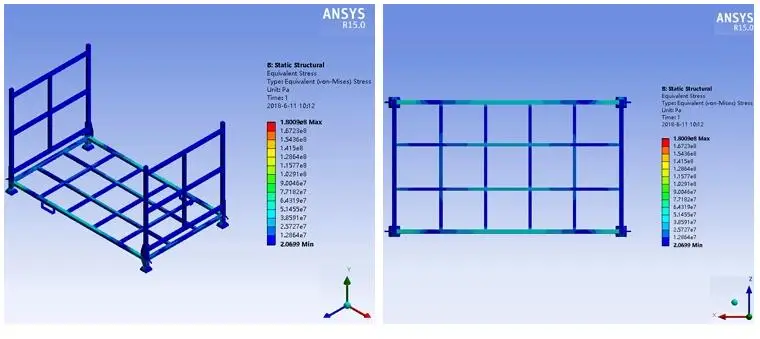

The above figure shows that under the condition of four layers of foldable stacking rack, the stress of the bottom layer foldable stacking rack column is140Mpa. The yield stress value of the material is less than 235Mpa.
Rack Usage

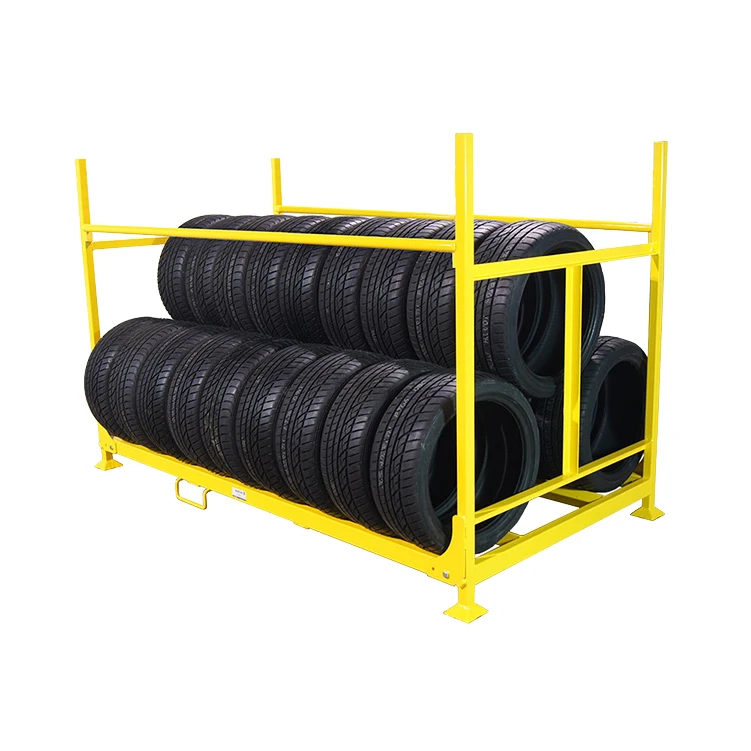

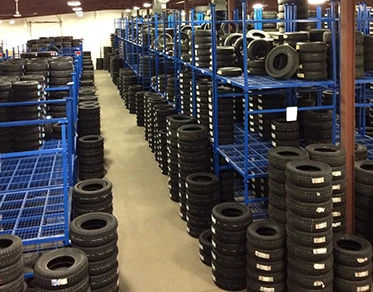

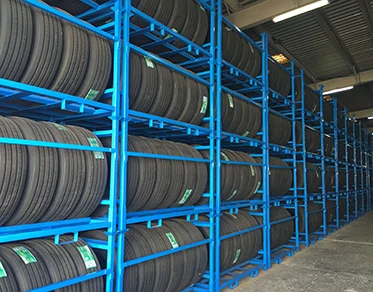

Tyre Stacking Rack
Widely used for tyre storage, we can according your tyre size and weight, design suitable solutions for clients.
Widely used for tyre storage, we can according your tyre size and weight, design suitable solutions for clients.

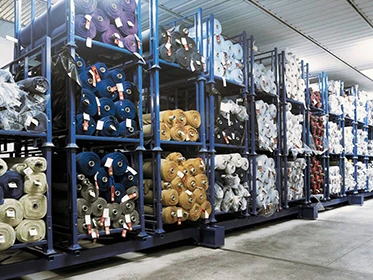

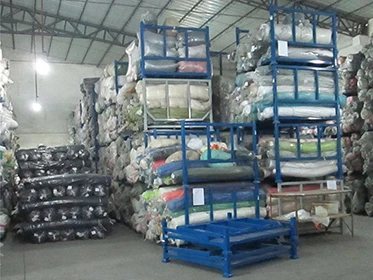

Fabric Roll Stacking Rack
Widely used for fabric roll storage, size can be custom for clients
Widely used for fabric roll storage, size can be custom for clients

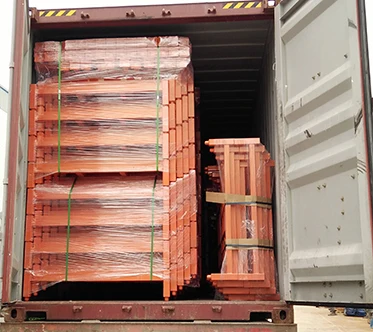

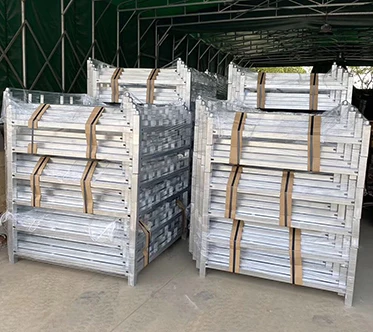

Product packaging
