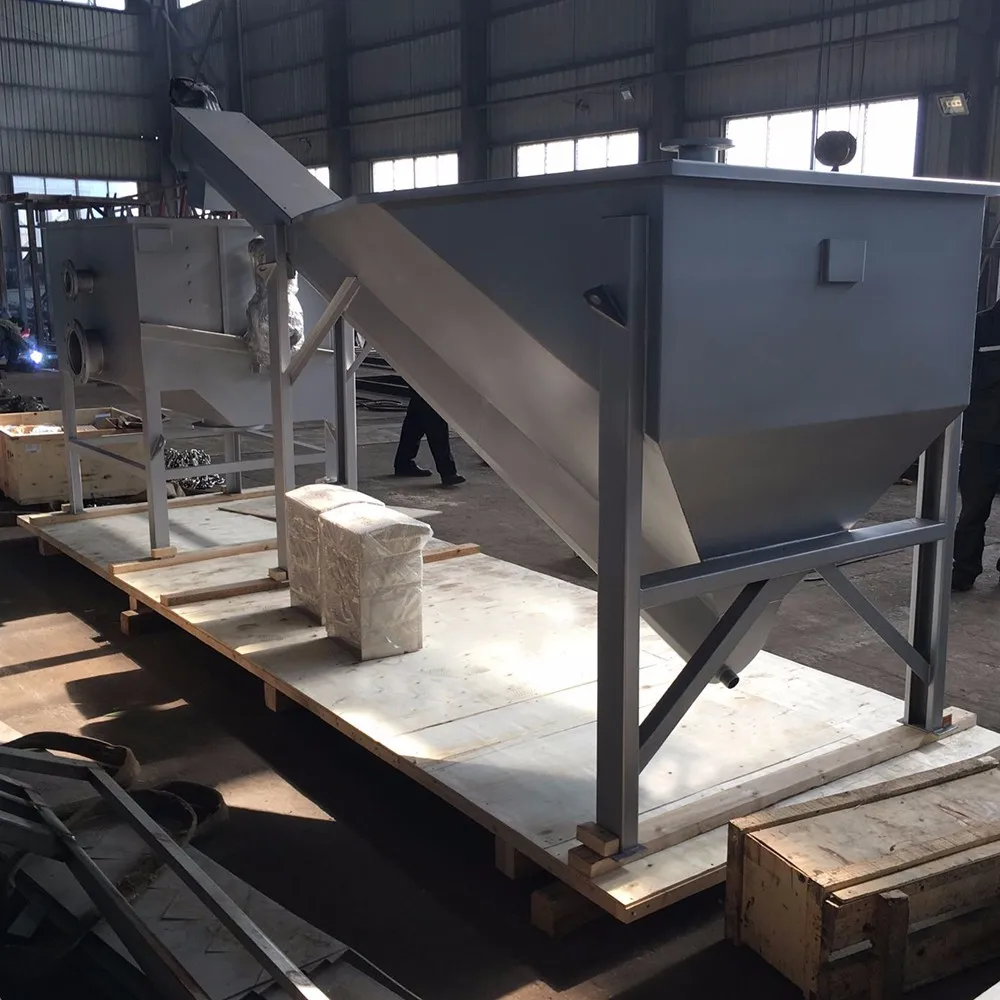

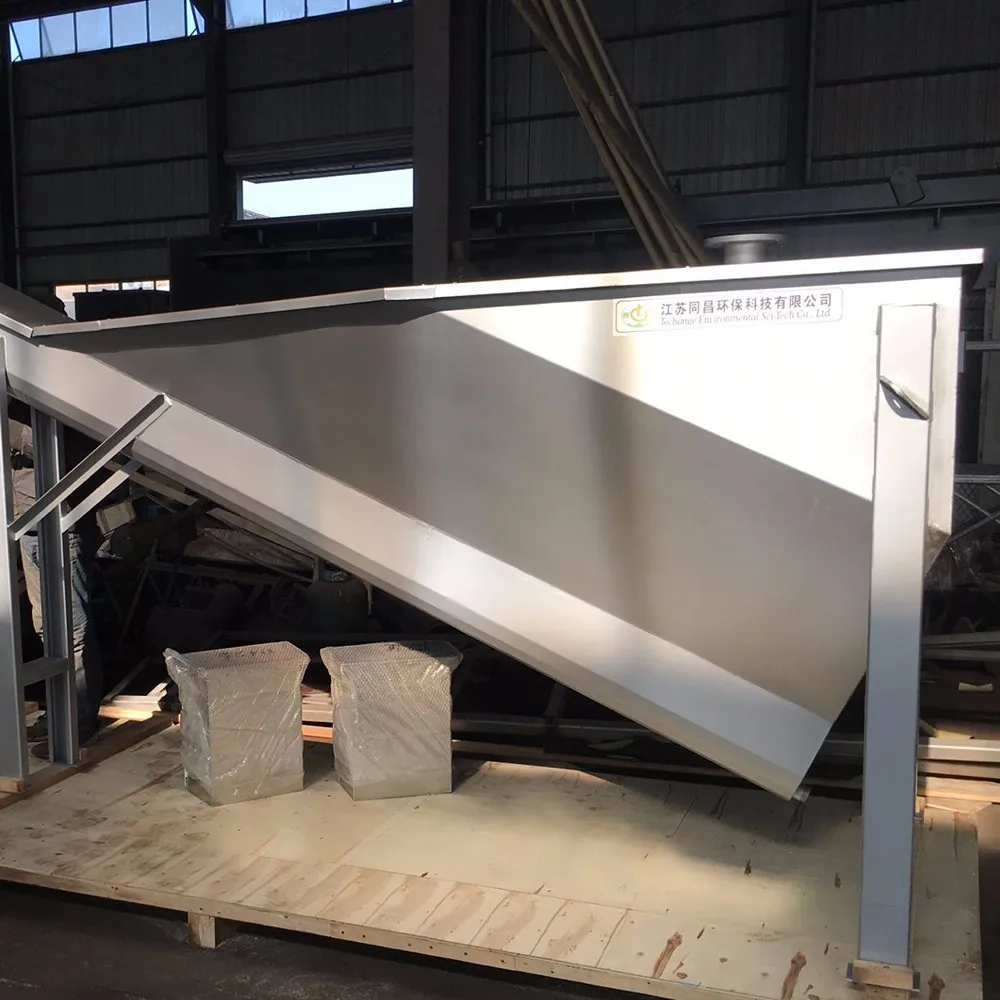

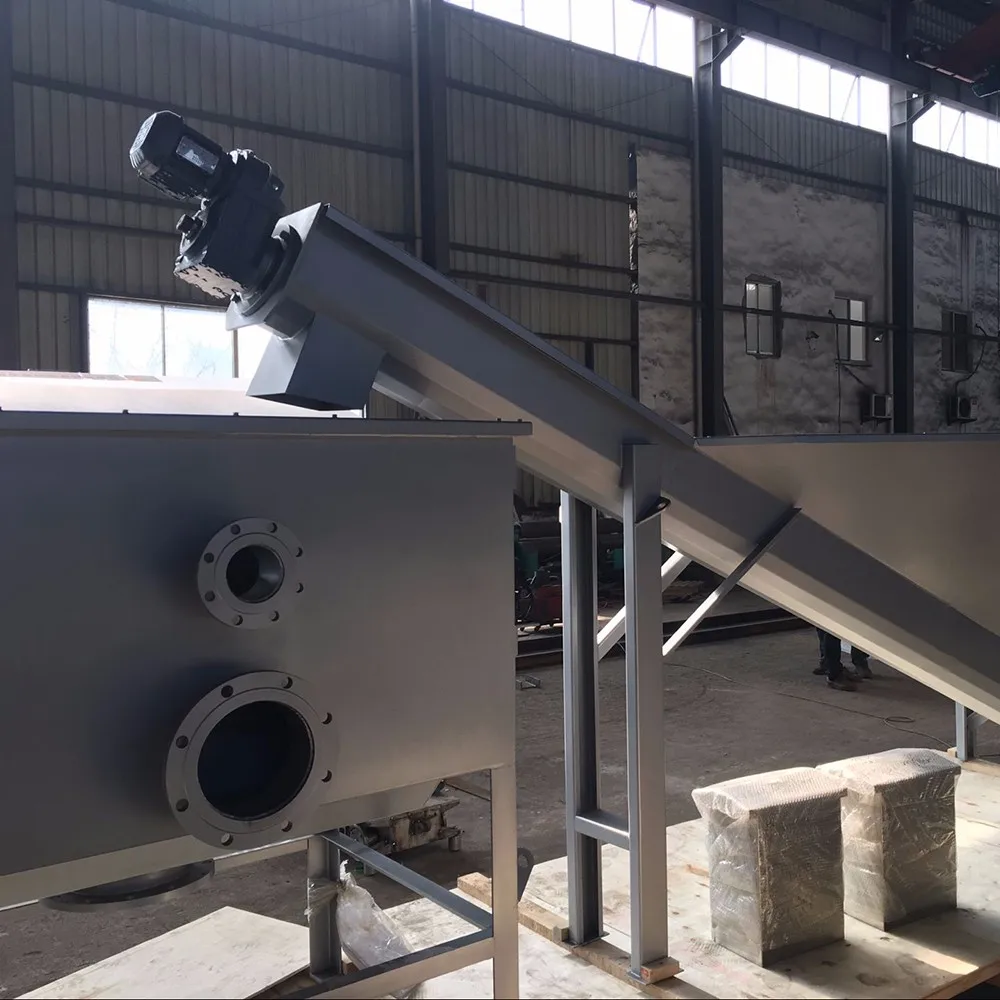

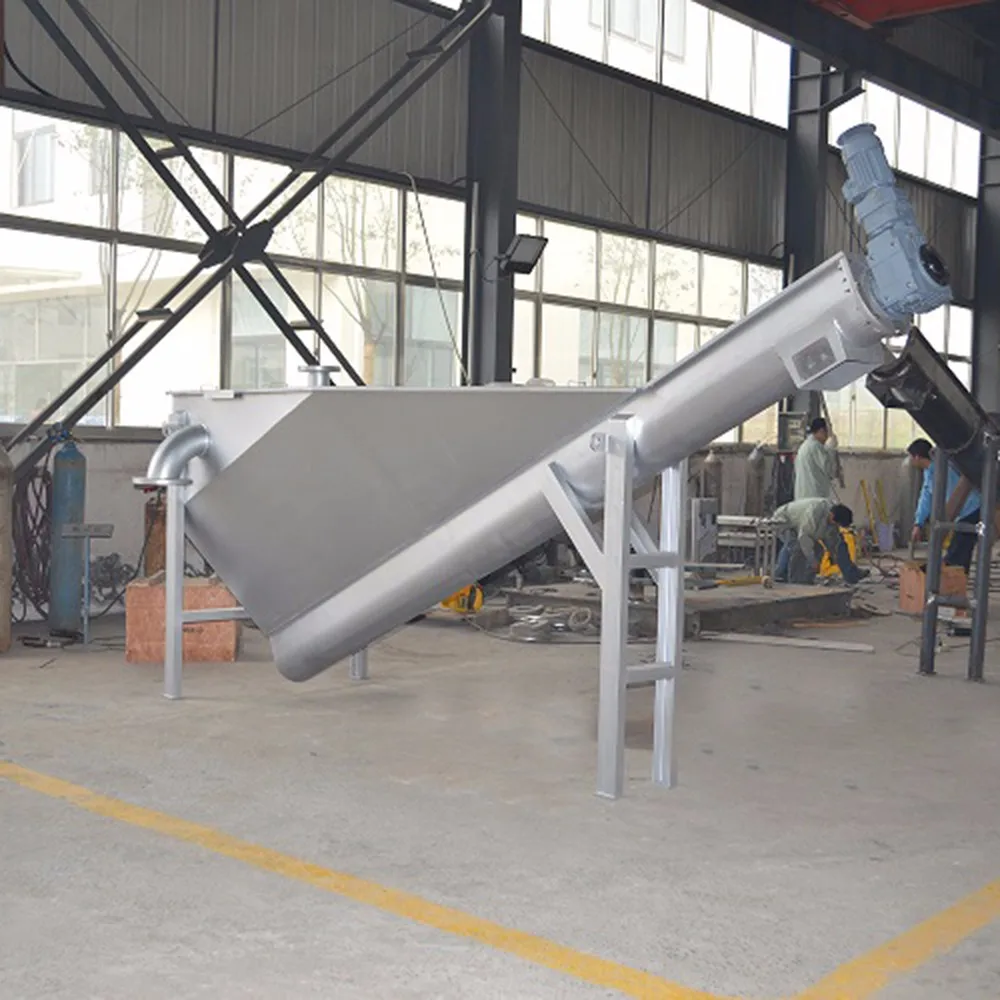

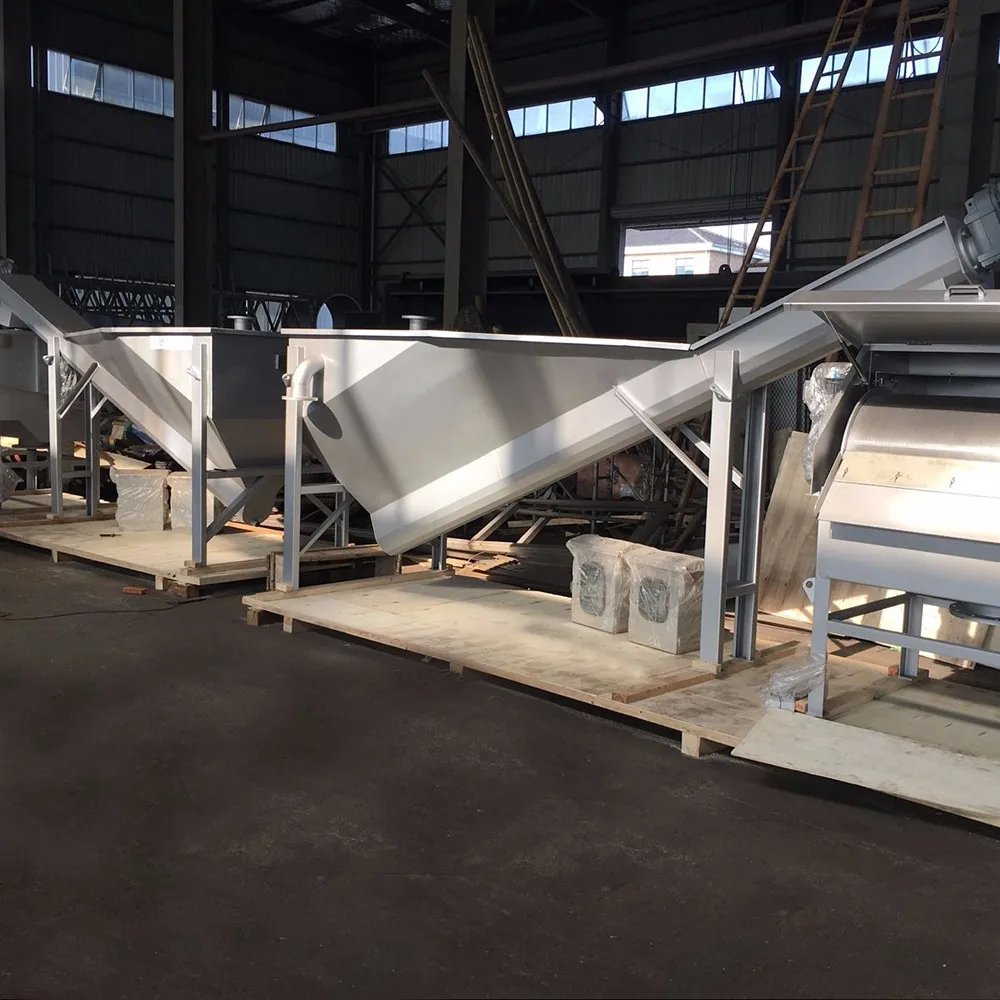

New type transmission device WSF sand water separator

Product Overview

Description

New type transmission device WSF sand water separator

Parameter Model	SF-260	SF-320	SF-360	SF-420
Diameter of Screw (mm)	220	280	320	380
Capacity (L/S)	5-12	12-20	20-27	27-35
Motor Power (KW)	0.37		0.75
RPM (r/min)	5		4.8

Specifications:

1. material: stainless or carbon steel
2. capacity: 15-35L/S
3. speed: 4.8r/min
4. power: 0.37-0.75kw



Product Features:

1.  Separating efficiency can reach to 90-98%, can separate the sand that diameter greater than 0.2mm.

2.  Use shaftless spiral, without underwater bearing, convenience to maintenance.

3. Structure tightly and light weight.

4. New type transmission device, the key unit-reducer is advanced shaft device.

5. Stay tape is fast loading type, convenience to exchange.

  6. Spiral shaft device can be changeable, convenience to exchange the safe gap.
