Fulree 24V DC to 19V DC 5A 10A 15A Buck Step Down Converter Car Laptop Notebook Computer Power Supply Adapter
- Category: >>>
- Supplier: Shenzhen Fulree Electronics Co. Ltd.
Share on (60657342322):
Product Overview
Description

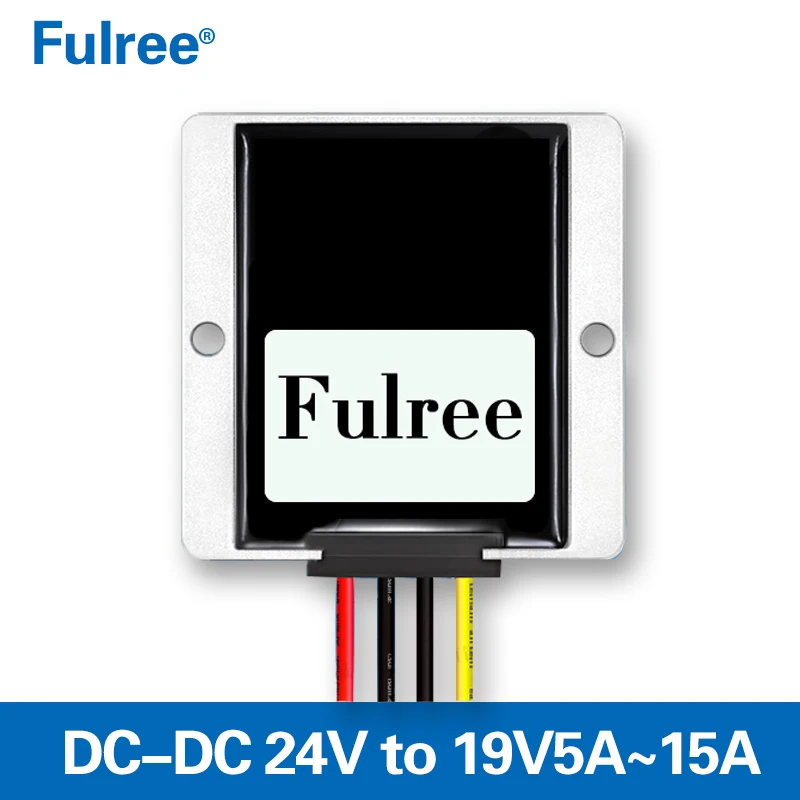

Fulree 24V DC to 19V DC 5A 10A 15A Buck Step Down Converter Car Laptop Notebook Computer Power Supply Adapter
| Model | 241905 / 241910 / 241915 |
| Input rated voltage | DC 24V |
| Input voltage range | DC 22-40V |
| Efficiency | 96% |
| Output voltage | DC 19V |
| Output current | 5A / 10A / 15A Max |
| Output rated power | 95W / 190W / 285W Max |
| Voltage regulation | < 1% |
| Load regulation | < 2% |
| Working temperature | -40°c ~+80°c( If ambient temperature exceeds 40°c, lower power use, or to enhance heat dissipation) |
| Module Properties | non-isolated buck module(buck) |
| Rectification | synchronous rectification |
| Waterproof rating | IP68 |
| Full load temperature rise: | 50°c |
| Protection | Over-current, Over-temperature, Short-circuit protection,Instant absorption of high voltage protection Auto-recovery when device is back to normal operating, waterproof IP68 design, anti-shock protection |
| Input Reverse Polarity Protection | None (Please Series diode at the input port.) |
| NW | 280G |

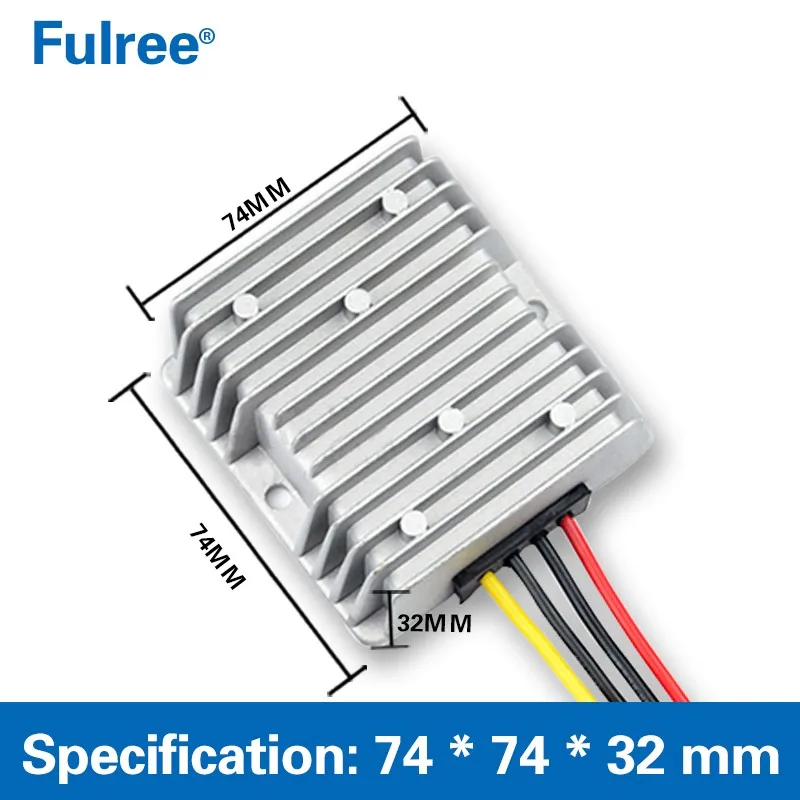

| Product size | 74*74*32MM |
Other output current option for 24v to 19v | 5A, 15A(pls contact with our sales manager if need) |
Attention: >Pls install according to the the label strictly,positive pole and nagative pole can’t be reversed, or the module and device might be damaged | |
