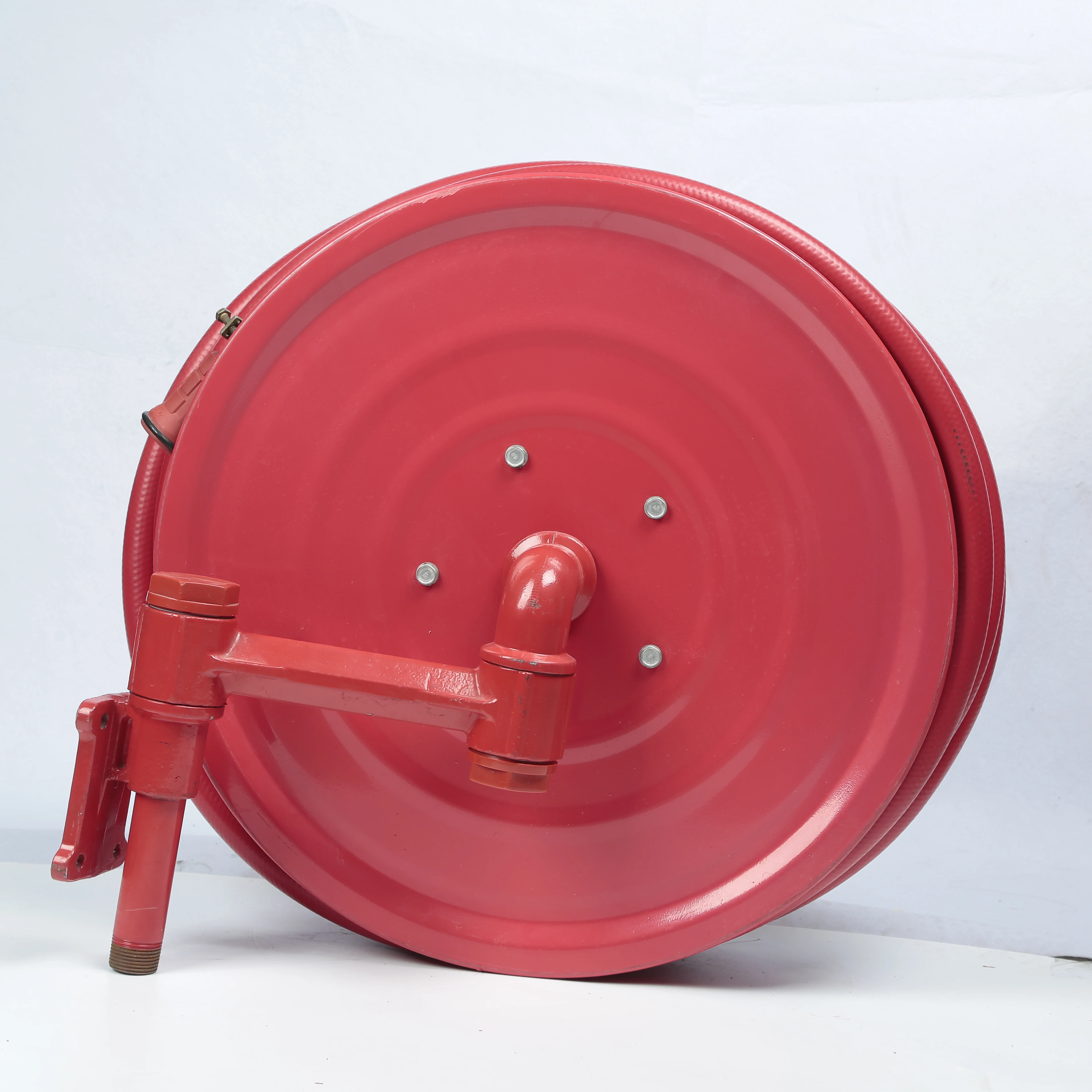

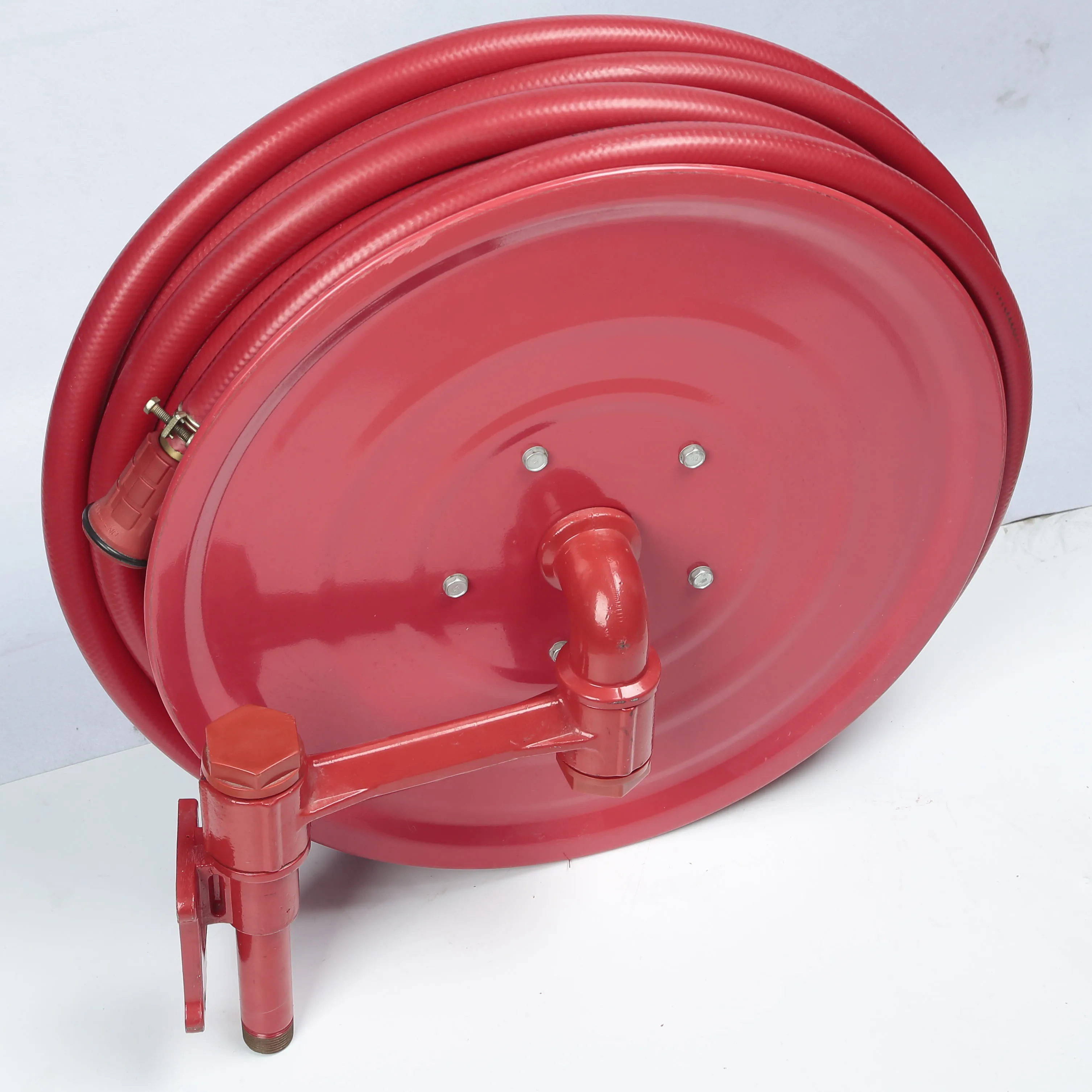

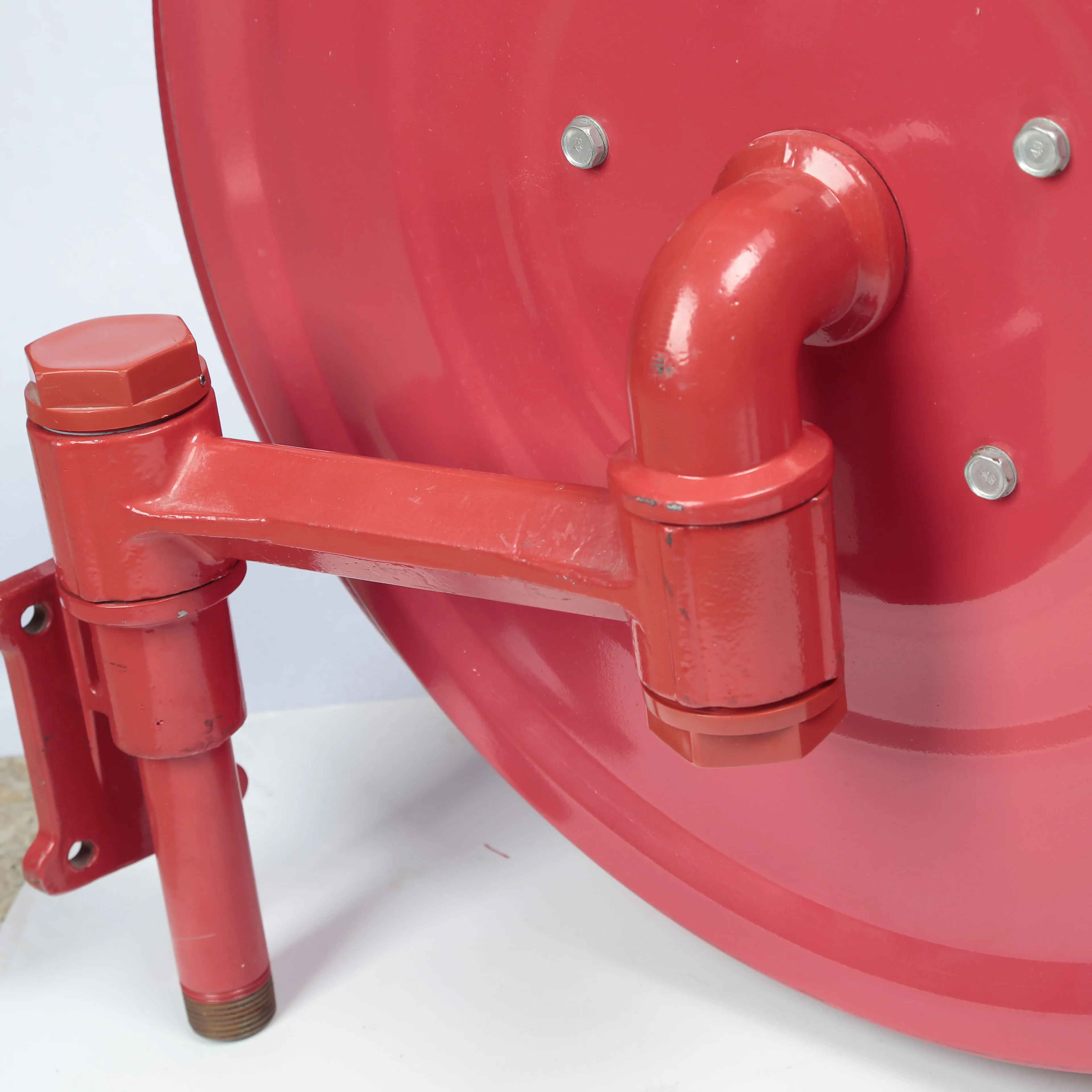

Swing type Fire Hose Reel,fire hose reel price for fire hose reel cabinet,fire fighting hose reel

1. Product Display:

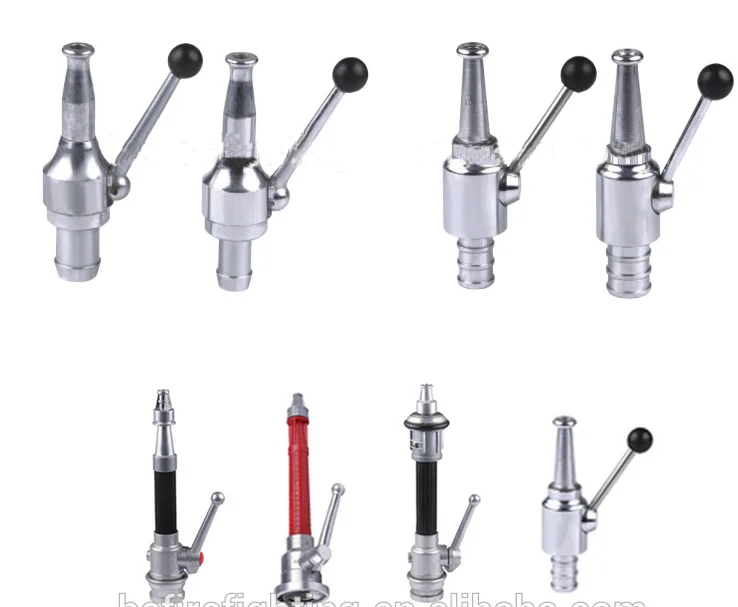

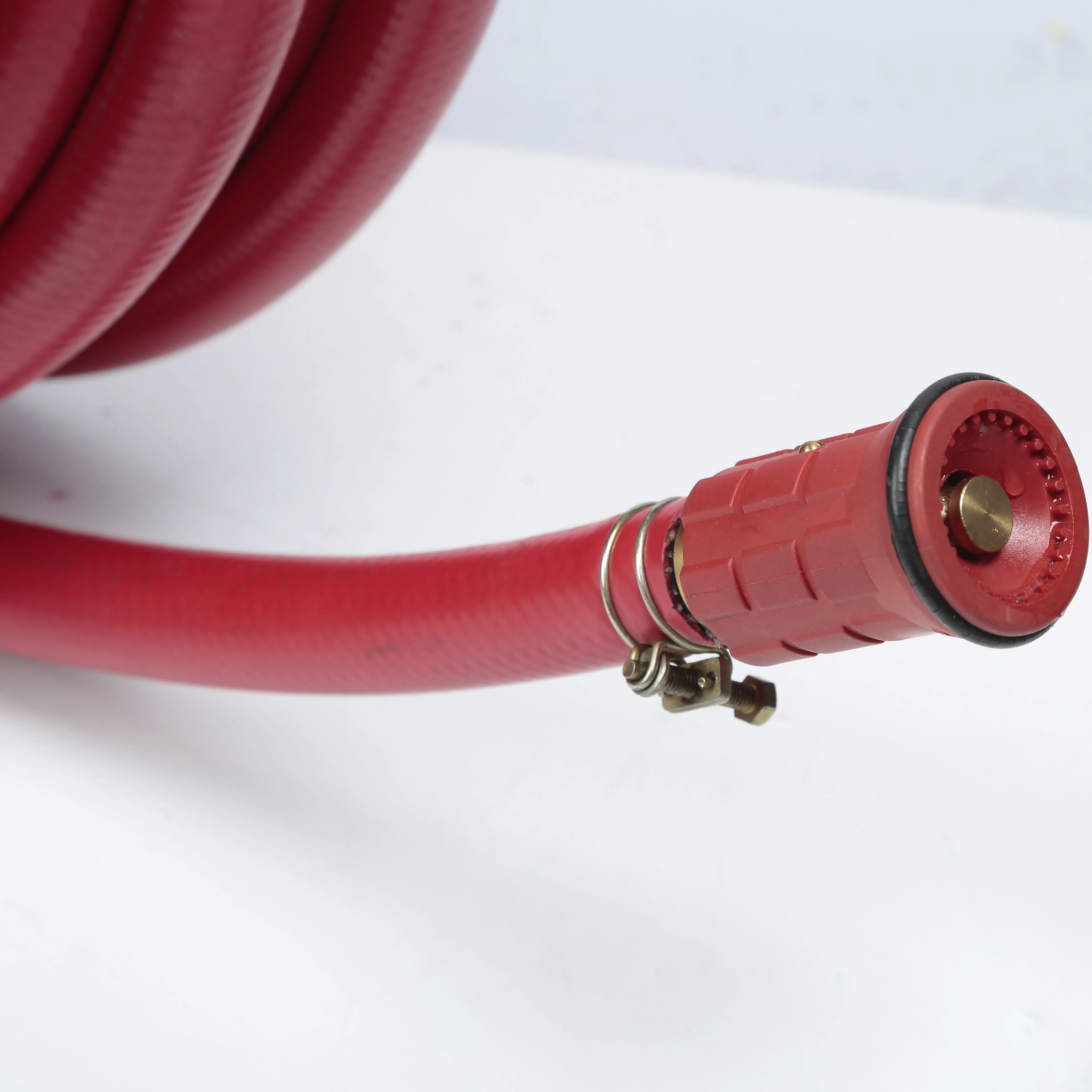

    The JPS type fire hose reel is mainly composed of input line, split pin, fixed axis, turn the arm, water supply pipe joint, o-ring, hoses, hollow shaft, baffle, the support core frame, bend, spray gun, etc, with water as the fire extinguishing agent, can be in the process of the hose on fast jet extinguishing fire extinguishing apparatus.Generally installed in indoor fire hydrant box, suitable for shopping malls, hotels, buildings and other public places to install, is a new type of indoor fixed consumption device.

3.Technical Parameters:

1. Model : JPS

2. Rated Working Pressure : 0.8MPa

3. Jetting Test Pressure : 0.4MPa

4. Jetting Length : More than 6m

5. Flux : More than 24L/min

6. Hose Size : 3/4 Inch, 1inch

7. Hose Material : PVC

8. Hose Length : 20m, 25m,30m

(1)  Lay the hose straight and flat on the ground.(2)  Fold the hose in half laying flat on the ground so that the couplings are together one above the

      other. One half is now laying flat on top of the other half.

(3) Roll the hose on the reel, beginning at the folded end that does not contain the couplings. You

      should end with a nozzle and a female coupling.

(4) Attach female coupling to water source so hose is ready for immediate use. Hose must be

     unrolled  before water valve is opened.
