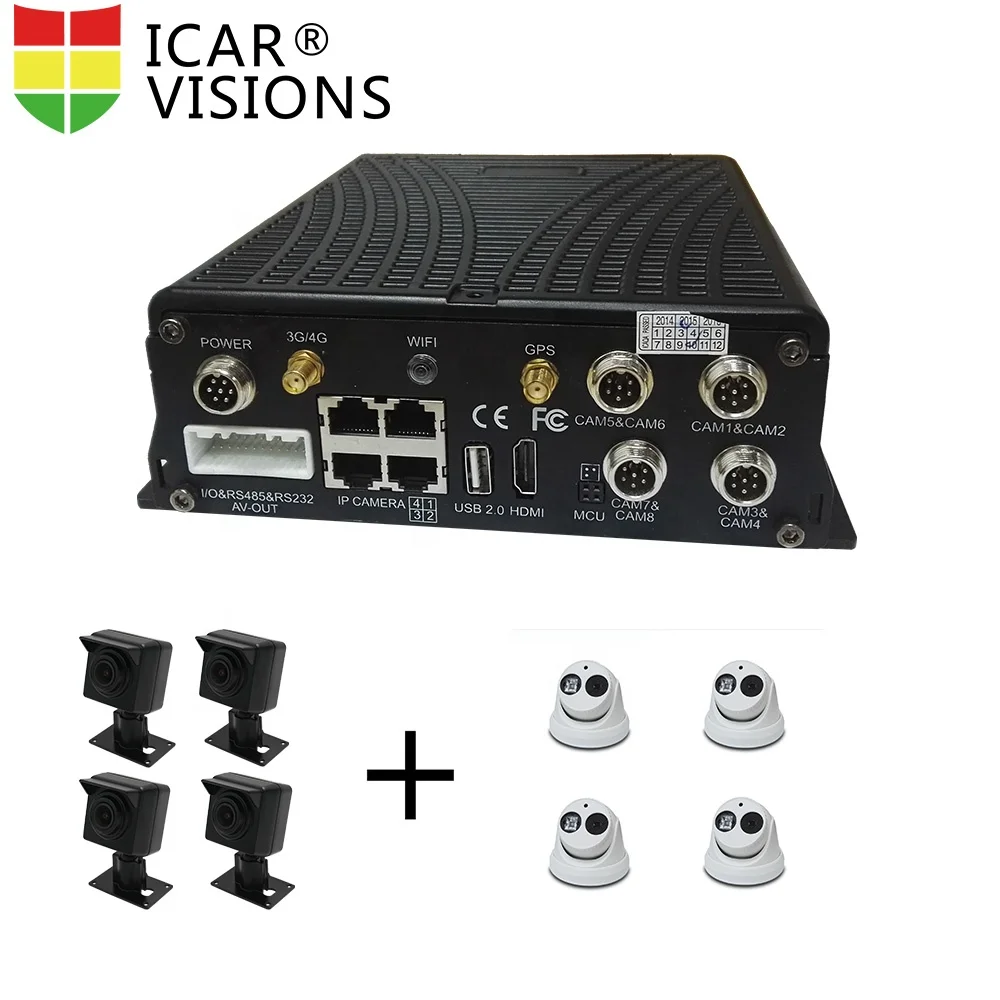

High quality 2TB HDD 4G network GPS wifi output full hd 1080P vehicle blackbox dvr
JH8-HYBRID-GFW (GPS + 4G FDD +5.8G WIFI)
★8 x 960H / D1 / HD1 / CIF + 4 x IPC(720P) ★Built-in Switch 4 x POE(12V) Ethernet Ports
★ accept HDD/SSD up to 2 TB Storage, and 1 SD card (up to 128GB) for backup（at 3G/4G/Wi-Fi model option） ★ Internal G-Sensor, with GPS, 4G FDD and Wi-Fi (5.8 Ghz) ★ 2 WIFI Antennas (download speed up to 3Mb/s) ★ Anti-Vibration and Anti-Shock under acceleration of 40G ( MIL-STD-810G standard) ★ Hard drive automatic heating startup in cold weather ★ On board UPS 8 seconds delay power-off for data protection ★ Operating temperature -40℃ ~ +80℃ ★ 8V-36V wide voltage power supply
Our Mobile DVR with 3G / 4G, GPS, WiFi modules optional, according to different demands. GPS: For map, location and route tracking 3G / 4G: For real-time video and monitoring Wi-Fi: For automatically downloading video file
JH8-Hybrid series model names:
Model Name
JH8-Hybrid-NNN
JH8-Hybrid-GNN
JH8-Hybrid-GNW
JH8-Hybrid-GWN
JH8-Hybrid-GWW
JH8-Hybrid-GFN
JH8-Hybrid-GFW
Details
N/A
GPS
GPS WIFI 5.8G
GPS 3G(WCDMA)
GPS 3G(WCDMA) WIFI 5.8G
GPS 4G FDD
GPS 4G FDD WIFI 5.8G
Function
JH8-Hybrid
System
Language
English / Chinese
Operation Interface
Graphical User Interface (OSD menu)
Password Security
2 Levels: Administrator & User
Video
Video Input
Supports 8 channels CIF/HD1/D1/960H camera Video input Supports 4 channels 720P / 2 channels 1080P IP camera Video input Supports 4-CH 720P IPC + 8-CH 960H/D1/CIF Video input
Internal GPS module. Real-time geographic coordinates, speed information
G-Sensor
Internal G-Sensor
Supports 3 Axis Motion Detection with user set ranges, for X, Y and Z coordinates
Software
PC Playback
A/V, GPS, Mapview, Speed, G-Sensor, etc. files available for playback on PC. Limited playback is also available on MDVR
IVMS
Wireless (require Wi-Fi or cellular Option) real-time A/V monitoring, GPS, alarms, etc.
Software Upgrade
Local or Remotely
Upgrade through the front USB2.0 or remotely via IVMS platform
Voltage Input
+8～+36V
8～36VDC Please check operational voltage of vehicle prior to the installation of the MDVR and its accessories to prevent possible damage
Voltage Output
12V
12V（+/-0.2V），Max 3A
ACC Detection
≤4V
Power Off
≥6V
Power On
Video Input Resistance
75Ω
75Ω
Video Output Voltage
2Vp-p
2VP-P CVBS output analog signal, screen input requires 75Ω resistance
I / O port
<1V
Low voltage trigger
>5V
High voltage trigger
Operation Temperature
-40℃～80℃
Install in well ventilated area, protected from moisture, heat, dust and vibration
Dimensions
192x184x 61mm
Including Security Cover 248x184x61mm

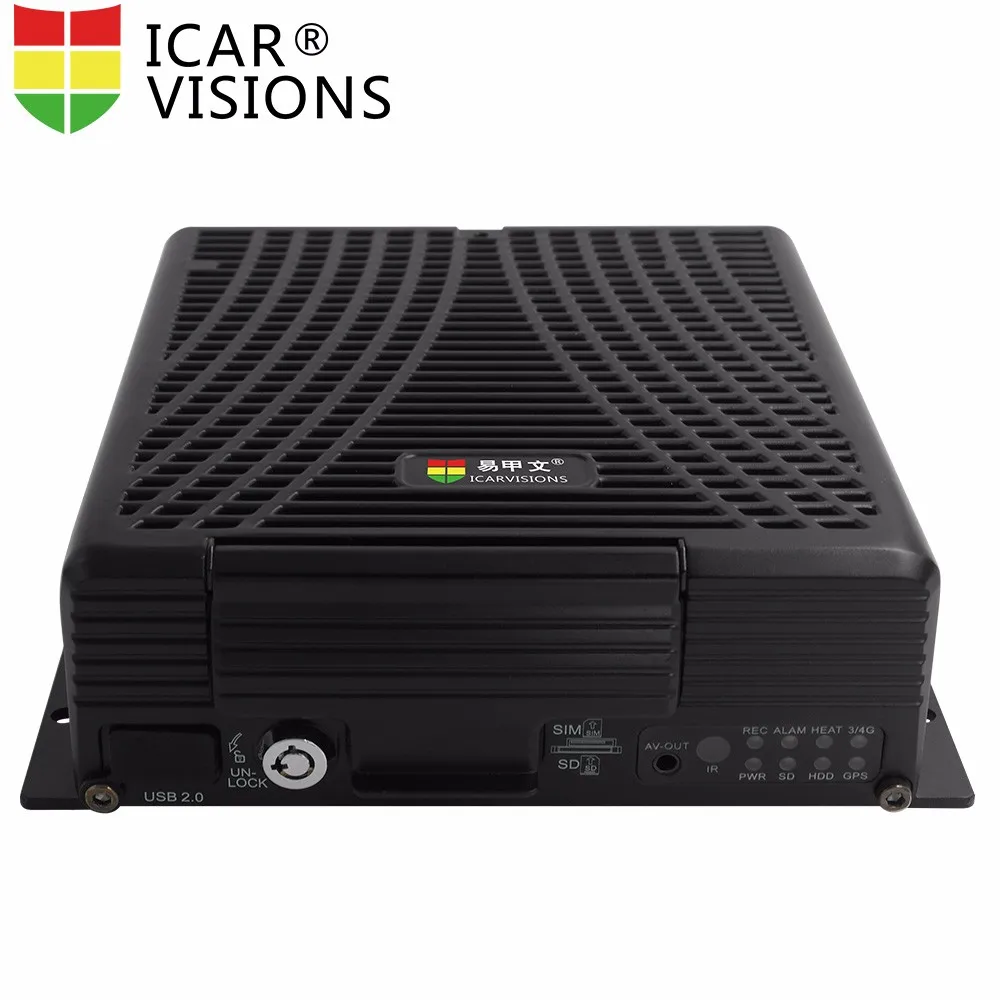

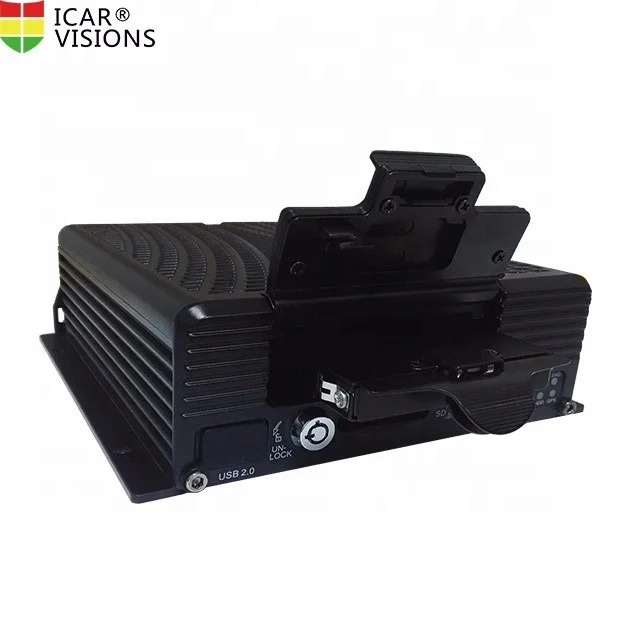

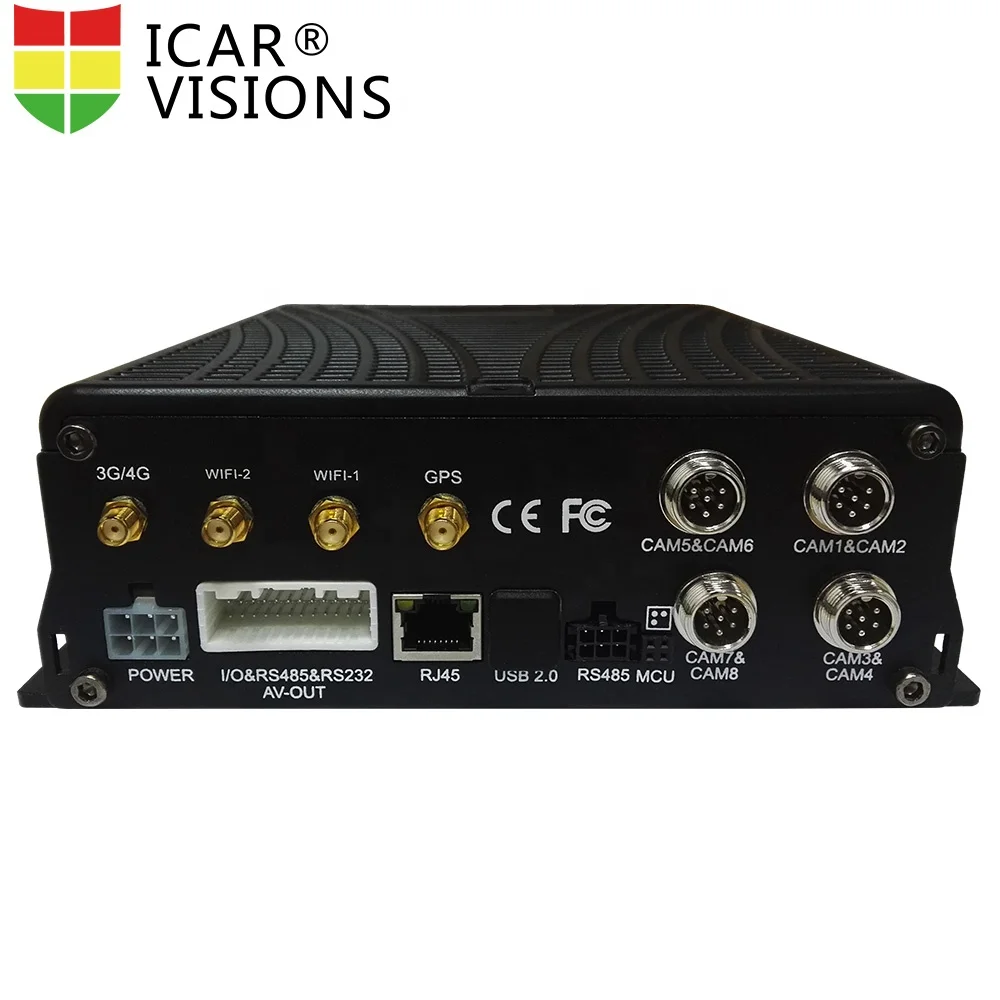

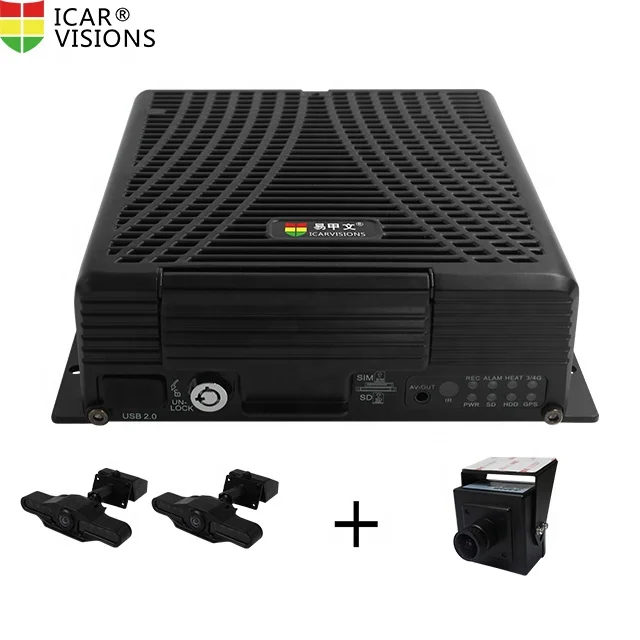

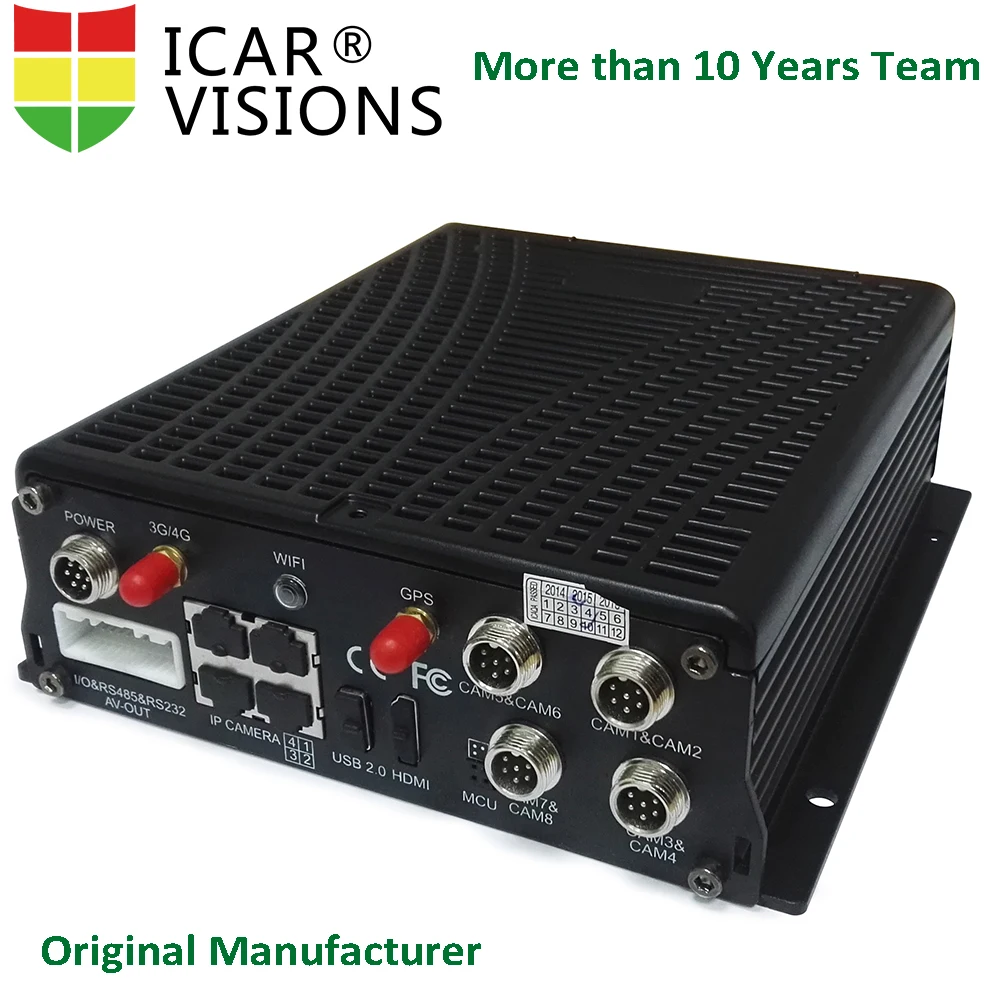

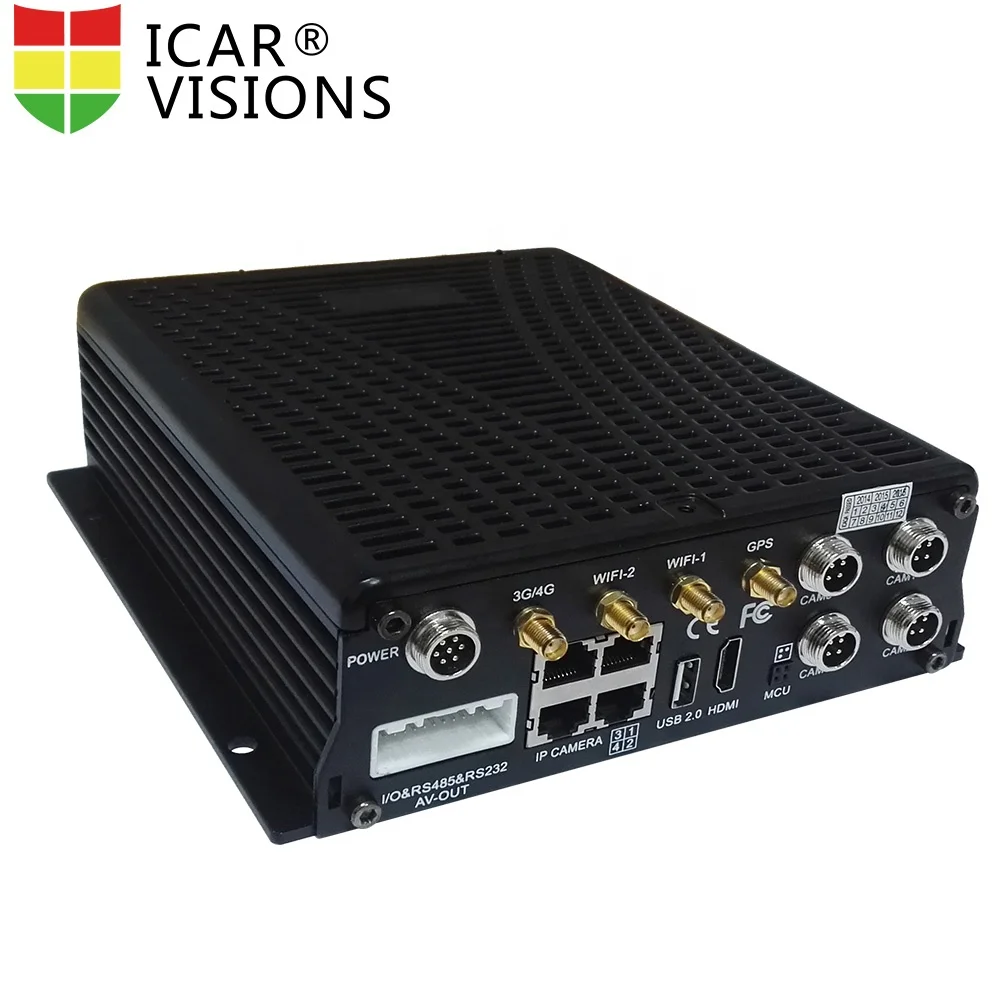

Detailed Images
Standard Package including:
Mobile DVR
Remote Control
I/O alarm cable 24pins
A/V output cable
Power cable
GPS antenna
Security cover
Keys
3G/4G/WiFi anternna optional
Optional Accessories which able to add with MDVR
Intercom Speaker
7" LCD Monitor
Panic button for driver
Ultrasonic fuel sensor
Temperature sensor
Non-contact RFID reader
Fireproof black box
Fatigue driving alarm sensor
UPS
Related Products
Customized IVMS Server,Client and APP are all available,which developped by ourselves.
ICARvisions is a solutions based, global leader specializing in vehicle related hardware and software design, manufacture and deployment of Mobile Digital Video Recorders (MDVR), Mobile Network Video Recorders (MNVR) and Sensors, Cameras, Cables, and Accessories.And we have a strong RnD team so we have developped our own server and software for any OEM & ODM projects.
Intelligent Vehicle Monitoring System Server --IVMS Server
Users have the option of deploying 1 or 2 of the 7 Functional Servers stated above such as, Login Servers, Multiple Gateways Servers, Multiple Media Streaming Servers, Multiple Users Management Servers to provide Mobile DVR and Remote Client Services and features as GPS Location, Video and Alarms. Description of Main Functional Servers Database Server Login Server Gateway Server Media Server User Server Storage Server WIFI Download Server Web Server
Through this platform, wireless remote real-time video monitoring, GPS map positioning, historical track playback, voice intercom, alarm linkage, remote video recording, remote video downloading,remote video playback, equipment area management and remote upgrading can be realized.
Intelligent vehicle monitoring system --WEB Client
Web client supports uers to check: Mileage Report
Speed report
Online Summary
IO Alarm Report
Driver Behavior
Temperature Alarm
Alarm Report
Storage Media Report
Upgrade Report
Fuel report
Park Report
Dispatch Report--TTS Detail
"ICarView" APP for Android&IOS system
User-friendly and easy control intergace,the ICarView APP help users to remote check: Real-time video
GPS tracking
vehicle movement histroy playback
Speed information
Specific video research
Playback
Snapshot
Other functions
Our Company
ABOUT ICAVISIONS
ICARvisions was established by a group of senior R&D software and hardware engineers who have specialized in MDVR development internationally for over 10 years with one goal in mind; we are a solutions based, global leader specializing in vehicle related hardware and software design, manufacture and deployment of Mobile Digital Video Recorders (MDVR), Mobile Network Video Recorders (MNVR) and Sensors, Cameras, Cables, and Accessories.
Contact us today for a comprehensive solution tailored to your company’s need.
Certifications
Our Service
Free Service for technical support, OEM and ODM service
As our customers, you will always provided you with best services, which including ---One to one free technical support, ---Free repair to our faulty manufacture products during the warranty (MDVR WARRANTY PERIOD :15 MONTHS; CAMERA WARRANTY PERIOD: 12 MONTHS) ---Free and fast upgrade on software, ---OEM cooperation on customized requirement ---Confidential agreement
Since we are the original designer, developer and manufacture of our MDVR, also we design and develop all our software, we have the core original source code of software in hand, so we can add and change any new function on hardware and software flexibly if there is any demand on your OEM project.
FAQ
How to order from us 1. Please confirm the model numbers and quantities that you would like to purchase to our sales person, or email to us. 2. We will send you a Proforma Invoice to specify net cost of mentioned goods and other relevant charges once you confirm the order. 3. After you arrange the payment and send us your bank slip, we will put your order down to production, and let you know the ready date in 2 days. 4. When the goods are finished, we will send them by air express, or by sea, or other available shipping methods appointed by customers, and let you know the tracking number and estimated time of arrival.
Payment Terms: T/T, 1. Under T/T, there will be USD35.00 bank charge for each individual remittance. 2. If order value less than 10,000USD, we should get 100% payment before production; If order value more than 10,000USD, we accept 40% deposit before production and the balance should be paid off before delivery.
Lead Time Normally 1~15 working days based on order quantity.
Technical Support We have ONE to ONE FREE technical support after you take the goods, and if you have any question for the technology of our products, please email to us, reply will be sent to you immd;
