Fulree 12V to 24V 10A 240W DC DC Boost Converter 12 Volt Step Up to 24 Volt 10 Amp 240 Watt Regulator 12Vdc to 24Vdc

Share on (60657443437):


Price:6,75 US$ - 7,75 US$

Quantity:


Product Overview

Description


Fulree 12V to 24V 10A 240W DC DC Boost Converter 12 Volt Step Up to 24 Volt 10 Amp 240 Watt Regulator 12Vdc to 24Vdc



Product Overviews























































































ModelF12S24V10A5L (Old: 122410)
Input rated voltageDC 12V
Input voltage rangeDC 10-20V
Efficiency96%
Output voltageDC 24V
Output current10A Max
Output rated power
240W Max
Voltage regulation< 1%
Load regulation< 2%
Working temperature

-25°c ~+65°c( If ambient temperature exceeds 40°c, lower power use,


or to enhance heat dissipation)


Module Properties

non-isolate module


Rectificationsynchronous rectification
Waterproof rating
IP68
Full load temperature rise:45°c
Protection

Over-current, Over-temperature protection


Input Reverse Polarity ProtectionNone (Please Series diode at the input port.)
NWapprox 280G

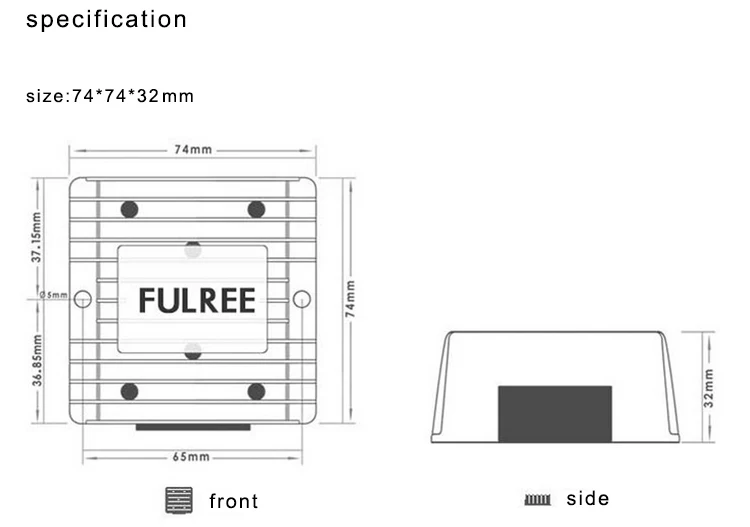

Product size 74*74*32mm

Other output current


option for DC 12V to 24V


2A/3A/5A/8A/12A/15A/20A(pls contact with our sales manager if need)

Attention:
>Pls install according to the the label strictly,positive pole and nagative pole can’t be reversed, or the module and device might be damaged
>To assure this converter has the sufficient voltage and power pls make sure the voltage and power input is enough.

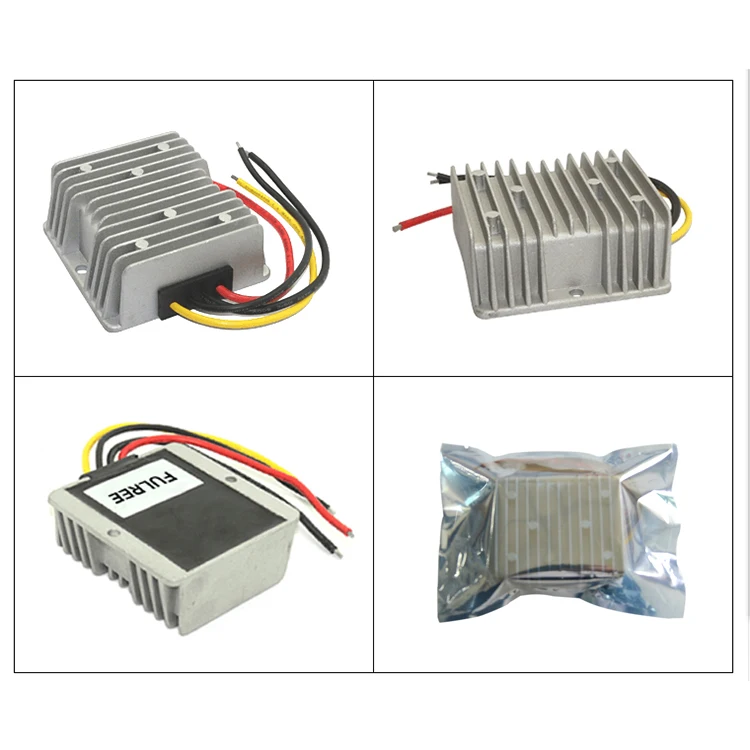

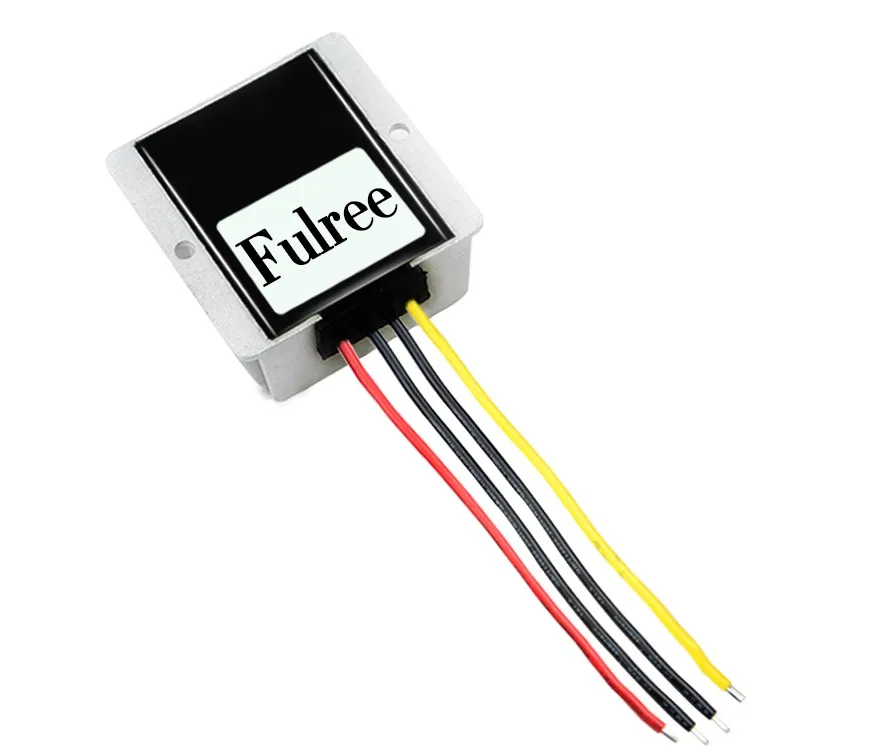

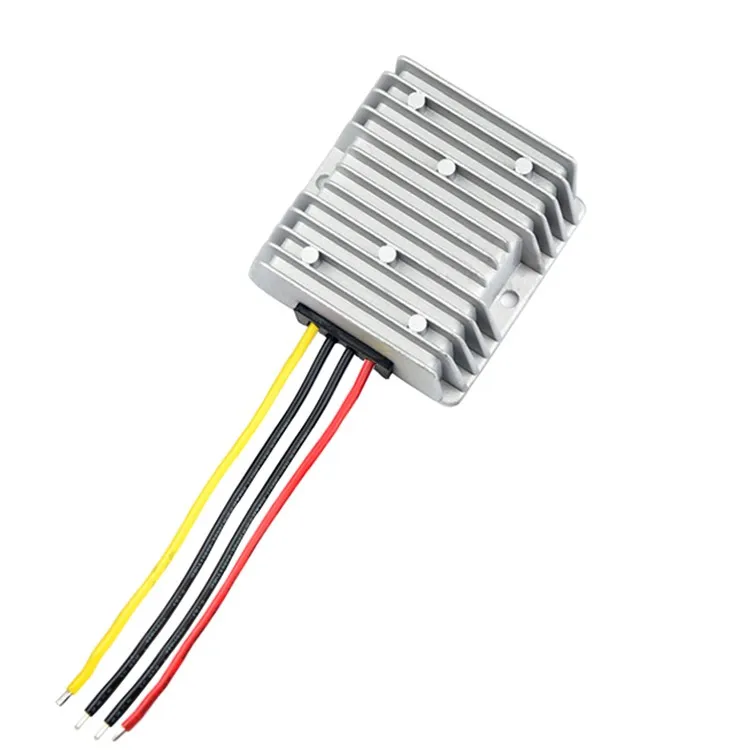

Product Picture
