Individual monocrystalline solar cell production line from chinese manufacturer

Product Overview

Description

                       Product Description

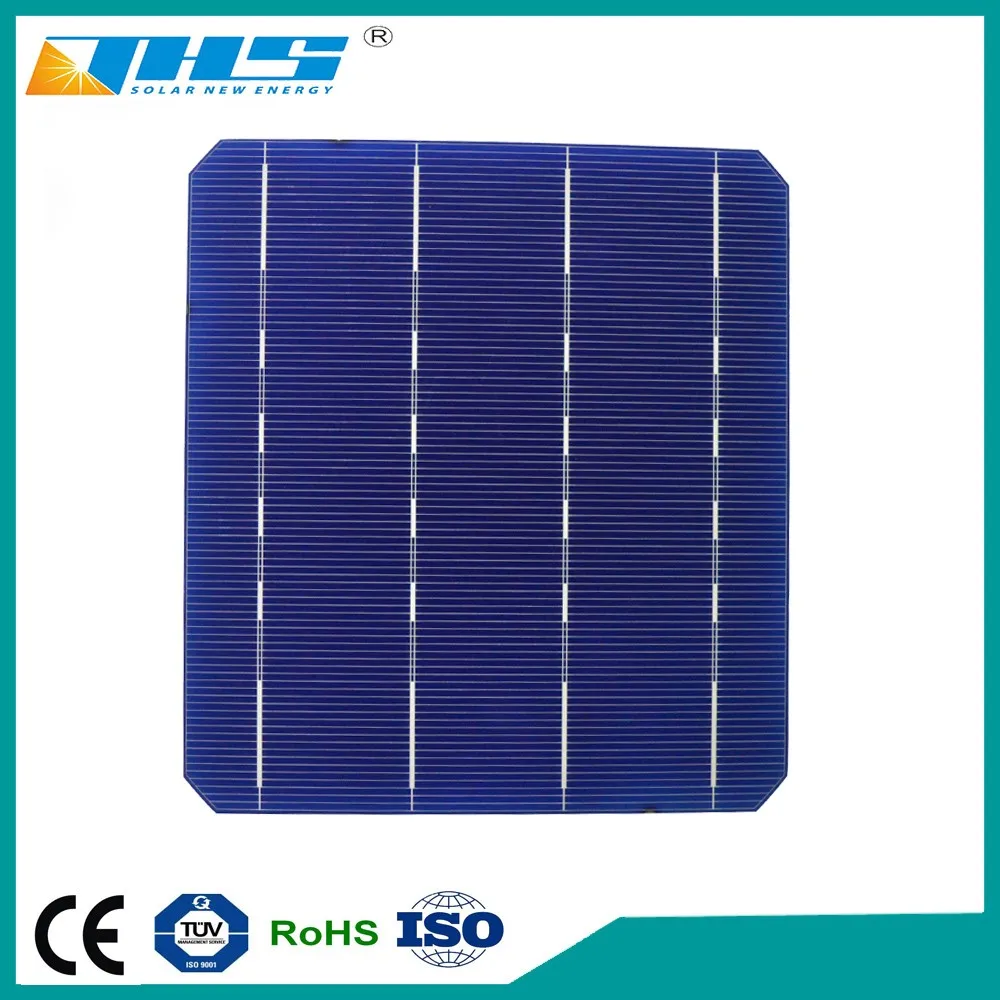

Individual monocrystalline solar cell production line from chinese manufacturer

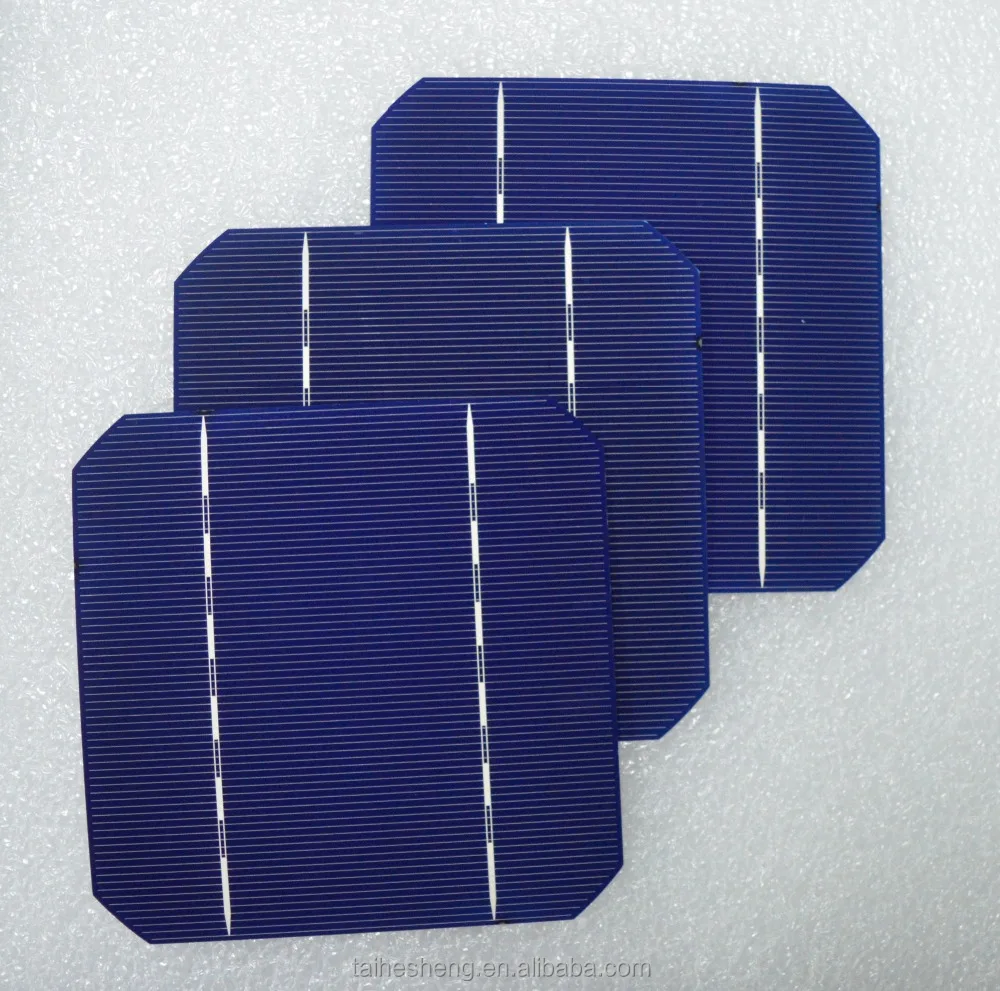

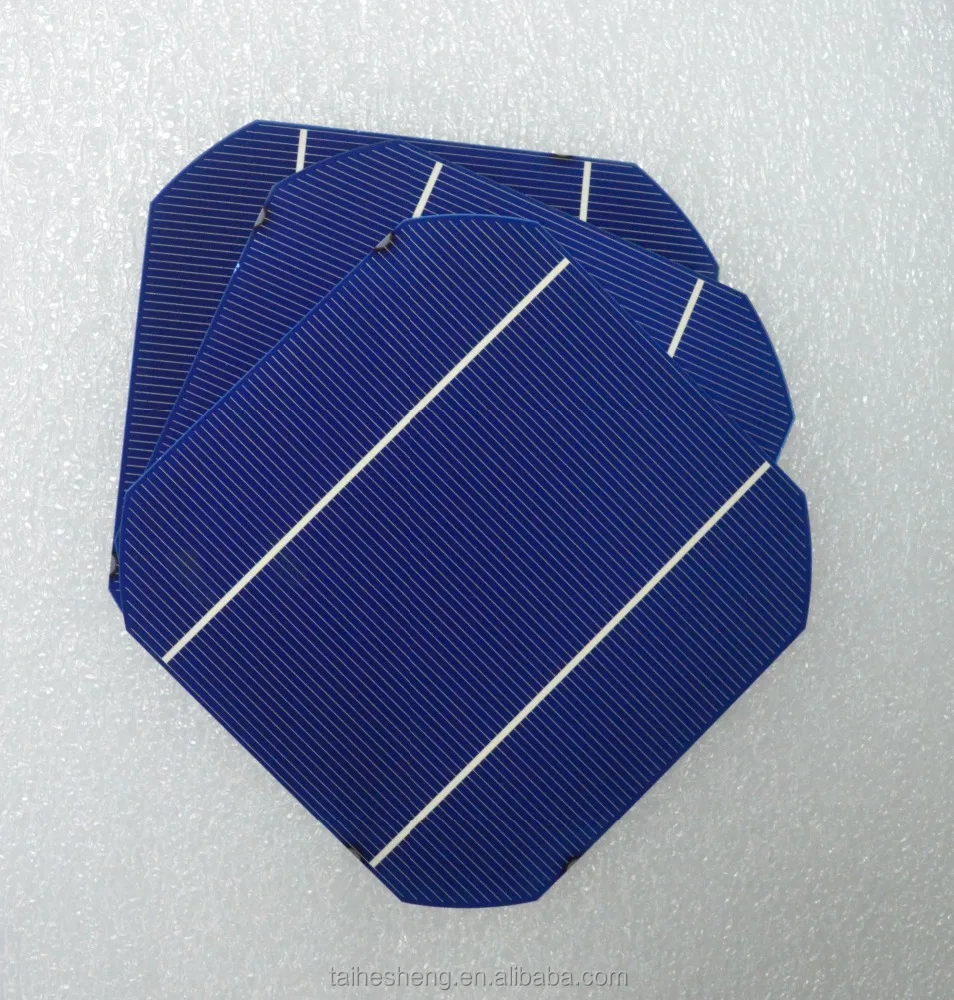

Product Name	THS-M-2BB 125*125 monocrystalline silicon solar cell
Model	THS-M-2BB
Size	125*125mm
Efficiency	High conversion efficiency resulting in superior power and output perfoemance
Thickness	180μm±20μm

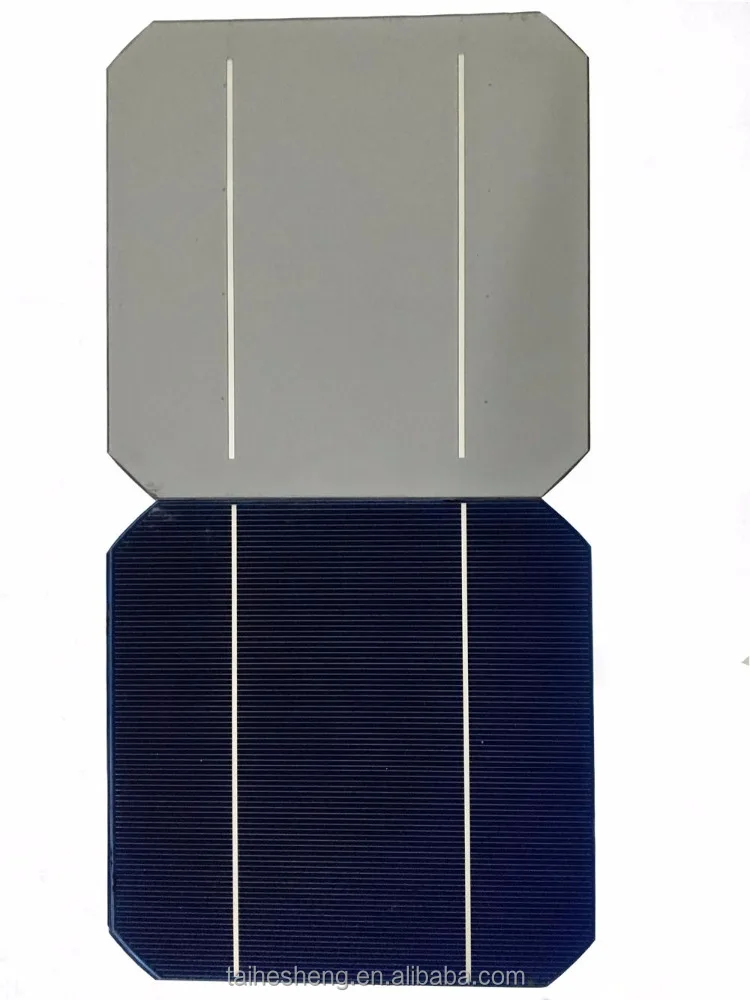

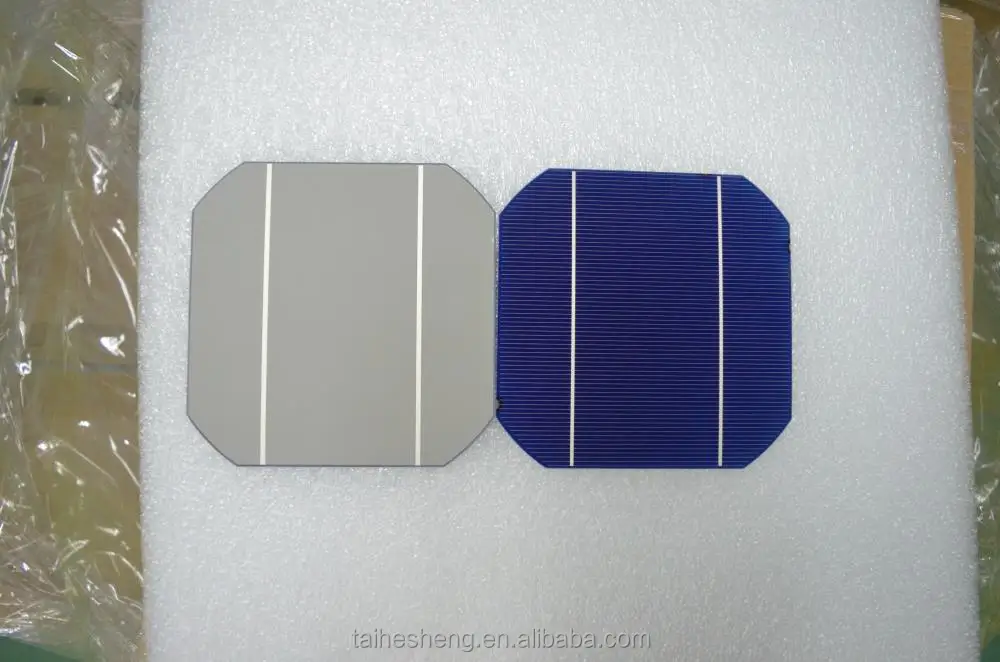

Front	Bule silicon nutride anti-reflection coating, 1.5mm siliver busbar
Back	Full-surface aluminum back-surface field 2.5mm wide soldering pads(siliver)
Material	Monocrystalline silicon
Brand Name	TSEC

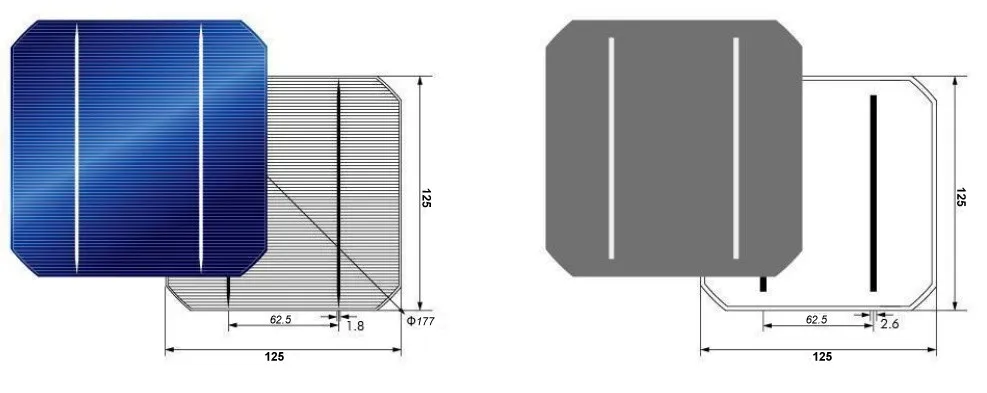

 Size

 Electrical Characteristics

Product Name	125*125mm mono solar cell
Efficiency	19.2%-19.4%	19.0%-19.2%	18.8%-19.0%	18.6%-18.8%
Pmax(W)	2.95	2.92	2.89	2.86
Vmpp(V)	0.536	0.535	0.533	0.532
Impp(A)	5.504	5.458	5.412	5.366
Voc(V)	0.639	0.638	0.637	0.635
Isc(A)	5.813	5.767	5.722	5.685

  Production Process

 Features

1, High conversion efficiency and resulting in superior power output performance

2,  Outstanding power output even in low light enviormentor high temperature conditions

3,Optimized design for ease of soldering and lamination

4,  Long-term stability,reliability and performance

5 ,Low uniformity.

                        Same Series Product

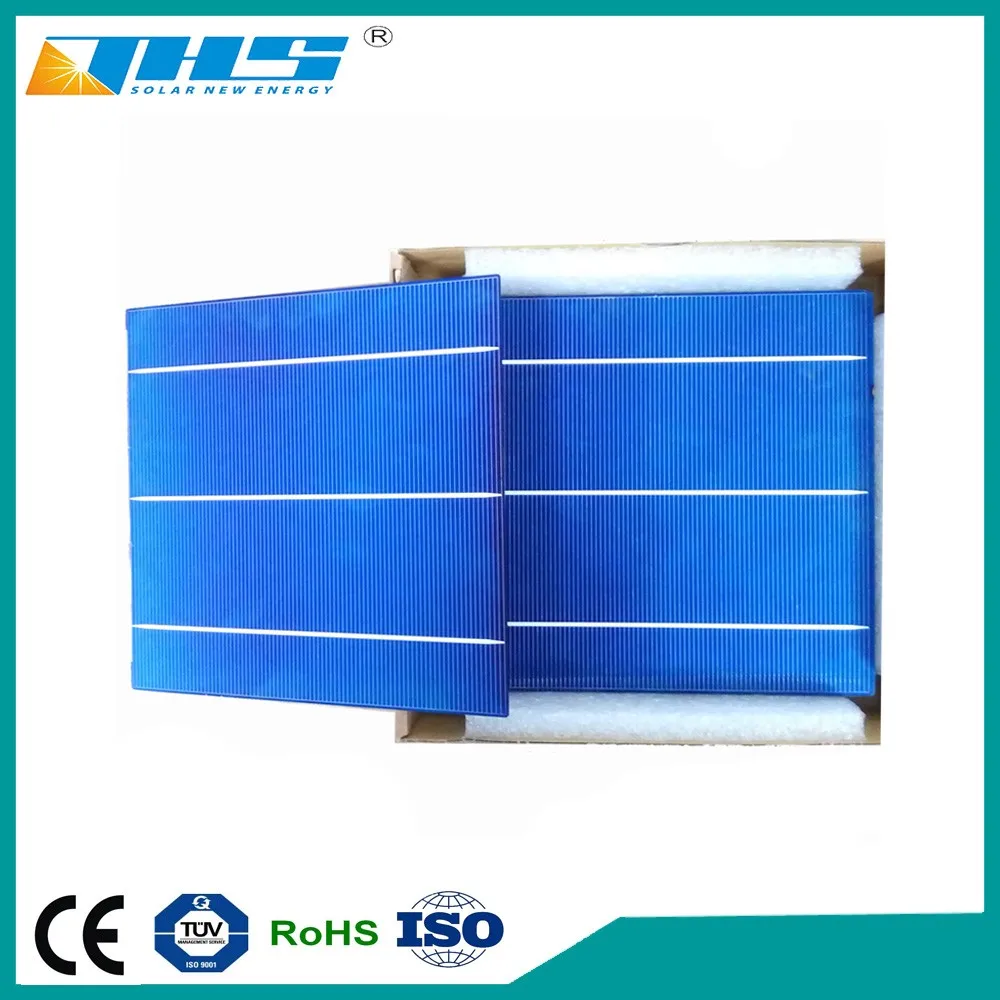

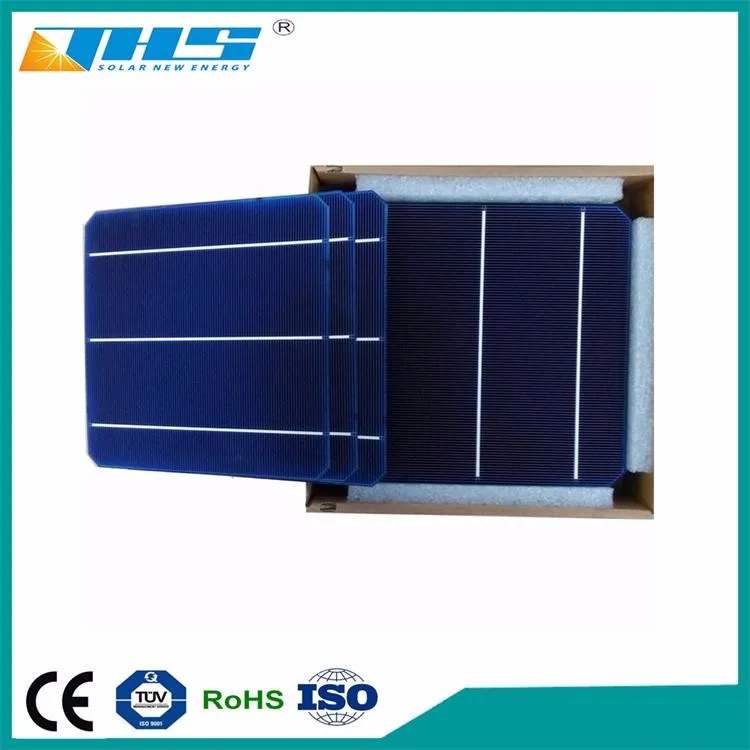

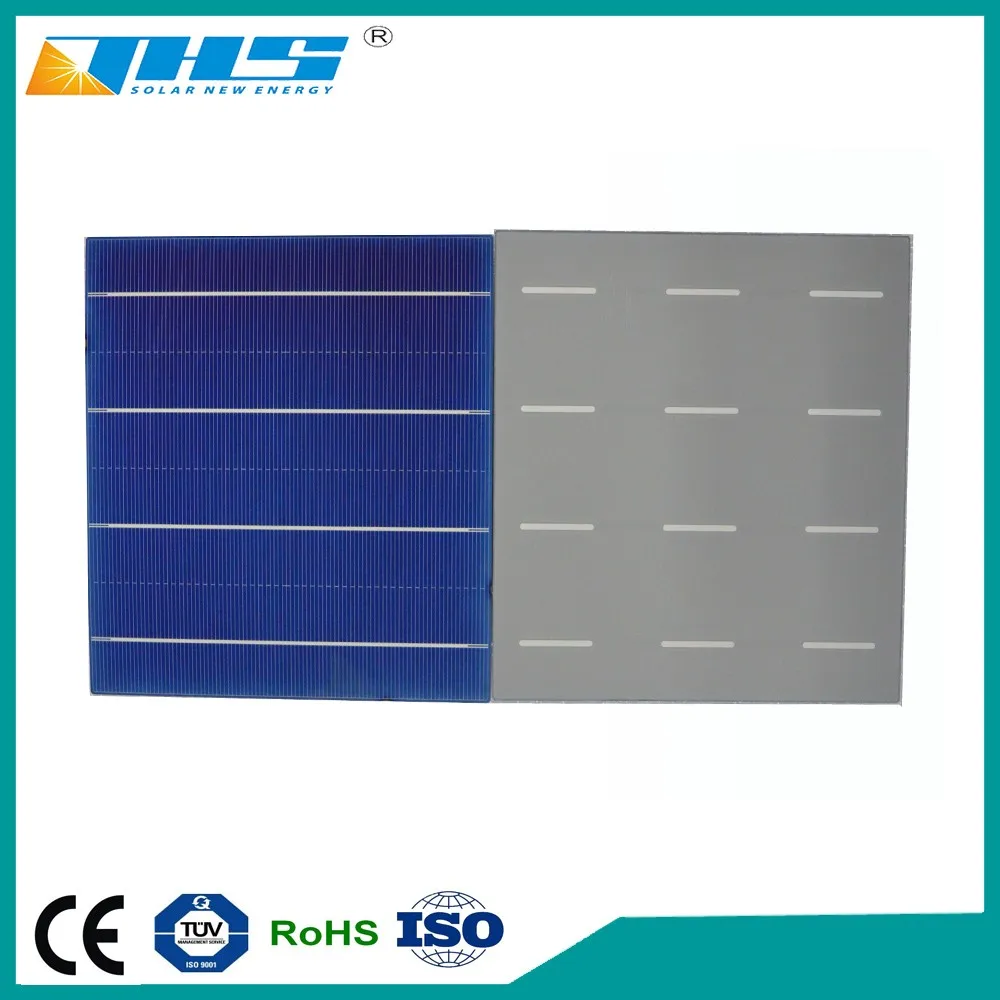

             Mono 156*156mm 3BB                          Mono 156*156mm 4BB

          Poly 156*156mm 3BB                      Poly 156*156mm 4BB

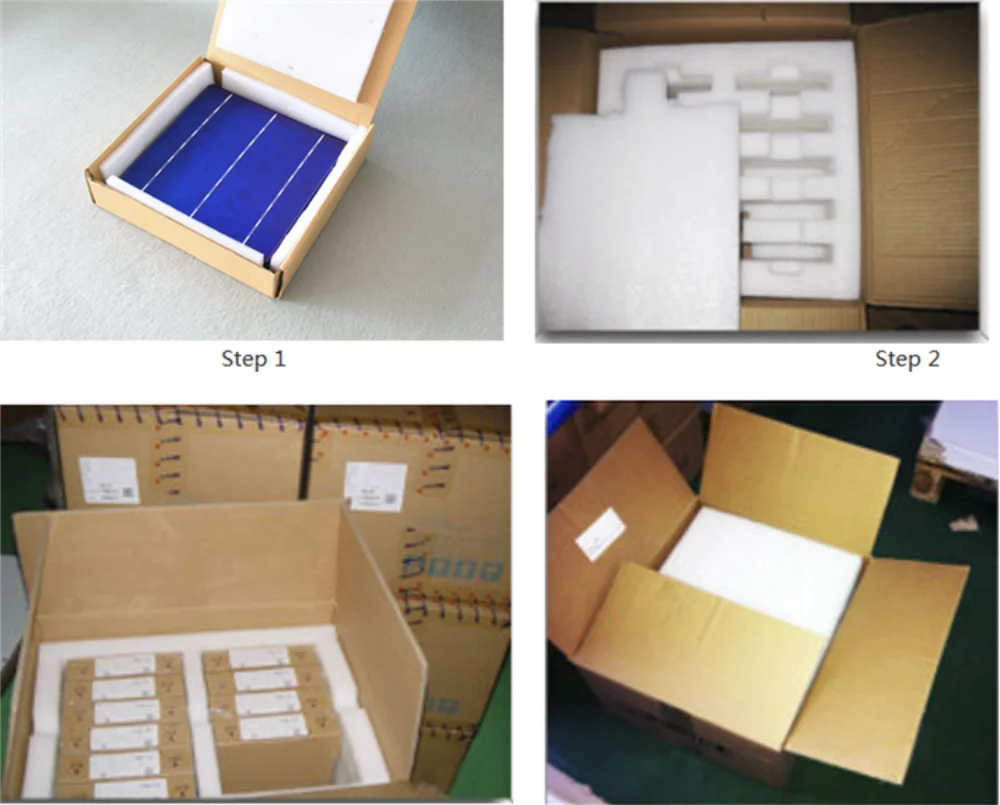

                           Package&Delivery

 Package

100 pieces in one box, weight 1.25kg.

12 boxes in one carton, weight 14.6kg-16.1kg.

Soft fillers inside the boxes and cartons, great protection during the delivery.

 Delivery

Within 3 days after getting your payment.

FOB port: Shenzhen.

                            Company Information

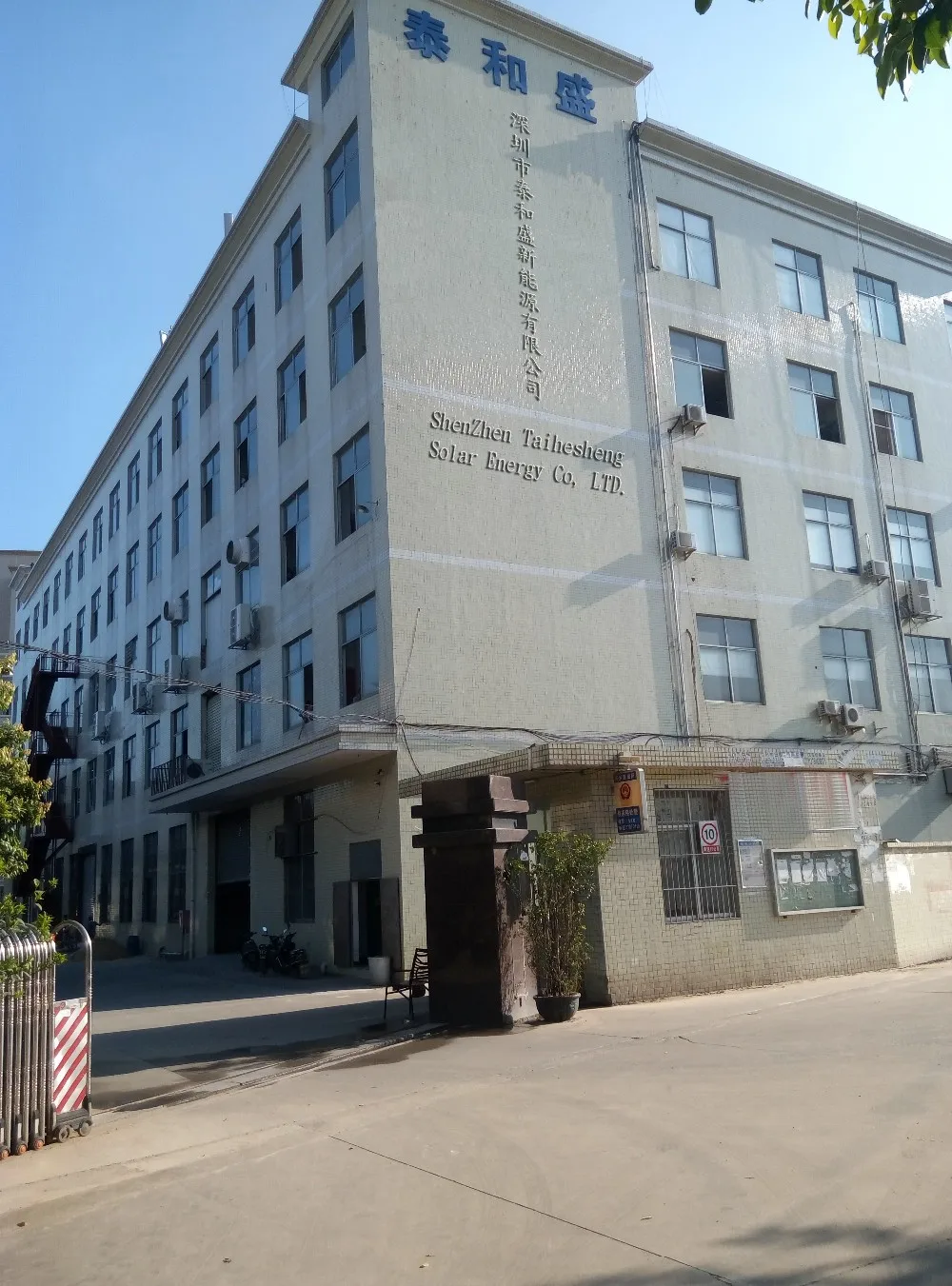

Shenzhen Taihesheng Solar Energy Co.,Ltd is a professional manufacturer &exporter which is concerned with the design, production,and marketing our manufacturer covers an area of 8000m2 as a high-tech environmental friendly enterprise,which was established in 2009 and specialized in solarindustry forproviding solar cells ,solar modules , solar panels and solar chargeretc application products.Under strictquality control system. Our products include: 125mm mono solar cell and 156mm poly & mono solarcell,0.1W-300Wmono-crystalline and poly-crystalline silicon solar panel.our products approved CE, ISO,RoHS,IEC, TUV,UL certificates, Which are widely exported to Europe,America, Africa, Asia and Middle eastcountries, we gainded more and more higher reputation from our clients.We also offer OEM,ODM,OBM service as percustomer requirement and aim at making a greater contribution to the usage of solar energy in the world.



                                     FAQ

1. Q: Are you a factory or trading company?

A: We are a factory.

2. Q: Where is your factory located? How can I visit there?

A: Our factory is located in Shenzhen, China, near Shanghai. You are warmly



welcomed to visit us!

3. Q: How can I get some samples?

A: Please connect me for details to get samples.

4. Q: Can the price be cheaper?

A: Of course, you will be offered a good discount for big amount.



Quick Response
Any time and anywhere, reply clients' email and solve all problems happen in the work  at the first time.
Remove clients doubts and offer the best solution at the first time.
Give our clients the lastest news of the photovoltaic, update the newest stock informtion.
Production and Quality Control
Precision cell efficiency sorting procedures
Stringent criteria for color uniformity and appearance
Reverse current and shunt resistance screening
ISO9001,ISO14001 and OHSAS 18001,TUV Certificated
Fastest and cost-optimal Delivery
We always giving our clients the most economical and fastest deliery method.
No matter the Air transportation / Ocean shipping /  Internation express, our professional logistic team will ensure cargo transportation Safe and High efficiency
Payment Terms
T/T, L/C are the payment methods we accept at present.
