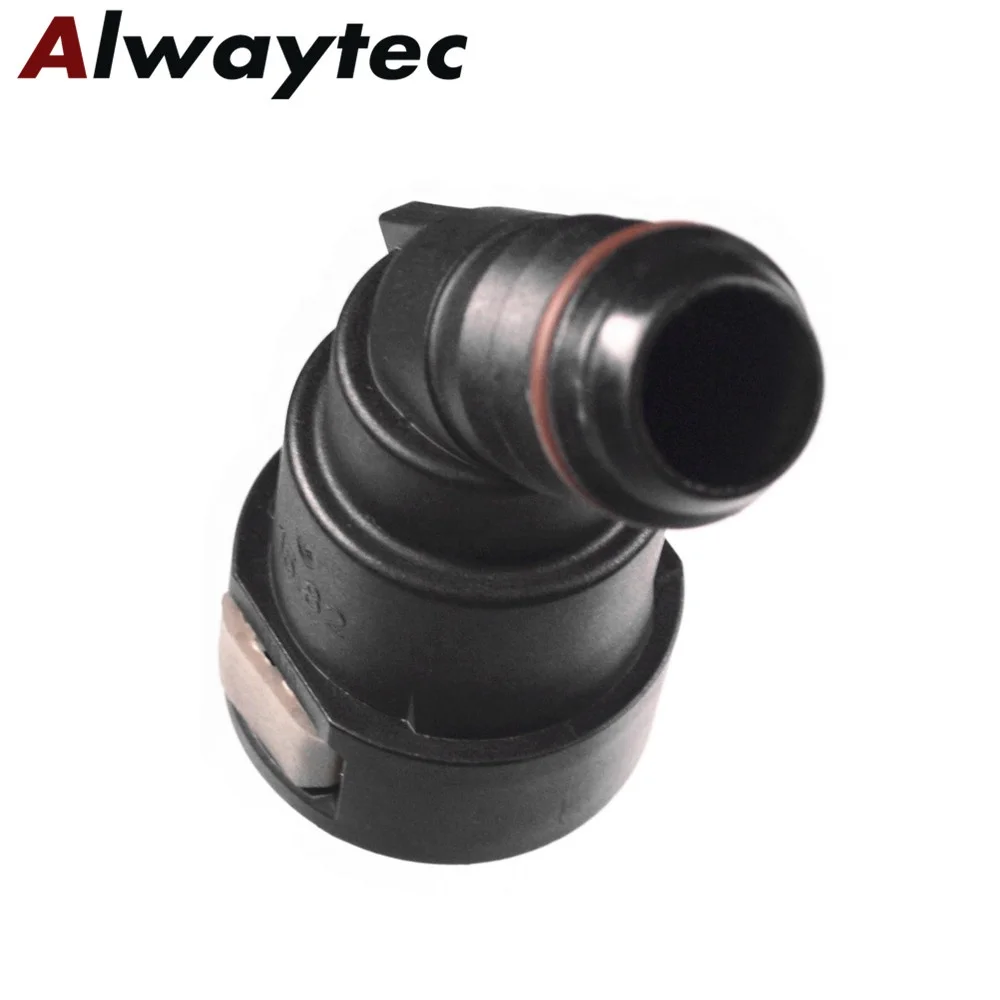

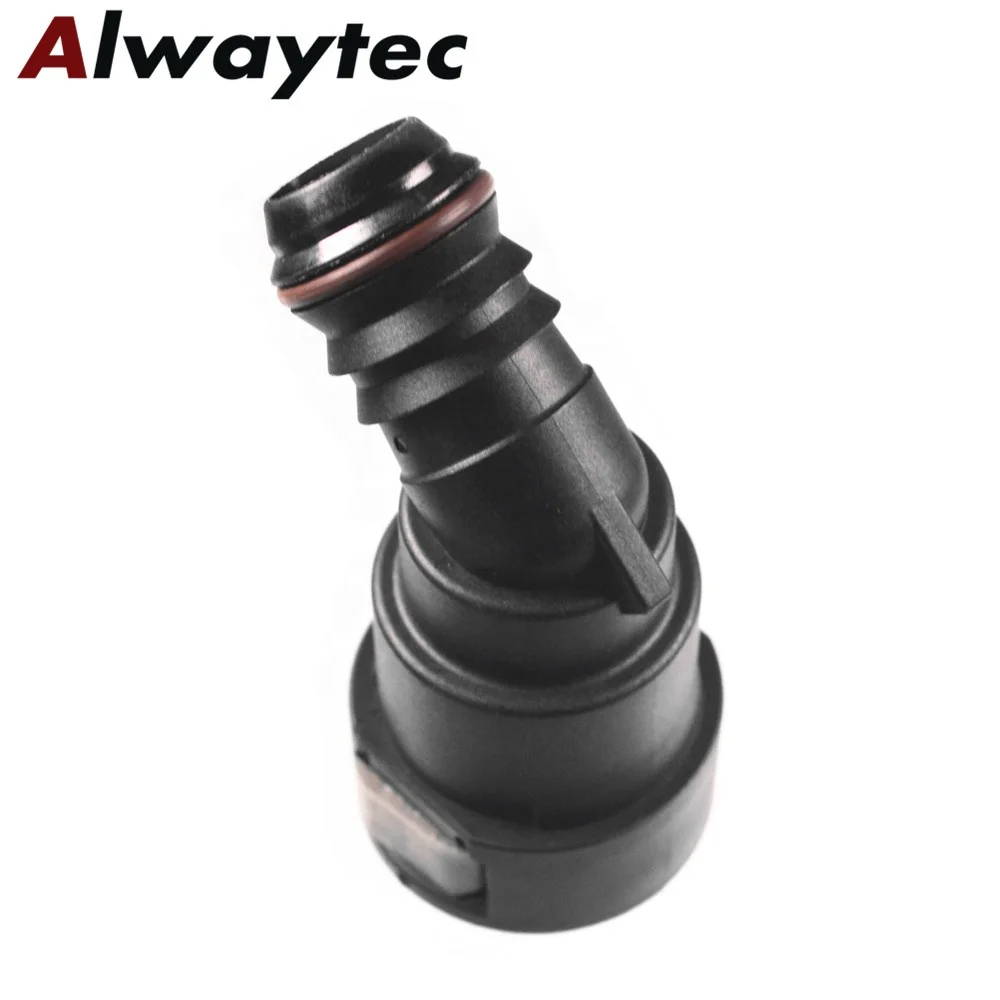

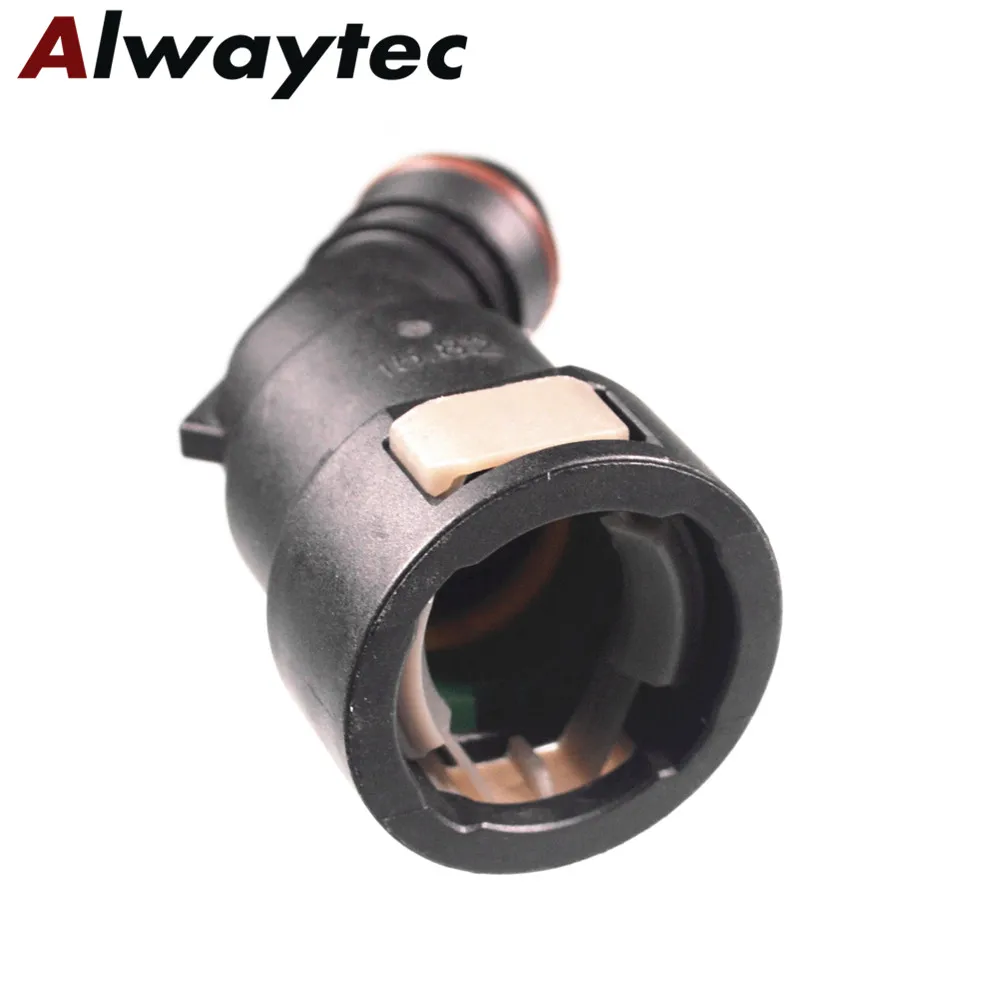

automotive parts SAE 5/8" Nylon Fuel Line quick connector for hose fitting

Model

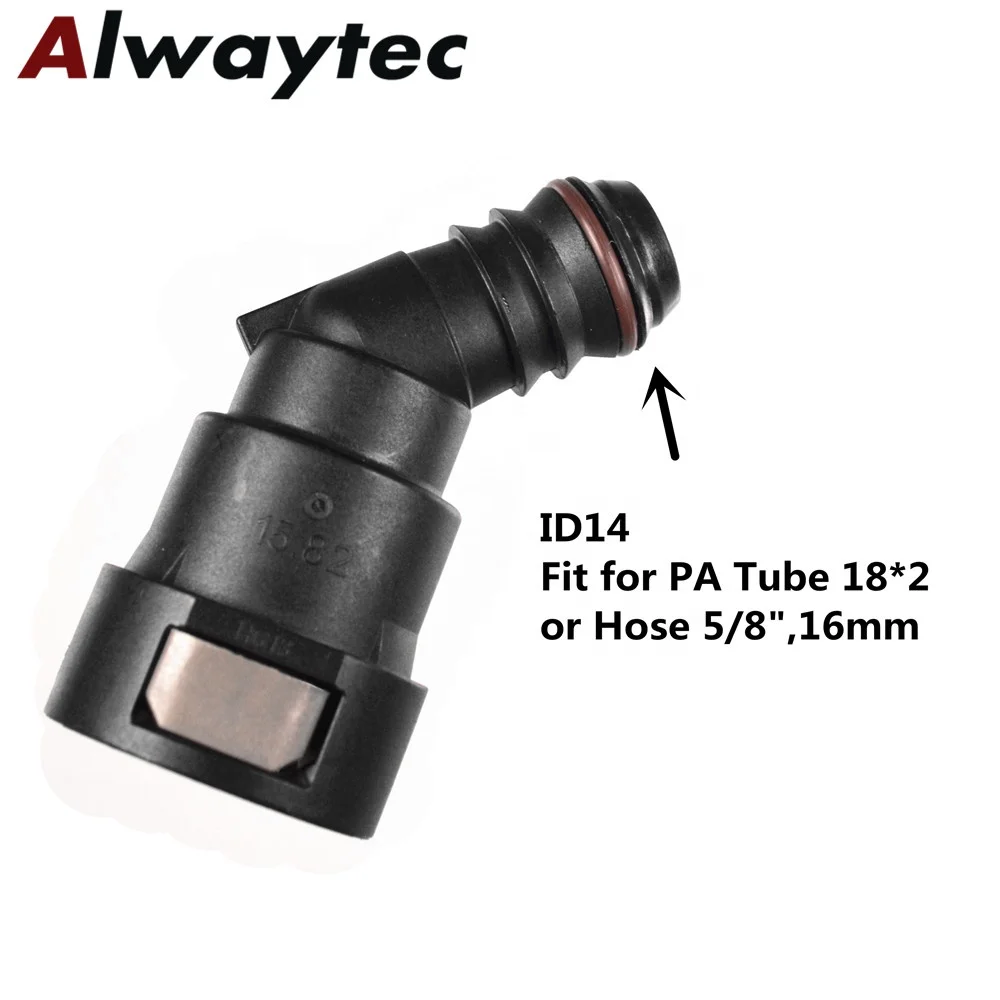

H613:15.82mm-ID14- 135 °

Endform

Fir tree or rib

Certificate

IATF 16949:2016

Excutive Standard

SAE J2044,TSI16949

Shape

Elbow

Coupling

Female + male end piece

Type

Quick connector/quick disconnect/Fuel adapter/fuel fitting

Operating pressure

approx. 10 bar excess pressure

Medium

Fuels,air,oil&oil vapours

Product advantages

Fast assembly without tool -> time and cost reduction
· robot assembly possible -> automated processes
· compact building method -> employment in extremely close installation conditions possible
· integrated seal - > optimal tightness
