12V 24V DC to 5V 15A 75W DC Step Down Voltage Reducer Buck Converter Regulator Module Transformer for Car Audio TV RV
- Category: >>>
- Supplier: Shenzhen Fulree Electronics Co. Ltd.
Share on (60657546067):
Product Overview
Description
12V 24V DC to 5V 15A 75W DC Step Down Voltage Reducer Buck Converter Regulator Module Transformer for Car Audio TV RV
Click the right "Start Order“ button to order the product directly. If any question, click the "Contact Supplier" button to check.
| Model | F40J5V15A5L (Old:1505B) |
| Input rated voltage | DC 12V 24V |
| Input voltage range | DC 10-40V |
| Efficiency | 93% |
| Output voltage | DC 5V (minimum pressure difference:3V) |
| Output current | 15A MAX |
| Output rated power | 75W Max |
| Voltage regulation | < 1% |
| Load regulation | < 2% |
| Working temperature | -40°c ~+85°c( If ambient temperature exceeds 40°c, lower power use, or to enhance heat dissipation) |
| Module Properties | non-isolated buck module(buck) |
| Rectification | synchronous rectification |
| Waterproof rating | IP68 |
| Full load temperature rise: | 50°c |
| Protection | Over-current, Over-temperature, Short-circuit protection, Instant absorption of high voltage protection, waterproof IP68 design, anti-shock protection |
| Input Reverse Polarity Protection | NONE( (Please Series diode at the input port.) |
| NW | 280g |

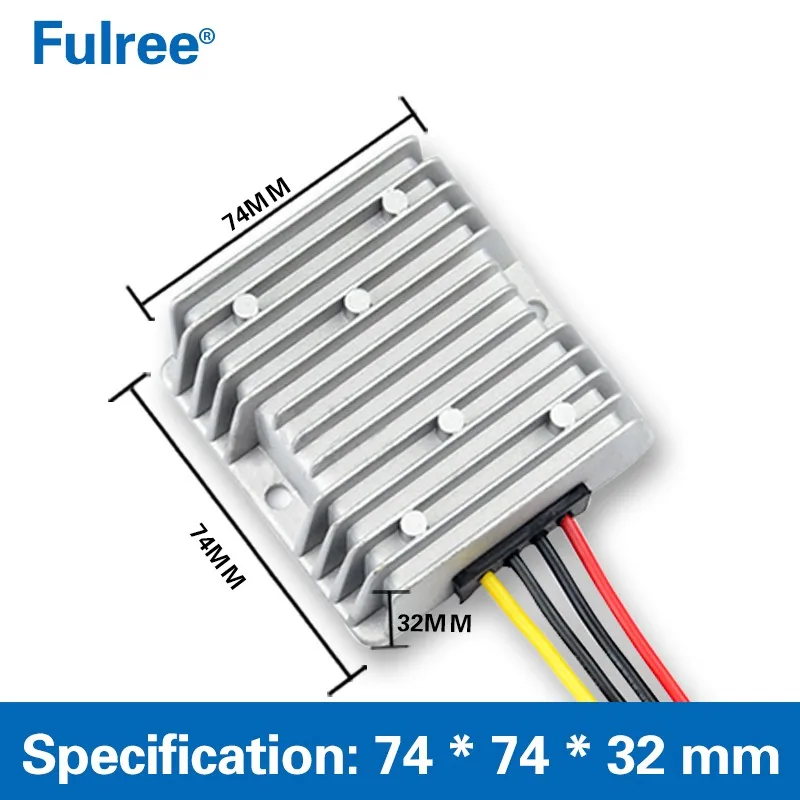

| Product size | 74*74*32mm |
Other ouput voltage available | 3.3V/3.7V/4.2V/6V/7.5V/9V/12V (pls contact with our sales manager if need) |
Attention: >Pls install according to the the label strictly,positive pole and nagative pole can’t be reversed, or the module and device might be damaged | |
