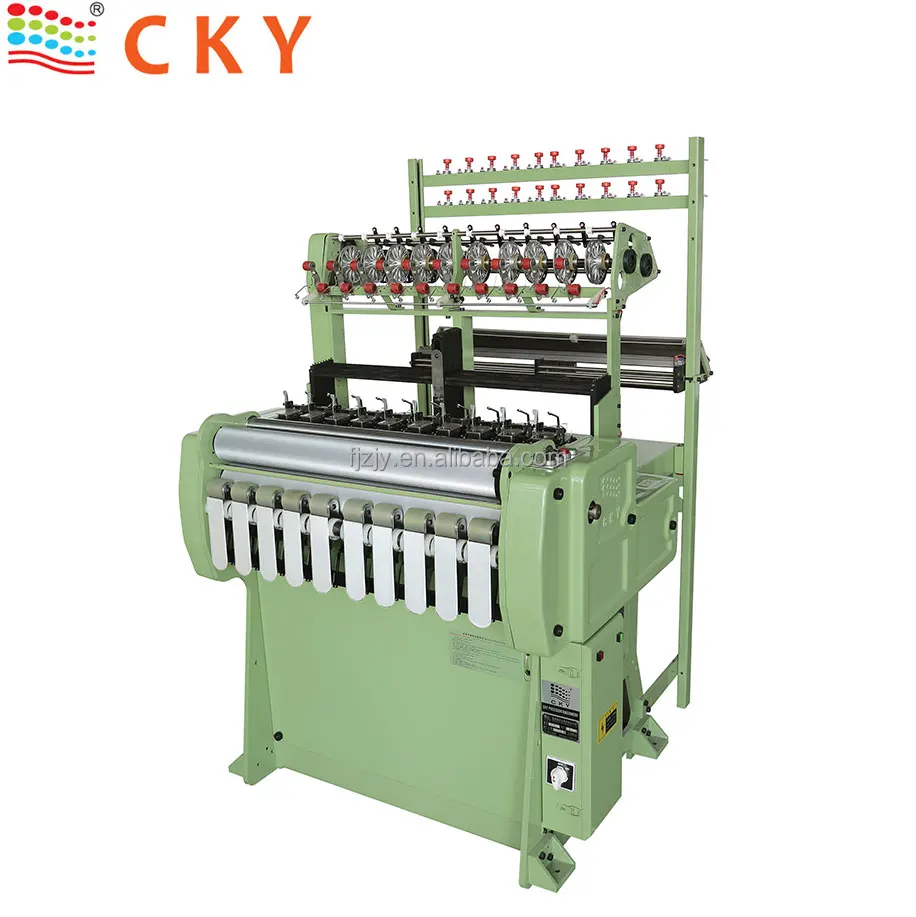

CKY 10/45 Safety Jacquard Loom Weaving Machine Belt Needle Looms
- Category: Belt Making Machines >>>
- Supplier: Quanzhou Chongkinyuan Precision Machinery Co. Ltd.
Share on (60657641806):
Product Overview
Description
production informati
Technical Parameters:
| Model | Tape Lines | Reed Width Max.(MM) | Weft Density (CM) | Pattern Chain Cycle | Heald Frame (PCS) | Moter (KW) | Speed R.P.M |
| CKY 8/30 | 8 | 30 | 3.5-36.7 | 8-48 | 12-16 | 1.1-1.5 | 800-1200 |
| CKY 8/45 | 8 | 45 | 3.5-36.7 | 8-48 | 12-16 | 1.1-1.5 | 800-1200 |
| CKY 8/55 | 8 | 55 | 3.5-36.7 | 8-48 | 12-16 | 1.1-1.5 | 800-1200 |
| CKY 10/30 | 10 | 30 | 3.5-36.7 | 8-48 | 12-16 | 1.1-1.5 | 800-1200 |
| CKY 10/45 | 10 | 45 | 3.5-36.7 | 8-48 | 12-16 | 1.1-1.5 | 800-1200 |
| CKY 12/16 | 12 | 16 | 3.5-36.7 | 8-48 | 12-16 | 1.1-1.5 | 800-1200 |
| CKY 12/30 | 12 | 30 | 3.5-36.7 | 8-48 | 12-16 | 1.1-1.5 | 800-1200 |
| CKY 14/20 | 14 | 20 | 3.5-36.7 | 8-48 | 12-16 | 1.1-1.5 | 800-1200 |
| CKY 16/20 | 16 | 20 | 3.5-36.7 | 8-48 | 12-16 | 1.1-1.5 | 800-1200 |
Details:
- The latest design makes the weaving angle more reasonable and operation more user-friendly; Vairous specifications, productive, fast and high weaving density; Output tapes vary from 2 to 16 and maxium width from 3mm to 2210mm.
Products Display:

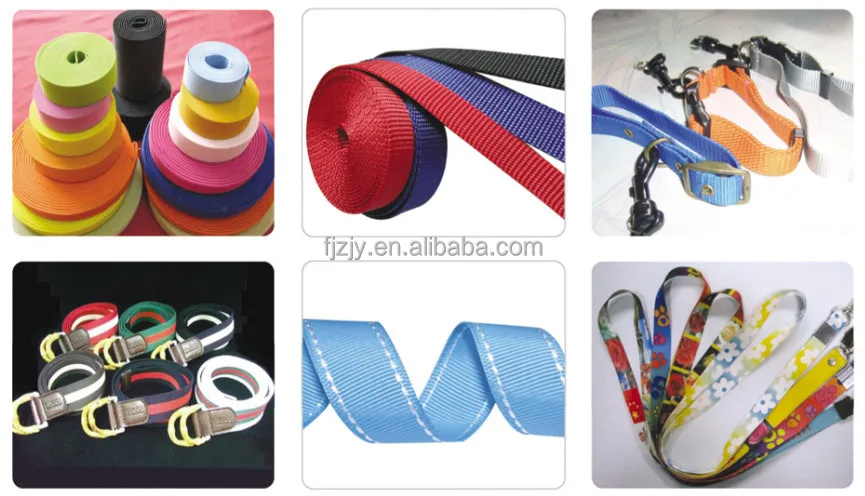

- Used for the production of unelastic narrow fabrics like luggage belt, plain elastic belt, pp belt, cotton belt and so on;
