Product Overview

Description

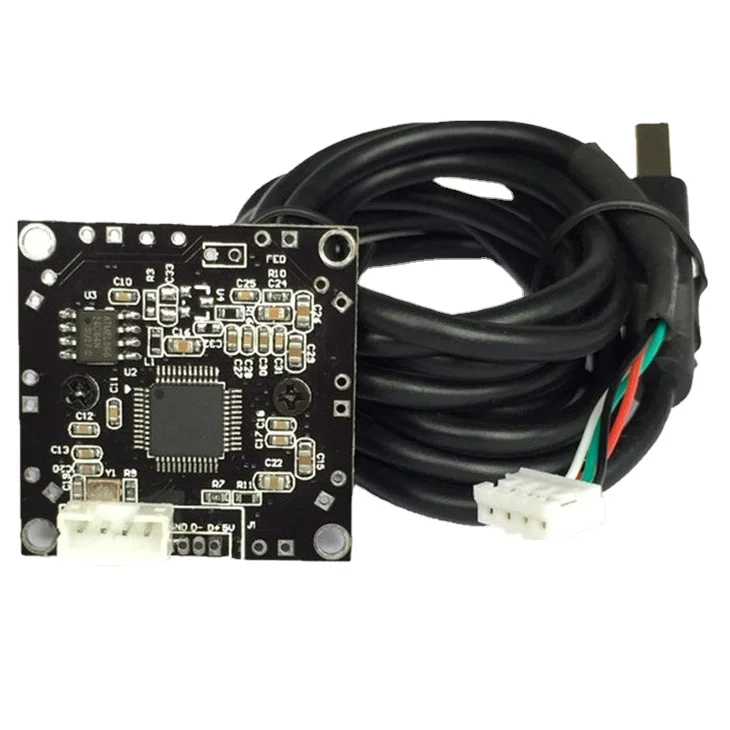

32*32mm 5.0MP OV5640 CMOS Autofocus Lens USB Camera module ATM Kiosk devoted to Android device equipment Industrial camera face recognition





This USB camera design for Intelligent machines,special Koisk, VTM, CRS, ATM or other Intelligent machine, mini shell,  easy for install in all of models ATM, USB cable length optional, Provide driver for shooting and recording under MS Windows XP system, USB connector can be connected with PC directly, megapixel Sony CMOS chipset, metal casing, support long time non-stop working, available with wide angle board lens or lens (more than 130 degrees) to get wide angle view.



Recommended Use 1:

The camera is widely used to take photos of identity cards.It has auto focus and high resolution.So, no matter the distance, do not need to fix the location of the ID card, it can be very good scan



Recommended Use 2:

High-end Face capture equipment, This camera has a high pixel, which can automatically capture and adjust the focus of the face to keep the Clearest state. It is very suitable for high-end card machines, aerial photography, and advertising machine that has a very strict requirements to the detailed image.



Recommended Use 3:

Suit for the device that requested very high pixel, Fast speed and small micro size.



Order Symbol:

HDV-USB500MP28-AF        5.0MP USB Camera with AutofocusLens

HDV-USB500MP32-L3.6     5.0MP USB Camera with 3.6mm Lens

HDV-USB500MP32-L2.1     5.0MP USB Camera with 2.1mm Wide Angle Lens

HDV-USB500MP32-L2.5     5.0MP USB Camera with 2.5mm Wide Angle Lens

HDV-USB500MP32-L4.2     5.0MP USB Camera with 4.2mm Lens

HDV-USB500MP32-L6        5.0MP USB Camera with 6mm Lens

HDV-USB500MP32-L8        5.0MP USB Camera with 8mm Lens

Features:

• Image sensor 1/4" 5.0mp OV5640 CMOS,  Full HD 5.0MP image


• Audio Optional


• Free Driver USB 2.0 (UVC)


• USB2.0 HIGH SPEED, compression USB1.1



• Autofocus focus


• View angle: 15-170 degree optional


• Compression YUY2 & MJPEG


• Support  Windows 2000; Windows XP; Windows VISTA; Windows 7 and later;


• Linux(In 2.6.18 above the kernel version);Mac ps3; Android system


• Standard 1.8m cable, Can be connected through 10 meters USB cable

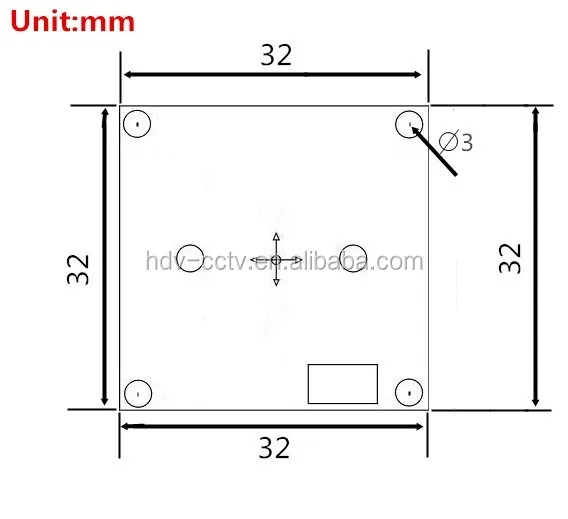

• Dimension:32*32mm


• USB Power: 5V±10%DC,50mA


• Used:intelligent machine,especially Banks'ATM


• Can be customized by your requirements

USB Series	Model	HDV-USB500MP32-AF
	Name	USB Mini Camera
Camera	Image sensor	1/4" Sony Sensor
	Resolution	5.0MP (2592*1944 pixels)
	Output format	YUY2/MJPEG
	Interface	USB2.0
	Sensitivity	0.65V/lux-sec@550nm
	S/N Ratio	34dB
	Dynamic range	72.6dB
	Lens Standard	AF Board lens F1.2
	Effective Pixels	2592x1944@ 2fpsMJPEG / 15fps YUY2 1920x1080@ 5fps MJPEG / 30fps YUY2 1600x1200@ 5fps MJPEG / 15fps YUY2 1280x720@ 5fps MJPEG / 30fps YUY2 1024 x 768@ 15fps MJPEG / 30fps YUY2 640x480@ 30fps MJPEG / 30fps YUY2 352x288@ 30fps MJPEG / 30fps YUY2
	Syetem	Windows 2000; Windows XP; Windows VISTA; Windows 7 and later;Linux(In 2.6.18 above the kernel version);Mac ps3; Android System
	Exposure	Auto / Manual(Shutter Speed & AGC Control)
	White Balance	Auto / Fixed / Indoor / Initial / Outdoor
	Gamma Characteristic	Auto r>=0.45
	Manual Function	White Balance, Brightness,Contrast,Hue,Saturation,Gain
	Miscellaneous	Mirror / Flip / Back Light / Flickerless
	Cable Length:	1.8m;  2-10m for optional purchase-USD0.5/m
Industrial Standard	Power source	DC 5V (3.6-5V) / 80mA (USB Power)
	Operating current	85mA
	Operating Temperature	-20 °C - 60 °C (14 °F-140 °F),Humidity 90% or less (non-condensing)
	Interface Type	USB format(Complies with USB 2.0)
	Measurement (mm)	32*32mm
	Weight (Approx.g)	110g
Accessories	Free	Brackets *1,Screw *2,Cable *1,Manul book *1

Packing List:

1pc cctv camera

1set screws

1pc manual

1pc color box



Single Size: 95*65*55mm(LXWXH)
