RUIZHOU Paper Cutting Machine Brown Paper Box Sample Making Cutter

Product Overview

Description



RUIZHOU Paper Cutting Machine Brown Paper Box Sample Making Cutter



Brief introduction of  paper cutting machine

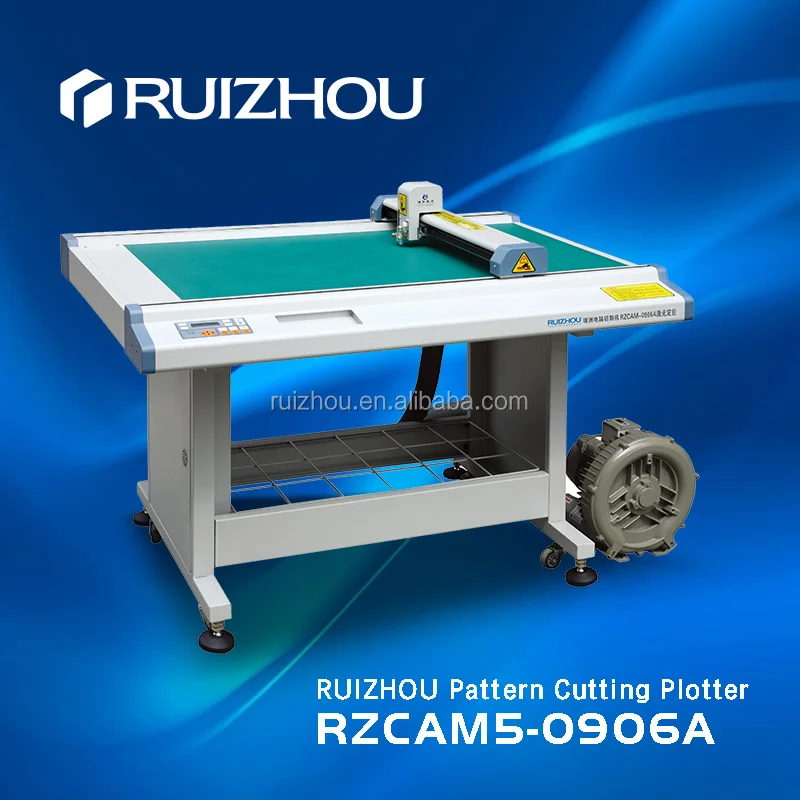

 RZCAM5-0906A pattern cutting machine integrates functions of cutting and drawing. It is regarded as a precise pattern cutting expert for cutting  different kinds of soft materials. It is widely used in paper, footwear, garment, bag industries. And the outcome of its cutting is highly accurate.



Parameter of Paper Cutting Machine

Model of paper cutting machine	RZCAM5-0906A
Effective working area	900mm×600mm
Cutting speed	100-800mm/s
Cutting thickness	0.5-2mm
Method of fixing material	Vacuum absorption
Cutting tools	Vector knife
Types of pen	Gel pen, Mark pen, ball pen, silver pen
Knife property	8 different types of cutting property, complete cutting, kiss-cutting.
Motor	Servo Motor, Stepper Moter
Cutting accuracy	±0.1mm
Machine resolution	0.01mm
Software resolution	0.025mm
Computer connecting	RS232 serial part, LPT, RJ45 network port
Memory	4MB
Software program	HP-GL and GP-GL compatible mode
Human Machine Interface (HMI)	LCD display, Touch control button, Touch screen

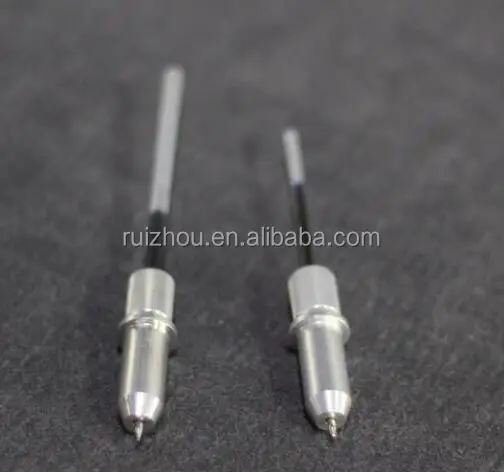

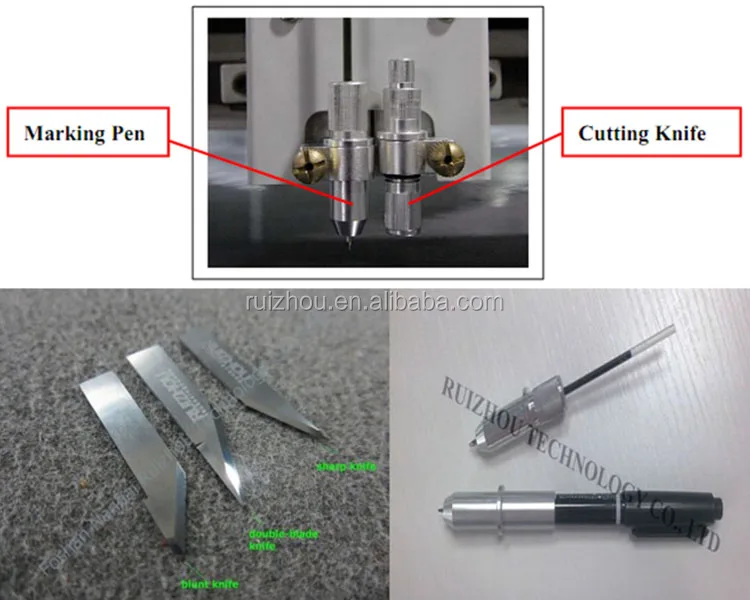

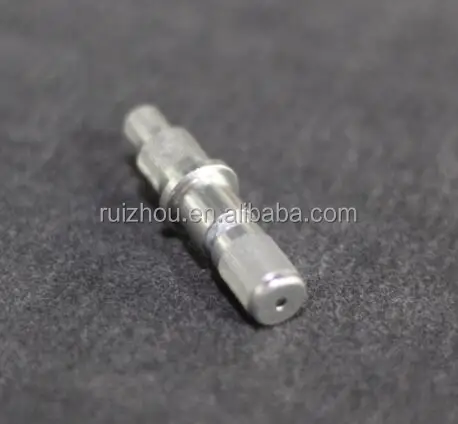

Tools and its functions

1.Multi-functional cutting tool, be able to do complete cutting, half cutting, kiss cutting, and dot cutting;

2.Drawing lines, letters and marking patterns or marks on materials by ball pen or oil pen.

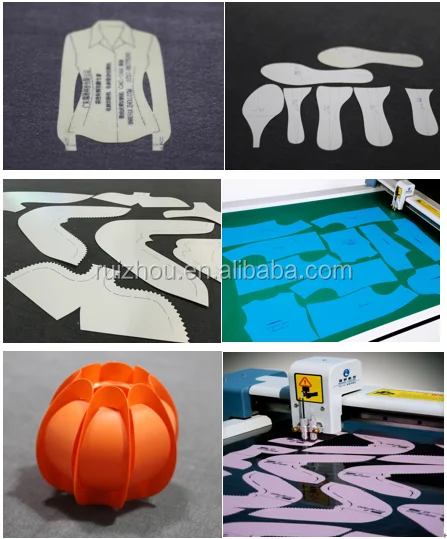

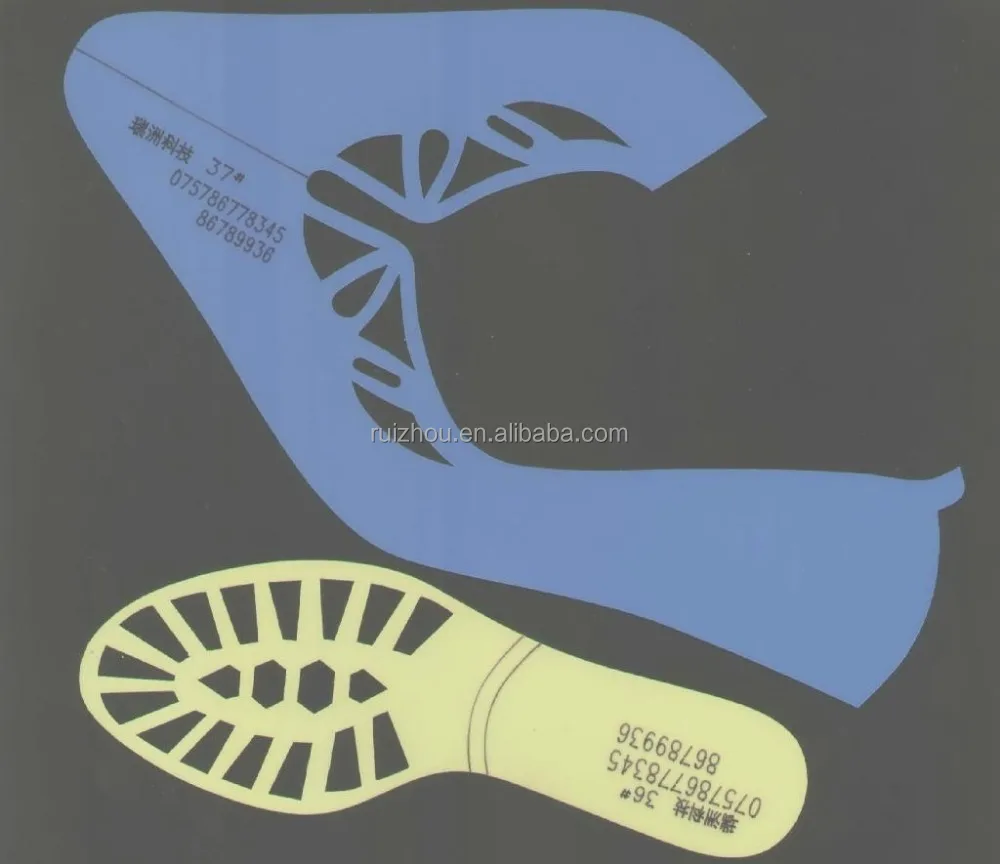

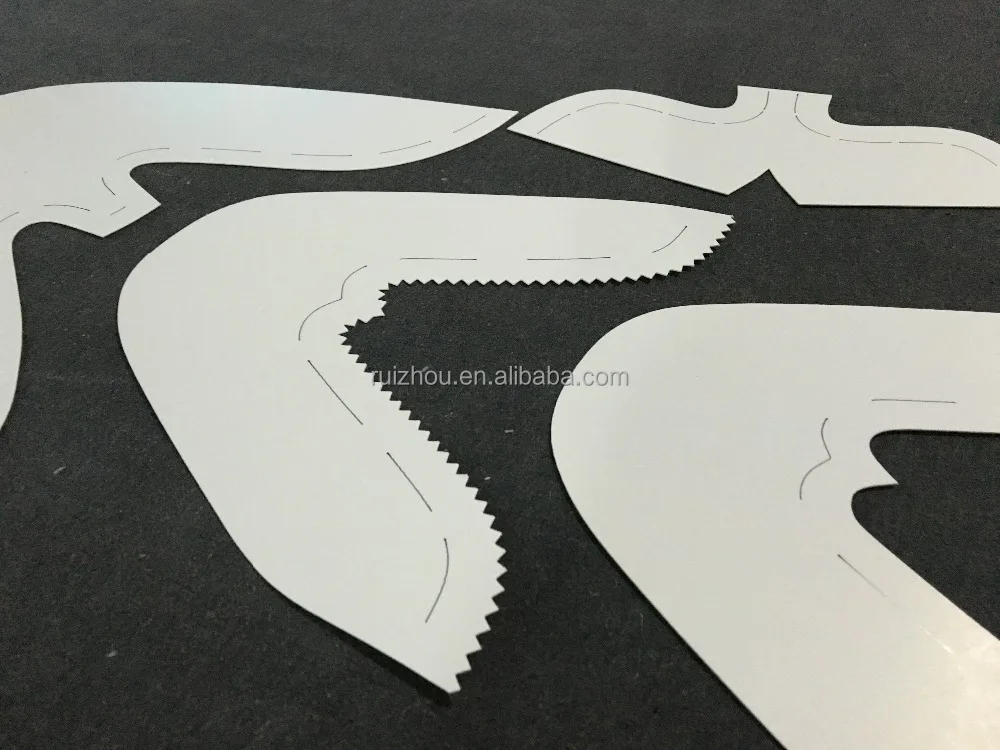

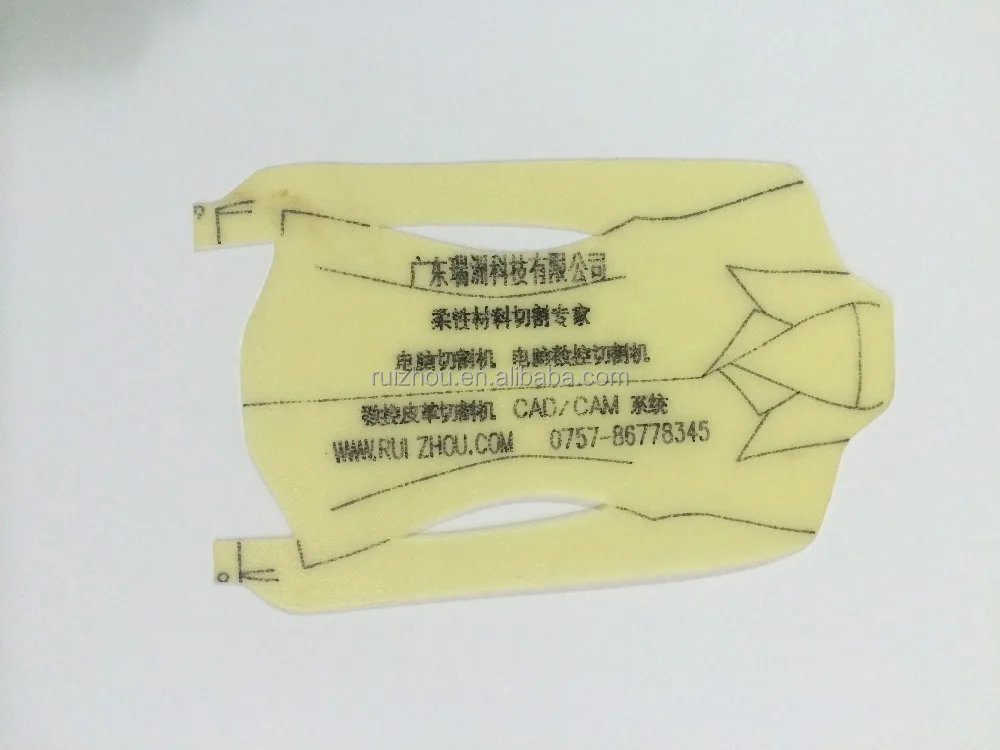

Cutting examples

 RZCAM5-0906A  cutting machines are widely applied in footwear industry, garment industry, bag industry and packing industry. Here are some pattern cutting examples of different industries.

Our advantages

1. Simple and safety mode of operation

(1) It is simple for users to install, set-up and use.

(2) Unique and use-friendly human machine interface: touch screen or touch control button.

(3) It is compatible with generic CAD systems and it allows cutting page by page.

     The file format can be DXF, PLT and extended HPTL format.



2. Excellent quality

(1) Imported American CPU and precise electronic components, which guarantee its stability and operability to reach the world-class level.

(2) Self-developed built-in CNC control system with full intellectual property rights can ensure constant upgrade of this pattern cutting machine

(3) Accurate lase registration system and precise cutting head, ensuring high accuracy of cutting in different kind of materials.

(4) Imported linear guide rail and driving motors, which not only ensure fast and smooth cutting, but also keep high accuracy and good cutting quality.



3. Time saving and labor force saving

Our pattern cutting machine improves cutting efficiency, reduces labor force and time that you spend cutting  paper patterns by   hand, so that can help you response to your customer as soon as possible.


4. Good after-sales service



Packaging of Our cutting machines

The cutting machines are packaged with standard export wooden case which can guarantee your machine safety.

Our Company

Guangdong RUIZHOU Technology Co., Ltd is a national Torch Plan High-tech Enterprise, specialized in the research, development, sales and technique service of soft material intelligent CNC cutting machine.

RUIZHOU Technology has been dedicated in supplying informationized and automatic design and whole solution of intelligent production for a broad community of soft material manufacturers, which achieves  the realization of the confluence of informatization and industrialization.









Certifications









FAQ



Q1: What professional suggection can you give when I need to buy RUIZHOU cutting machine?

A1: 1)Pls inform us what materials do you cut and your materials’ size(width and length). We will recommend you suitable model according to your materials texture and size.

2)And it is appreciate if you can send us some materials for trial cutting, we will record cutting videos for your reference

3)If it is possible, welcome to visit our company and factory.



Q2:How about your cutting machine’s certification?

A2:We process CE, ISO and TUV certificates.



Q3:Are you a trader or a manufacturer?

A3: We are a professional and famous manufacturer of cnc cutting machine in China, which has more than 28 years experience, named RUIZHOU.



Q4:What materials can your machine cut?

A4: Ruizhou cutting machine can cut different kind of soft materials. And it is applied in different inductries, such as shoes, bags, garment, carton boxes, composite materials, automotive industries, etc.



Q5: How to use the machine?

A5: If you buy our machine, we will provide free installation and training.



Q6:What after-sales services can your company provide?

A6: We provide three-year free warranty at home and abroad.
