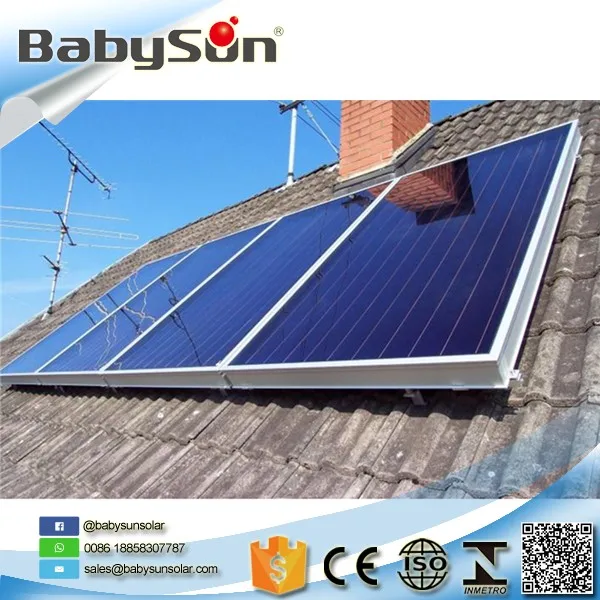

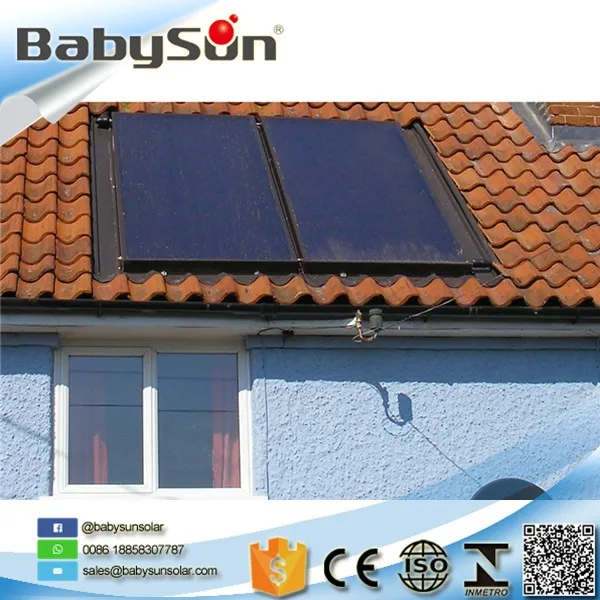

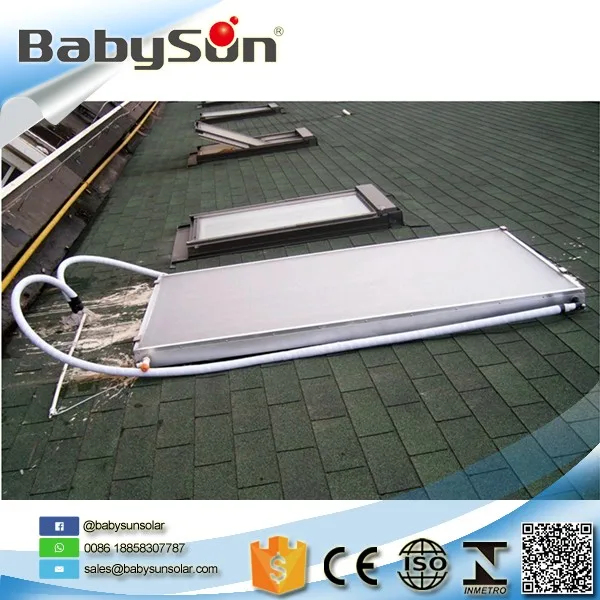

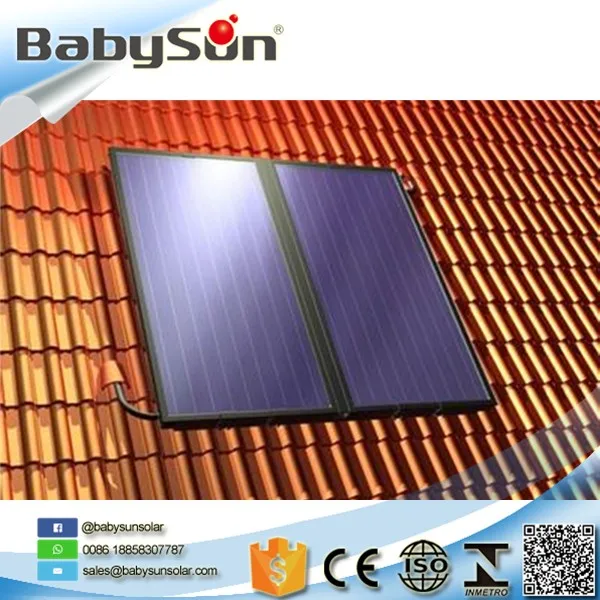

Energy Saving Rooftop High Pressure Split Solar Water Heater

Product Overview

Description

New Design. New Product.

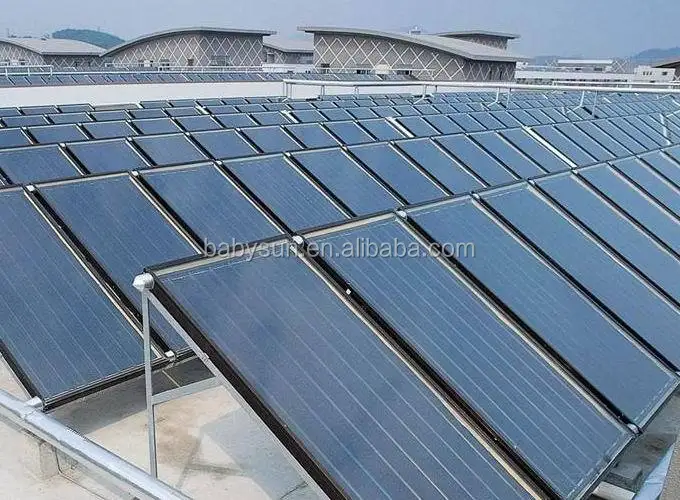

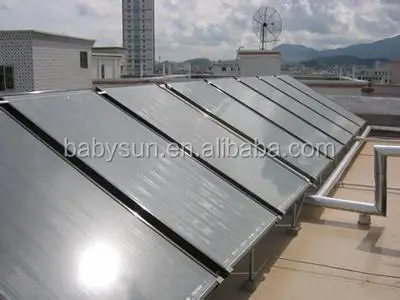

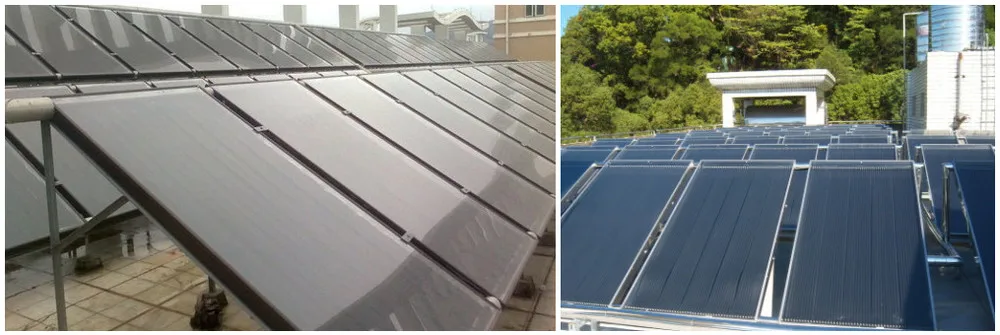

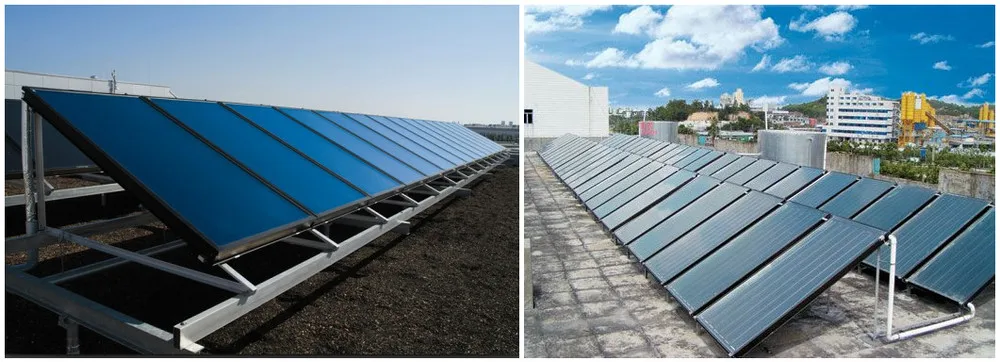

Advantages of Flat Plate Solar Collector Projects:

------------------------------------------------------------------------------------------------------------------------------------------

1) Simple structure, easy installation
2) Efficient heat insulation
3) Reliable performance
4) Good quality and reasonable price











Specification of Flat Plate Solar Collector:

-----------------------------------------------------------------------------------------------------------------------------------------

1) Low iron textured tempered glass(3.2mm thickness)offers the best capability of durability, strength.
2) Tinox blue titanium / black chrome coating / oxidation coating / titanium-coating have very high absorption rate to ensure the high efficiency.
3) Whole-plate ultrasonic welding technology makes the flat plate solar collector more beautiful, efficient and durable.
4) Special Anodized aluminum alloy frame to ensure handsome appearance and can accept high pressure without leakage.



Outer tank	Material	Colorful steel with thickness of 0.5mm
	Diameter	Ø460mm
Inner tank	Material	1.2mm thick 304-2B stainless steel
	Diameter	Ø360mm
Flat collector	Dimension of solar collector(L*W*T)	2000mm*1000mm*80mm
	Copper Riser Tubes Spec. & Qty	Φ10 * δ0.6 * 1886mm, 7pcs copper
	Copper Header Tubes Spec. & Qty	Φ22 * δ0.6 * 1060mm, 2pcs copper
	Copper Absorber Fin Spec. & Qty	140 * δ0.3mm,7pcs, all cooper fin
	Cover	Low iron textured tempered glass with thickness of 4mm
	Cover Transmission	>91.7%
	Absorptivity	95%±2%
	Gross Area	2.03m²
	Aperture Area	1.82m²
	Insulation	30mm fiber glass
	Sealing Gasket	EPDM(Ethylene-Propylene-Diene Monomer)
	Back Plate	galvanized steel with thickness 0.3mm
	Frame	silver or black aluminum alloy steel with thickness 1.5mm
Support Bracket	Material	Galvanized steel
	Thickness	1.5mm
	Deg	25°-45° (It can be changed as local latitude)
	Screw	SUS202 stainless steel 8mm diameter
Insulation	Material	High density PU foaming imported from German
	Thickness	50-55mm
	Density	≥40kg/m3
Working station		Pump/Intelligent controller/ pressure gauge/expansion tank
Max operation temperature		200°C
Max pressure		1400Kpa
Max working temperature		120°C











Special Features:

------------------------------------------------------------------------------------------------------------------------------------------

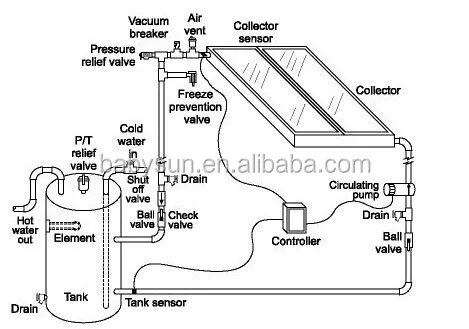

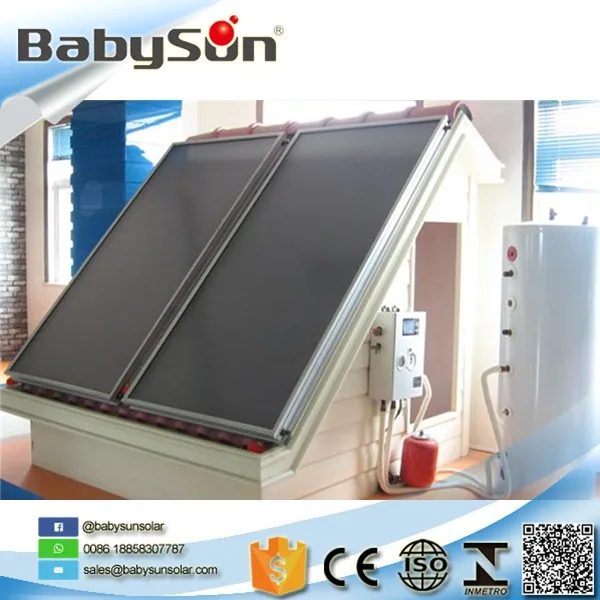

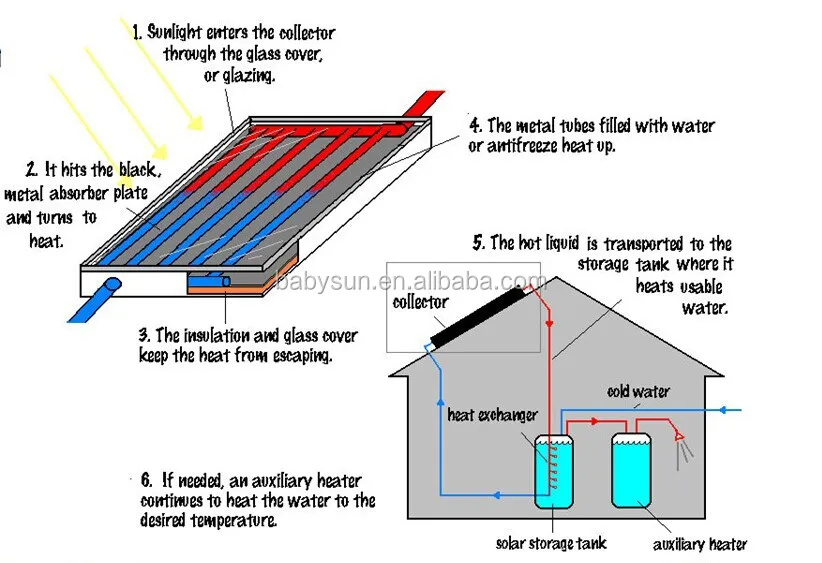

1. Collectors are separated from the storage tank. The tank can be put anywhere of the house,so the whole system is harmonious with the building

2. Absorbing heat quickly

3. No worry about being frozen because there is no water running inside the tubes when working

4. Completely automatic operation

5. It can withstand pressure of tap water when it works

6. Without incrusting, long usage life

7. Multifunction: Bathing, washing, domestic heating

8. Beaytiful appearance
