Olive Leaf Crush Machine CE ISO Straw Hammer Mill Crusher

Product Overview

Description

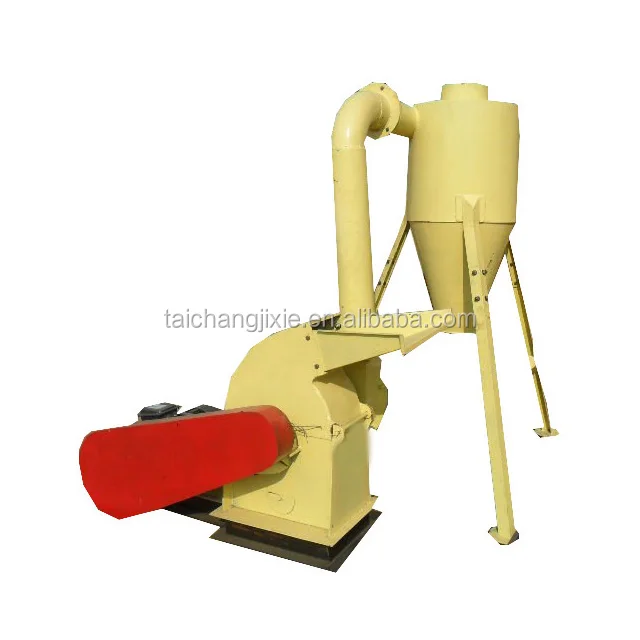

                            Olive Leaf Crush Machine CE ISO Straw Hammer Mill Crusher

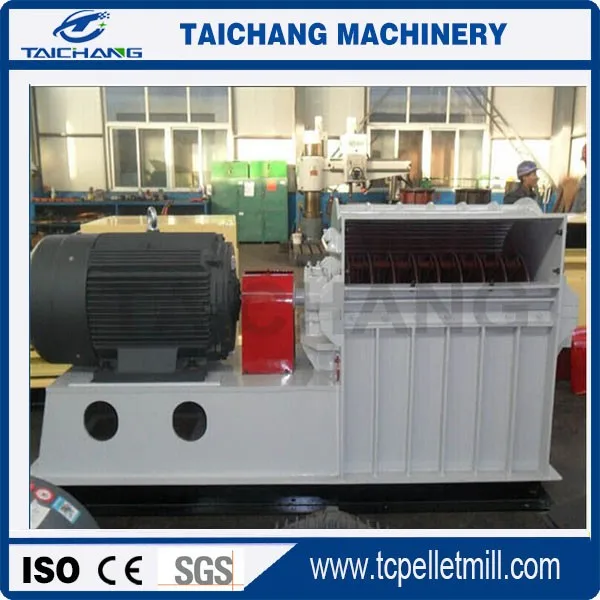

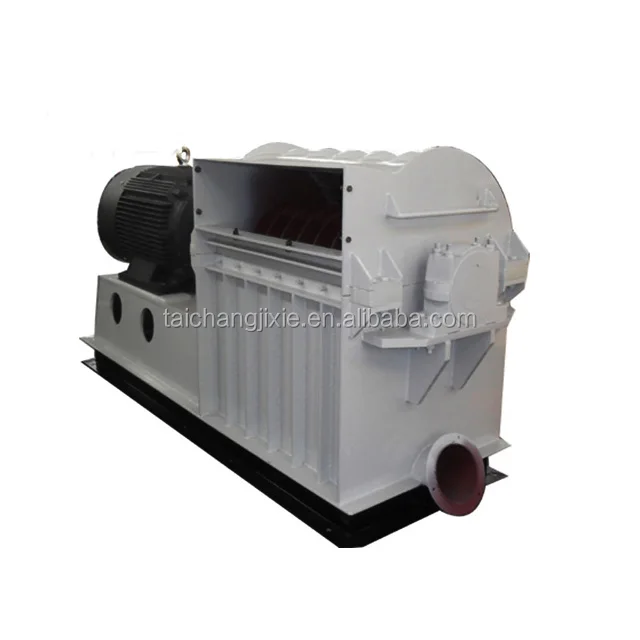

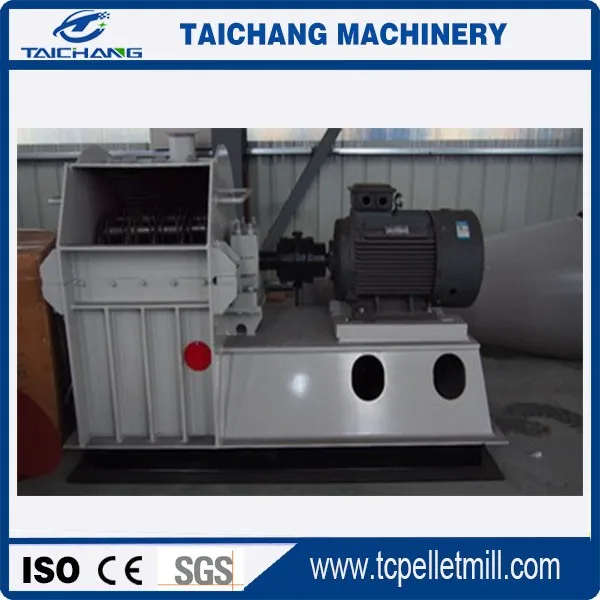

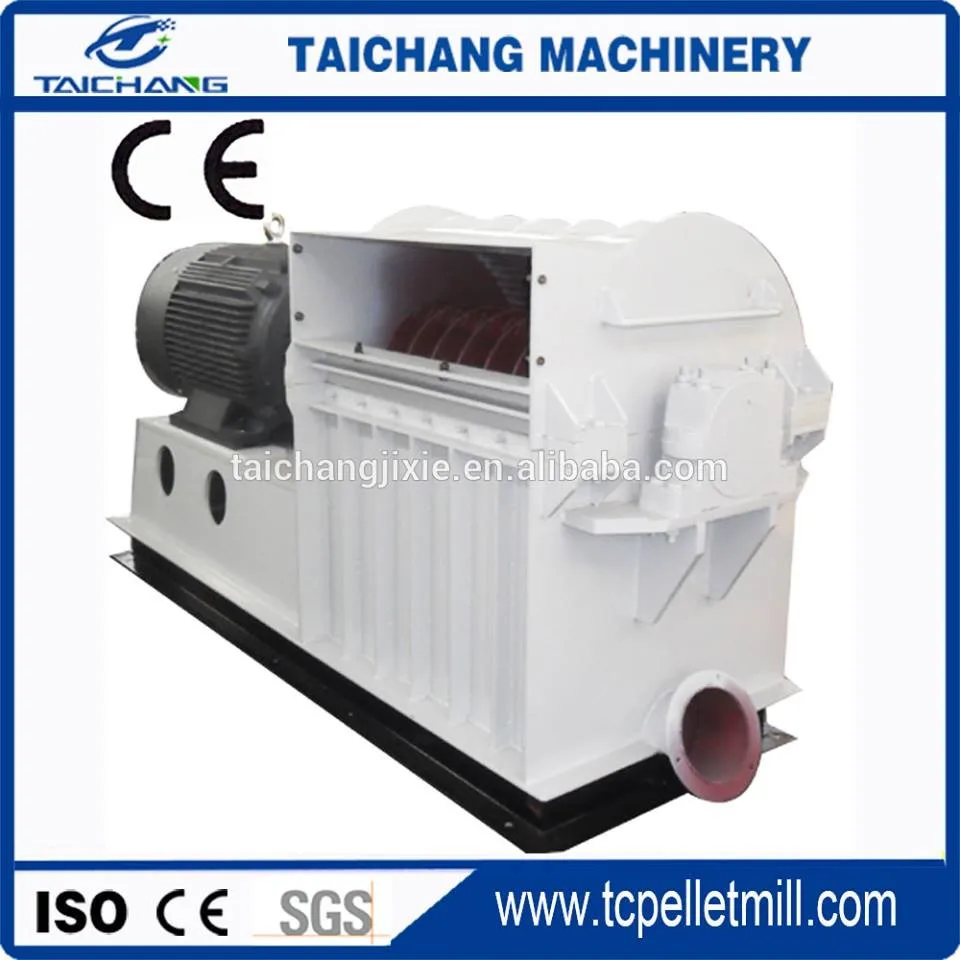

TCFS65*55 Olive Leaf Crush Machine CE ISO Straw Hammer Mill Crusher

1. It is simple structure, safe, dependable, easily mounting and convenient operation, low vibration,high output.
2. It is widely used for grinding granular materials, such as corn, sorghum, wheat, soybean, etc;

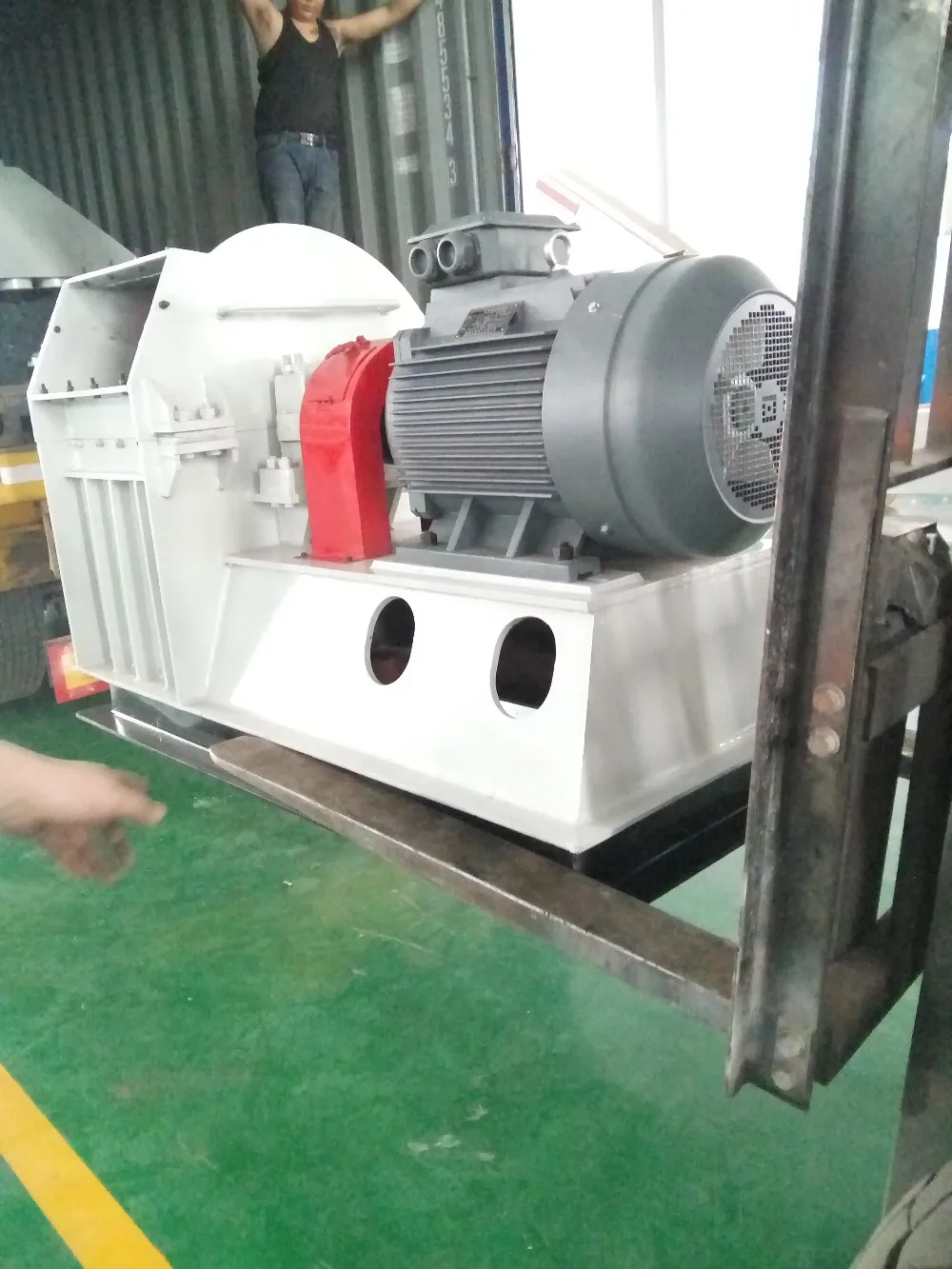

3. Steel plate welded structure; motor and rotor are mounted on same base plate;

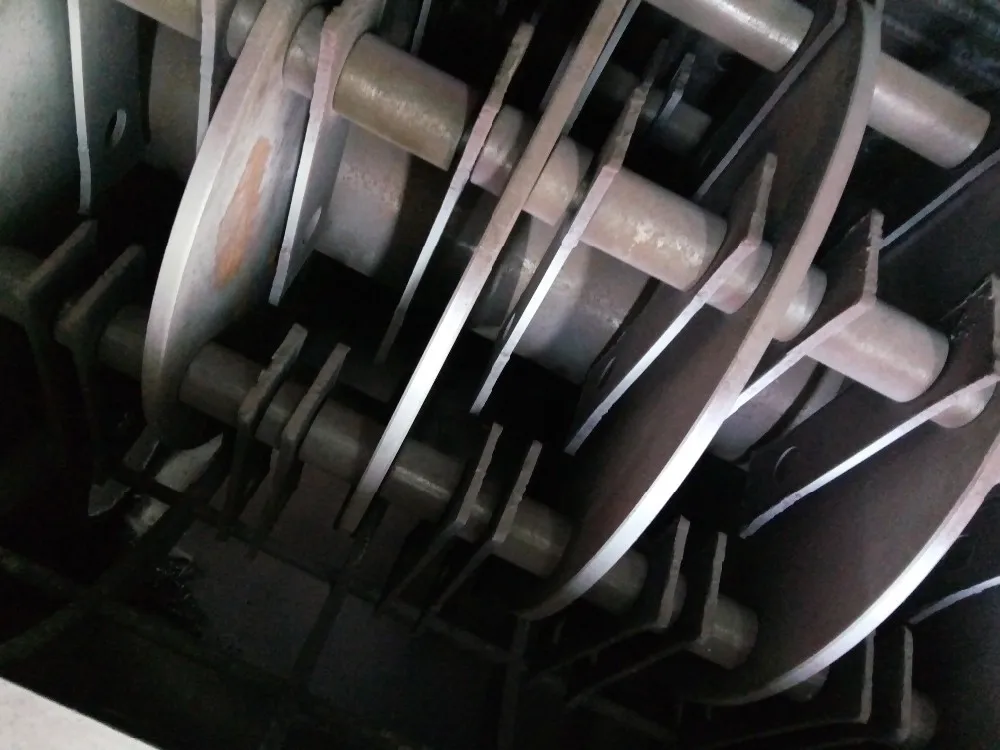

4. Pin coupling direct connection driving; Rotor passes accurate dynamic balancing test;
5. Safe operation door to ensure it is locked when operation;
6. The inlet is on top of machine for easy operation.



1.TCFS CE ISO Hammer Mill Crusher/Palm Kernel Crushing Machine is the most ideal grinding equipment for all kinds of animal feed materials ,such as corn, weed, soybean, maize, grain cereal,also it can crush biomass materials such as wood chips, palm kernel ,shavings, stalk, straw etc. also can crush fertilizer materials such as animal manure, plant waste etc. now it is mainly used in feed factory, cultivation factory, Chemical industry and so on.

2. TCFS Hammer Mill Crusher/Palm Kernel Crushing Machine can install one rotor or two rotors, for large capacity,generally install two rotors, whatever one rotor or two rotors, we will install two sieves at the both sides, where will outlet crushed powder materials, also it has two inspection doors, very easy to inspect working process and repair. the bottom sieve has large scope angle outlet area , making high efficiency working .

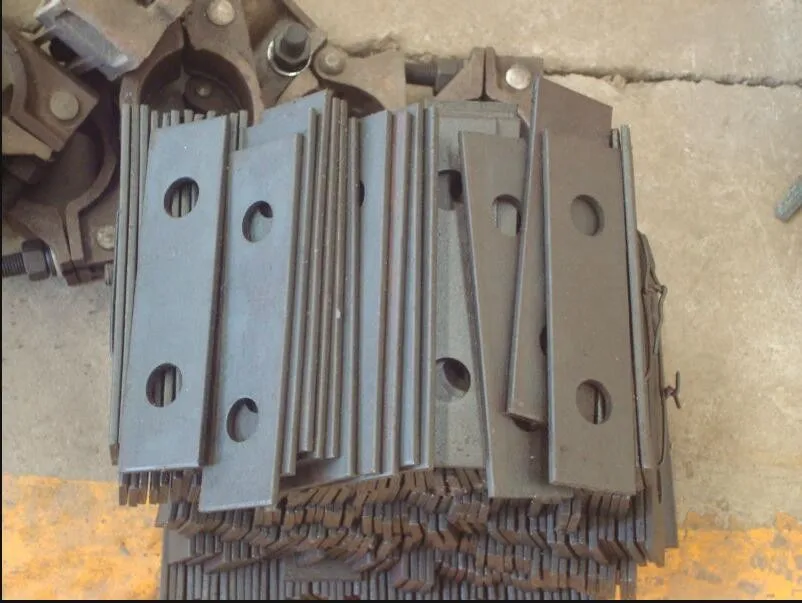

3. TCFS hammer mill bottom sieve is made according to raw materials humidity ,the key spare parts hammers and screener are made by our CNC systems, through high technical heat treatment , standing out from other suppliers is that we could ensure the parts high precision and high quality.

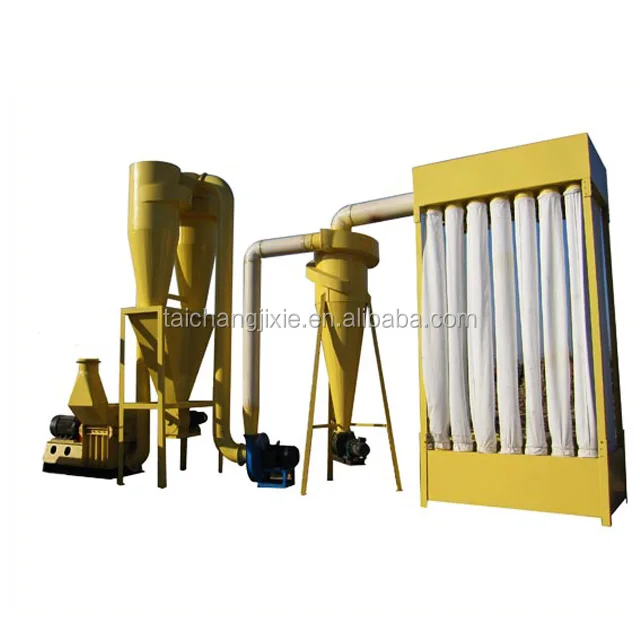

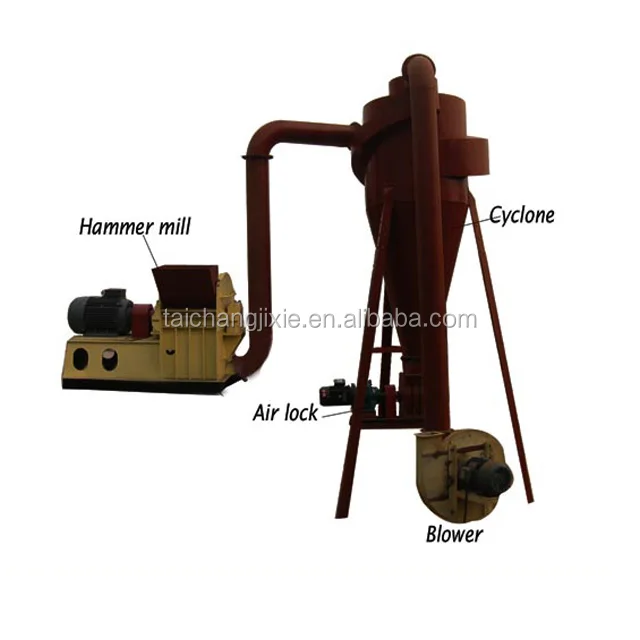

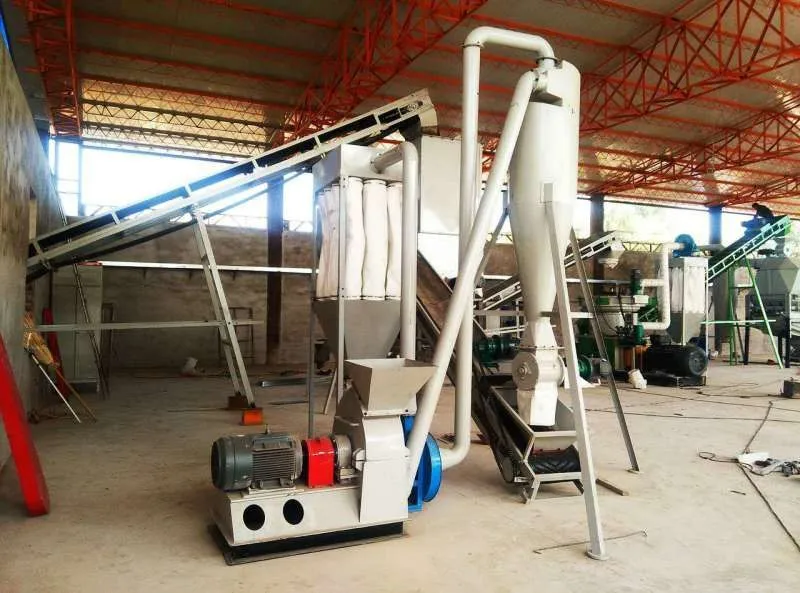

4.TCFS wood sawdust machine works connect with air fan and cyclone,for fertilizer and animal feed materials, crushed powder will outlet from crusher bottom., air fan and cyclone is used to clean dust. For biomass materials, crusher powder will outlet from cyclone bottom.It will connect with dust filter , which is used to clean dust.





Work principle of Olive Leaf Crush Machine CE ISO Straw Hammer Mill Crusher

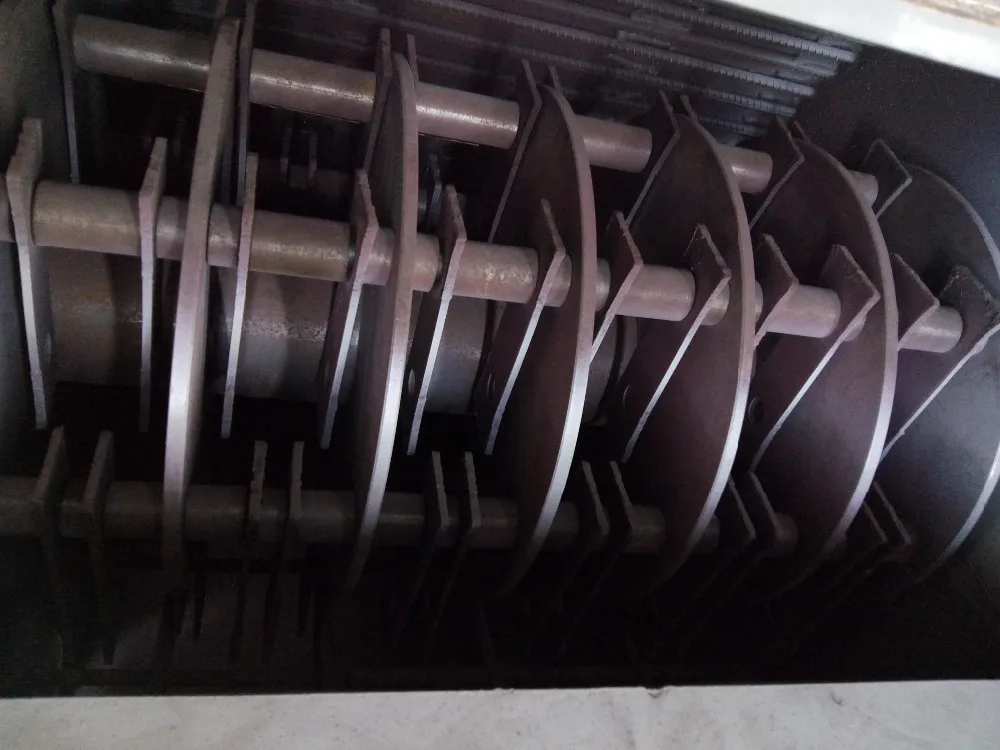

The material to be crushed enters the hammer mill through gravity feed hopper having an adjustable slide to control the feed material. The material is crushed between the hammers and serrated liners. A powerful blower in hammer mill continuously sucks the ground material through a screen classifier and conveyed through the pipe into the cyclone for bagging. The blower maintains constant airflow in the Hammer Mill chamber in order to obtain a cool product and continuously cleans the screens, thus increasing the output. Particle size of the ground material can be varied over a large range by using sieves with the desired openings of hammer mill.The material to be crushed enters the hammer mill through gravity feed hopper having an adjustable slide to control the feed material.





Technical Parameters



Model	Capacity(T/H)	Power(KW)	Weight(T)	Dimension(mm)	Hammer qty    (piece)
TCFS40	0.2-0.5	7.5	0.27	1310×800×1070	12
TCFS50	0.6-0.8	11	0.45	1380×800×1010	16
TCFS65×27	0.6-1	22	1.1	1500×1000×1100	24
TCFS65×55	1-2	37-55	1.5	1700×1000×1100	48
TCFS65×75	3-5	55-75	1.9	2100×1000×1100	72
TCFS65X100	4-6	90-110	2.3	2400×1000×1100	96

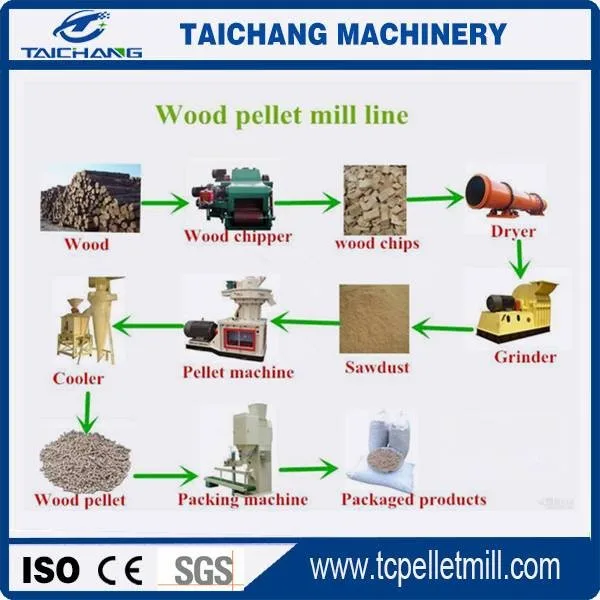

Related Pelletizing Process of the complete wood pellet production line:

1. Chipping&Crushing:

In the wood pellet plant before raw materials are made into biomass pellets, they are
first reduced into much smaller, uniformly-sized particles. When the thickness is larger than 10 mm or size is greater than 50*50 mm, a wood chipper is needed to chip these materials into smaller pieces. The hammer mill is then used to further crush these small pieces into particles of less than 3 mm in diameter.

2. Drying:
After raw materials are crushed by hammer grinder, a dryer is needed since most raw wood materials have a moisture content of about 50%. However, the optimal moisture content for pelletiztion is 13%-15%. Therefore a rotary dryer is included in the wood pellet plant to reduce the moisture content. After crushing and drying you can begin making wood pellets.

3. Pelletizing:

After crushing and drying the raw material properly it is then ready for the pellet mill.
The pelletizing machine or press is the key piece of machinery in the wood pellet plant.
It should be mentioned that impurities in the raw materials like metal or stone,may
damage the die and rollers of wood pellet making machine.

4.Cooling:

Usually after pelletizing, the temperature of wood pellets is between 60-80 degrees and the moisture content is close to 15%. For storage purposes, a cooler must be used to reduce their surface temperature and moisture content.

5. Packing:

Finally is the packing process. In order to protect the wood pellets becoming getting
damp and to increase storability, proper packing is necessary. Here we provide you
with the best domestic Semi-Auto Packing Machine.





 Characteristics of Olive Leaf Crush Machine CE ISO Straw Hammer Mill Crusher

1. The whole machine adopts totally enclosed type with good safety performance,small volumn and high productivity.

2. The feed inlet could be adjusted flexibly according to the local conditions.

3. Adopting high quality and high speed wearproof blade to ensure the quality and output,it will also extend the service life.

4. Feed outlet includes self lighting type and wind guide type,customer can choose either one flexibly.

5. Combined main machine with blade can be chose in order to reduce the invest cost efficiently.

6. Easy installation and flexible disassembly.

7. Automation type can be chose for input and output in order to save the labor cost.

8. Humanistic structure and operation,convienent maintenance.

9. The screen adopts high quality stainless steel which punch forming once.

10. Apply to crush all kinds of biomass of wood materials (corn straw, wheat straw, cotton stalks,rice straw,rice husk,wood branches, wood chips,leaves, sawdust and other agricultural waste.)





1. Pre-sales service:
1). Sales person, project manager, technology engineer, accountant staff service for you.
2). Professional responding team: would be very fastly and exactly to send you offer.
3). Choose suitable and make producing plan according to the raw materials, final shapes and output capacity.

4). Offer reasonable price to meet your budget.
5). Invite customers to our factory, show the machines, let you know how the machine work, and compare the quality with other suppliers.
6). Arrange shipping and fastly delivery.
7). Standard export package or as your requirements.



2. After-sales service:
1). Provide technical support for customers
2). Repairing and maintain if any problems occur in the warranty.
3). Help for installation or clerk training, if necessary, dispatch technicians to your country to install the ce approved hammer crusher

4). Supply spare and wearing parts of our wood grinder mill.
5). Any feedback of our wood hammer mill can be told us, and we will try our best to support you.
6). Technology knowledge shares with you.



1.Jinan Taichang Transmission Machinery Co.Ltd was founded in 2004 with registered capital of 8 million Yuan(USD 1,400,000.00),plant building area of 40000 squre meter.More than 200 employees, including 10 senior engineers, 16 mechanical designers, 20 technicians, and is a research, development, production, operating as one of the modern machinery manufacturing enterprises.

2.Product range involved hammer mill ,biomass wood pellet machine,animal feed pellet machine,grinding machine,,mixer,dryer,cooling equipments and packing equioments.

3.Our company's products have passed ISO9001-2000 international quality management system certification, CE certification and other qualifications. We have the perfect detection means, excellent product quality, good product reputation, first-class after-sales service, got the domestic customers trust.





1.Q:Are you a factory or trading company?
   A:We are a factory and trading company.



2.Q:How does your factory do regarding quality control?

     A:"Quality is priority. We always attach great importance to quality controlling from

       the beginning to the end. Our factory has gained CE, SGS authentication.



3.Q:I don't know how to use this machine,can you help me?

   A:Yes ,Our techinical will tech you hoe to use it  and basic maintains when you place

      an order.And our engineers also can installation for you and provide a wholle

      week train for you to help you use the machine.



4.Q:Why do we choose your company?

   A:We have more 10 years of experiences in this field,and can provide high

      quality product and competive price and good service.



 5.Q:How long is your guarantee for wood crusher ?

    A:One year from the equipment from clients receive the products.we provide

       full-life maintenance service .All our products have quality assurance.
