Product Overview

Description


Product Description

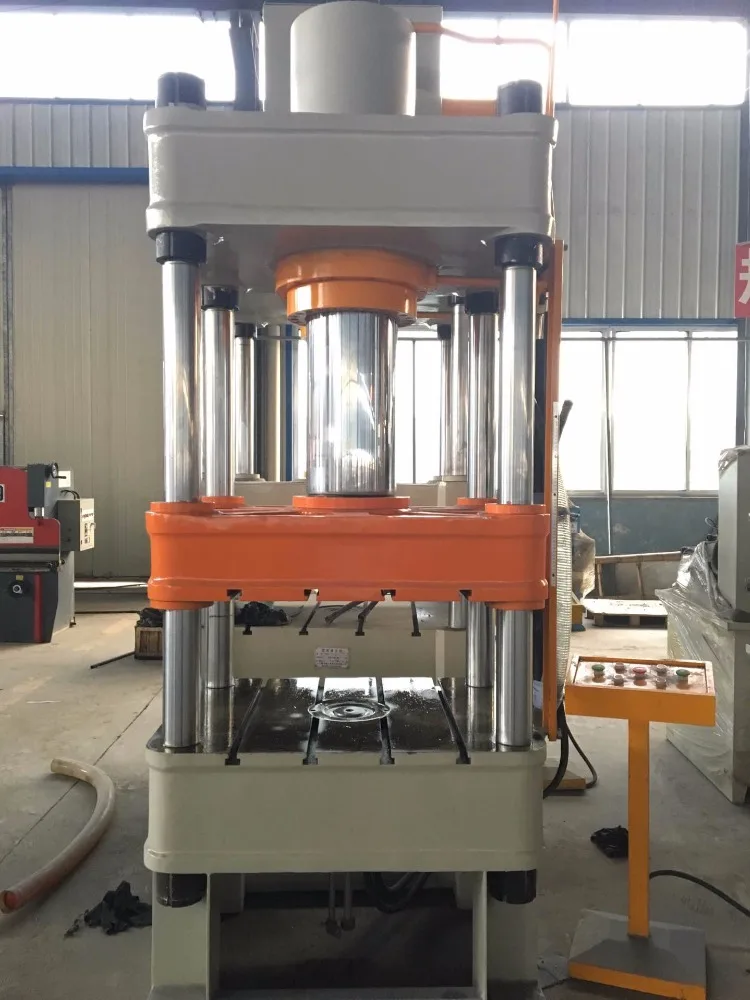

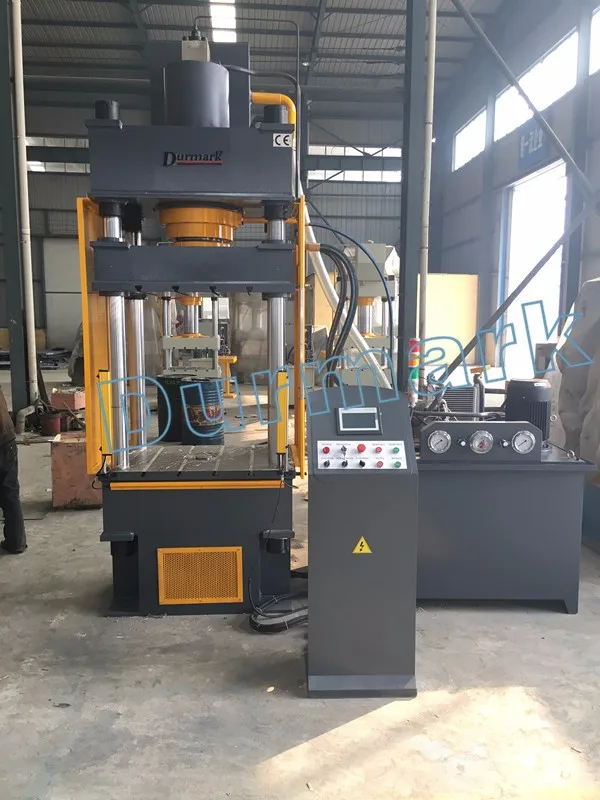

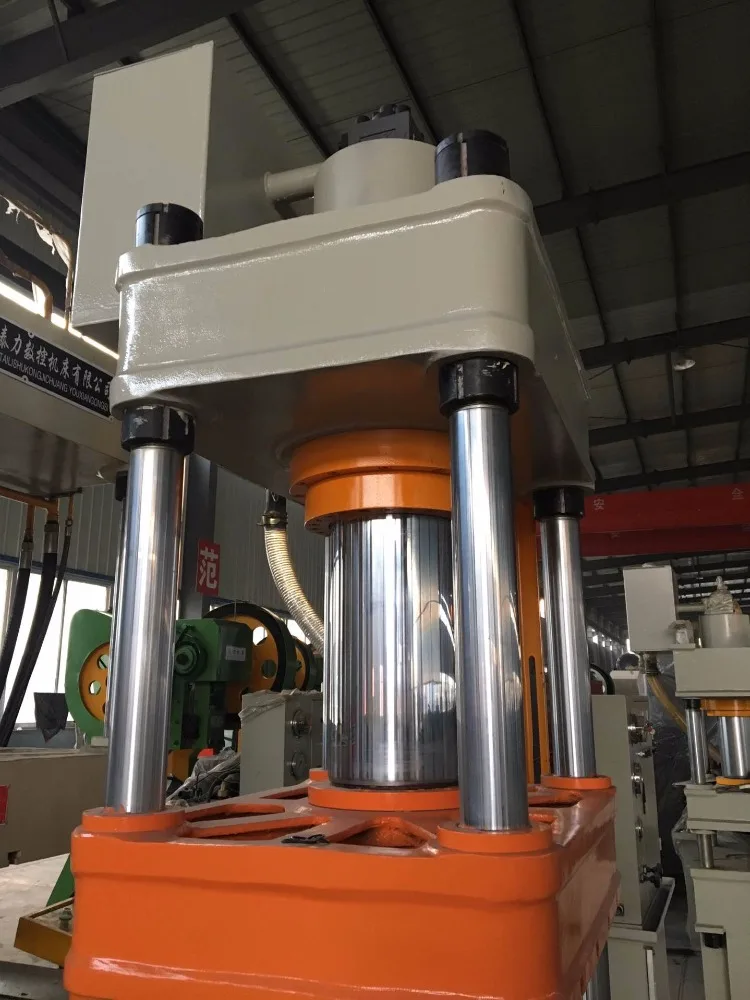

steel sheet stamping machines/hydro press stamp machine/hydraulic forging press

This machine is applicate to all drawing, blanking, forming process, especially in the following areas: all kinds of containers, all kinds of automobile covering parts, electric parts, kitchen utensils, tractor, motorcycle, aerospace,aviation, electronics, instrumentation, plastic,rubber,chemical and other industrial departments.

\t
No
\t
Items
\t
Specification
\t
Unit
\t
1
\t
Nominal force
\t
800
\t
KN
\t
2
\t
Ejecting force
\t
190
\t
KN
\t
3
\t
Max. working pressure
\t
25
\t
Mpa
\t
4
\t
Slider stroke
\t
500
\t
mm
\t
5
\t
Ejecting stroke
\t
200
\t
mm
\t
6
\t
Daylight opening
\t
880
\t
mm
\t
7
\t
Slider speed
\t
Idle stroke :100
Work :30
Return stroke : 80
\t
mm/s
\t
8
\t

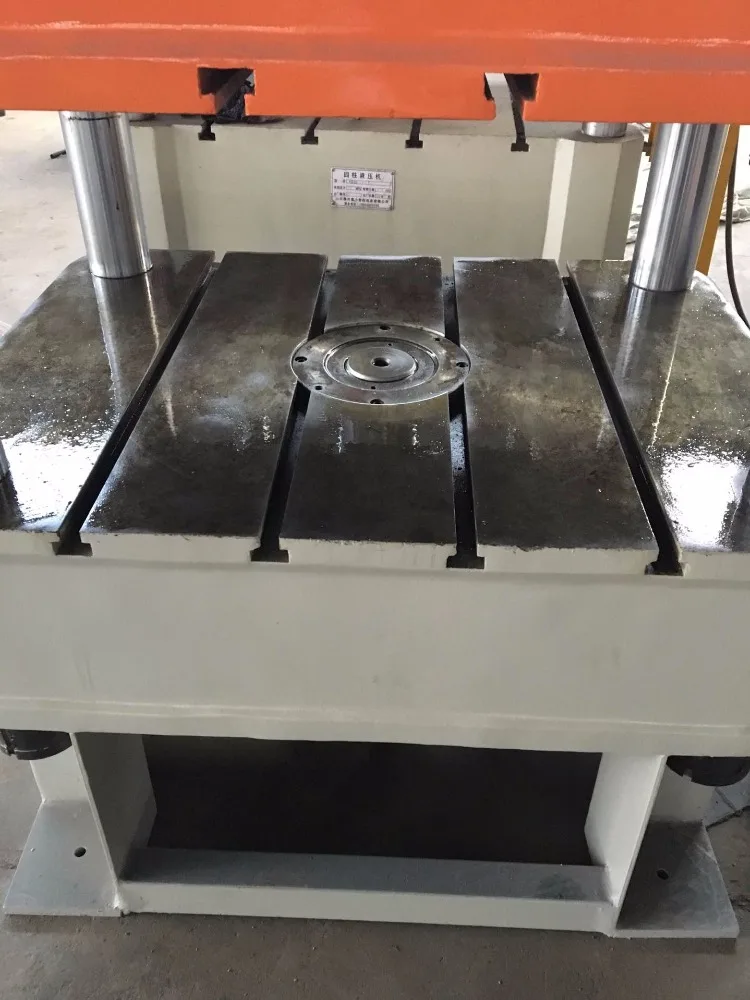

Worktable effective area
\t
720*580
\t
mm
\t
9
\t
Ejected cylinder speed
\t
Up : 75
Return : 75
\t
mm/s
\t
10
\t
Dimension
\t
2500*1500*2950
\t
mm
\t
11
\t
Motor power
\t
7.5
\t
kw

Main Features

1. Three beam four-column structures, after the computer optimized design, economic, and apply.

2. Hydraulic control system uses an integrated cartridge valve systems and reliability, long life.

3. Hydraulic shock is small, reduces piping and leak-point links.

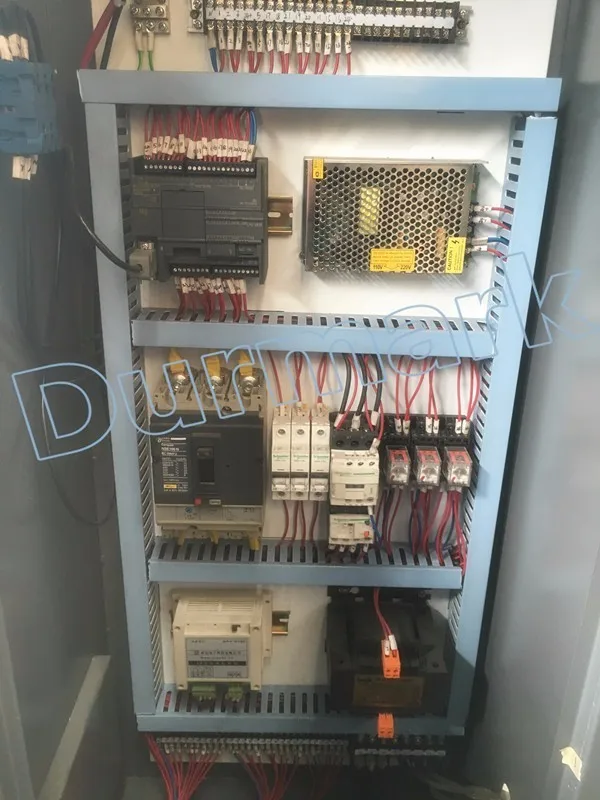

4. Stand-alone electrical control system which is reliable, intuitive motion, easy for maintenance.

5. Centralized control design, two kinds of mode of operation for choose.

6. Setting process can be realized easily.

7. Working pressure, stroke according to the technical needs within the limits prescribed adjustable.

Packing & Delivery

Packaging Details:
Plastic film, wooden package, or as requirement.
Delivery Detail:        15 days

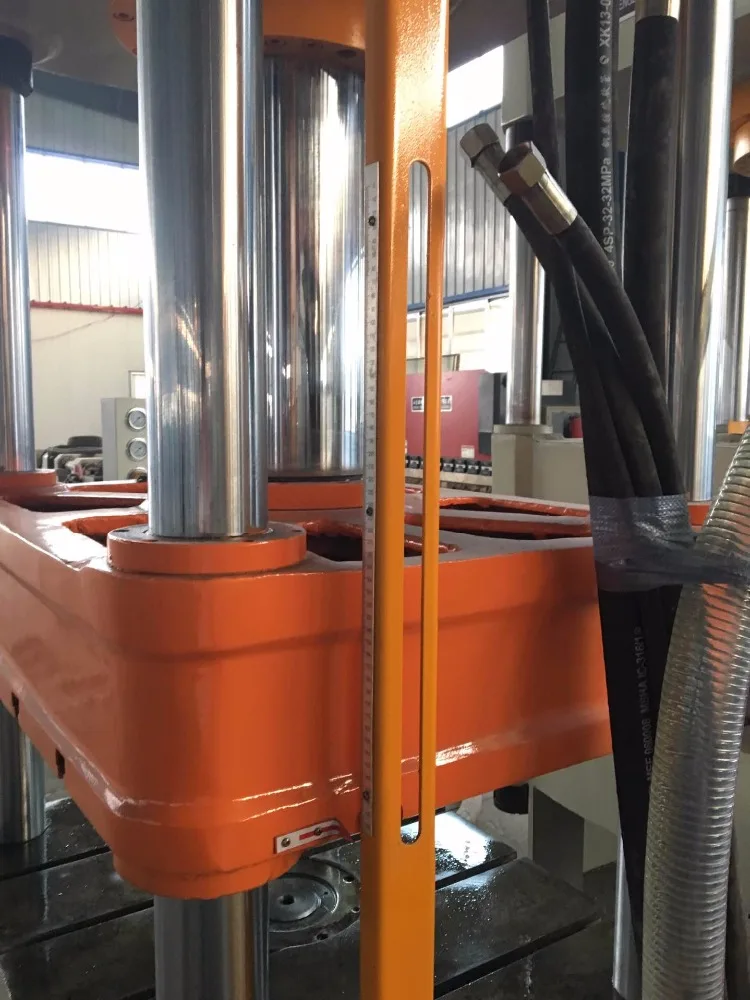

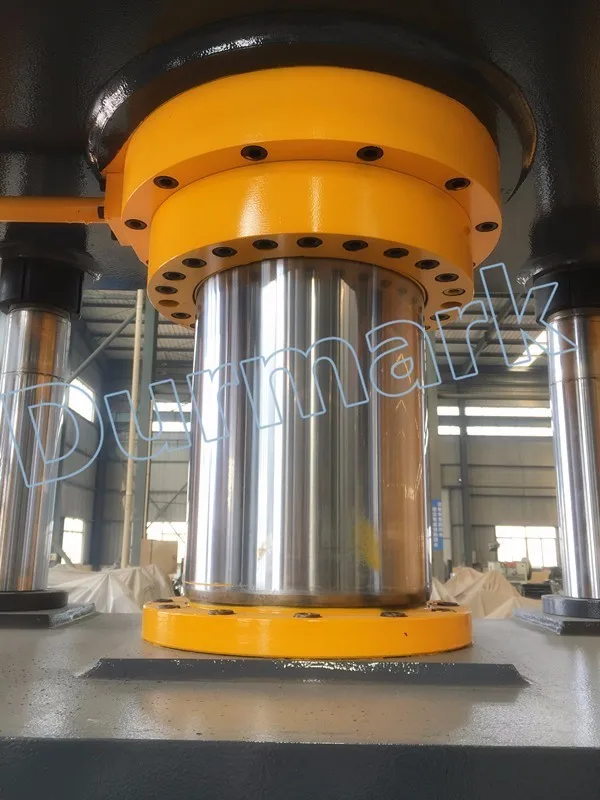

Detailed Images

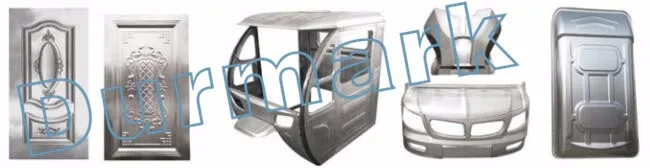

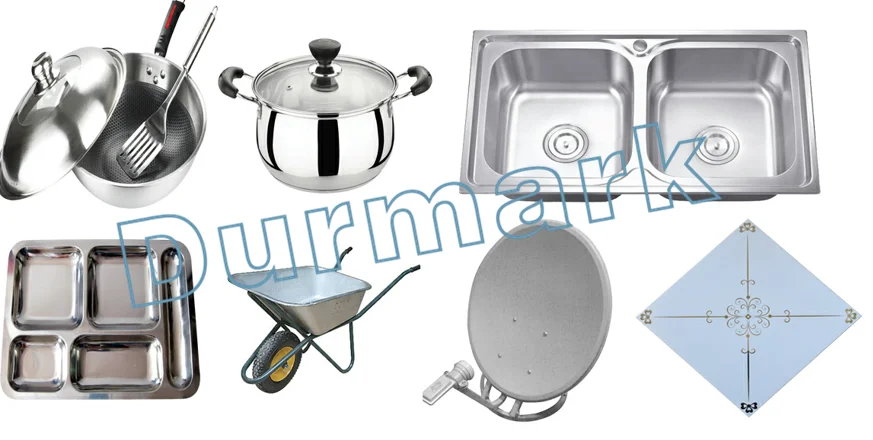

The products make by this hydralic machine

Our Service

Pre-sales Service

1. Inquiry and consulting support.
2. Sample testing support .
3. Recommend the most suitable machine according to customer's purpose.
4. Factory visiting welcomed.

After-sales Service

1. Training how to install the machine .
2. Training how to use the machine .
3. Warranty 1 year.
4. Engineers available to service machinery oversea .

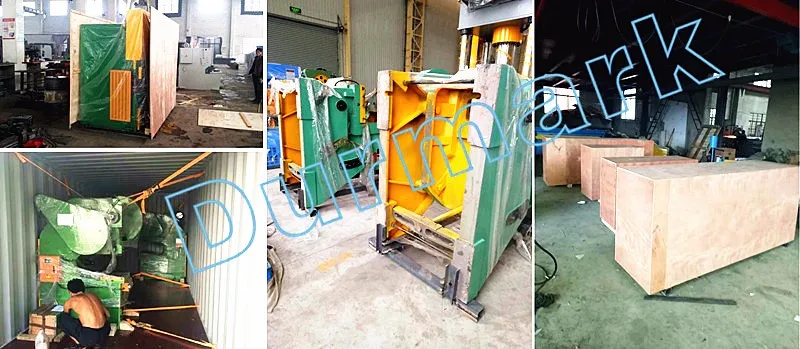

Packing & Shipping

We use the wooden cabinet, protect the machine and can be easily used forklift to unloading machine.

Our Customer

Our Factory

FAQ

How about your machine quality? We are worry about the quality.

RE: Durmark company is a mature brand in CHINA,through our many years research in technology,our design including structure and detailed security and precision has enhanced greatly,and can match all the CE standard or more strict standard.Our machines distribute worldwide to about 50 countries where there are metal plate industry ,there are Brillante machines.And where there are our machines,there are good reputation and terminal user satisfaction.

Whether the machine price can be more discount?

RE:1. Durmark always provide high quality machine,as we know ,oversea market is more important and difficult than domestic market because of communication time costing after sales,So always,our machine has enough quality standard to make sure the machine can work more than the real warranty period.In this way ,we will save a lot and think in advance for the clients.

RE:2. we are sure to provide quality=price and price=quality ,the matched price and acceptable for the clients and durable for our machines.We welcome your negotiate with us and get a good satisfaction.
