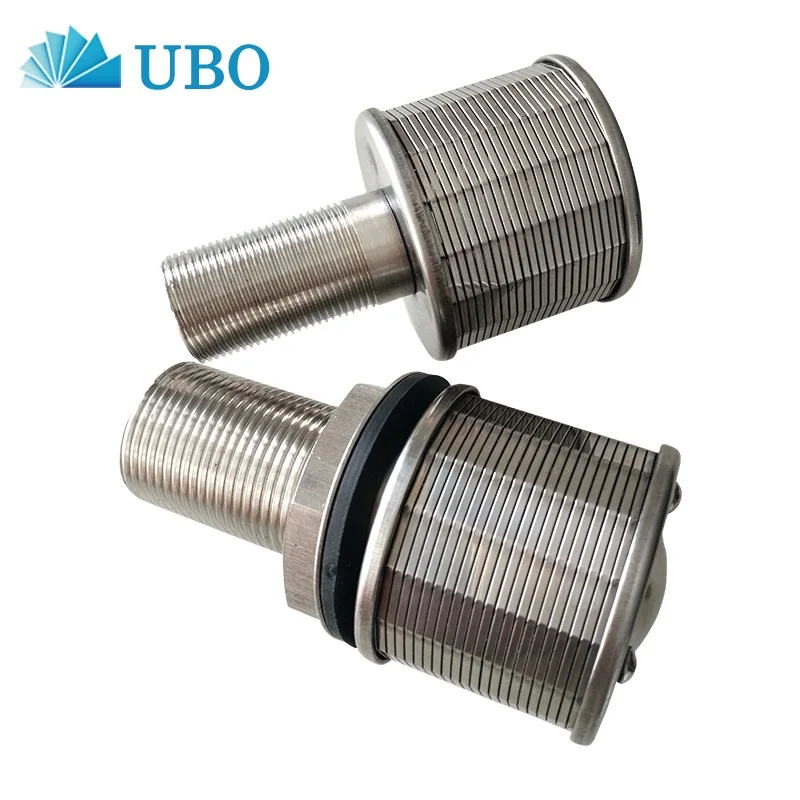

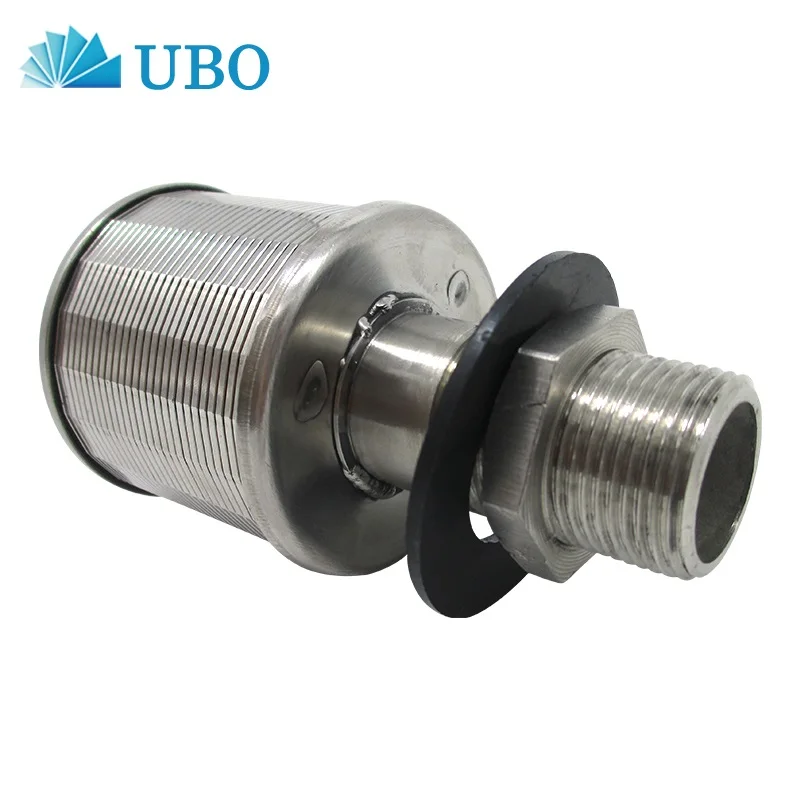

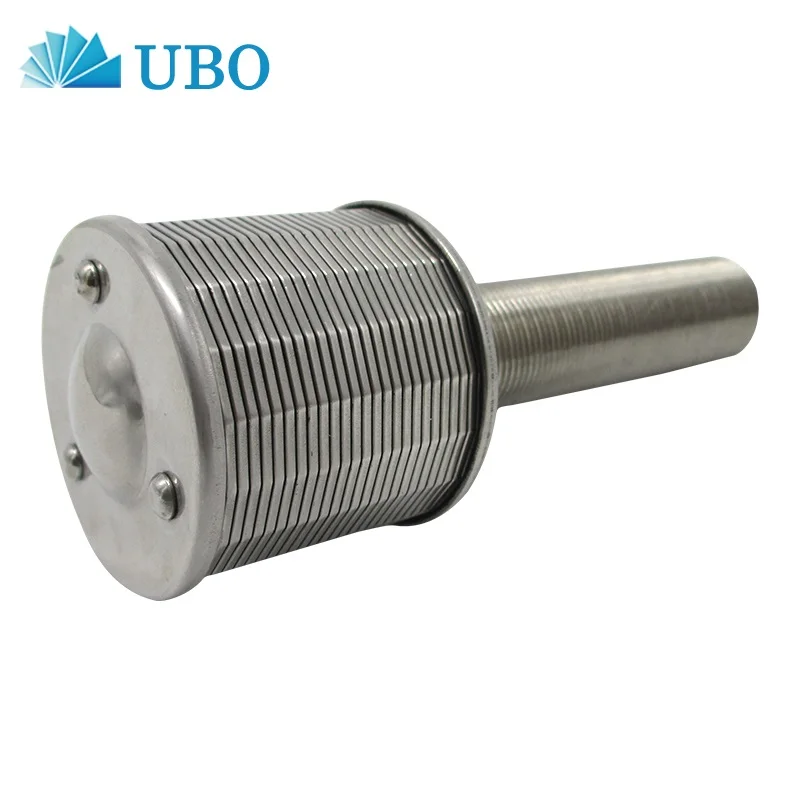

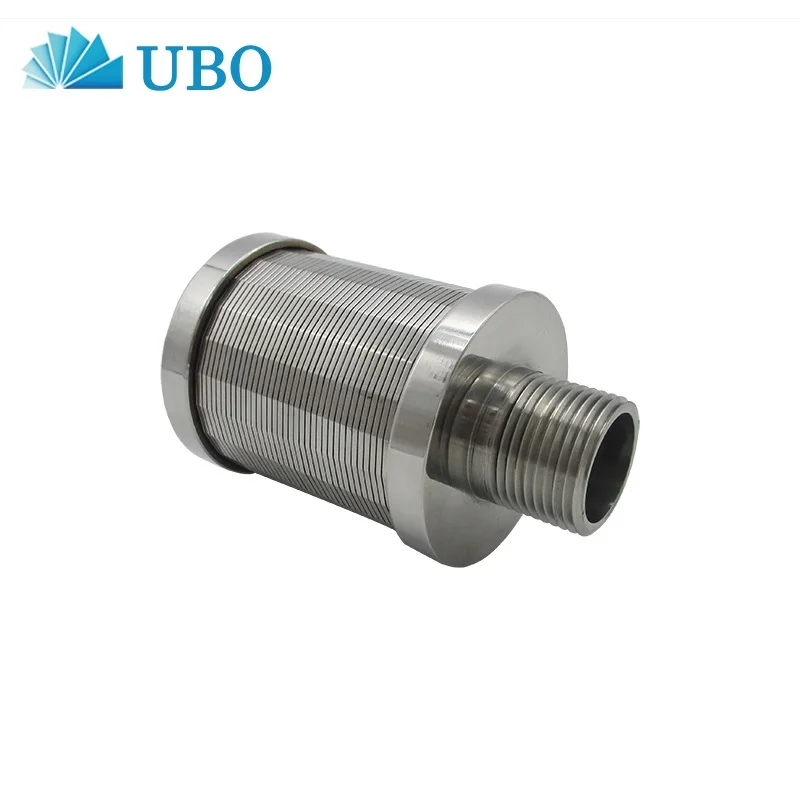

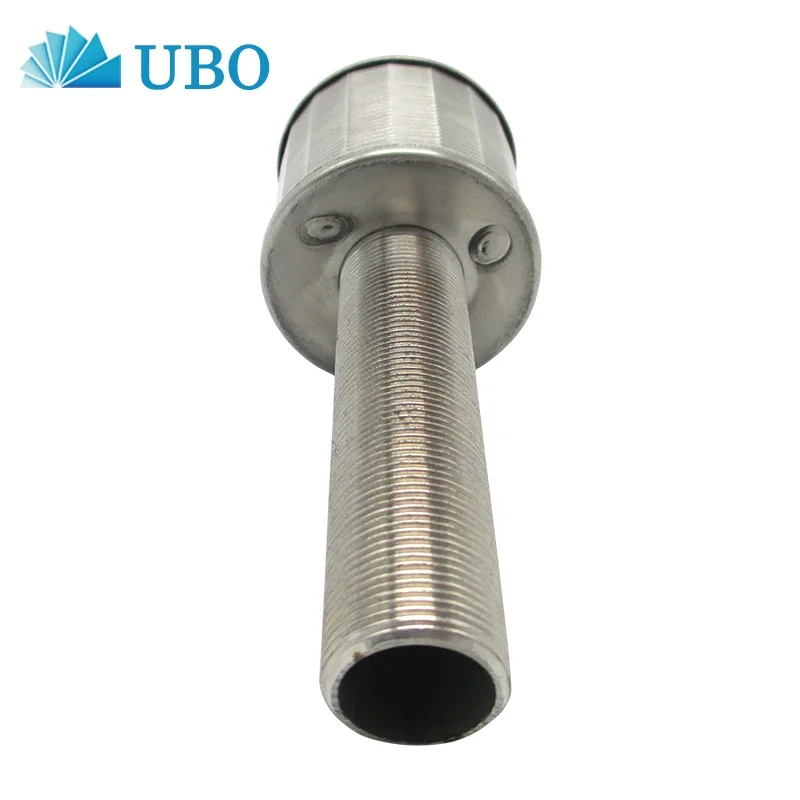

High Quality SS Water And Gas Filter Johnson Slotted Strainer Nozzle Screen
- Category: >>>
- Supplier: Hebei YUBO Filtration Equipment Co. Ltd.
Share on (60658155589):
Product Overview
Description
Product Description
Custom Top Quality SS Water And Gas Filter Johnson 0.025mm Slotted Strainer Nozzle Screen

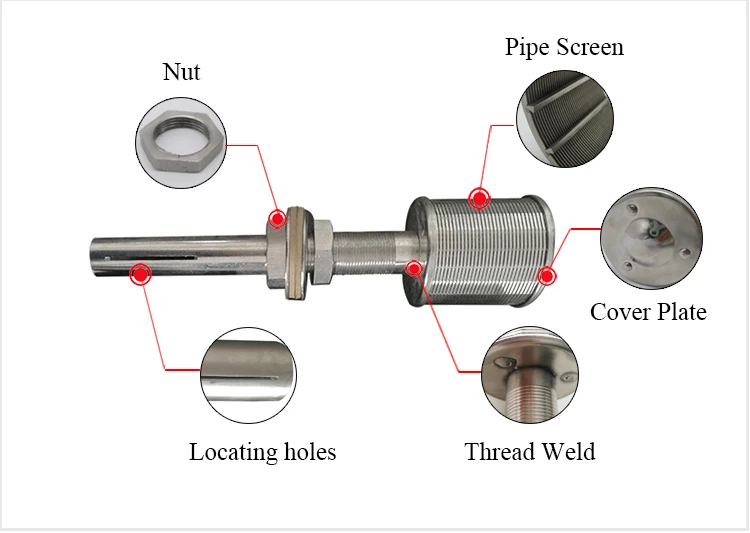

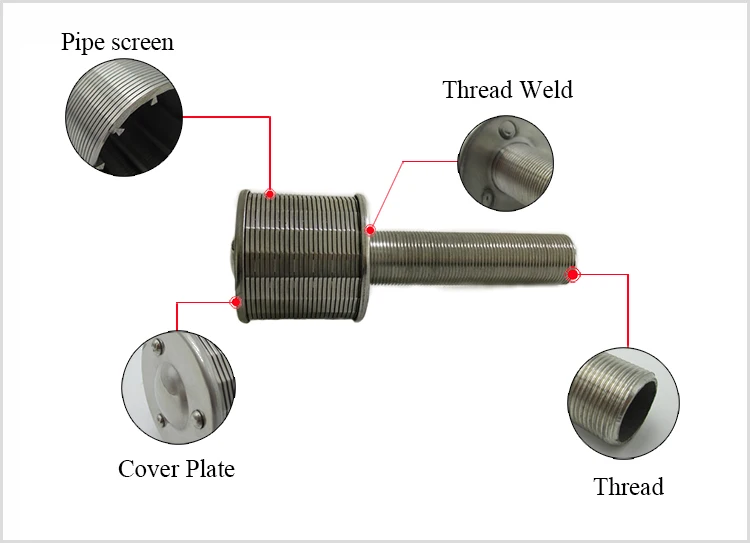

Top Quality SS Water And Gas Filter Johnson 0.025mm Slotted Strainer Nozzle Screen is composed of V-profile wire stainless steel which is spirally wrapped in certain equal slot. To maintain the slot size around inside and add extra strength are mounted. It has each cover for both ends of nozzle.Each wire and rod are made by spot welding. and fitting pipe is adjusted according to the thickness of set bottom plate.Nozzle is completed by welding fitting pipe to a cover of down end after setting screw according to the type of nut.
Specifications
| |||||||
Type | Slot (mm) | Dimension | Flow Rating (M3/H) | ||||
D(mm) | H(MM) | L(MM) | Thread | Fittings | |||
UBO-0.5 | 0.25 | 45 | 45 | 90/request | M,NPT, G, PT(BSPT),Z,BSP, request | SS Gasket, Rubber gasket, Nut, request | 0.5 |
UBO-1.0 | 0.25 | 53 | 45 | 90/request | 1.0 | ||
UBO-1.5 | 0.25 | 57 | 45 | 90/request | 1.5 | ||
UBO-2.0 | 0.25 | 57 | 55 | 100/request | 2.0 | ||
UBO-2.5 | 0.25 | 70 | 55 | 100/request | 2.5 | ||
UBO-3.0 | 0.25 | 70 | 70 | 120/request | 3.0 | ||
Note | * All the above size are the normal size. Customized size is possible. * UBO could help to design according to the application and requirement. * The nozzles customized range as below: 1. Slot range: 0.05-2mm 2. Dimension: Diameter, Screen Height, Length could produce according to actual requirement and application 3. Thread according to requirement | ||||||
Various kinds of filter nozzle
Related Products
For more products,you could also visit www.ubowedgewire.com
Application
Packaging & Shipping
FAQ
• 1.IS YOUBIOU (UBO) Factory or Trading Company?
YOUBIOU (UBO )Group has our own factory. professional on wedge wire and filters production and export for more than 10 years.
• 2.HOW about the MOQ?
MOQ according to different product, sometimes MOQ decided by customer.
• 3.Cou you supply the sample?
We could offer the sample for free charge but the cost of freight is extra.
• 4. What payment term do you accept?
T/T ,L/C at sight, Western, and other mainstream payment term.
• 5. How about the delivery time?
Usually within 3-15days after receiving the deposit;
• 6.Where is your Market?
We have been exporting to more than 120 different countries and regions all over the world.
• 7.How about your sales service?
Market promotion support and best after sales service will be offered to every customer, and help them get more new customers and orders.
