Small Business Ideas For Kraft Paper Machinery in Anshun.It consists of wet section(including headbox, former, press) and dry section(dry, calendered, coiled). According to the number of forming and drying the dryer, can be divided into single long net, double long net, long net, long net multi-cylinder, Yang Ke and other models; according to the speed can be divided into low speed and high speed.

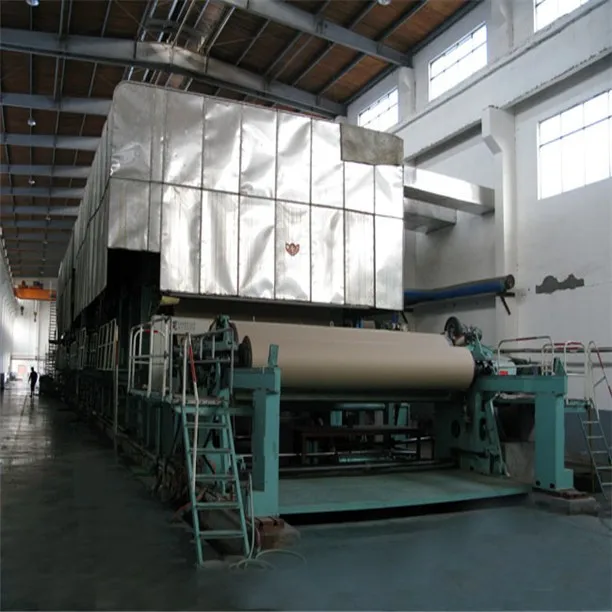

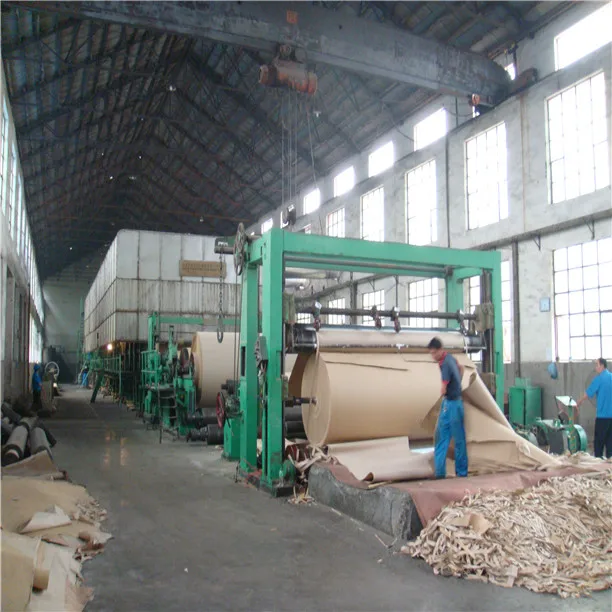

Pictures Show of Small Business Ideas For Kraft Paper Machinery in Anshun
Product Description
Technical Parameters of Small Business Ideas For Kraft Paper Machinery in Anshun
Raw material
waste and pure wood pulp
Outout paper
kraft paper,corrugated paper,white board paper and duplex paper
Capacity
8T/D
Net paper width
1600mm
Paper gram weight
100-160g/m2
Working speed
80-100m/min
Designing speed
150m/min
Wire width
1950mm
Rail gauge
2400mm
Drive way
AC frequency control, section drive
Structures of Small Business Ideas For Kraft Paper Machinery in Anshun
Main Parts
Specification
Cylinder part
Φ1250mm×1950mm×2400mm stainless cylinder mould 3 pcs, Φ500mm×1950mm×2400mm couch roll 4 pcs, including return roll 1 pc, rubber shore hardness 38℃±2.
Press part
Φ500mm×1950mm×2400mm natural marble roll 2 pcs, Φ450mm×1950 mm×2400mm rubber roll 2 pcs, rubber shore hardness 92℃±2, pneumatic pressure device.

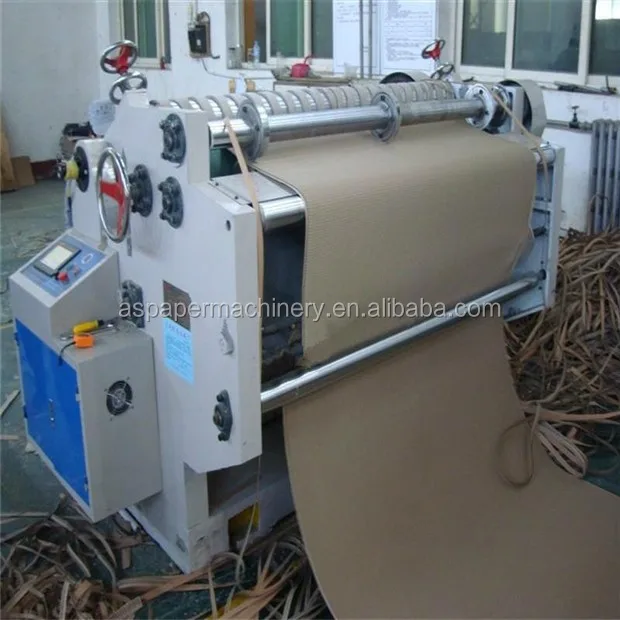

equipped with 1575mm Frame-style rewinding machine 1 set
Features of Small Business Ideas For Kraft Paper Machinery in Anshun
1.Low investment and high output
2.Energy saving and raw material easy to obtain
3.Considerate service before and after selling

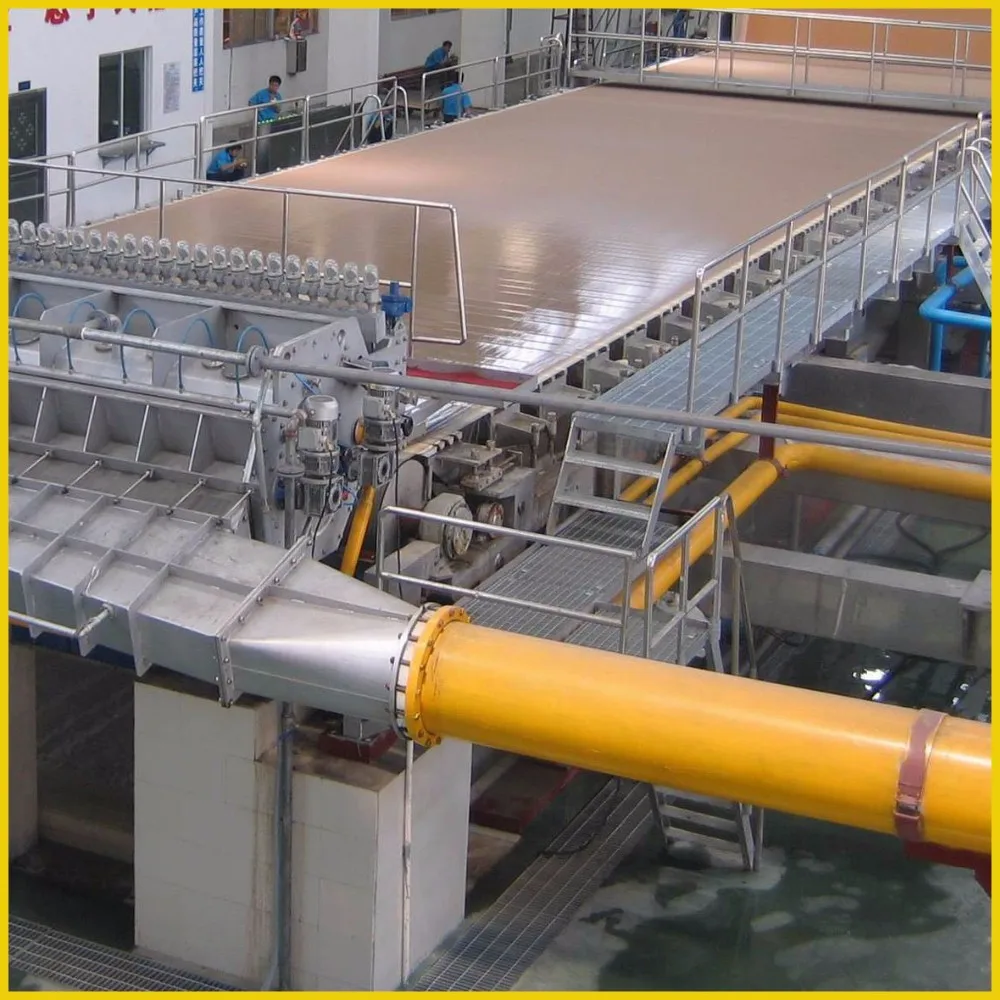

Small Business Ideas For Kraft Paper Machinery in Anshun.Kraft paper machine is divided into five parts:head box , wire part, press part, dryer part,Winding part.

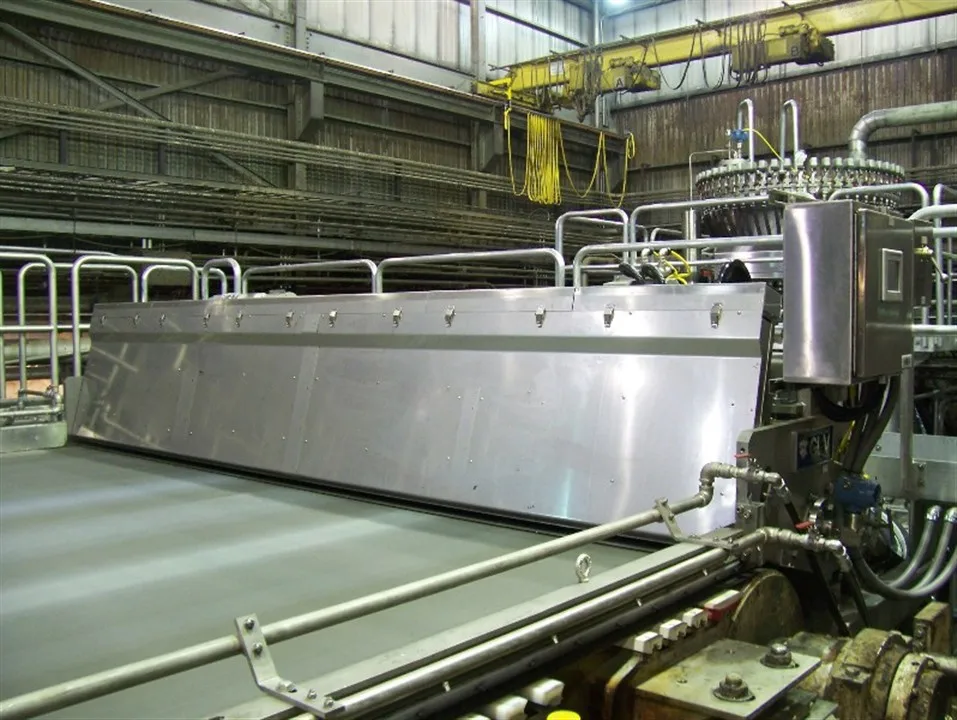

Head box is a key part of modern paper machine. Its structure and performance on the formation of paper and paper quality has a decisive role.

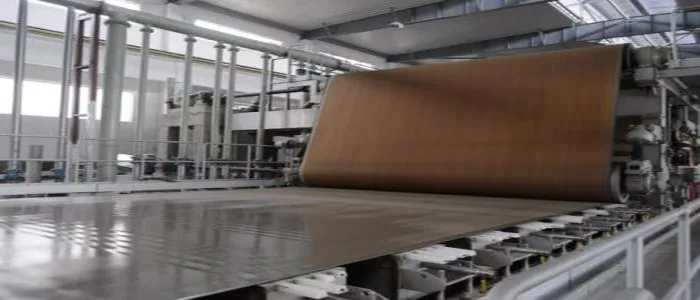

Wire part is dehydration and Forming of Papermaking Stage.

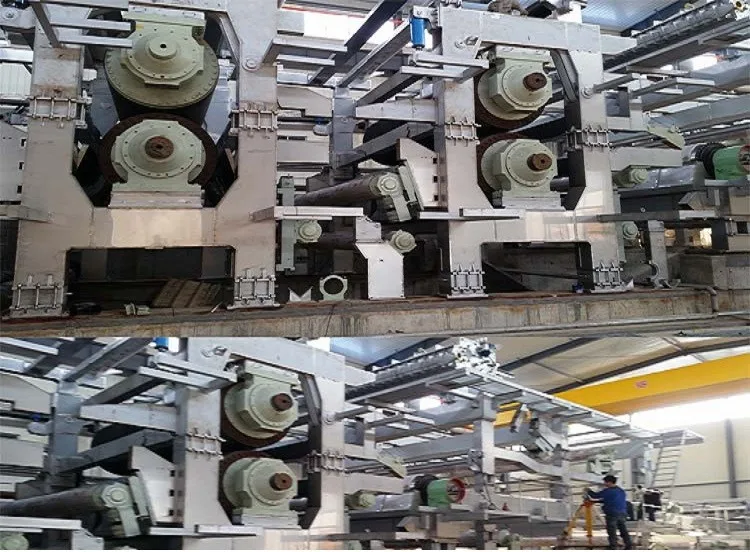

Press part is dehydration process started at the forming section is continued. By passing the paper through many press rolls, the effect of dewatering is achieved.

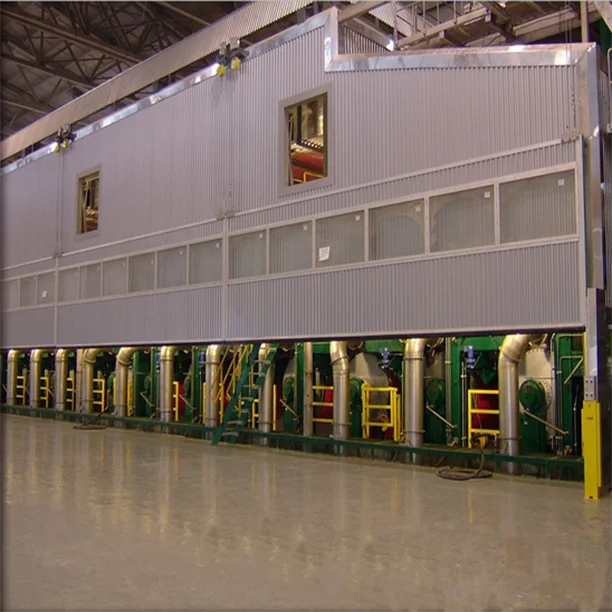

Dryer part is In the drying section, the process of drying the web is continued by using a steam-heated cylinder. In modern machines, the drying unit is installed in the cylinder cover.
winding part is mainly to roll into a large roll of paper.
Small Business Ideas For Kraft Paper Machinery in Anshun.A variety of materials can cause the paper you need, our engineers can provide you with the raw materials to help you develop a different paper making program.

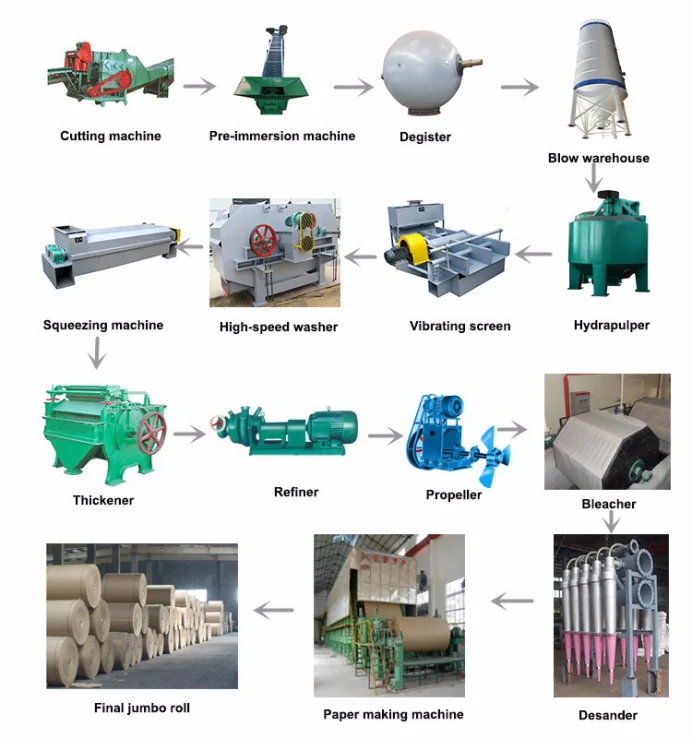

Flow Chart of Small Business Ideas For Kraft Paper Machinery in Anshun
Pulping making is the most important step in paper making, pulp quality can determine the quality of paper. Our engineers will teach you how to make pulp.

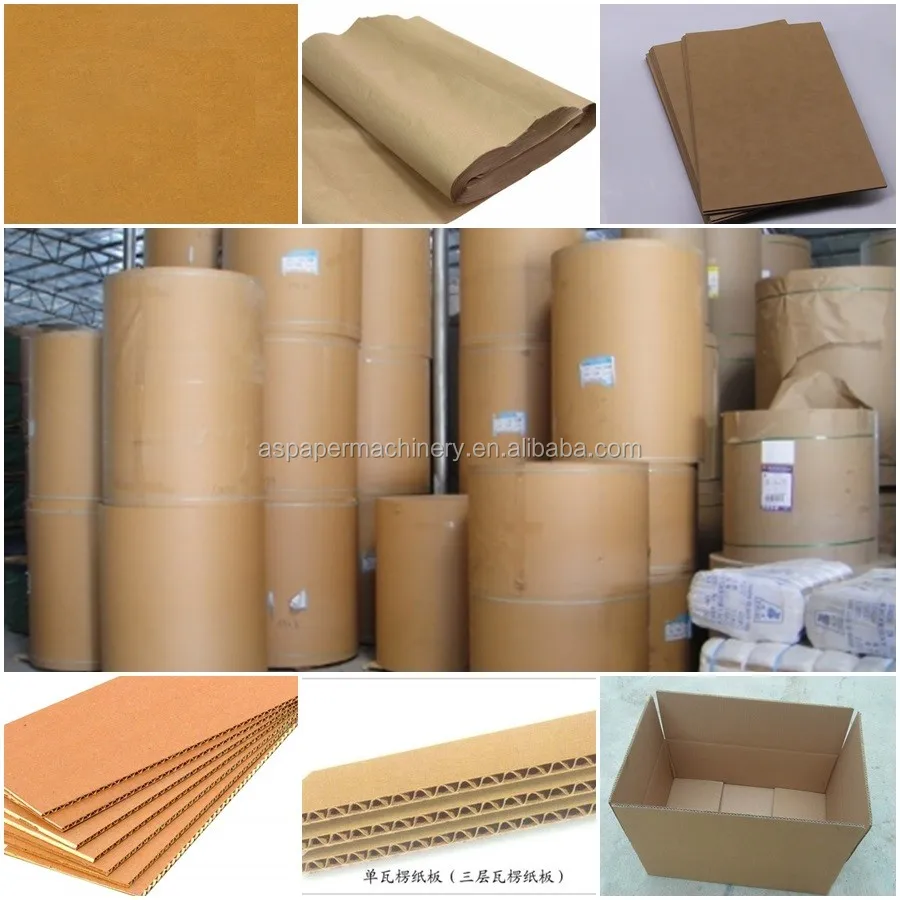

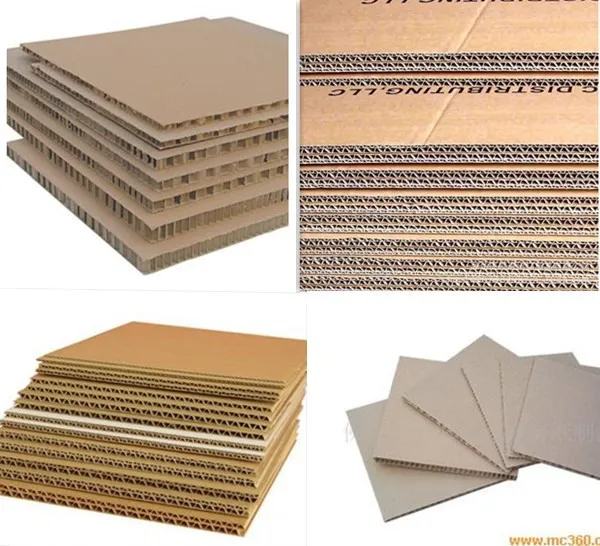

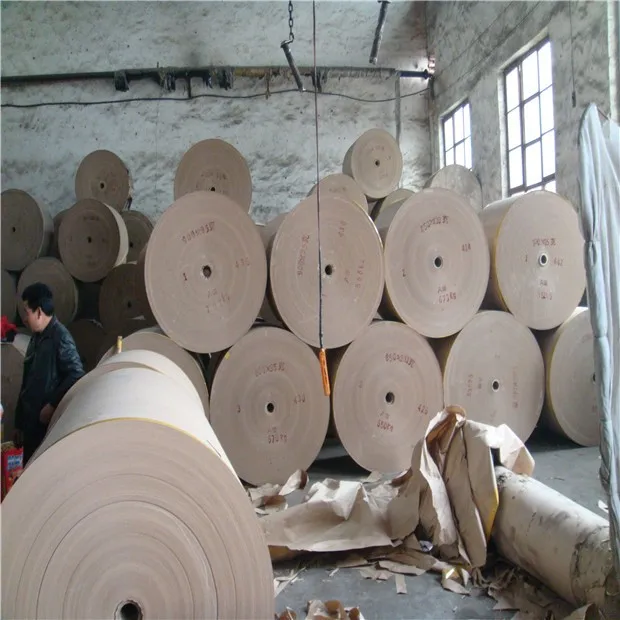

Final Products of Small Business Ideas For Kraft Paper Machinery in Anshun
If you need kraft paper secondary products, then we can give you with other deep processing equipment.
Packaging & Shipping
FAQ
1. Q: What is guarantee terms ?
1. Q: What is guarantee terms ?
A: According to the international practice, performance and mechanical guarantee shall be for 1 year from the successful commissioning or 1.5 years from the date of bill of lading.
2. Q: What is the production time ?
A: Normally 3-4 months, it depends on the machine type and scope of supply. But we can arrange the partial shipment according to customer’s foundation construction schedule.
3. Q:Are you a factory or trade company?
A :We are a factory, focused on paper making machinery research and development for more than ten years .
4. Q:Could your engineer can teach and train our workers and stay in our factory for long time?
A :Yes, we have very large engineer installation team. They can train and teach your workers to operate paper machine, but you should pay them salary.
