Product Overview
Description
Product Description
HY4710 Hydrostatic Pressure Tester is mainly used to determine time-to-failure of plastic pipe under constant internal pressure and also the resistance to hydrostatic pressure in a short time period.
Standard
ASTM D1598, 1599 | ASTM F1335 | ISO 1167, ISO 9080, ISO 1756 |
GB/T 15560, 18252, 6111 | CJ/T 108 |
|
Note: this Hydrostatic Pressure Tester can conform to but not limit to all the standards above, for more standards conformance, please contact us.
Features

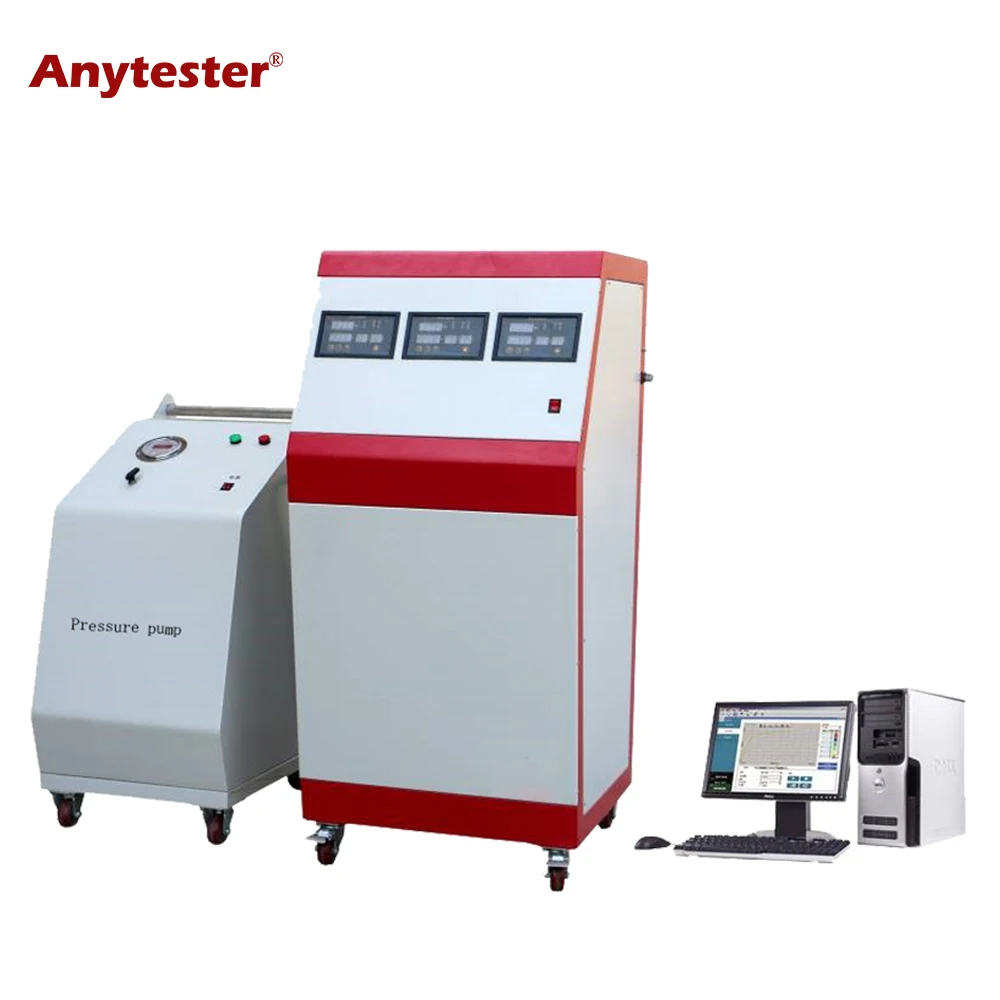

1. The Hydrostatic Pressure Tester consists of pressure control unit, magnetic valve, sensor, pressure workstation, etc.
2.The number of working position can be customized according to requirement, that is to say, the interface of pressure can be customized such as 3, 6 or 10, max 50.

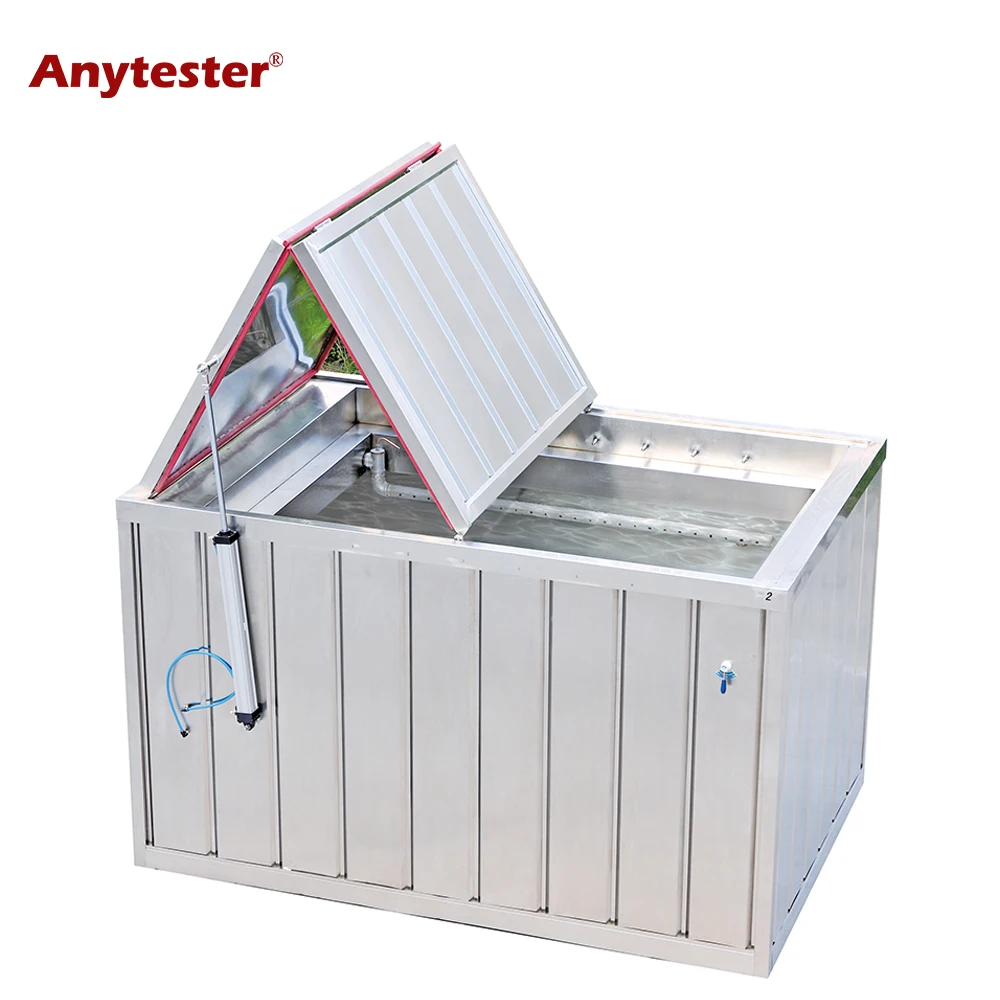

3. The dimension of test tank needed bases on the dimension of test pipes
Specification
Model | HY4710 Hydrostatic Pressure Tester | |
Pipe diameter range | dia.16~dia.1600mm | |
Working position | 6 positions (1~50 positions can be customized) | |
Operation mode | Operation panel/PC control | |
Pressure range | 0.2~10MPa (or customized) | |
Pressure resolution | 0.001MPa | |
Pressure control accuracy | -1%~+2% | |
Measuring range | 5%~100% F.S. | |
Timing range | 1s~10000h | |
Timing accuracy | ±0.1% | |
Display resolution | 1s | |
Min. Time setting unit | min | |
Temperature control system | RT-95℃ (15~95℃ with refrigerating system) | |
Temperature control accuracy | ±0.5℃ | |
Main body material | 304# stainless steel | |
Power supply | Pressure control main machine | AC220V, 50Hz |
Pressure workstation | 3phase, AC380V, 50Hz | |
Constant temperature tank | 3phase, AC380V, 50Hz | |
