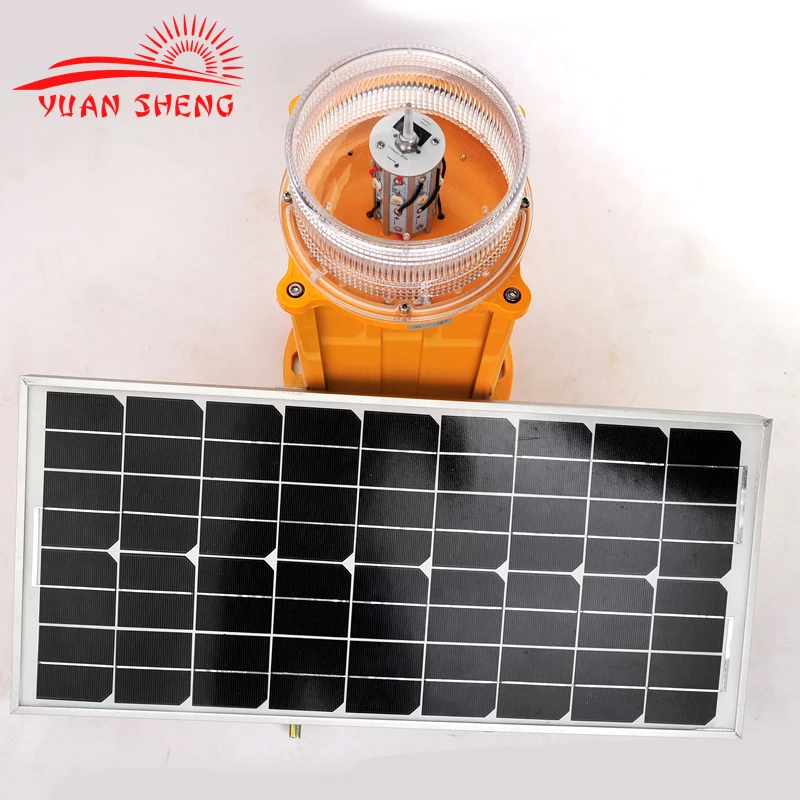

Medium Intensity Type A Solar obstruction lights/Aircraft Warning Lights

Description

Parameter

International standard

ICAO: N/A

FAA : N/A

Intensity

>2000cd

Available colors

Red, amber, green, blue, white

Vertical degree

10 °

Horizontal degree

360 °

Light source

LED

LED life

≥100,000 hrs

Autonomy

200Hours

On/off level

70/100 lux

Flashing Pattern

 40 FPM default( can be preprogrammed to a specified flashing rate upon customer request)

Power Source

Solar module mono-crystalline sillcon

Battery type

High-efficiency Lead-Acid rechargeable battery

Battery capacity

12V//20 AH

Integrated housing

UV resistance PC

Waterproof

IP67

Weight

17Kg

Ambient temperature

-40℃ ~ +70℃

Dimensions

298mm H, 235mm Diameter

Warranty

 5 years for light       2 years for battery
