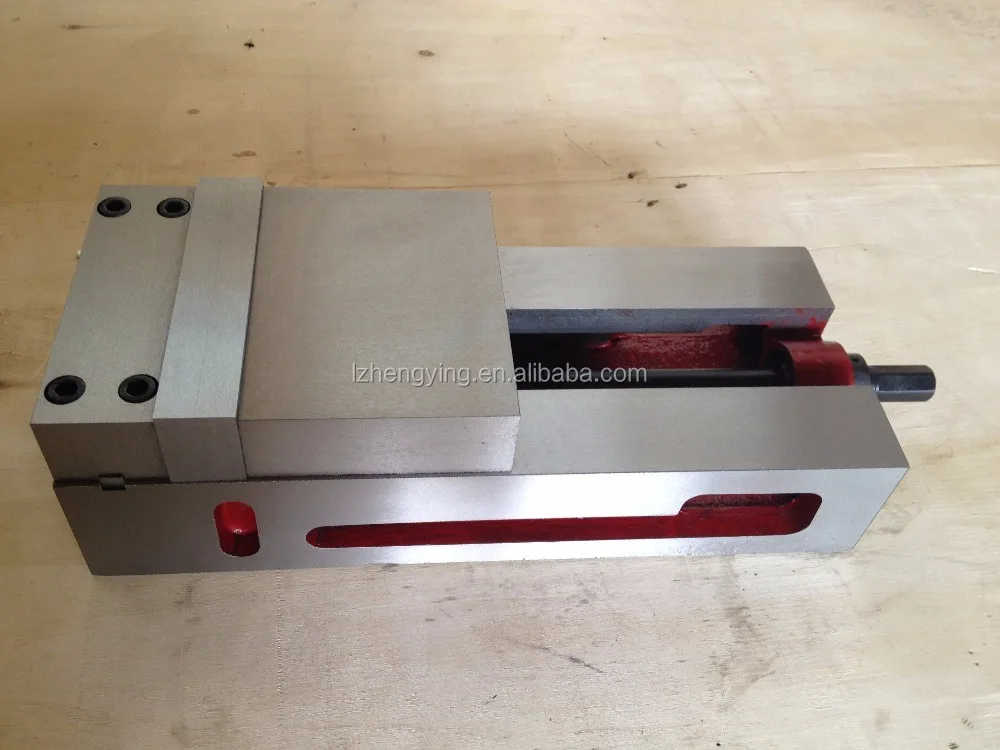

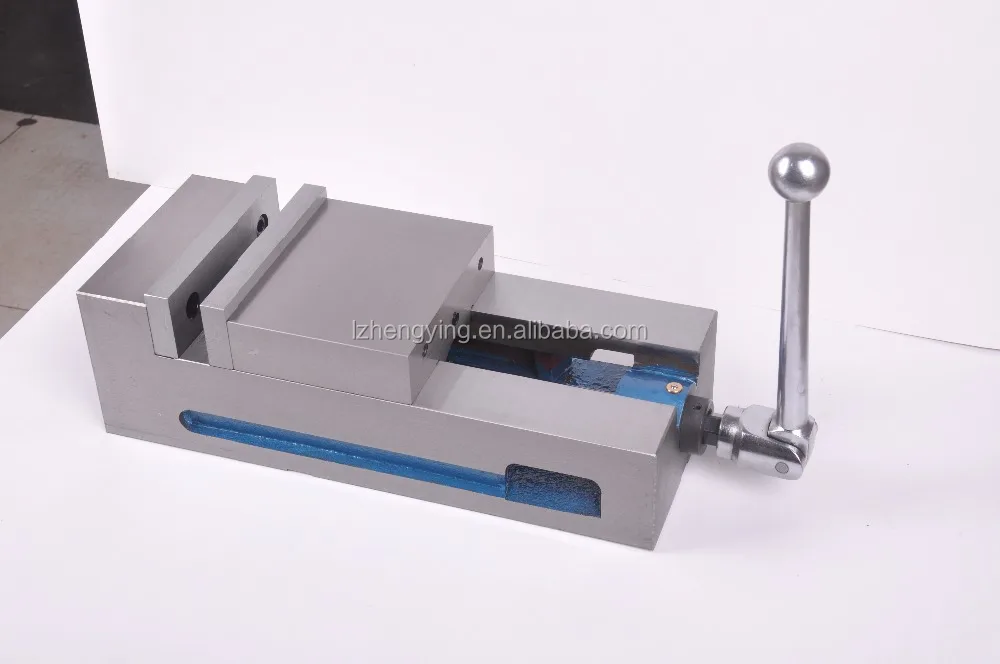

QM16N Unibody Series Machine Vice For Precision Machine

Product Overview

Description

QM16N Unibody Series Machine Vice For Precision Machine



performance and character:

1. It adopts the dustile cast iron with high durability.

2. The locking structure with the angle-fixed shape can prevent the workpiece from rising during the operation,

3. Both parallelism and verticality about the two jaws are 0.025mm/100mm.

4. It  can be used by single set or several sets side by side.

5. It is widely used for precision machines in the machine center.



 Main technical parameter

MODEL	WIDTH OF JAW(mm)	HEIGHT OF JAW(mm)	TOTAL HEIGHT(mm)	MAX.OPENING(mm)	G./N.WEIGHT(kg)	Q'TY	PACKING SIZE(mm)
QM16100N	100	32	86	100	12/11	1	360x150x150
QM16150U	150	45	118	150	26/25	1	450x320x140
QM16160N	160	45	122	160	30/29	1	450x200x210

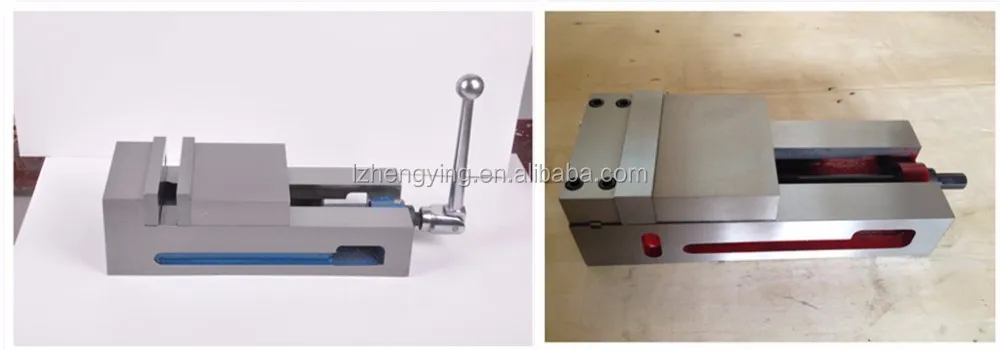

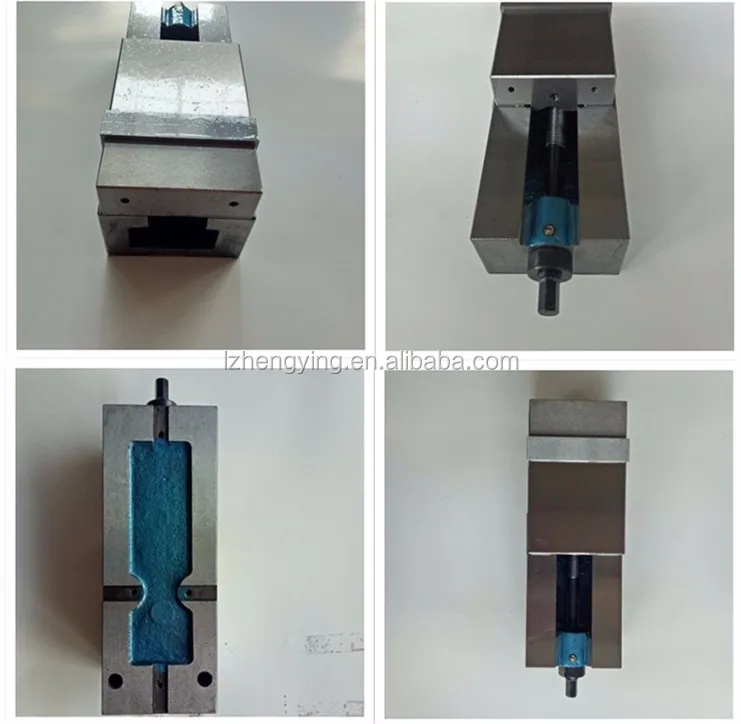

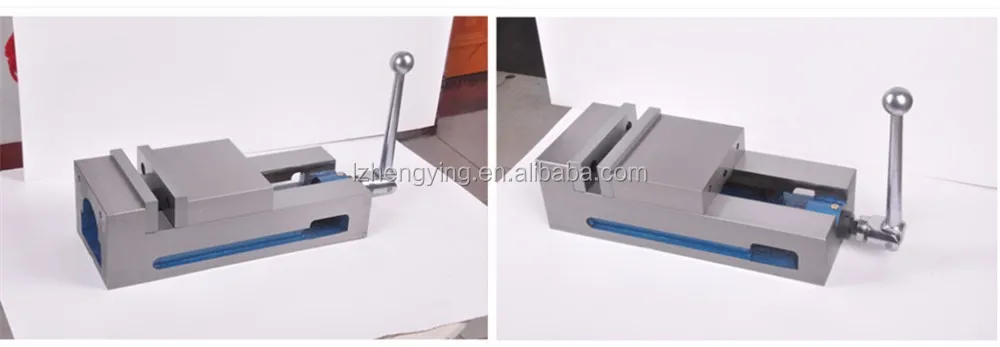

PICTURE DETAILS







PACKING

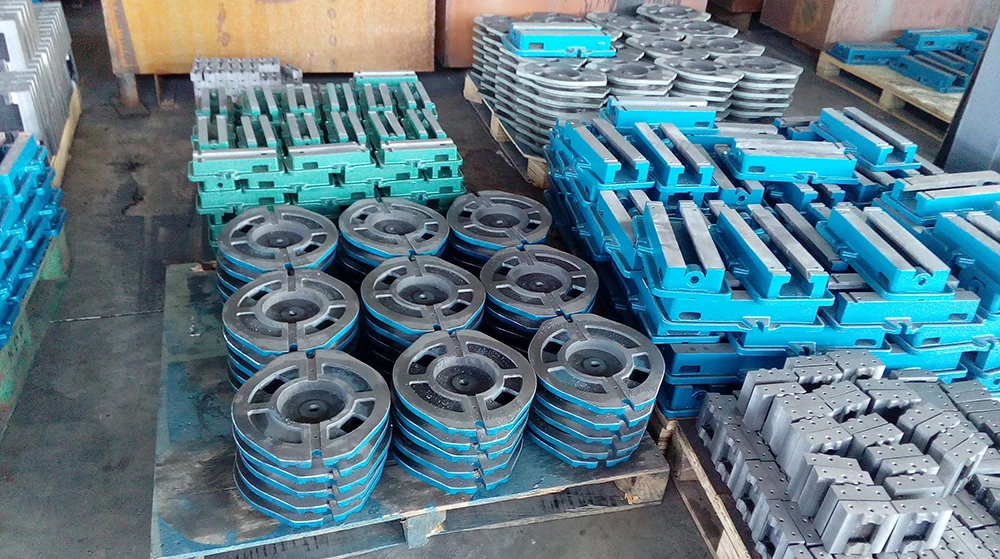

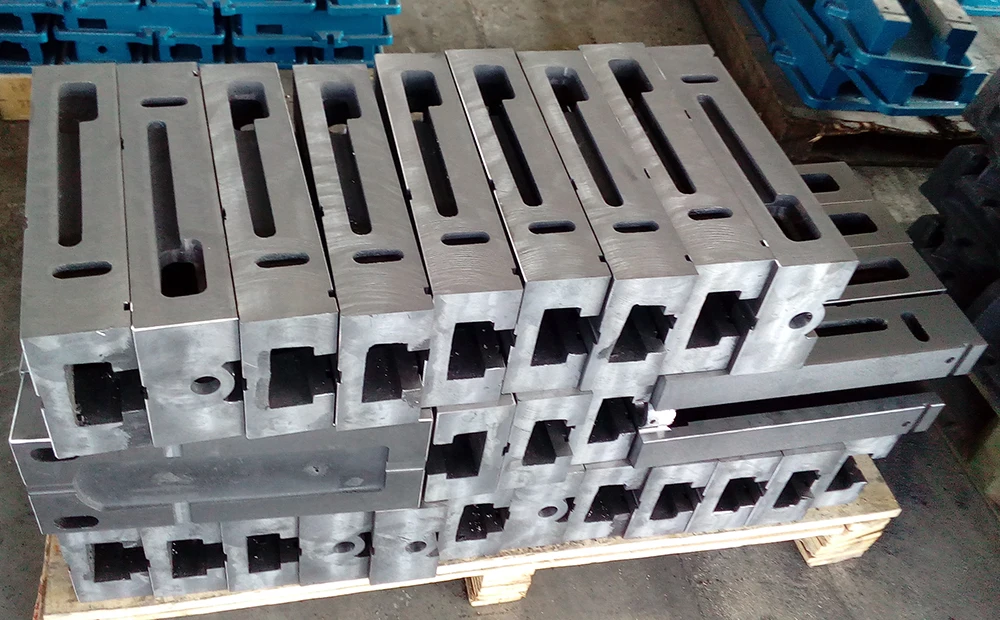

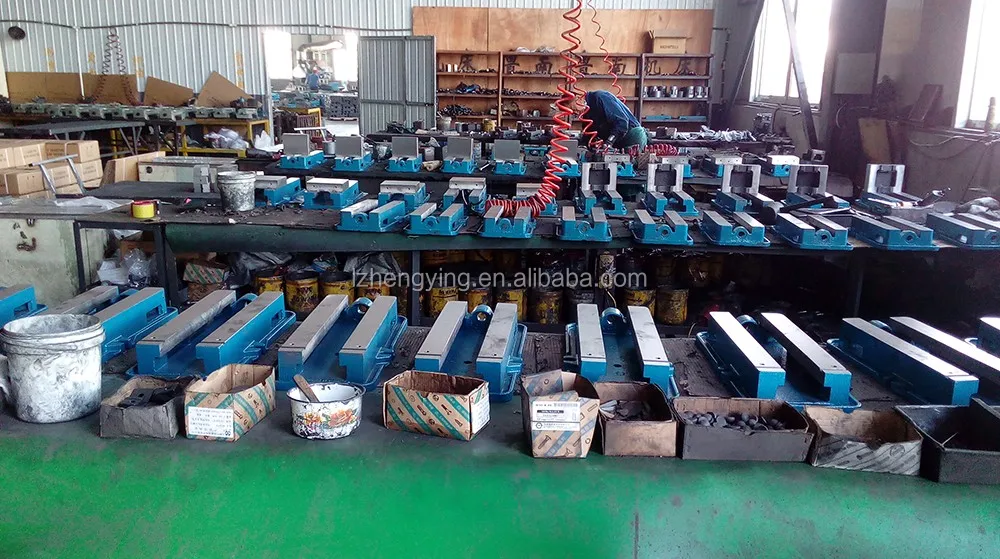

WORKSHOP
