Q93 Series Precision Milling Machine Vice Used On Machine Center

Product Overview

Description

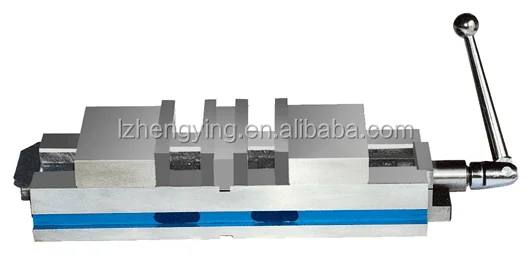

Q93 Series Precision Machine Vice Used On Machine Center



performance and character:

1. It is made of ductile cast iron.

2. The vice with angle locked can prevent workpieces rising during operation.

3. It is possessed of two clamping positions.two workpieces of same size or differebt size can be clamped by it. the vice is also able to clamp two same workpieces which are clamped in different positions and processed different surfaces.

4. The accuracy of vice (parallelism and squareness) is 0.025mm/100mm.

5. The vicecan be used with single or setted side on the machine worktable.

6. It is widely used on machining center and other precision machine.







MODEL	WIDTH OF JAW(mm)	HEIGHT OF JAW(mm)	TOTAL HEIGHT(mm)	MAX.OPENING(mm)	G./N.WEIGHT(kg)	Q'TY	PACKING SIZE(mm)
QM93100	100	35	95	76	18/17	1	580x180x170
QM93160	160	50	130	100	49/48	1	730x280x200



PICTURE DETAILS





PACKING

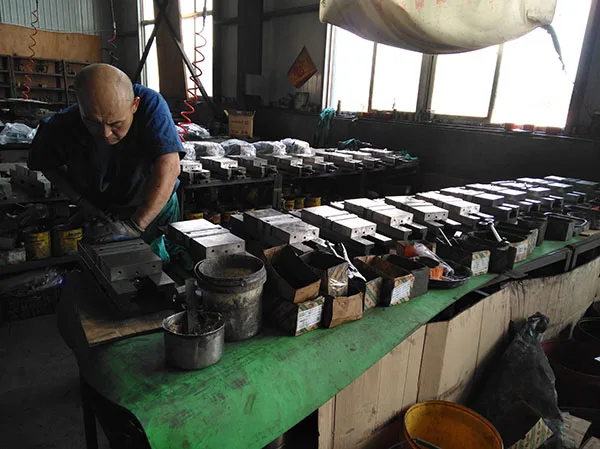

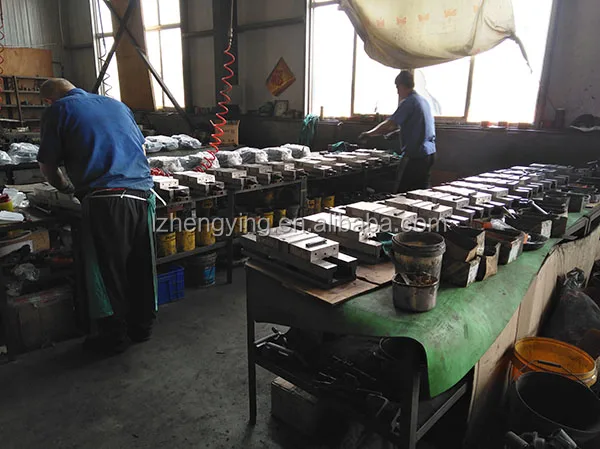

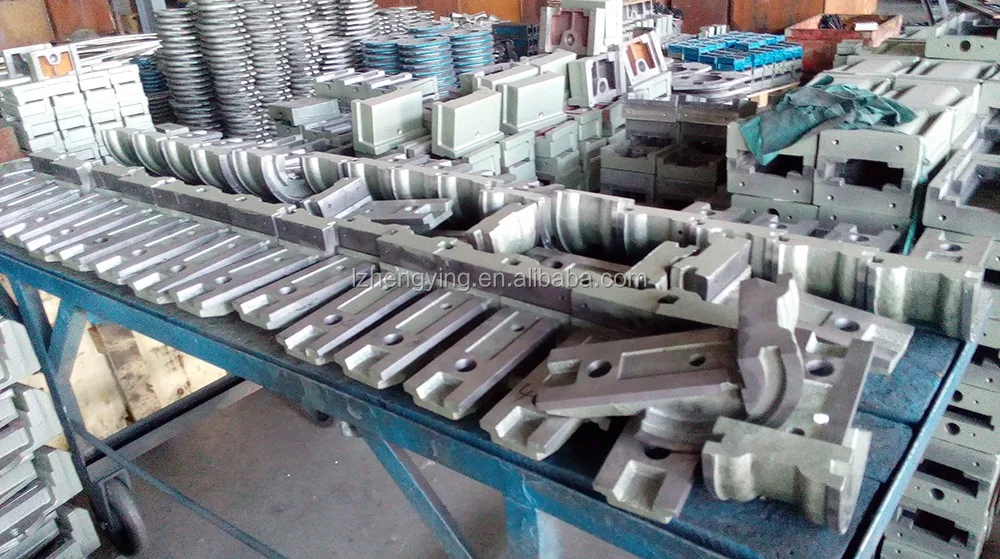

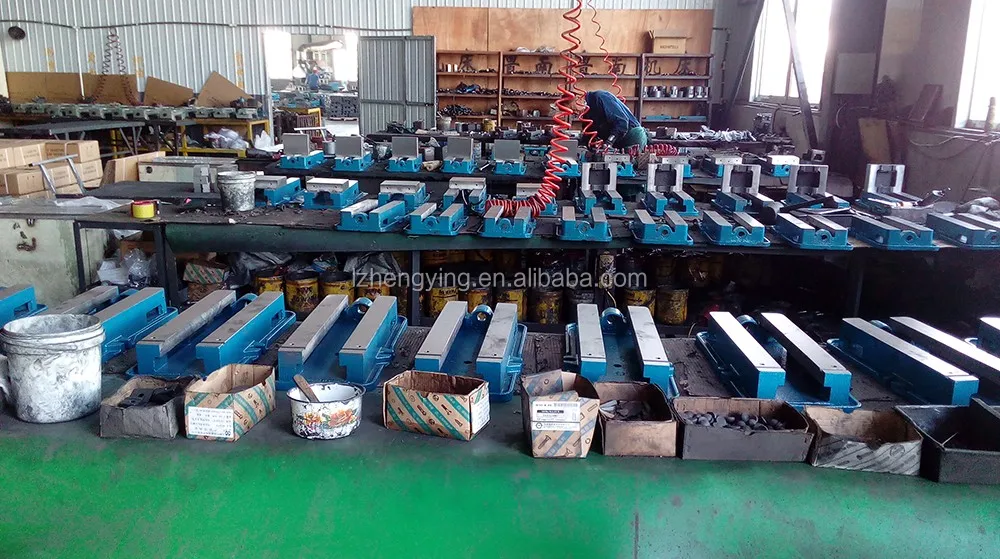

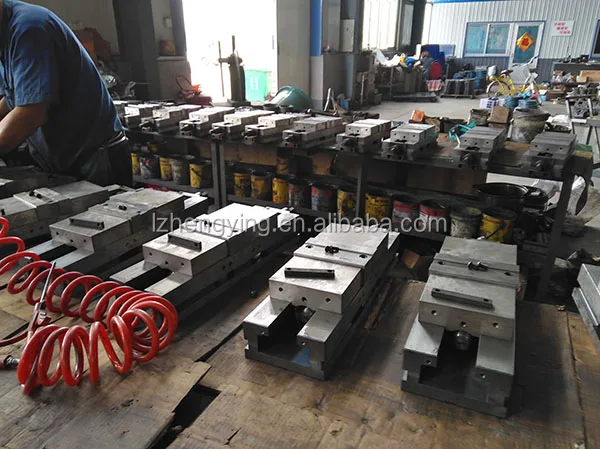

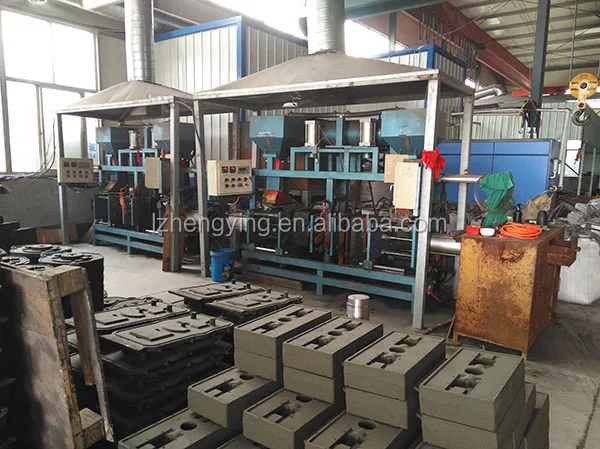

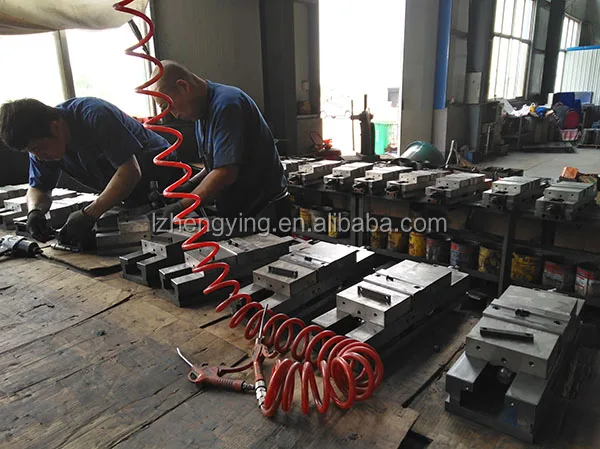

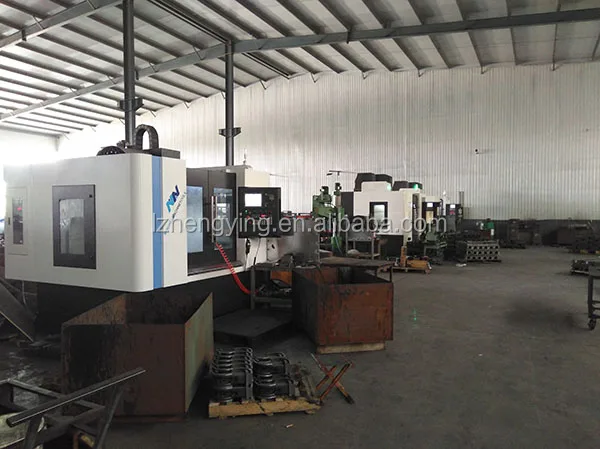

WORKSHOP
