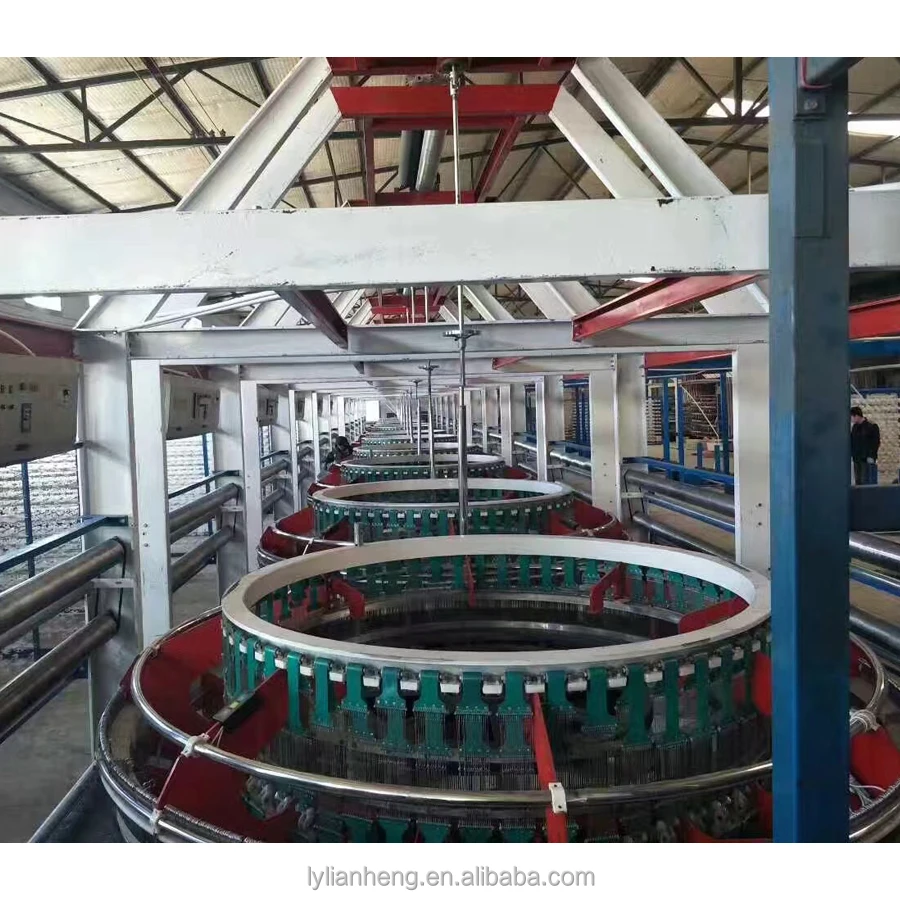

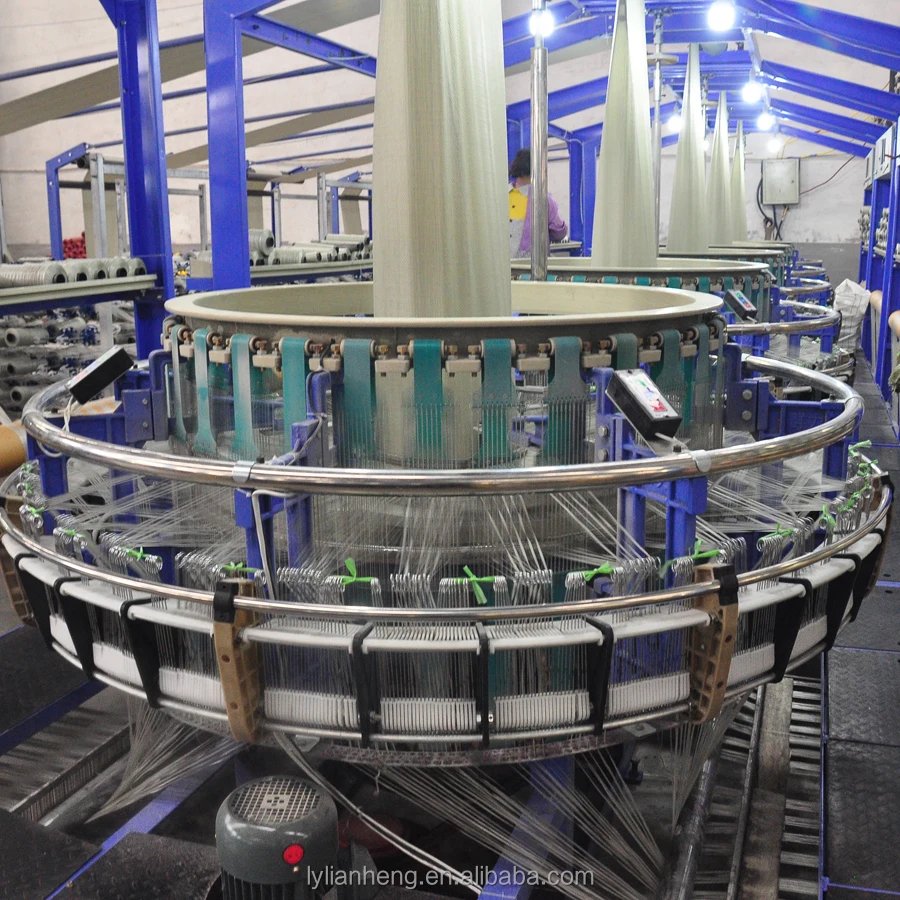

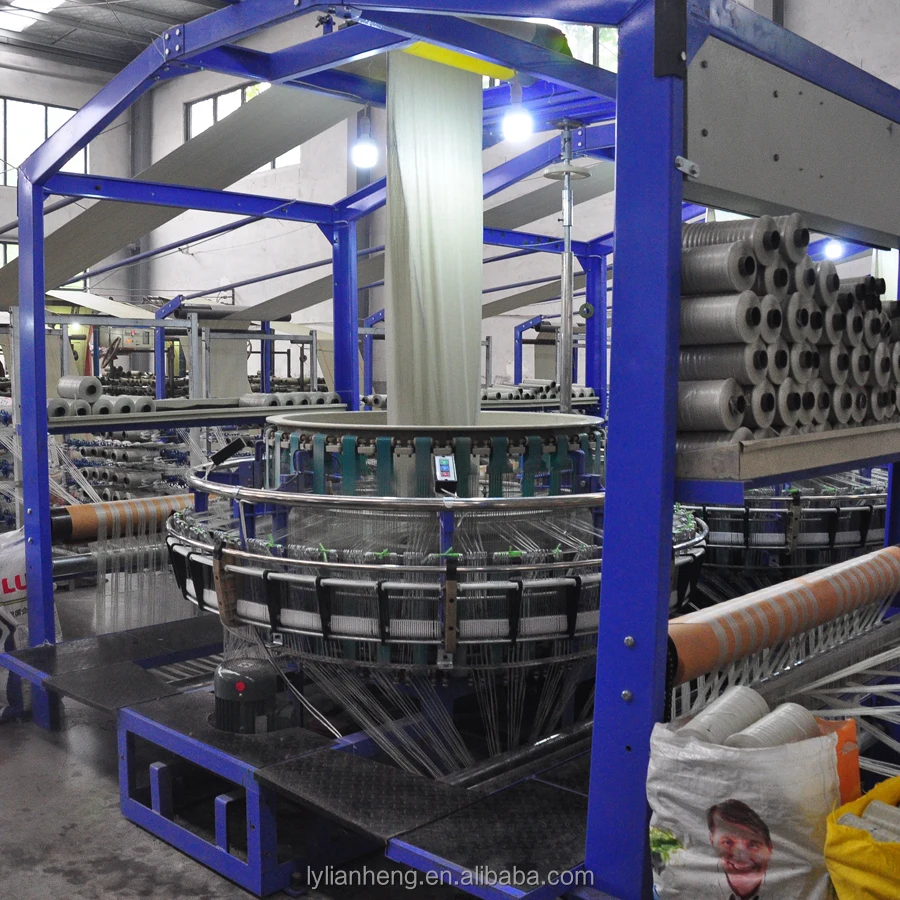

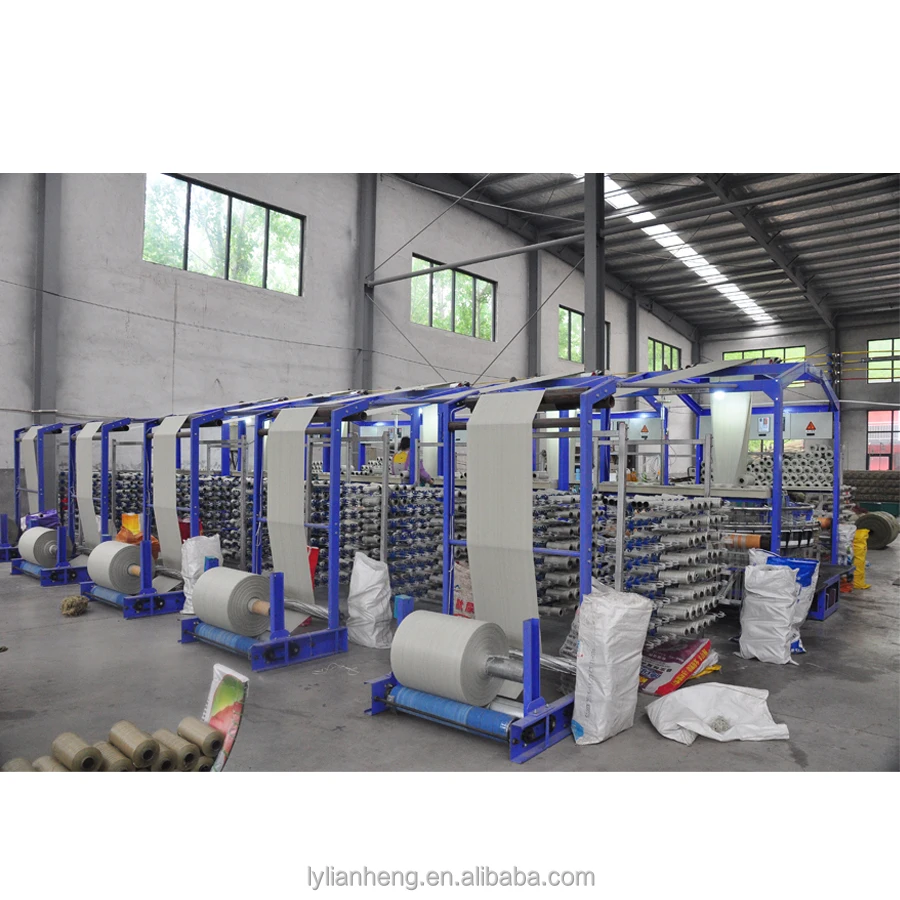

PP Woven Bag Shuttle Weaving Loom Machine
- Category: >>>
- Supplier: Linyi Lianheng International Trading Co. Ltd.
Share on (60658328131):
Product Overview
Description
PP Woven Bag Shuttle Weaving Loom Machine
>> Performance and Characteristics:
- Plane cam and connecting rod rolling wheel transmission, which is the most advanced technology are adopted, making it easy and stable to run.
- Rolling transmission is adopted in entire structrue instead of slide block and slide rod, which doesn??t need lubricant and decreases the wearing part.
- It's an environmental product whose noise is not more than 82dB(A).
- Low strength plastic yarn which is made from 100% regenerated plastic can be adopted to weave.
- It is high-efficient and energy economical. The highest rotation speed of the main motor can reach 180r/min and the power is 1.5/2.2kw, which can save 10 thousand degree of electricity one year.
- It is the latest type circular loom
>> Main Technical Parameters:
- Plane cam and connecting rod rolling wheel transmission, which is the most advanced technology are adopted, making it easy and stable to run.
- Rolling transmission is adopted in entire structrue instead of slide block and slide rod, which doesn??t need lubricant and decreases the wearing part.
- It's an environmental product whose noise is not more than 82dB(A).
- Low strength plastic yarn which is made from 100% regenerated plastic can be adopted to weave.
- It is high-efficient and energy economical. The highest rotation speed of the main motor can reach 180r/min and the power is 1.5/2.2kw, which can save 10 thousand degree of electricity one year.
- It is the latest type circular loom
>> Main Technical Parameters:
| Item | YZJ-4/1000 |
| Number of shuttle | 4 |
| Folding width of weaving(mm) | 350-950 |
| Max. Number of warp | 768 |
| Rotational speed of main motor(r/min) | 140-180 |
| Production(m/min) | 1.4-1.8 |
| Power of main motor | 1.5/2.2 |
| Total power(kw) | 2/2.7 |
| Weight(kg) | 1900 |
| Installing Dimensions (LxWxH) | 8300x2200x2730 |
