ZUBR MINI 18HP TRACTOR SELLS IN MOLDOVA:
Product description:

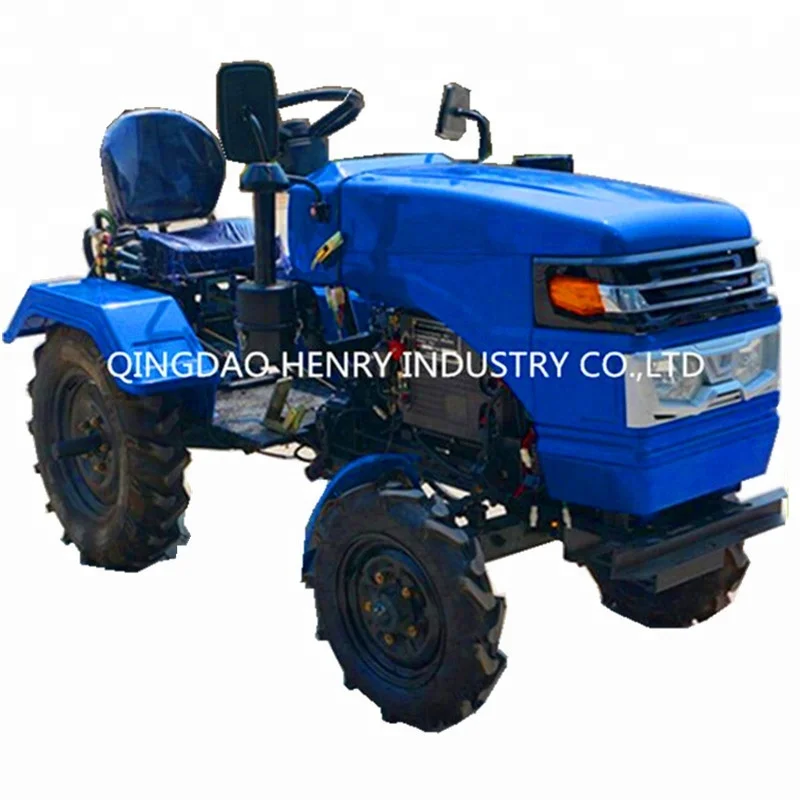

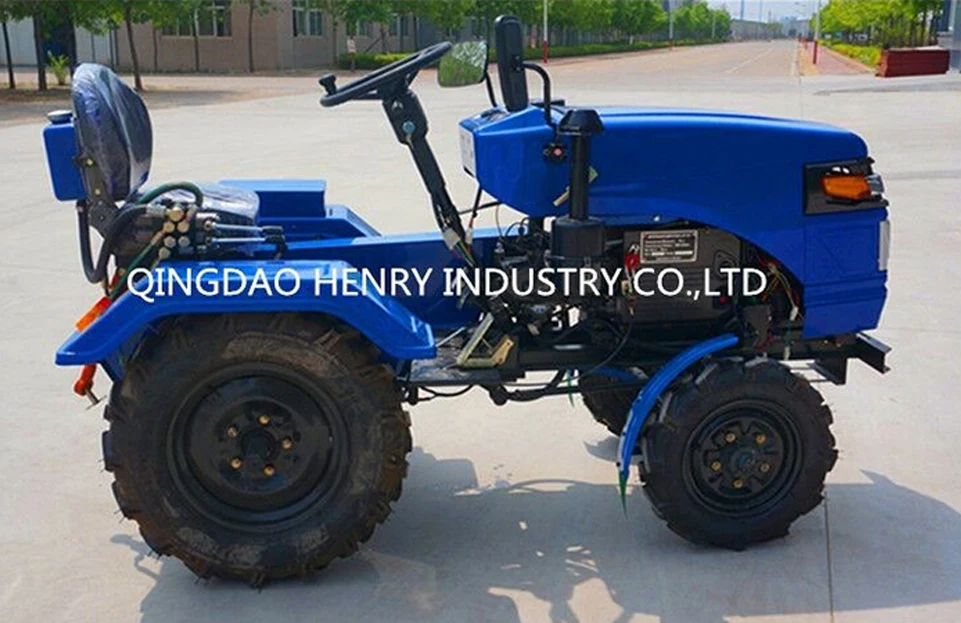

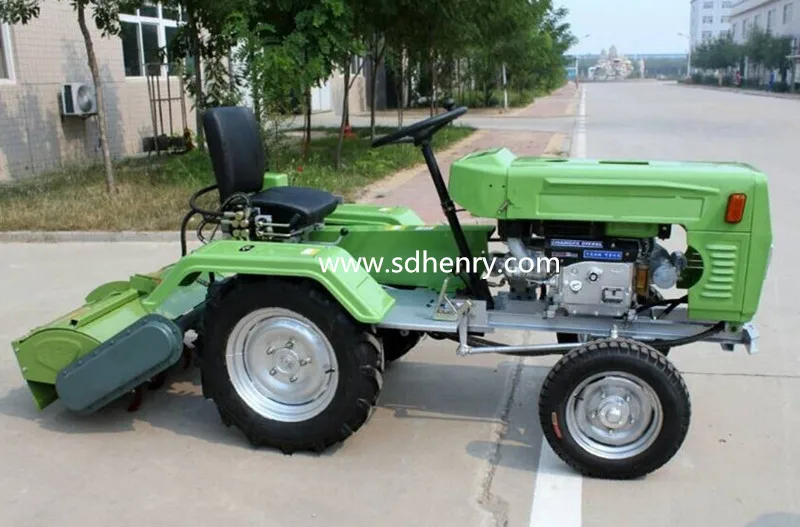

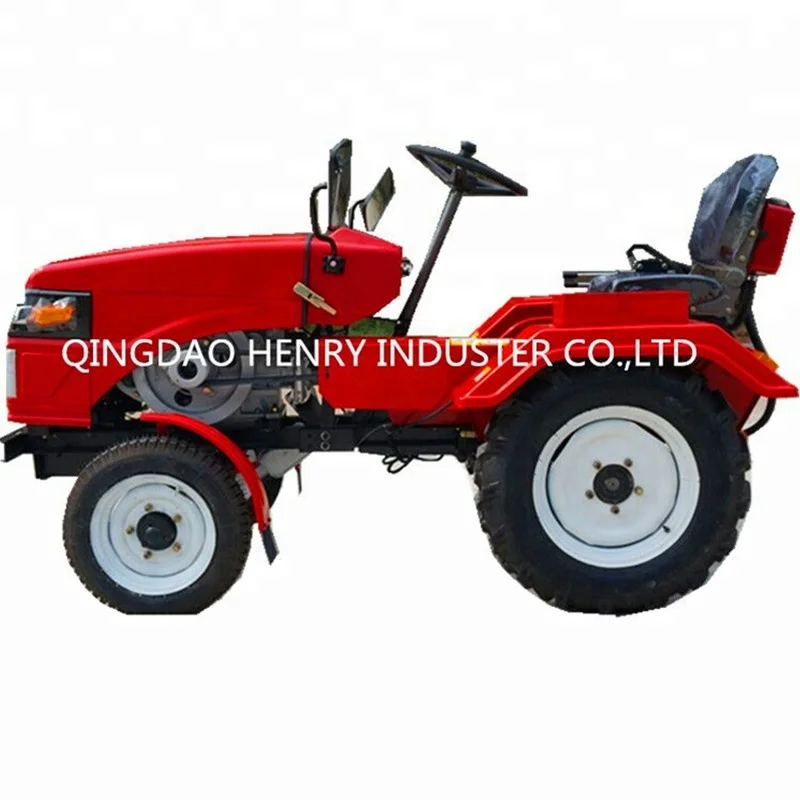

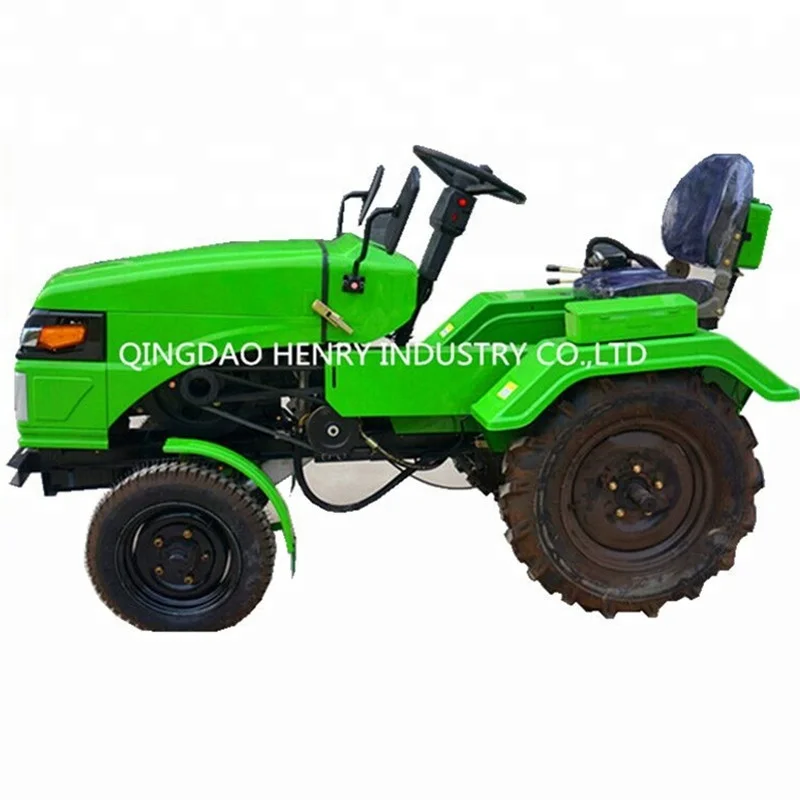

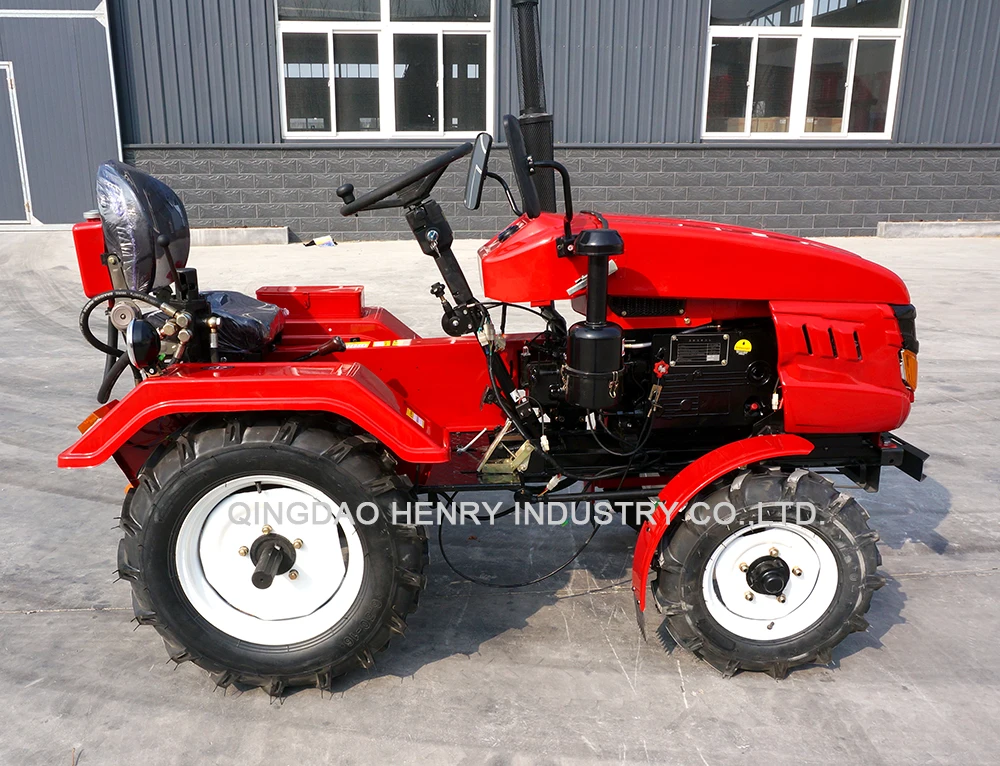

Model HR120 4X2WD MINI tractor
The power can be 10hp,12hp,13hp,15hp,18hp.
It's a new small tractors and it has the advantages of walking tractor and wheel tractor,but it is price is lower than wheel tractor and it is easy to operate for farmers to get a higher efficent and save farms Labor intensity.It is an industry-leading level.
MODEL | HR120/130/150 | ||
Overall dimensions:(L×W×H) | 2140×905×1175mm Without tiller | ||
Overall dimensions:(L×W×H) | 2600×1000×1175mm With tiller | ||
Front wheel size | 4.00-8/4.00-12 | ||
Back wheel size | 6.00-12/6.50-16 | ||
Ground clearance | 180mm | ||
Working weight (with rotary tiller,plough) | 483kg/538kgs | ||
Working weight (without anything) | 433kg/488kgs | ||
Transmission style | Vee-belt tension | ||
Vee-belt model | B3200 | ||
Steering style | Steering wheel power steering system | ||
Brakes | Two side wheel brake | ||
Starter | Electric start | ||
Seat | Adjustable | ||
Gear style | (3+1)*2; 6 Forward, 2 Reverse | ||
Speed | Forward | 1.68, 2.61, 4.22, 6.79, 10.57, 17.08 | |
Reverse | 1.29, 5.22 | ||
Rotary tiller | Transmission Type | Middle Gears Transmission | |
Width | 1000mm Adjustable | ||
Number of blades | 20pcs | ||
Working depth | 150-250mm | ||
Up and down control | Hydraulic system | ||
Engine | Model | R195NDL | |
Type | 1cylinder,4-stroke,horizontal,water-cooled,diesel | ||
Cooling mode | Condenser (Radiator) | ||
1 hour power | 8.8kw/12hp | ||
12 hour power | 8kw/10.38hp | ||
Combustion system | Direct Injection | ||
Cylinder bore | 95mm | ||
Piston stroke | 95mm | ||
Compression ratio | 18:01 | ||
Rated speed | 2400rpm | ||
Fuel efficiency: | ≤245g/kw.hr | ||
Displacement | 0.694L | ||
Main farm implements | |||
Seeder | Single Plow | Mower | 1 Ton Trailer |

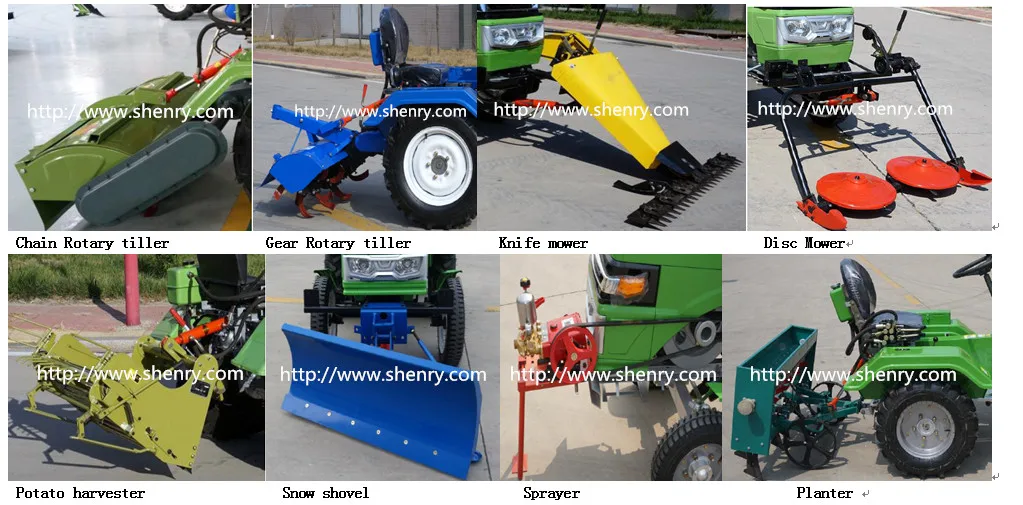

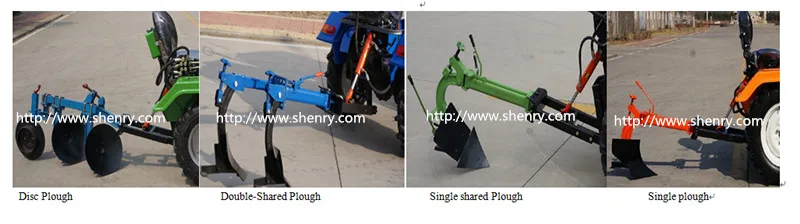

FOLLOWS IMPLEMENTS CAN CHOICE:

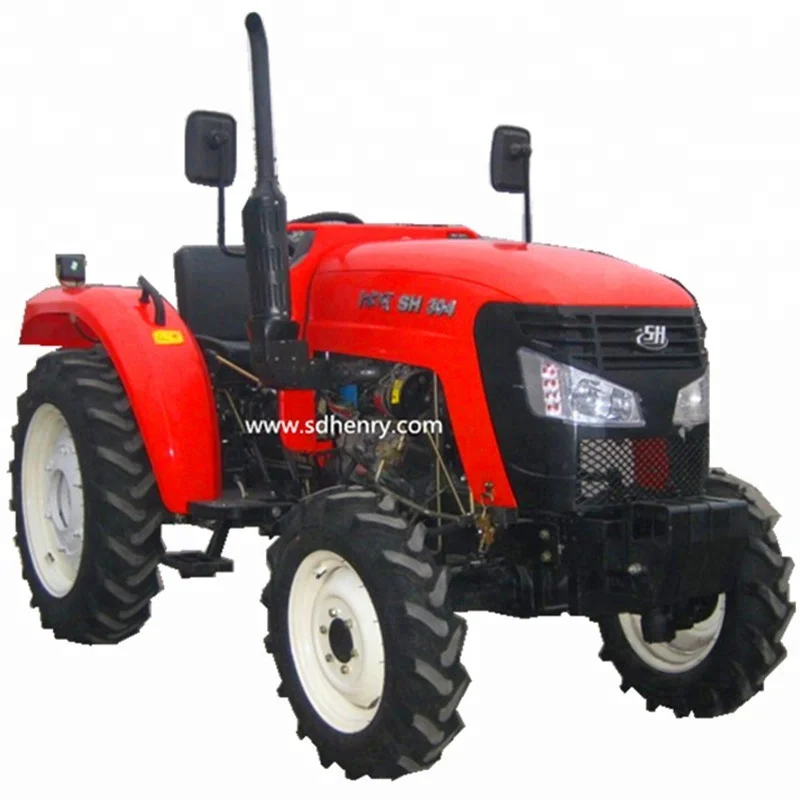

Model HR204 224 4X4WD MINI tractor
The power can be 20hp 25/30/35/40HP
1.Beautiful appearance, flexible and compact, comfortable and simple operation.
2.optional three cylinder, four cylinder engine, to meet your different needs.
3.The combination instrument and the automobile electric appliance constitute the switch,
the control staff can understand the machine working state at any time, and provide the guarantee for the scientific use of the machine.
4.Meshing gear shift, gear brake mechanism to ensure that the product is durable.
5. Ability to quickly install various accessories to meet the needs of various agricultural work.
whole tractor | ||
Model | 224 | |
Tyep | 4×4wd wheeltractor | |
Traction power(kN) | 4.6 | |
Dimension(mm) | 2580×1380×1885 | |
weight(kg) | 940 | |
work weight(kg) | 1100 | |
(mm)wheel base | 1450 | |
tread base(mm) | 950/990 | |
mini ground clearance(mm) | 340 | |
mini turning radius(m) | 3.9 | |
Speed (km/h) | Front | 2.84/5.42/8.28/10.78/20.58/31.45 |
Rear | 2.84/10.78 | |
Suspension | Class I,Rear three point suspension | |
PTO | 35mm Non-independent, clockwise, 540 rpm, spline nominal outside diameter 35mm | |
Tyre size | 4.5-14/8.3-20 | |
Engine | ||
engine model | TY295I | |
Type |
Vertical, two-cylinder, water-cooled, four-stroke diesel engine | |
12hours power(kW) | 16.2 | |
Rotating speed(rpm) | 2300 | |
Start | electric start | |
Borexstroke(mm) | 95×105 | |
Fuel consumption(g/kW•h) | ≤250 | |
oil consumption(g/kW•h) | ≤2.04 | |

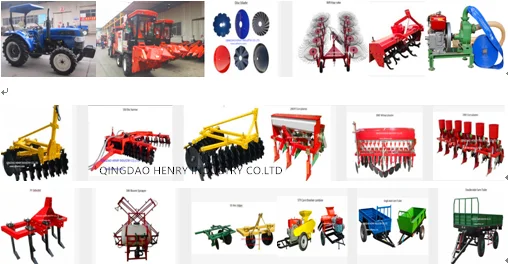

Choice of tools:

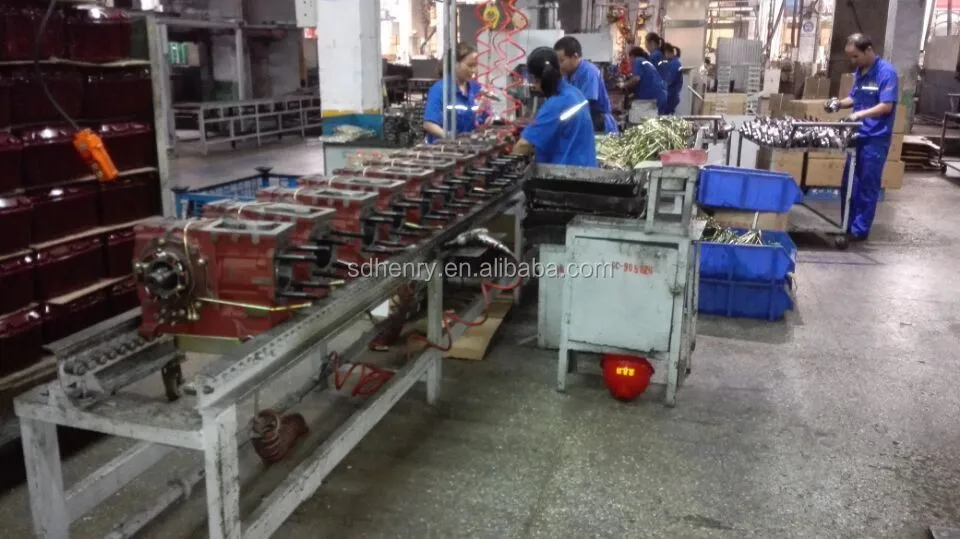

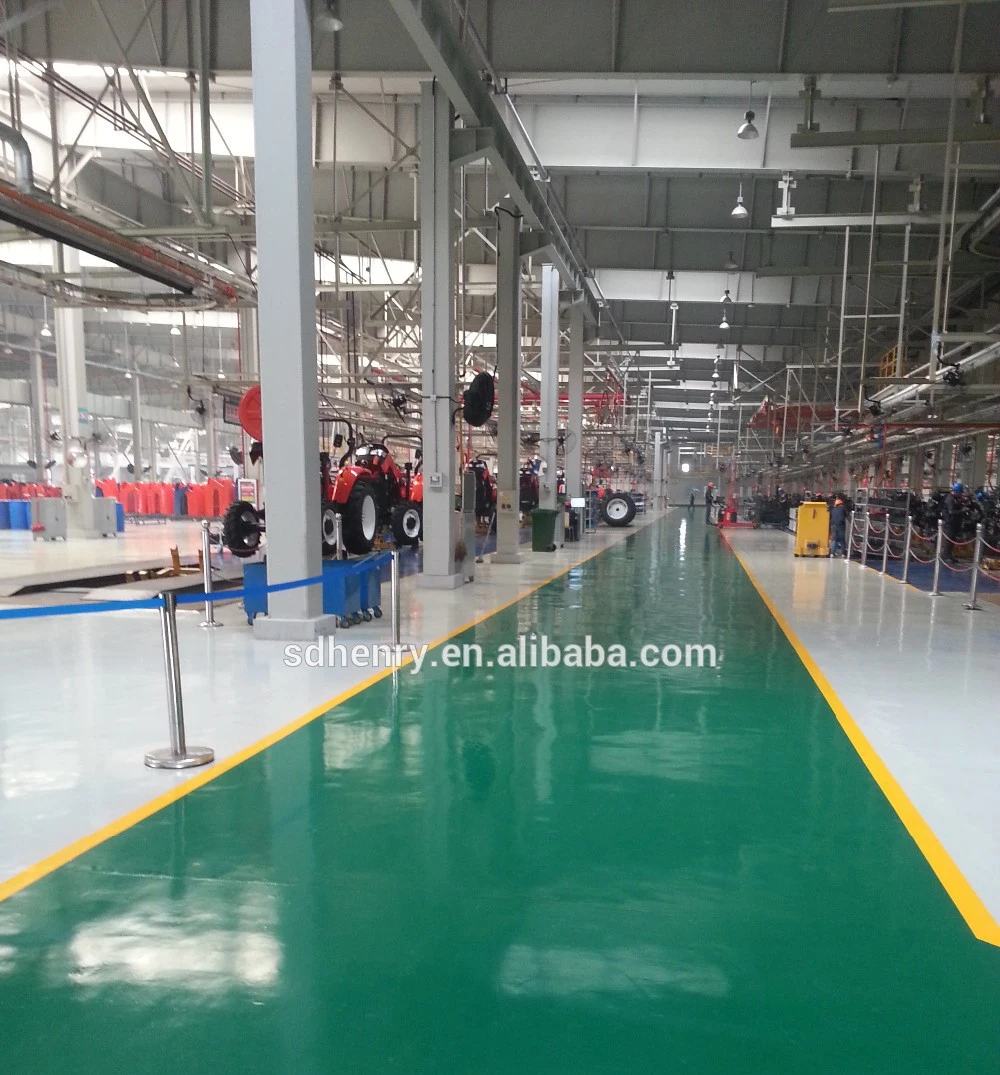

Factory show:

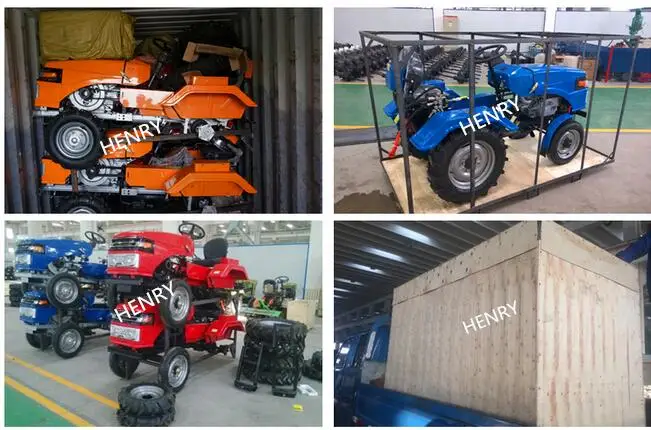

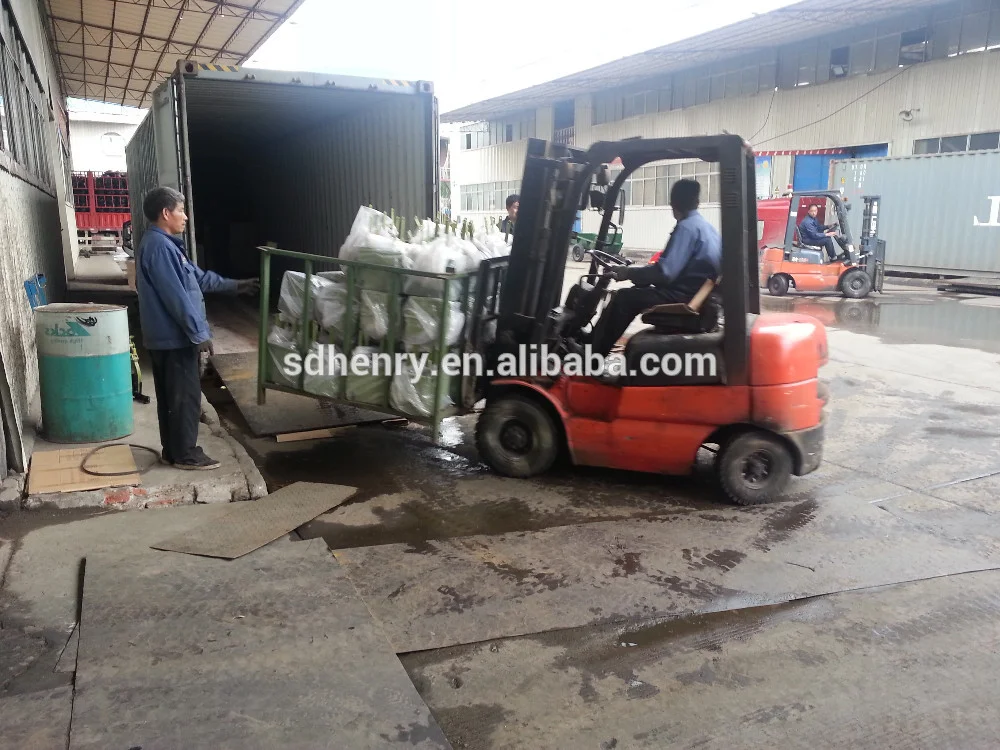

Packing show:

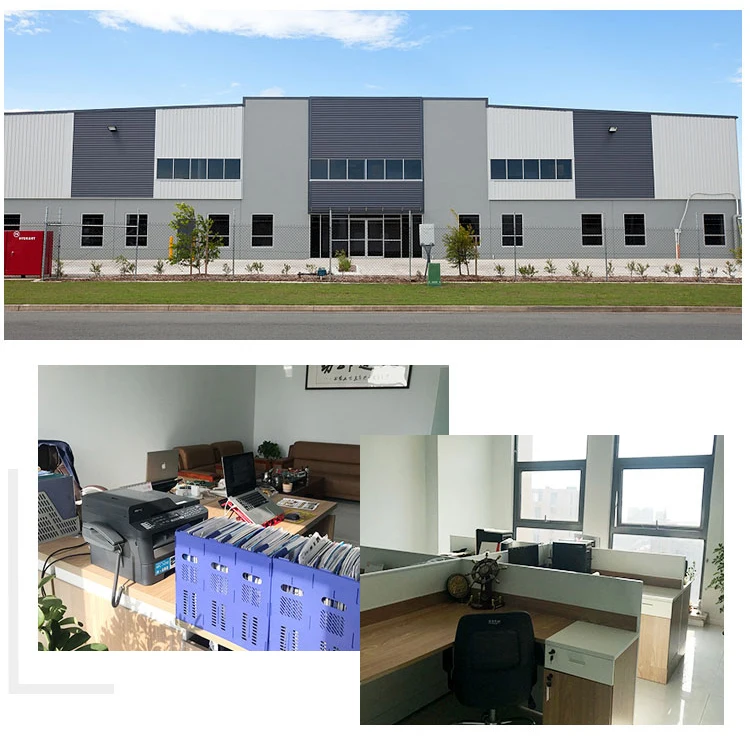

Our company show:
Why choose us?
1)Professional supply with certification:CCC ISO CE DOP
2)Perfact quality program,100% test before delivery
3)One year guarantee
4)OEM cervice
5)Price is our big advantage, because we have a very strong production capacity
