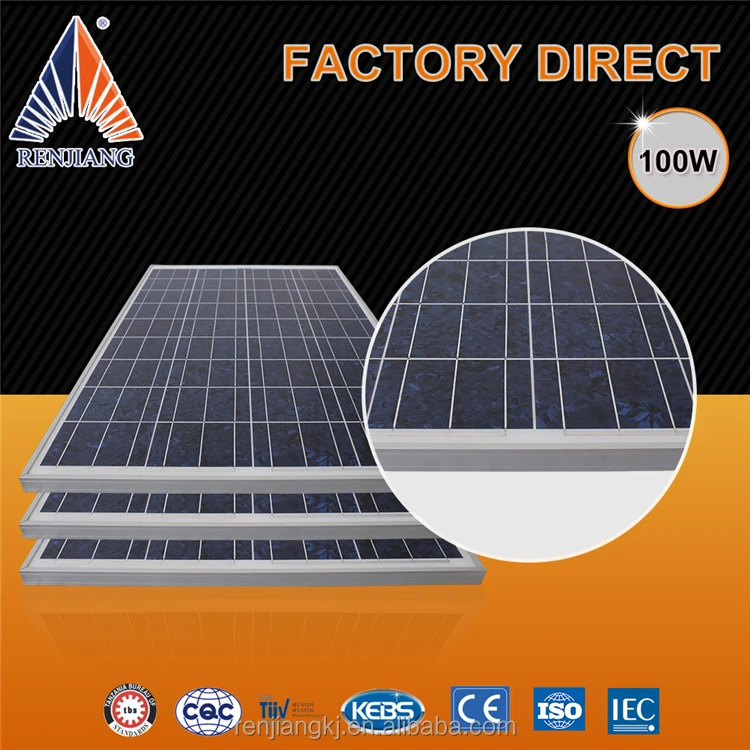

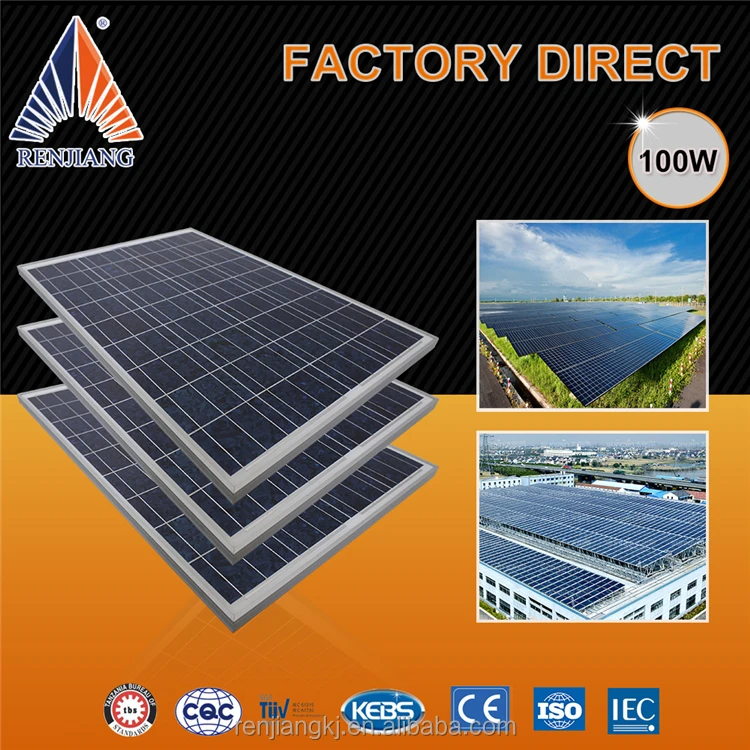

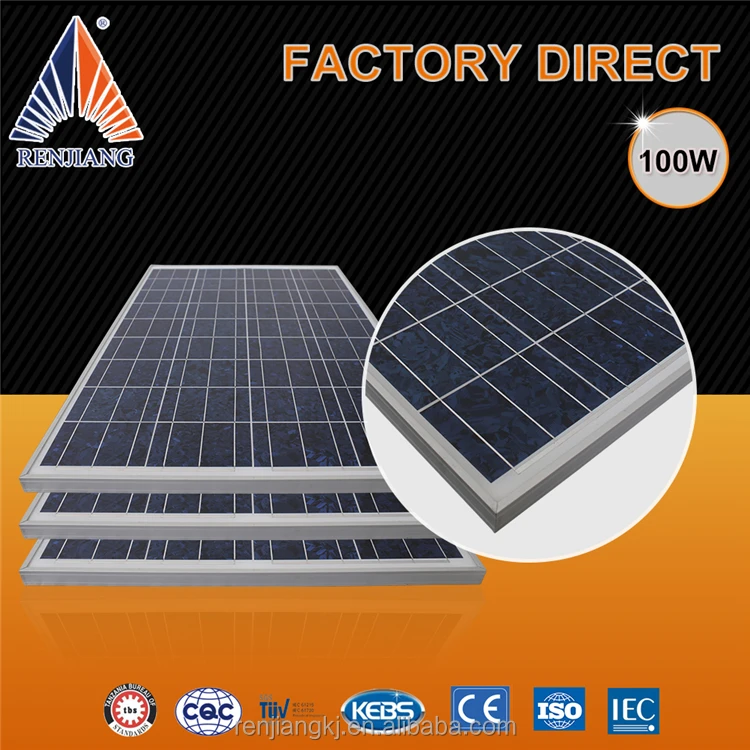

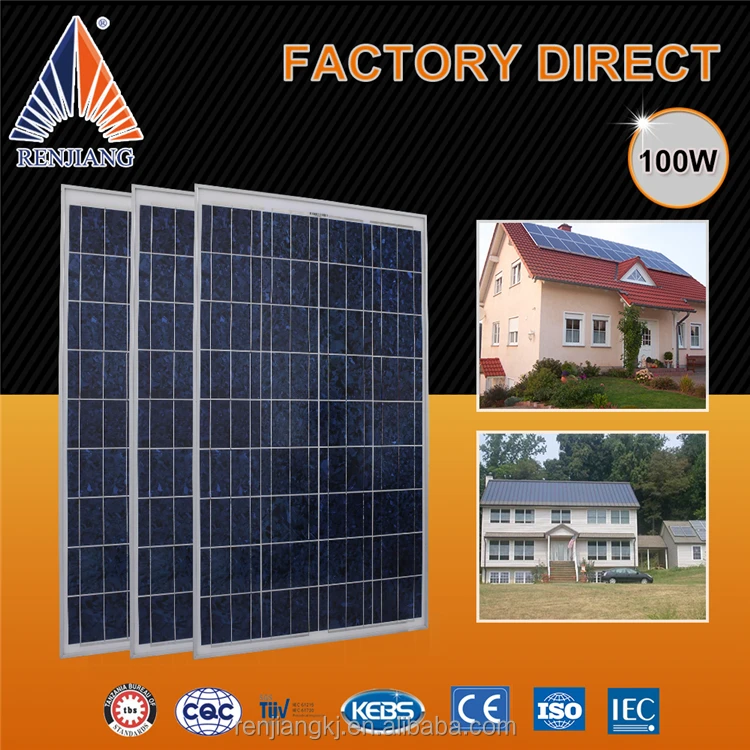

best price poly sun power 100w solar panel
- Category: >>>
- Supplier: Jiangxi Renjiang Technology Co. Ltd.
Share on (60658620229):
Product Overview
Description
best price poly sun power 100w solar panel
>>>>>>>>>>>Contact us to get more project pictures of our solar panels applied in many districts.
| Technical Parameter | ||||
Rated Output (Wp) | Opencircuit voItage (Voc) | Maximum Power voItage (Vm) | Short circuit current (Isc) | Maximum Power current (Im) |
| 100 | 22.17 | 17.94 | 5.85 | 5.6 |
| Temperature Coefficient of Voc | -0.38%/℃ | CeII(mm) | 156*104 | |
| Temperature Coefficient of lsc | +0.04%/℃ | Weight(kg) | ||
| Temperature Coefficient of Power | -0.47%/℃ | Dimensions(LxWxH)(mm) | 1030*670*30 | |
| NOCT | 45±3℃ | Cable Cross Section Size (mm) | 2*1.5 | |
| Working Temperature Range | - 40℃~+85℃ | No.of Cells and Connections | 36( 4*9) | |
| Maximum Permitted Load | 5400Pa | No.of Diodes | 2*10A | |
| Maximum Series Fuse Rating(A) | 10 | Monolithic power | 3.9w-4.29w | |
| Maximum System Voltage(V) | 1000 | The efficiency of single chip | 16.02%-18% | |
| Standard Test Conditions | 1000W/m2;25℃;AM1.5 | The packing way | 5pcs/Carton | |
>>>>>>>>>View more solar panels of different watts.
