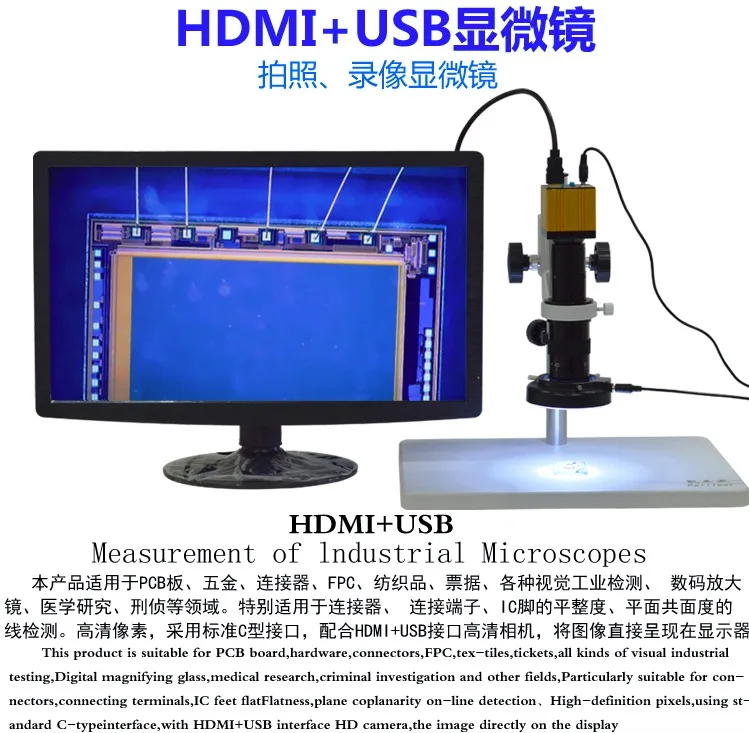

Professional KSL 14MP CMOS Camera Video Recording Jewelry Microscope

Kailiwei Professional KSL 14MP CMOS Camera Mobile Phone Motherboard Repair Microscope

Specifications:

It build in digital crosshairs and color control, add line in the pictures, freeze
Supply USB2.0,HDMI HD video,Two output ports

Specification:

Model: Camera with HDMI USB2.0 two output
Image format: JPG
Image resolution: 4320*3240 (for TF card) 1280 *720 @ 30FPS(for TF card)
Video format: MOV(for TF card)
Video recorder: 1920 *1080 @ 30fps (for TF Card)
USB Video resolution: 1280 *720 @ 30FPS

White Balance: Auto
Light: Auto
Color: Color
Negative: Support
Morror: Left/right,Up/Down
Freeze: Support
OSD: English/Chinese
Line: different color,4 horizontal line , 4 vertical line,any positions

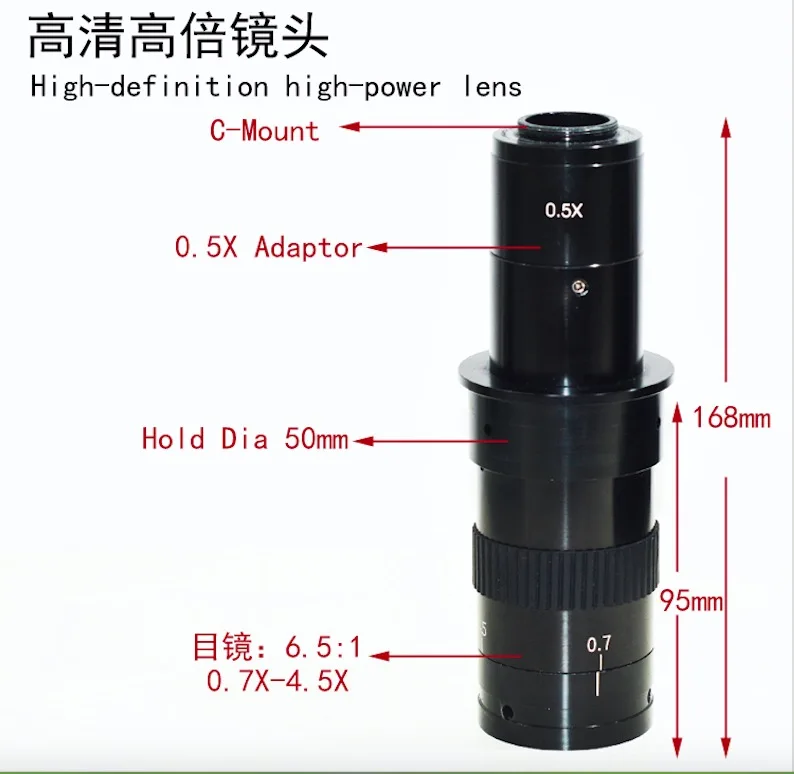

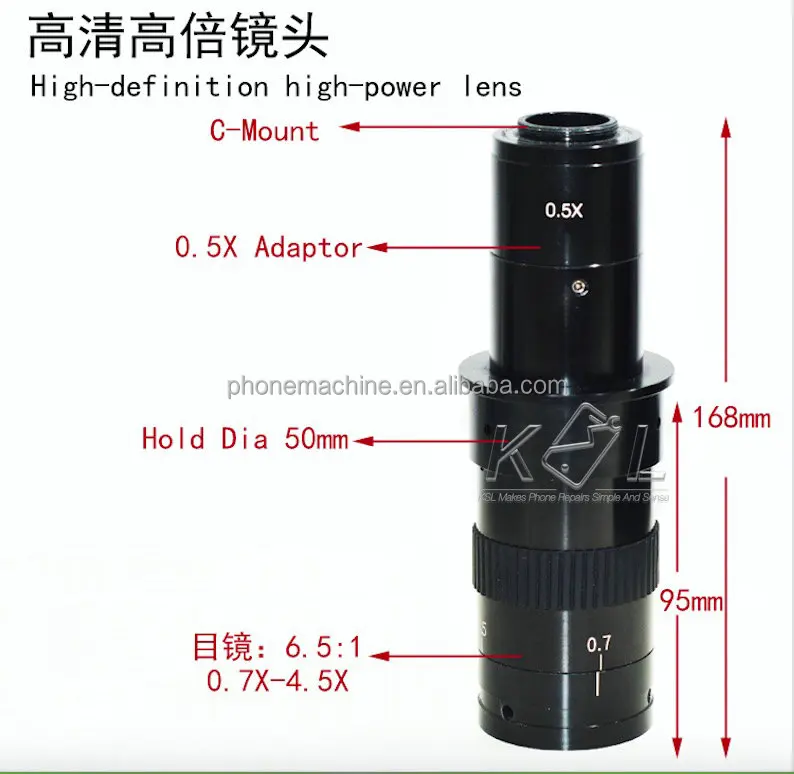

180X C-MOUNT Lens:



Zoom C-mount Lens

0.5X C-mount adapter

zoom ratios: 6.5:1

Objective Magnification Power by 0.7 - 4.5X(about 10 - 180X on the display)

Size: 168mm(L) * 50mm(DIA)

Weight: 450g

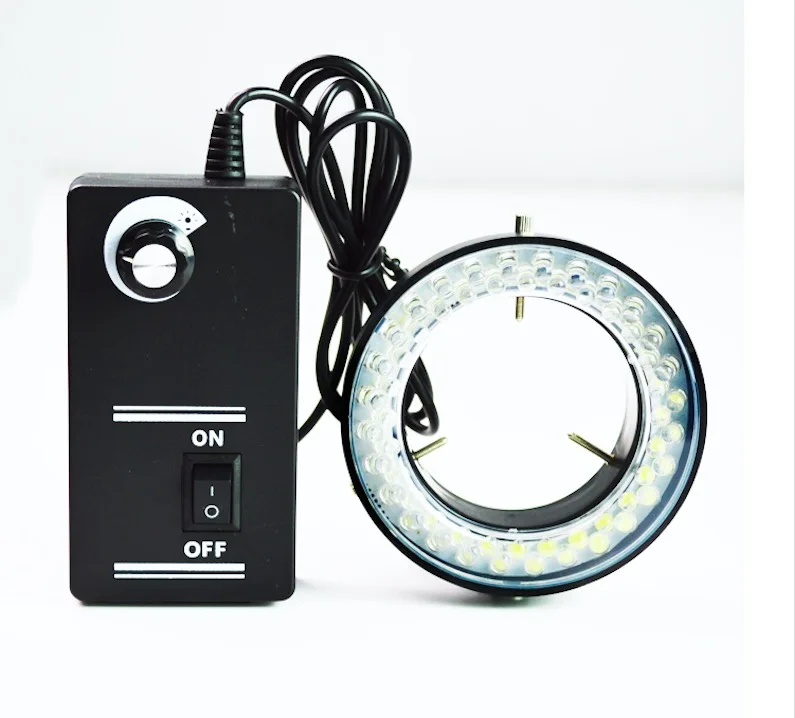

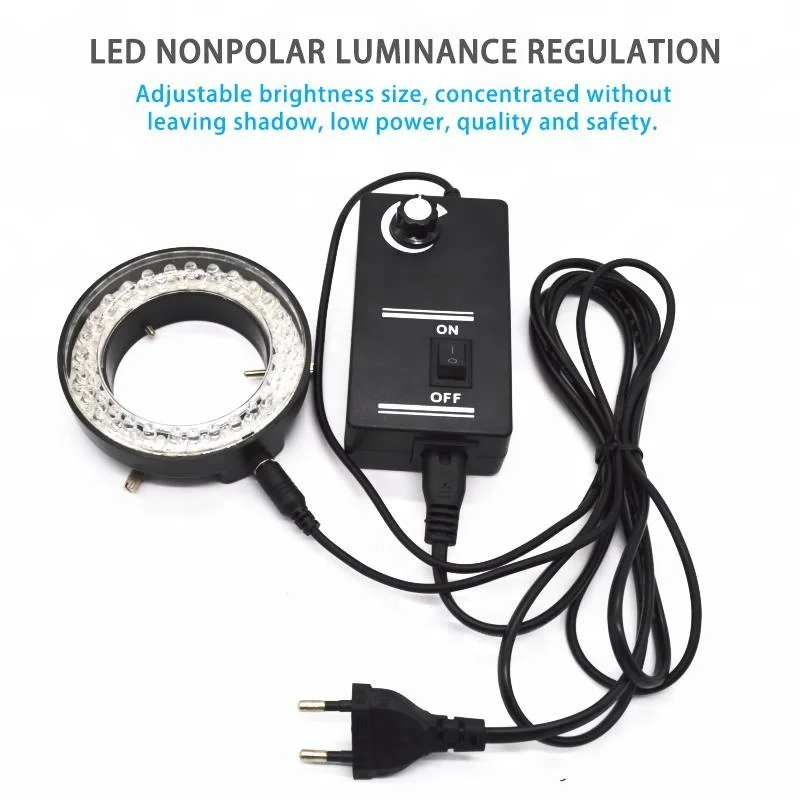

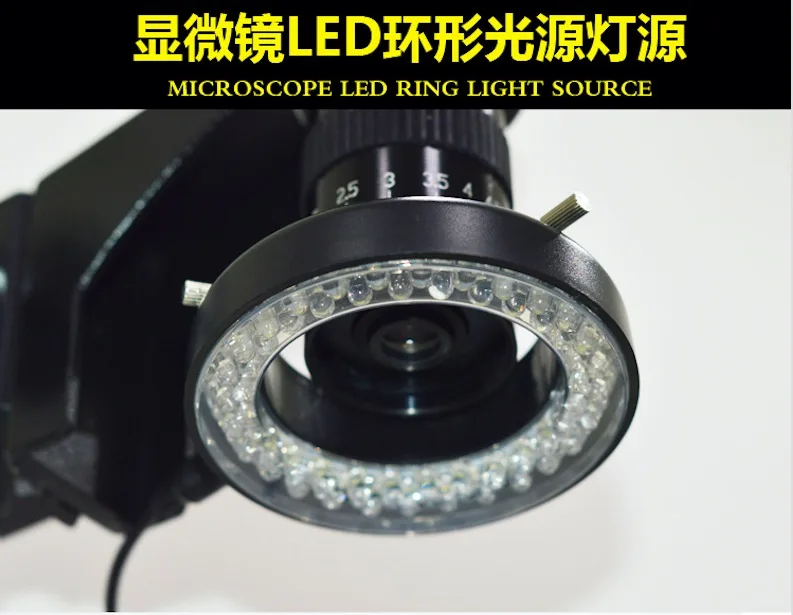

144 LED Ring Light:



144 bright white LED bulbs

100,000 hours of life

Intense and focused shadow-free illumination

The brightness of 0-100%Adjustable,high brightness

Variable intensity control

Power input: 100-240V, 50-60HZ

Suit for the dia of the lens: 30mm-63mm

Color: white/black, if you want to have the faverate color, please leave us a message.

Output intensity: 35000LUX

Colour range: 6500K

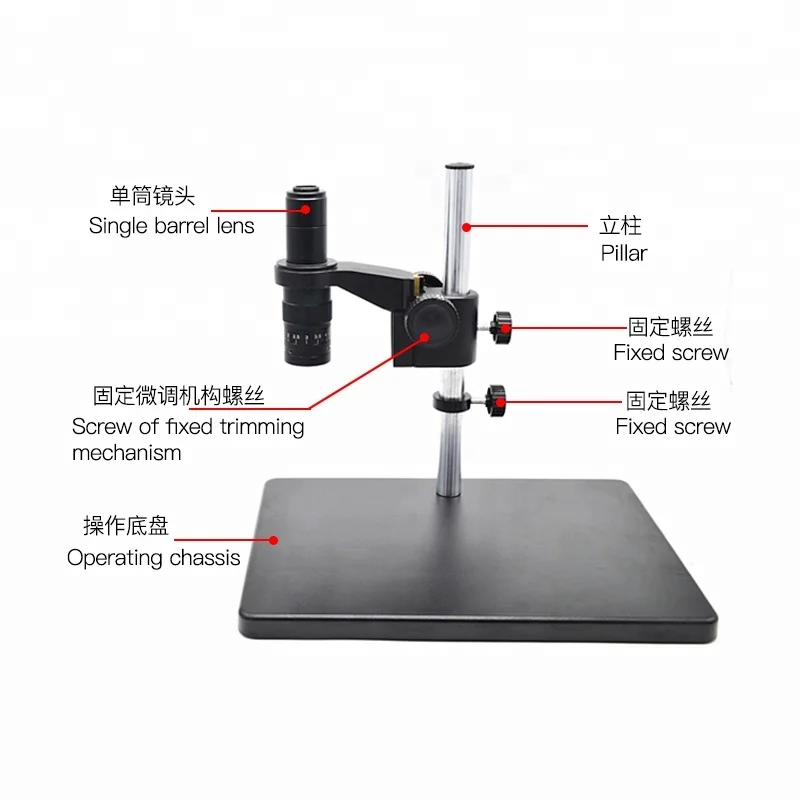

Microscope stand:

1. Precision die casting large floor size: 380 * 250 * 30mm

2. Total height: 340mm

3. Column diameter: ¢ 24.7mm

4. Lens interface diameter: ¢ 50mm



5. Height adjustable range: 10-265mm

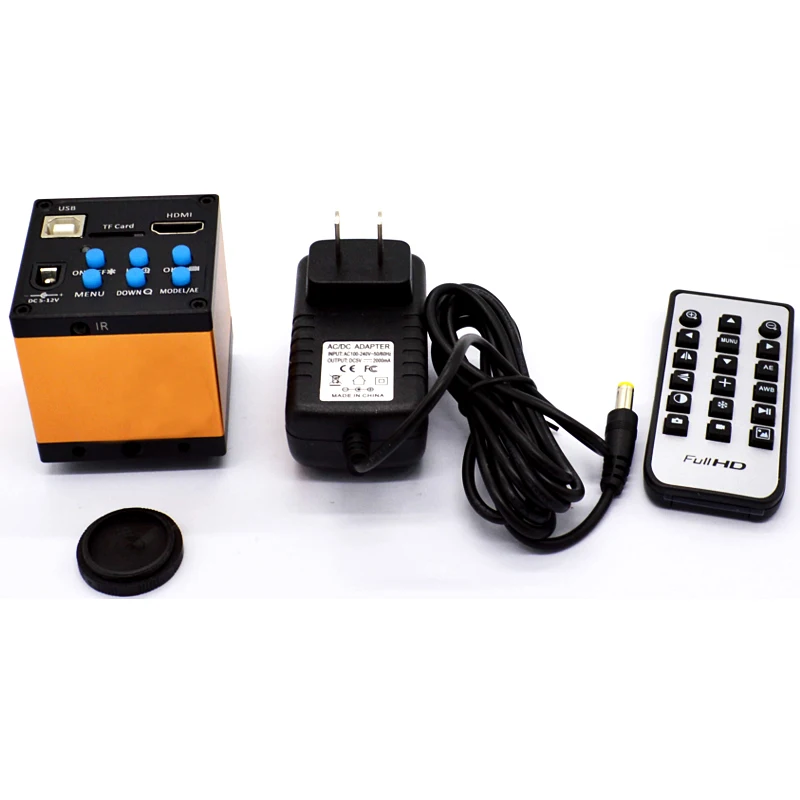

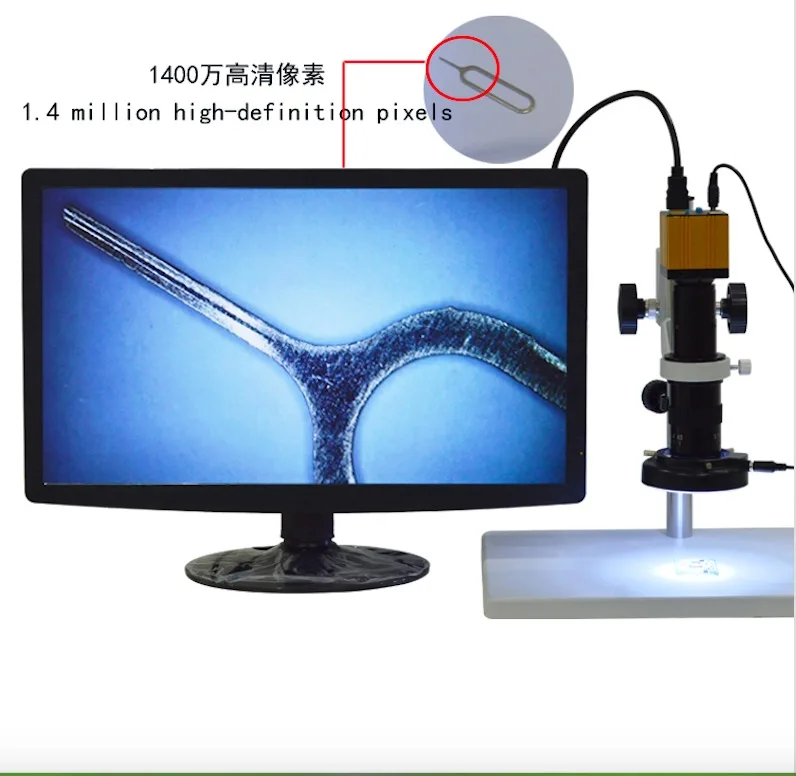

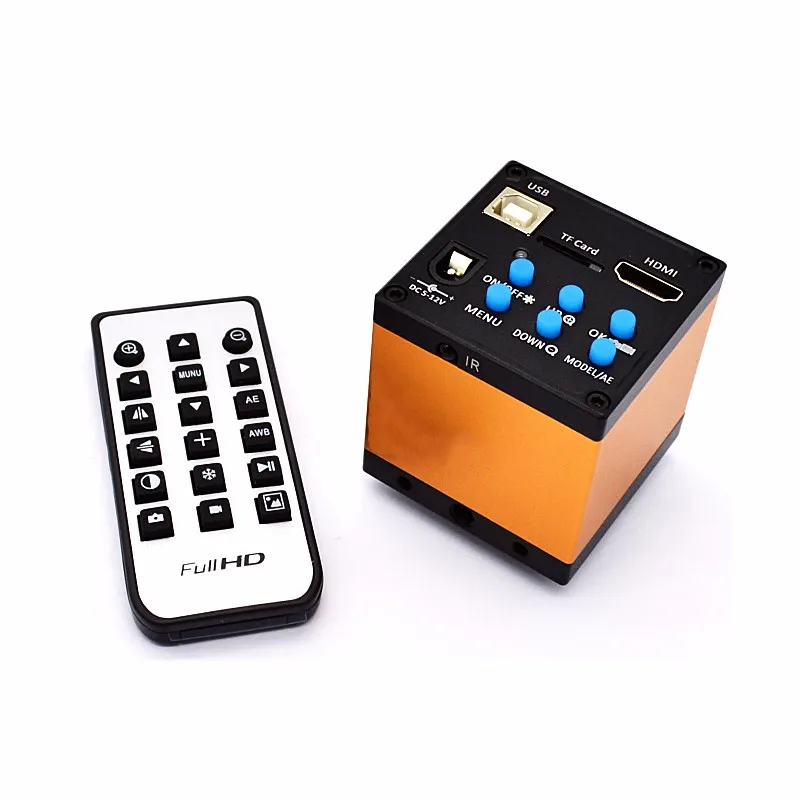

1,1400-megapixel COMS Sensor;



2, the product has 14 million pixel camera and 1080p video recording, using the mode key to cycle switch. Mode key switch mode, the default is



Camera mode, press once to adjust the video, press again for the preview mode, cycle switch.



3, the product provides 8 times digital zoom; hold down the up or down button to digital zoom in or out, long press to quickly zoom in or out, short by the local time



Zoom in or out.



4, this product provides HDMI high-definition video output interface, the output size of 720p 60hz.



5, the product provides free drive 720P 30 frames / sec high-definition usb video output.



6, this product supports a key image freeze / thaw function, press the on / off button to achieve after freezing and thawing function.



7, the products provide cross-line function, horizontal 4, vertical line 4, support line optional and mobile, and display line color settings and adjustable thickness, while



Provides the center cross cursor display.



8, support automatic and manual exposure;



9, support EV value (exposure compensation) adjustment;



10, support for English, Chinese Traditional, Simplified Chinese and other multi-language settings;



11, support 50Hz, 60Hz light source frequency selected settings;



12, support HCSD T-flash card (Class 4), the largest to 32GB;



13, support shutdown save settings function;





Multi-function LCD monitor, high-quality metal casing, solid, wear-resistant, support 24 hours of work, whether industrial, commercial or home, will use the display interface AV video, BNC monitor, VGA computer display, high-resolution 1024 * 768 Compatible with high brightness and high brightness





Package includes:

1X 14MP CMOS Camera

1X 180X Lens

1X LCD monitor

1X LED Ring light

1X Mount with stage

Packing Detail:carton within foam inside or wooden box
 Shipping: 2~3 day after confirm payment

                       3-5 workdays shipping from China by Air/Express(DHL,FedEx,UPS,EMS etc.

                 We can arrange shipment by sea. Minium CBM requirement : 1 CBM

1.We Will provide you User manual in English or operating videos for free .

2.24 hours technical support by email or vedio call via wechat or skype.

3. Free training to make sure you master the operating of our products.

4. OEM/ODM accept . But the MOQ of OEM/ODM is 100 sets.

Warranty:

1.all of our products will be checked one by one before shipping

2.customer should check the package when receiving

3.all machine wihin 1 year free warranty, but  here is not warranty if that's obviously caused by man-made. free technical  support always.

4. due to the low vaule of the accessories,we don't accept any return or exchange.
