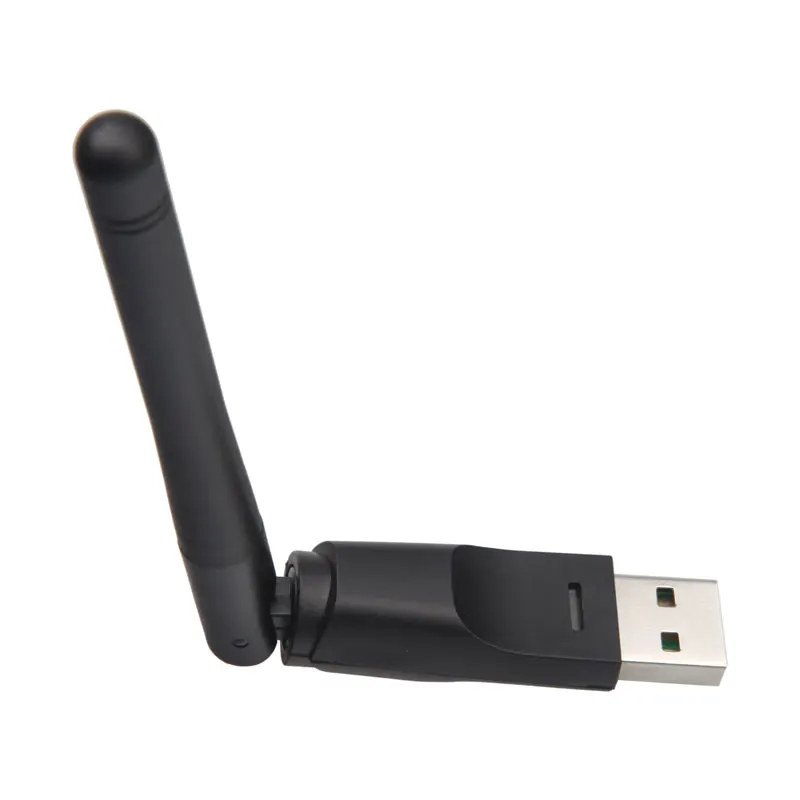

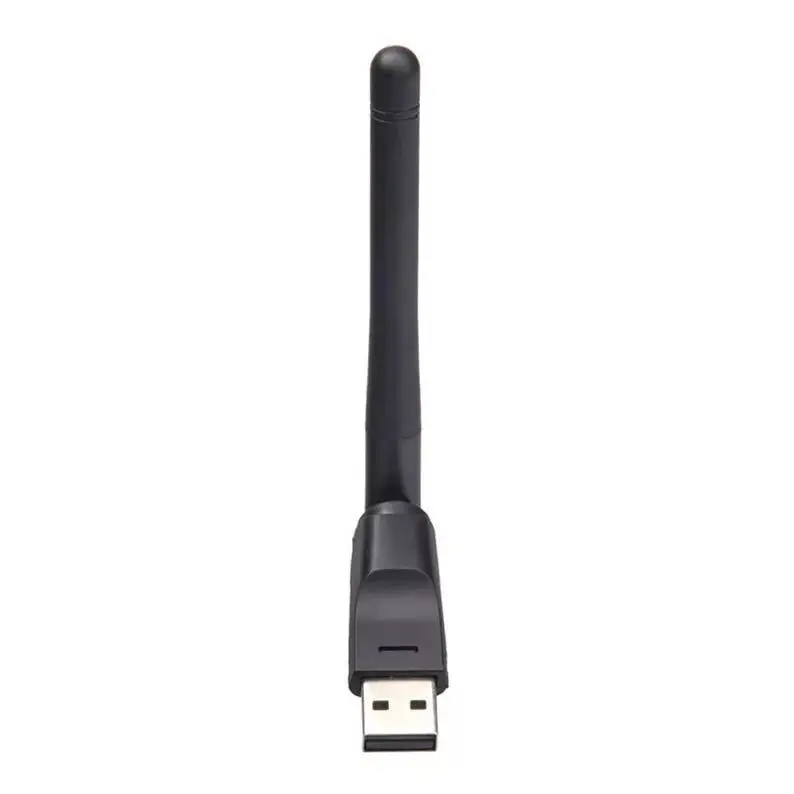

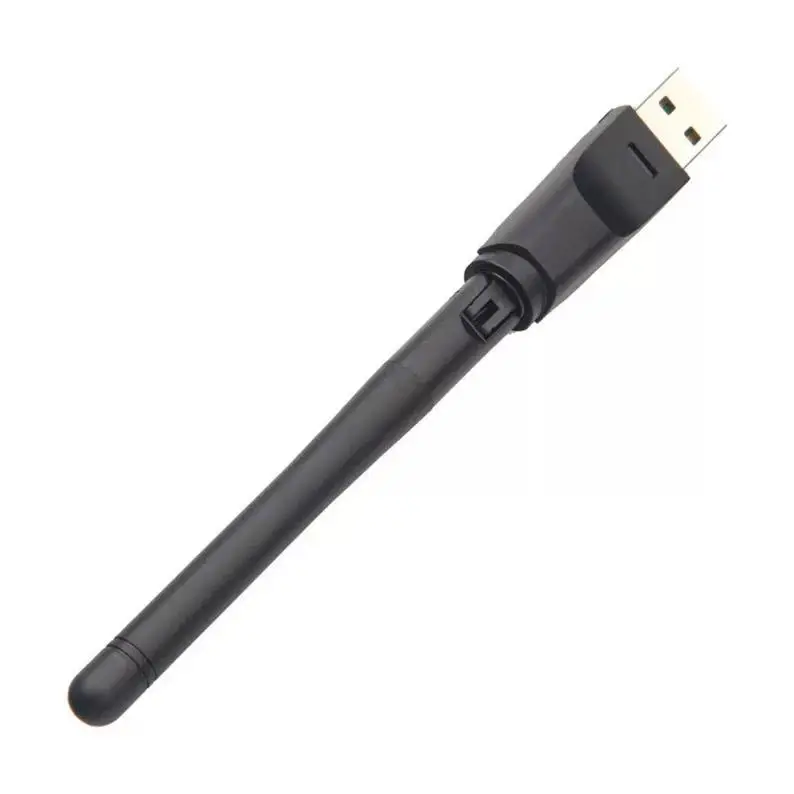

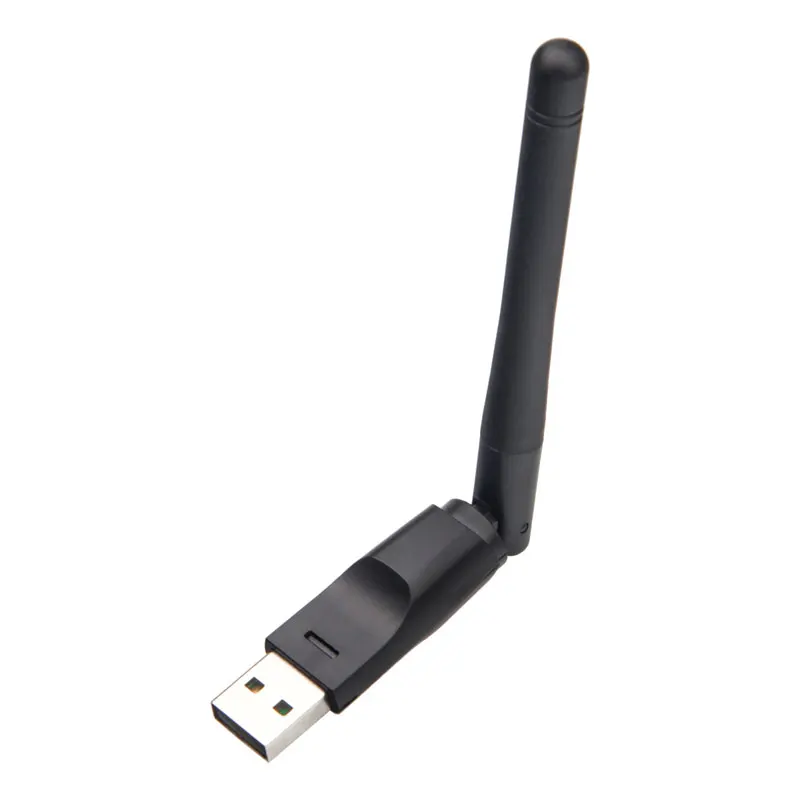

4G External Antenna Android USB Wifi Dongle For Set Top Box MT7601

Product Overview

Description

4G External Antenna Android USB Wifi Dongle For Set Top Box MT7601



1.Mini adapter with WPS key.
2.Low cost solution.
3.New chipset with MT7601.
4.Support window.mac.linux.android.



Ralink mt7601 usb wifi dongle Introduction

The XDBWI6531 is a WLAN adapter with USB Type A connector, it supports USB2.0 standards interface. The XDBWI6531

adapter is designed to operate in 2.4GHz frequency and fully complies with IEEE 802.11b/g and 802.11n standards based on 1T1R technology.

The  Ralink rt5370 MAC/BBP, RF/PA/LNA single chip is used to deliver high-performance of the latest Wifi technology, including software driver support for Windows 7, Vista 32/64, XP 32/64, 2000 ; Mac OS X and Linux.





Main Chipset	MT 7601U
Host interface	USB 2.0 Type A
LED	Link/ Activity

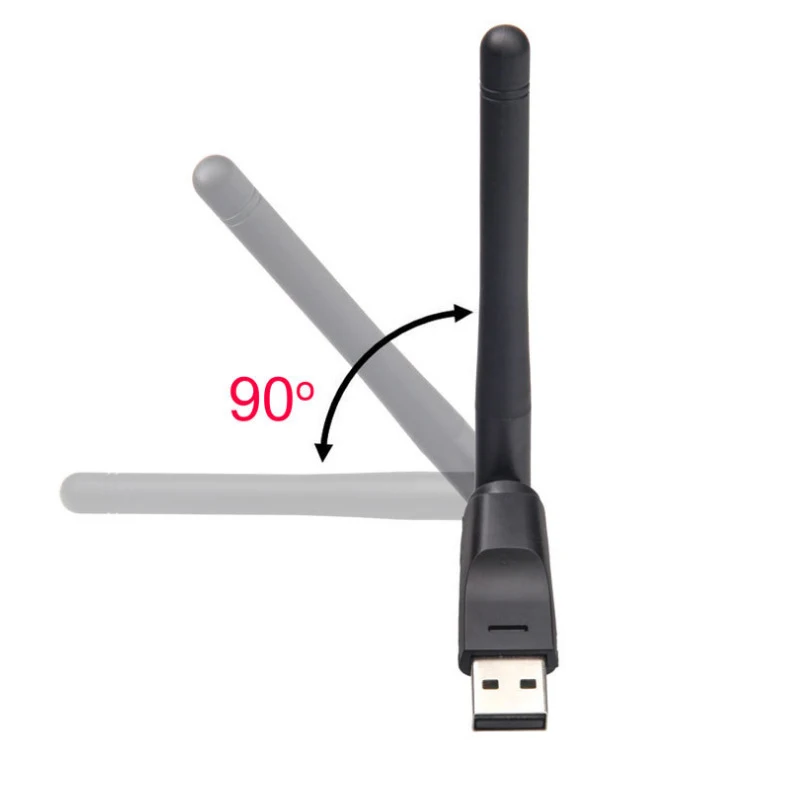

Antennas	One rotatable antenna.
Operation Frequency	ISM band , 2412~2483.5MHz (Depends on country region).
Typical Transmit Power	802.11b (CCK) 11Mbps: 19+/-1dBm
	802.11g (OFDM) 54Mbps: 16+/-1dBm
	802.11n (HT20@MCS7), 16+/-1dBm,(HT40@MCS15),15+/-1dBm
Receive Sensitivity	802.11b: -88+/-1dBm; 802.11g: -73+/-1dBm
	802.11n (HT20), -70+/-1dBm;802.11n (HT40), -65+/-1dBm
Operation System	Windows XP/Vista/7; Linux 2.6.X; Mac OS X
Security	WEP 64/128, WPS;WPA/WPA2 (TKIP,AES); WAPI;WPS
Voltage Range/Current	DC 5.0V ± 5% / <150mA @802.11g
Physical Specification
Dimensions		30*13.8*9.6mm
Weight		14g



USB WiFi Adapter Application



Related Top Sale USB WiFi Adapter

Our products covers usb wifi moulde, USB wifi adapter including the Mini Ralink rt5370, Ralink 5370, Mini MTK 7601, MTK 7601, Dual band 2.4G & 5.8G MTK 7610 and RTL8811AU. All these products have in stock, if you are interested in our products, please feel free to contact us.

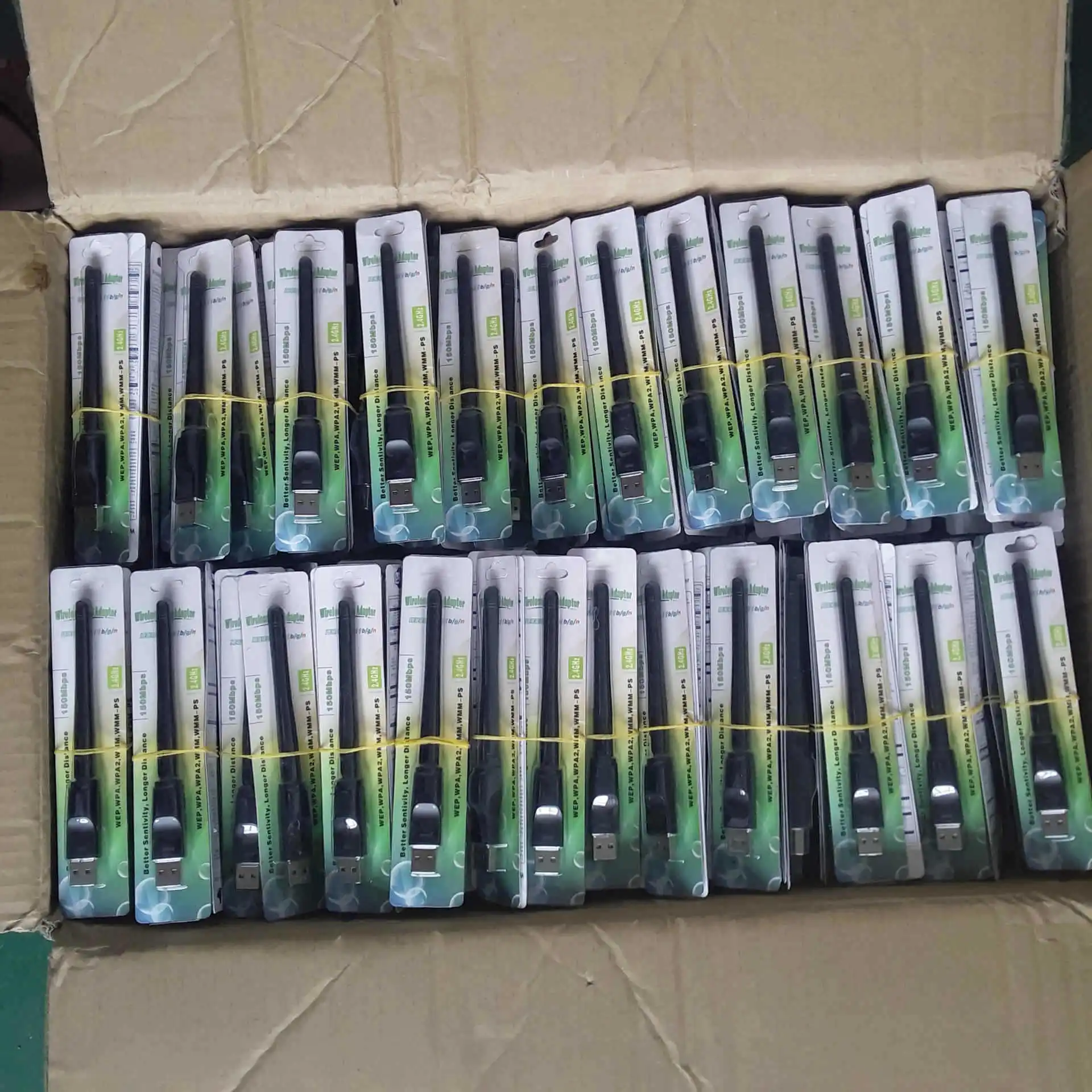

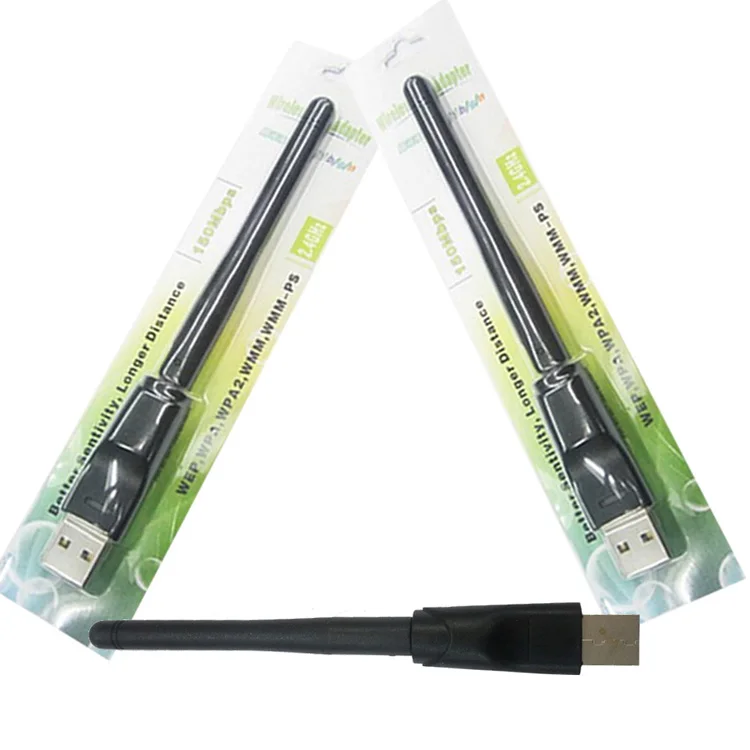

Ralink rt5370 WiFi Dongle Packaging

1. wifi adapter

2. CD adriver
