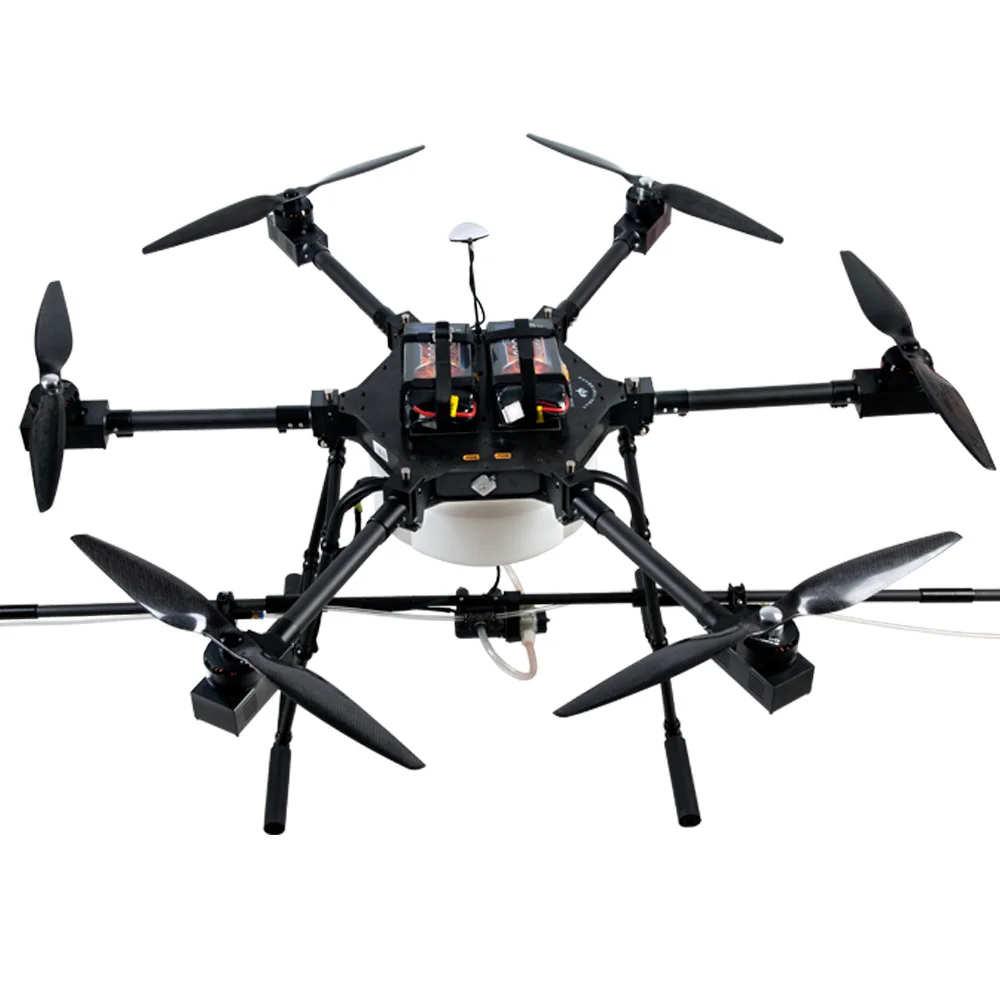

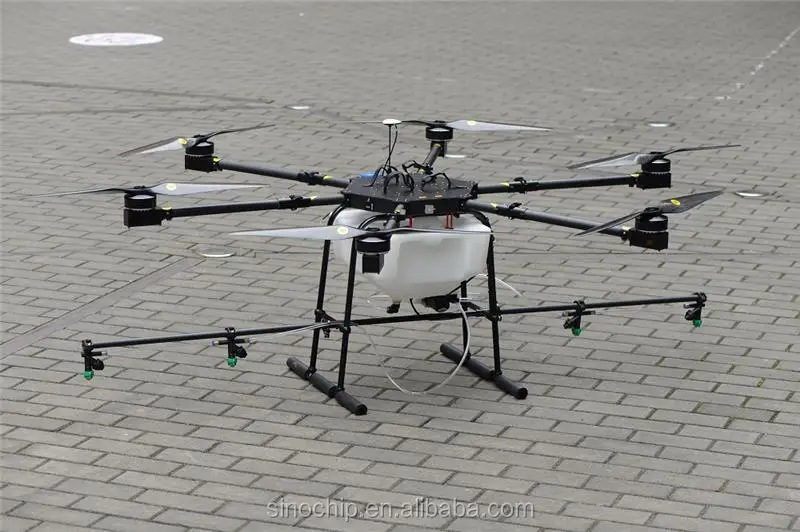

Agricultural spraying drone

Model

Size Spreaded L*W*H

1200*1200*500mm

Size Folded L*W*H

600*600*530mm

Material of Chassis

Carbon Fiber

Material of Propeller

Carbon Fiber

Product Weight

9.5kg

Container Material

Rigid Plastic

Container Volume

10L

Work Efficiency

600-1500 square meters per minute

Flying

Working Hour

13~17 min

Fly Time (no load)

18~23 min

Flying Speed

0~6 m/s

Flight Radius

1 km

Landing approach

Vertical take-off and landing

Anti-wind

<8.0m/s (28.8km/h)

Spraying

Spray droplet diameter

60~180μm

No. of Nozzles

4 pcs

Spray Flow Rate

1.4~1.8L/min

Spray Speed

0~6 m/s

Spray Width

3~6 M

Spray Height

1-3 M

Battery

Battery Type

lipo battery

Battery Capacity

10000mAh*2pcs

Charging Time

0.5-1.5h

Recharge Cycles

300-500times

Others

Working Temperature

 0 ℃-5 0 ℃

Cooling Method

Air Cooling

Motor

Brushless

Packing

Drone chassis(includes spray system)

x1 set

22 inch carbon fiber Propeller

x6 pieces

2.4 GHz remote controller

x1 piece

Funnel

X1 piece

Toolkit

X1 set

Dual interface battery charger

X1 set

Lipo battery

X2 pieces
