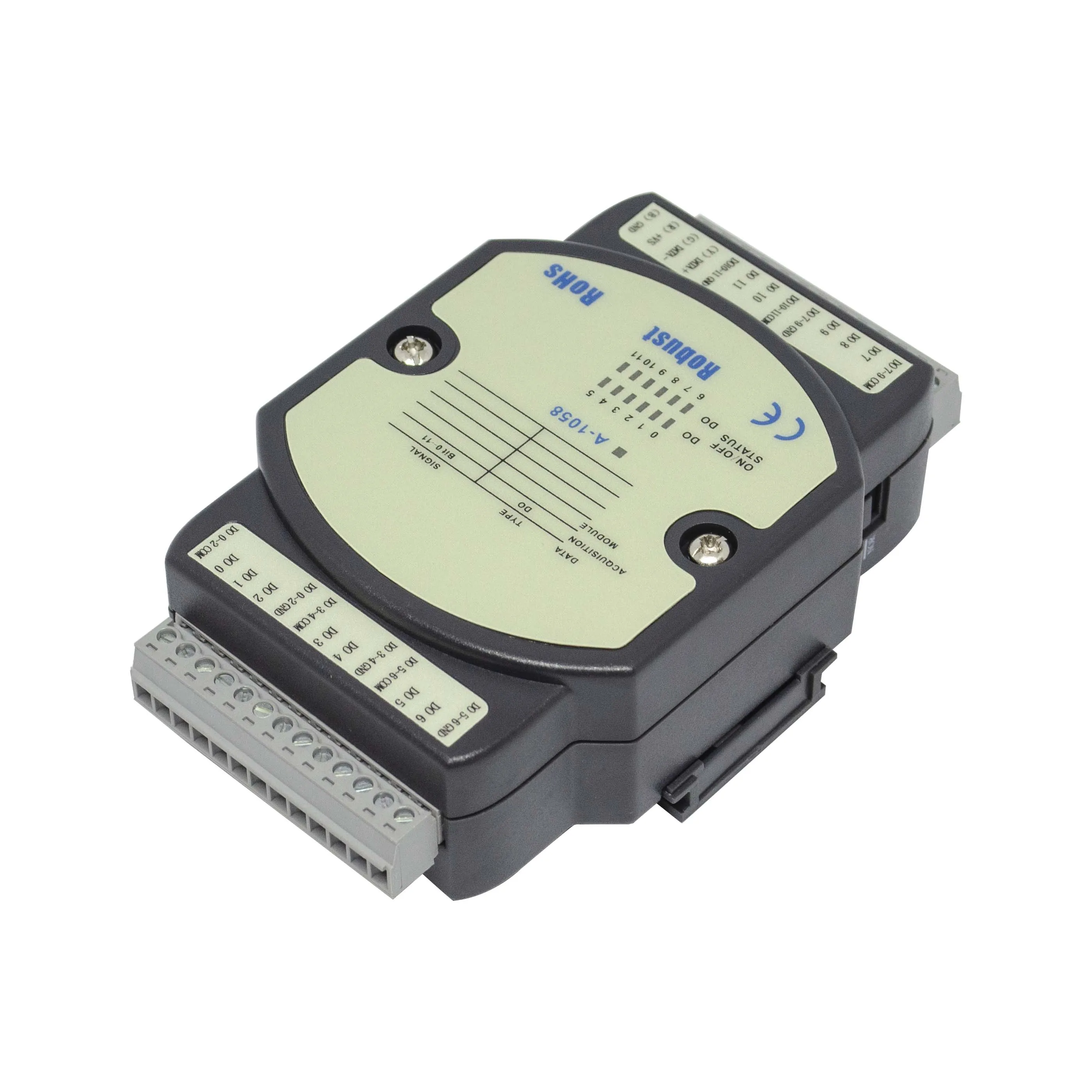

12 DO Digital output, Sink type Remote I/O Module With Modbus RTU RS 485 Port(A 1058)
- Category: >>>
- Supplier: Shenzhen ATC Technology Co. Ltd
Share on (60658707210):
Product Overview
Description
Description
ATC remote RS-485 I/O Modbus module, support RTU/ASCII protocol, can be applied to the full range of ATC controller. And it also can communicate with other evices that support the Modbus RTU/ASCII protocol, host computer communication or remote command control. It can make the series of module work in Bus network and the I/O points can flexible expansion.
Specifications
Technical Specifications(A-1058) | ||||
Inputs | - | |||
Outputs | 12 DO （Sink Transistor） | |||
Output Continuous Current | 10 ~ 40VDC (200mA) | |||
Interface Type | RS-485 | |||
Support Protocols | ModBus RTU / ModBus ASCII | |||
Communication Baud Rate | 1200 ~ 115200bps | |||
Protocol & Serial | MODBUS RTU / MODBUS ASCII, 8bit, Odd Parity / Even Parity / None, 1/2 Bit | |||
Input Operating Frequency | 10HZ | |||
Output Operating Frequency | Transistor:10HZ | |||
Degree Of Protection | IP20 | |||
Input Accuracy | ±0.1% | |||
DI Isolation Voltage | 5000 VDC | |||
Software | ||||
Configure Options | ATC Utility | |||
Power Supply | 10~30VDC | |||
Physical Characteristics | ||||
Installation | DIN-Rail Mounting | |||
Weight | 0.2Kg | |||
Dimensions | 118 × 76 × 40.7 mm | |||
Operating Temperature | -20 ~ 75°C | |||
Storage Temperature | -40 ~ 85°C | |||
Ambient Relative Humidity | 5% to 95%(non-condensing) | |||
Standards and Certifications | RoHS, CE | |||
Protocol

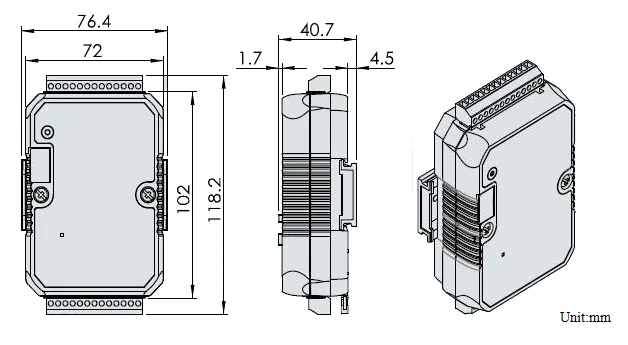

Dimesion

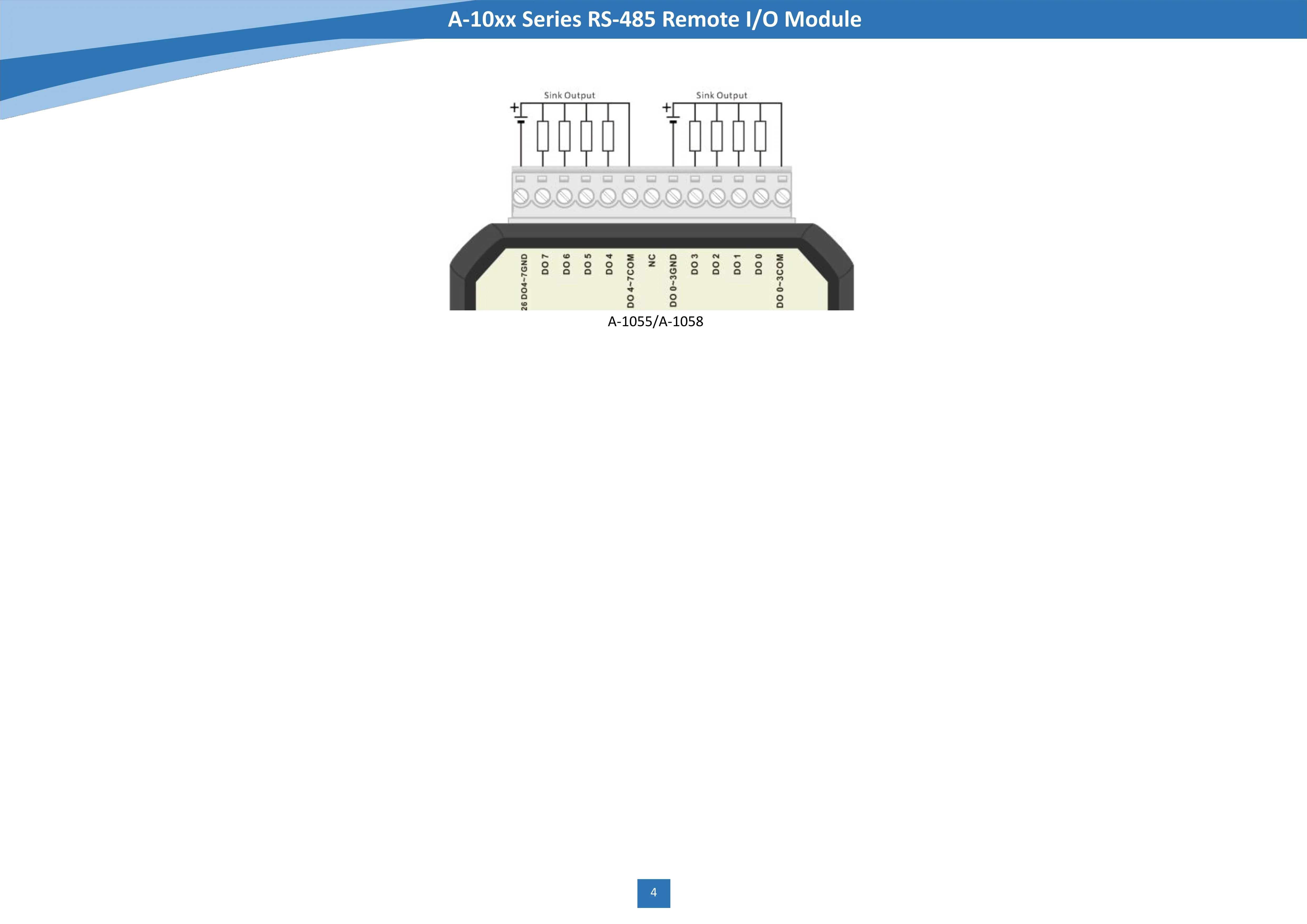

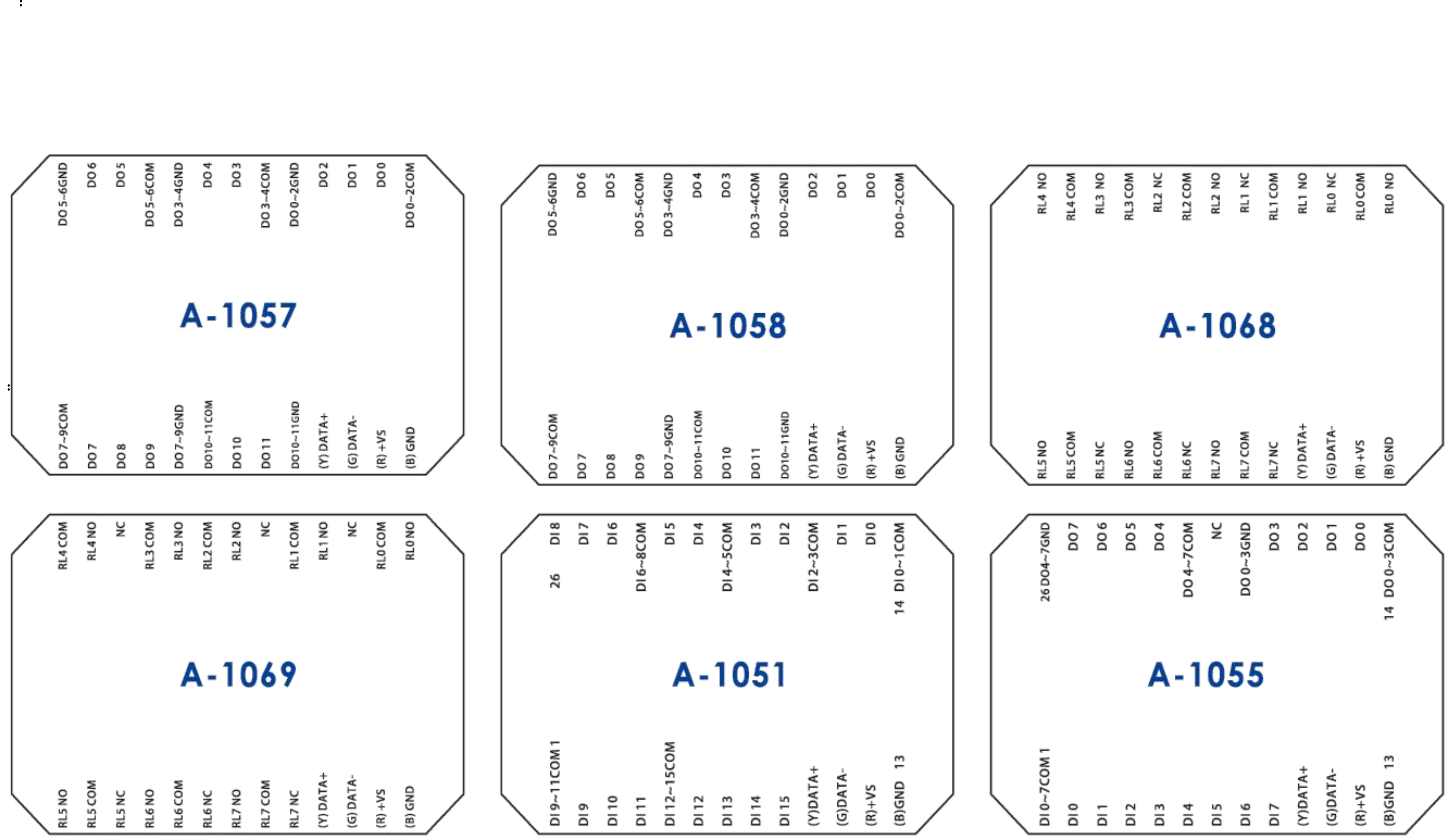

Pins and wiring
Software download

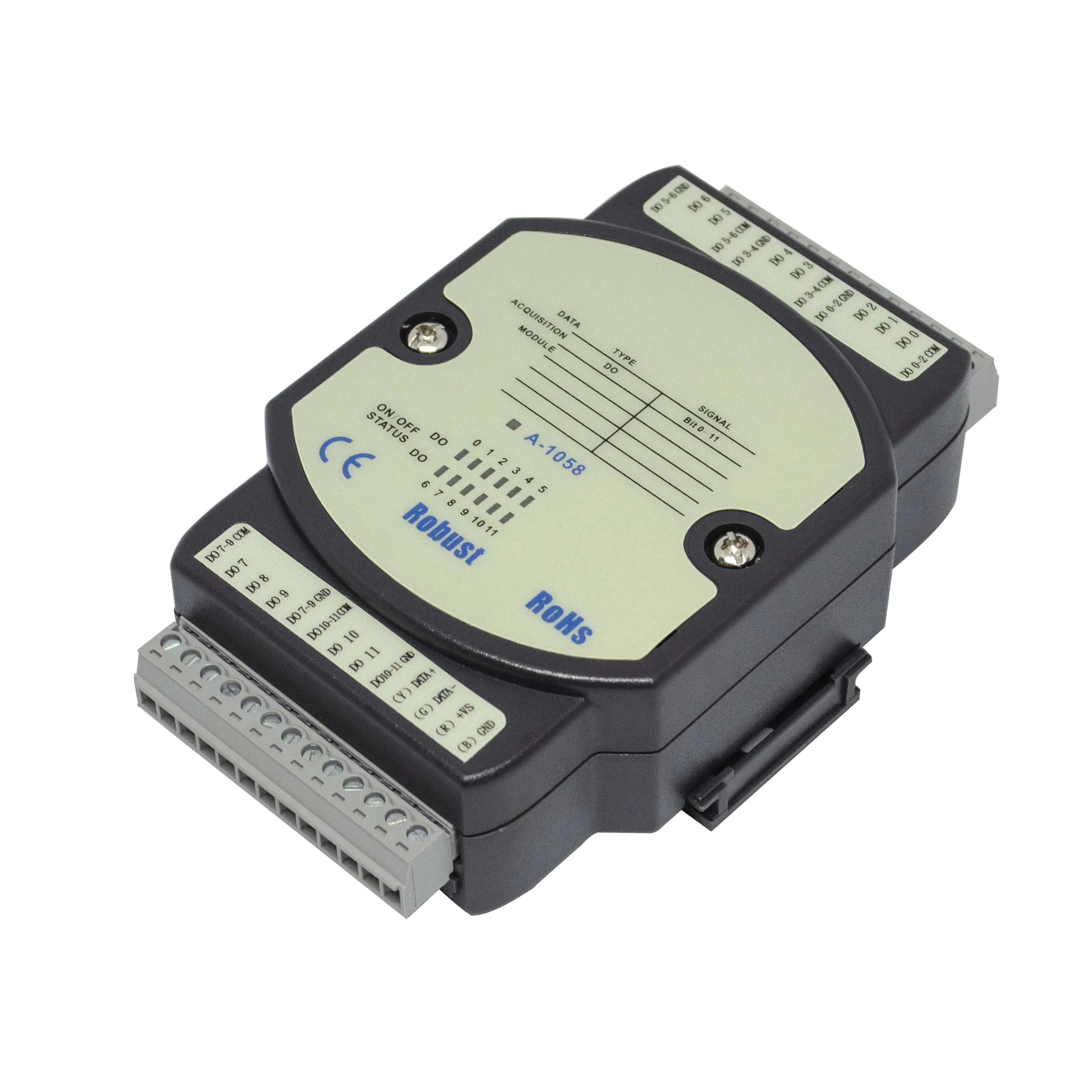

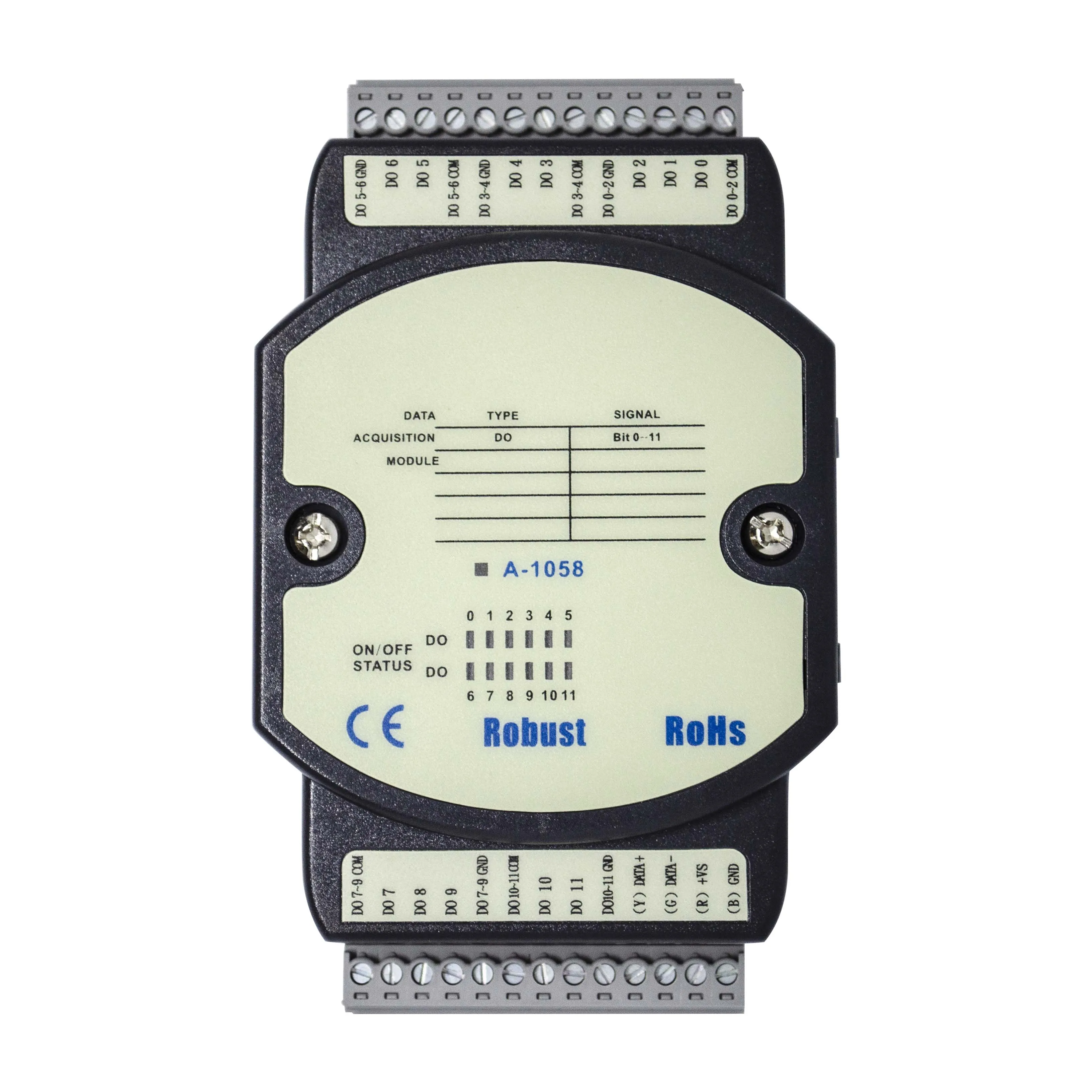

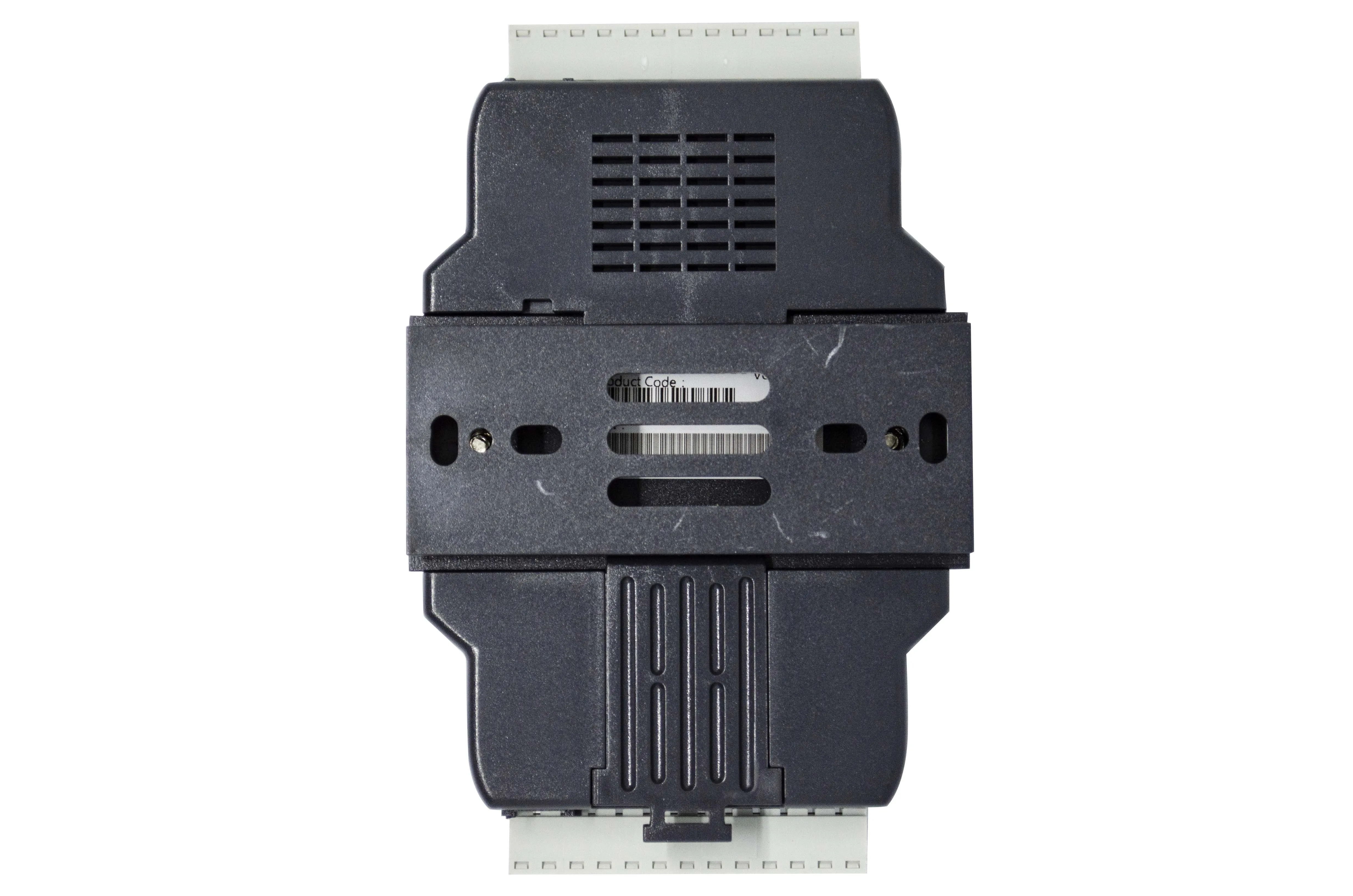

Details Images
Product Category
May you have interesting Ethernet I/O module
FAQ
1.What about the delivery time?
For RTS product, we will shipping this goods to customer within 1-3 work days receive the payment.For customized products, you need to decide according to the customization requirements.
2.What is your delivery terms and payment terms?
We accept EXW, FOB,DAP, etc. You can choose the one which is the most convenient or cost effective for you.
3.After service and warranty?
We provide 2 year warranty, if you have any problems in the use of products, please contact to us.
