High Quality 0.2 micron String Wound water Filter Cartridge

Product Overview

Description

 High Quality  0.2 micron String Wound Water Filter Cartridge

Filter cartridge

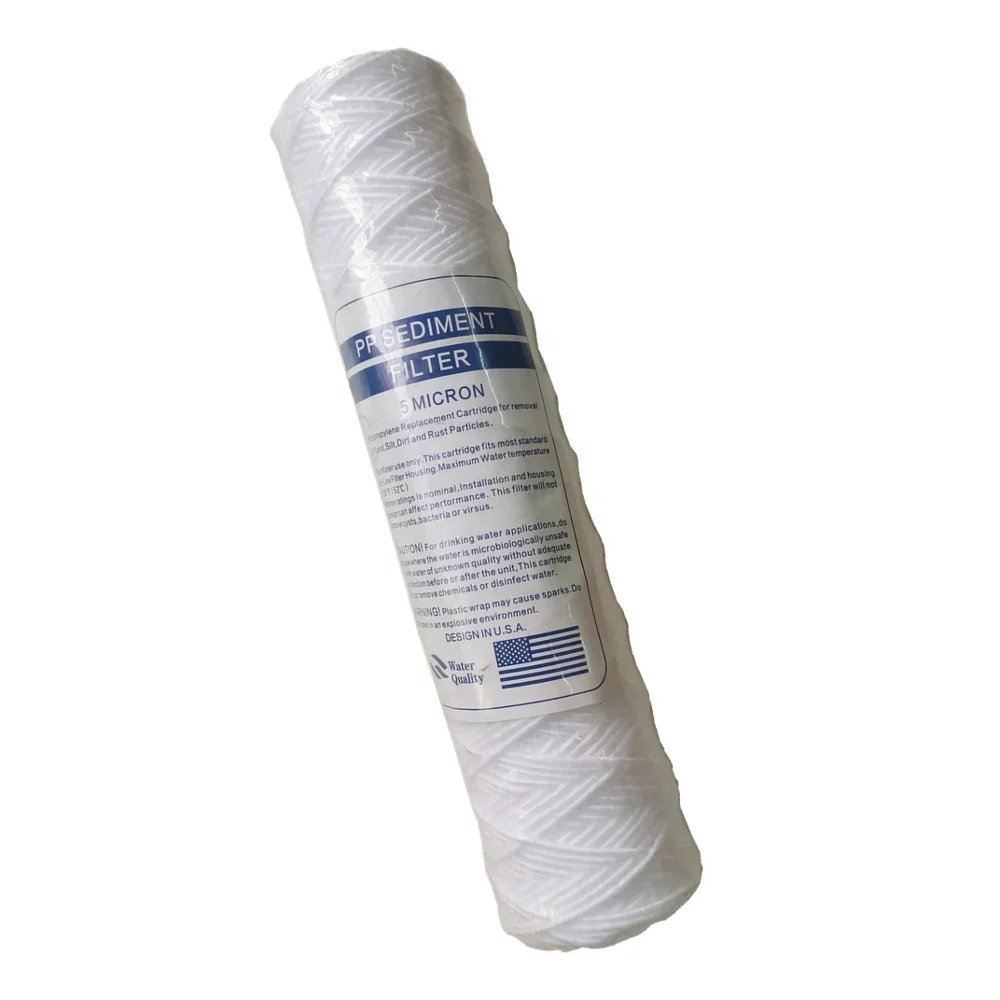

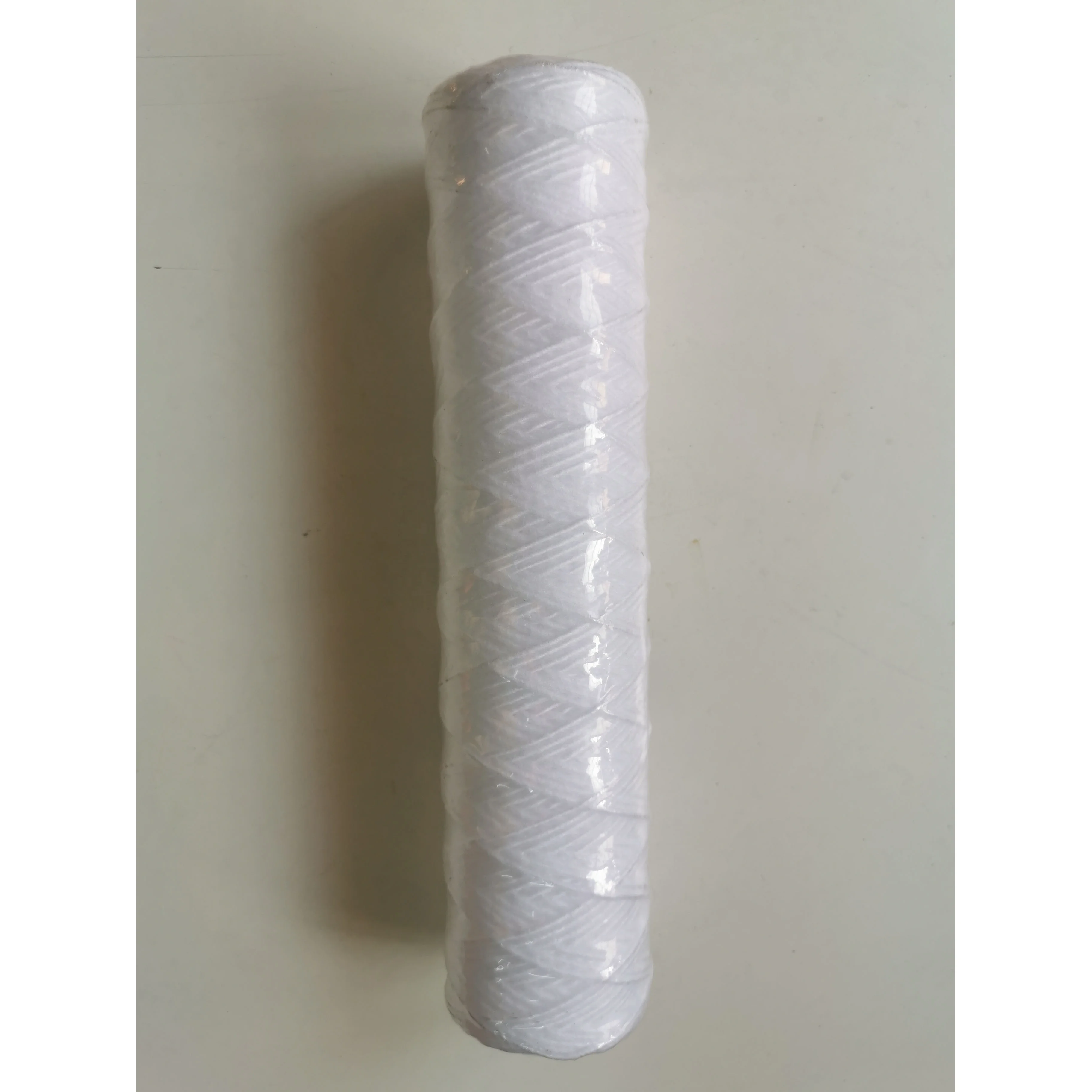

String wound cartridge filter

String wound cartridge filter is a deep layer filter element, and it mainly used in the quality of low viscosity and impurity filtering. It is made of textile fiber line(polypropylene line, absorbent cotton line), according to the specific process of precision winding in the porous frame(polypropylene or stainless steel). With dense inside and sparse outside cellular structure, so it can remove suspended solids, particle, and rust, etc. in the fluid. In addition, it has very good filter characteristics.

 Pp/ss Core 10 Micron Pp String Wound Water Filter Cartridge, High-Quality Alkaline Filter Cartridge,10 Micron Filter

Main technical performance indicators

1. filtering precision:1μm,5μm,10μm,20μm,30μm,50μm,75μm,100μm;

2. filter cartridge OD:φ60mm,φ65mm;

3. filter cartridge ID:φ28mm,φ30mm;

4. The filter cartridge of polypropylene can use water, acid, alkali etc.and chemical solution and other nonorganic solution, and its operating temperature≤60℃;

5. Absorbent cotton fiber filter center pole is stainless steel materials, using in

an organic solvent, water, oil, alkaline solution, drink, and medicine, etc., with operating temperature120℃;

filter cartridge length: 10″,20″,30″,40″;

7. Max anti-pressure:≤0.5MPa;Max drop of pressure:0.2MPa;

8. Max working temperature: Polypropylene line:  Polypropylene frame≤60℃;

Stainless steel frame≤80℃. Absorbent cotton line: Stainless steel frame≤120℃.

Feature

High filtering precision, large flow rate, low differential pressure, high-pressure strength, carrying a large amount of dirt, non-poisonous and tasteless and no secondary pollution.

Application

Water filter: such as the medium and big size of the ultrapure water system and beverage industry water use’s pre-treatment;

2.Food industry filter:such as cooking and vegetable oil’s filtering, syrup,chocolate

and other kinds of slurry’s filtering;

3.Chemical industrial filter:such as the filter of plating solution liquid, oil paint,oil plants,coating mechanical oil,cutting oil,heavy oil,fuel oil, high viscosity resin, grease, and pharmacy, etc.

Distinguish

Good string wound cartridge filter can show the depth of the filter material’s effect.And the ideal condition is wrapped more and more dense from inside to outside. Thus, it controls the density of filter material with the thickness of the line or different winding tension. Only with dense inside and sparse outside structure’s string wound filter cartridge can effectively enhance the filtration efficiency and intercept more impurity particles. Wound type filter material of filtering precision is determined by the wire thickness and the wrapping density, the more thin wire material,and more closely together, so the pore will be smaller and higher precision. In the same way, wire material more compact, the filtration precision will be higher. However, we need to maintain its structure and pore size, so that providing a stable and uniform quality of the filter.

Package
10''  50PCS/CTN   510*310*310mm
20''  50PCS/CTN    510*310*310mm
30''  25PCS/CTN   765*310*310mm
40''  25PCS/CTN   1020*310*310mm
