lightweight fireproof sandwich panel precast wall panels

What is lightweight fireproof precast wall panels?

   Onekin TUV certificated lightweight wall panels for malaysia is a kind of environmental-friendly board which is widely used in wall construction.It is a new type non-flammable material made of lightweight materials. It’s made from magnesium oxide, magnesium chloride, fly ash, plant fiber and mixed together with non-toxic chemical for strength.

   Magnesium oxide is a natural fireproof material, so the highly purified magnesium oxide is used as the main fireproof material,fly ash and plant fiber as filling materials, the high quality MgC12 as the main cementing material to solidify other materials.

specification

Length: 2400mm-3600mm(Customized Available)

Width: 600mm

Thickness: 75mm/90mm/100mm/120mm/150mm/200mm

Standard size: 2800*600/2900*600

 Sectional drawing

Onekin TUV certificated lightweight wall panels for malaysia is mainly for interior and exterior non bearing wall partition.
1. General industrial buildings, high building, KTV
2. Industrial buildings: factory wall partitions, school dividing wall

3. Commercial buildings: shopping mall, KTV, high office building partitions

4. Residential houses: low- rise & high-rise

5.Government housing project, prefab house

6.Fire rated wall partitions 1-4 hours

7. Residential buildings
8.Single house
9. Public construction, hotels, hospitals, schools
10. The fence of the factory
11. Kitchen, bathroom, and the toilet of indoor wall.
12. Also can paste on tiles and cement mortar.

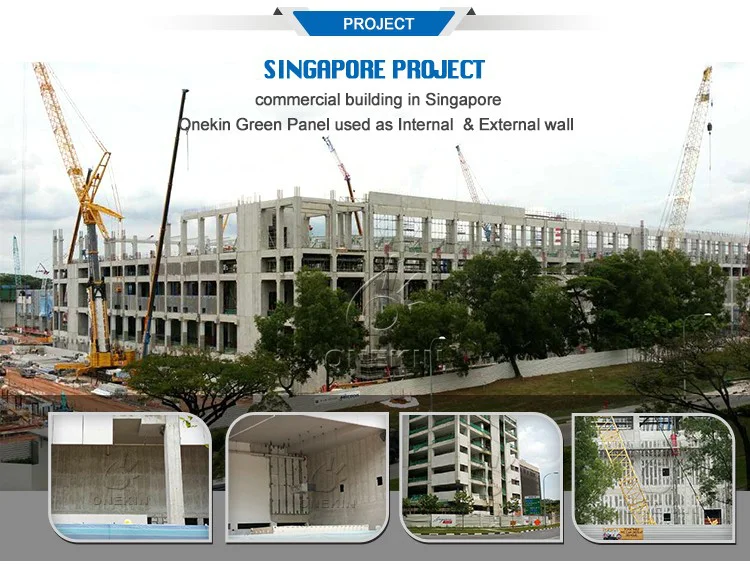

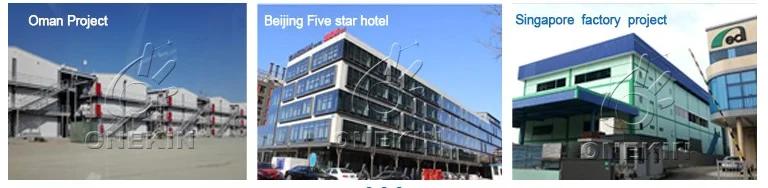

Project of Onekin TUV certificated lightweight wall panels for malaysia

Onekin is a expert wall panels supplier, our green wall system is widely used in many projects instead of traditional building materials like bricks, hollow block, gypsum board, cement panel etc. Below shows the project feedback from our customer. If you want to get more information about Onekin TUV certificated lightweight wall panels for malaysias' project, welcome to contact our sales.

 Advantages of Onekin TUV certificated lightweight wall panels for malaysia

1. Fireproof

  The fire endurance of Onekin green wall panels can reach 4 hours in accordance with Chinese National Standard.

2. Lightweight & high strength

  Onekin green panel is lighter than any other traditional panels, such as cement block, concrete block, cement panel etc. The hollow core design of Onekin green panel is not just can reduce a lot of weight, and meanwhile it’s compressive strength is 5.56 Mpa.

3. Faster installation

  Onekin green panel with tongue and groove design enables 3-5 times faster installation compared with that of cement panel, or bricks. It can be easily saw, cut, drilled and taped. One skilled worker can install about 40m2 per day.

4. Low cost

  As Onekin green panel is lightweight and fast installation, it can reduce the cost on the labor, foundation, structure and transport. It’s fast installation make it can significantly shorten the construction period and project cost. According to our data, using Onekin green panel can reduce up to 30% total cost.

5. Thermal insulation

  Thermal conductivity for Onekin green panel is 0.17w/mk,while cement panel is 0.66w/mk. According to a Korean customer test, for the house built by green panel, electricity consumption is about 2 kWh per day, while for cement panel house, it is about 10 kWh per day, which means our green wall panel can save up to 80% energy.

6. Environmental friendly

  Onekin TUV certificated lightweight wall panels for malaysia used 100% green raw materials do not contain harmful factor to human body, according to national environmental test, it’s without asbestos and non-radioactive, and also it does not contain formaldehyde, free of heavy metals and other harmful substances. It don’t release poisonous gas under the high temperature of 1000 degrees.

7.  Sound insulation

  Onekin green panel adopts hollow core structure design, as the air is the best medium of sound and thermal insulation, and it shows great efficiency in insulating noise. For 100mm panel, the sound insulation is 39 dB, while it can reach up to 51dB for structure with two layers of 90mm panel with 50mm rock wool in the middle.

8. Waterproof

  Experiments show that Onekin green panel can make any waterproof decorative surface in the absence of circumstances,with cement bond into a pool filled with water, on the back wall can keep dry, leaving no trace, also won't appear condensate beads in wet weather. Wall panels are professional waterproof board, has a good waterproof, moisture and mold resistant performance, can be used in wet area such as kitchen, toilet, basement.

Onekin green panel VS cement panel VS bricks

   As a international construction materials supplier, Onekin have agent in many country, to get more information about Onekin Marketing Network welcome to visit our web or contact our sales.
