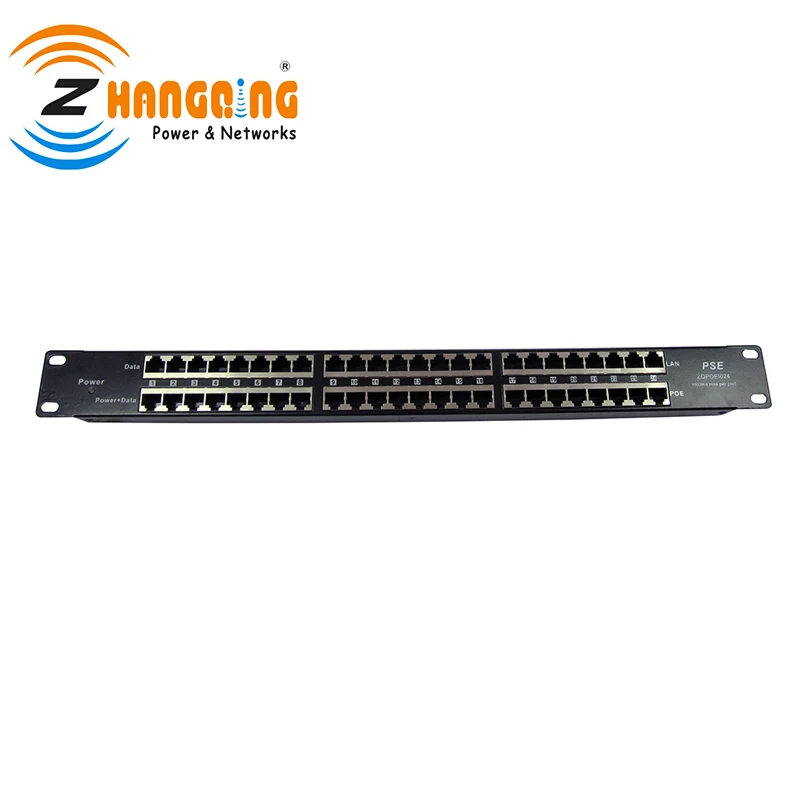

Multiport Rack Mount PoE Injector 24 Port 100Mbps PoE Panel Shiled Passive PoE Injector 24V or 48V for CCTV Camera

 24 port PoE injector

Mode No: ZQPOEI024

24V 120W power adapter for 24V passive POE PDs, for MikroTik and 24V UBNT, Openmesh.

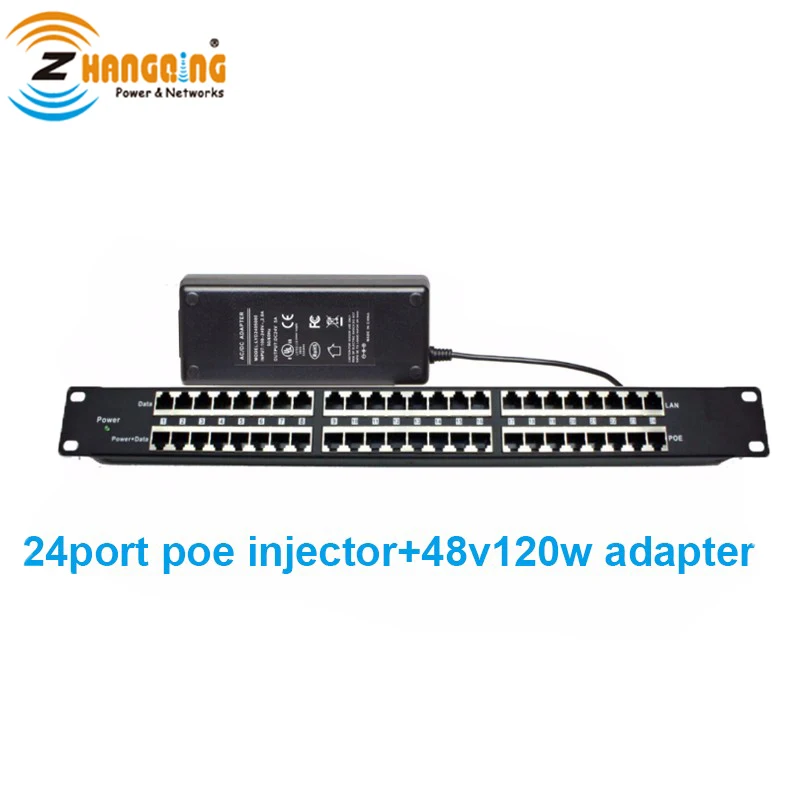

48V 120W adapter for most IP camera, 802.3af/at WiFi AP. 12V 1A for 12V IP camera.

This Passive PoE injector, whis a simple, cost-saving and convenient equipment for IP camera, IP phone, WiFi Access point, powered onver Ethernet cable.

The PoE injector can power PDs 100 meters far away from power source with safety, low-cost and easy installation.

This PoE injector is passive PoE but compatible with all IEEE802.3af/at powered devices, while power pins 4/5(+), 7/8(-) midspan. Because 802.3af/at standards support power pins 4/5V+, 7/8V- and 1/2V+, 3/6V-.

As you know, POE switch is expensive, while POE injector+normal switch= POE switch, which share the same function, but POE injector+mormal switch are much more economical.

(For most IP cameras, about 6 watts per camera, 8 watts if they have PTZ or IR features. If "12, POE" cameras, it still need 48V Powered Over Ethernet.)

Many popular devices like Ubiquiti use this method to centralize the power source - you can go for 328 ft with a 24v supply to a typical Access Point.

Connect the power supply you need (24v for Ubiquiti, 48v for 802.3at or 802.3af) and reduce the mess of cables. Reboot all 24 devices from one central location.

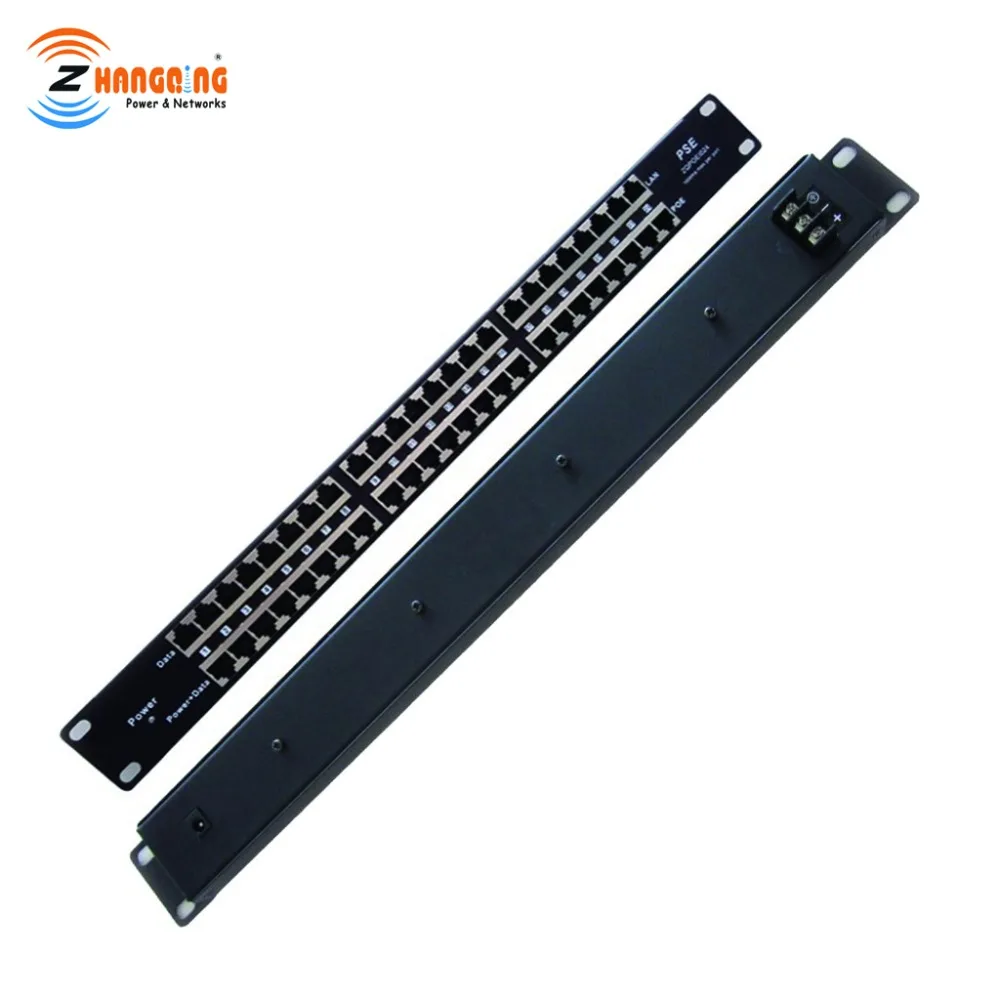

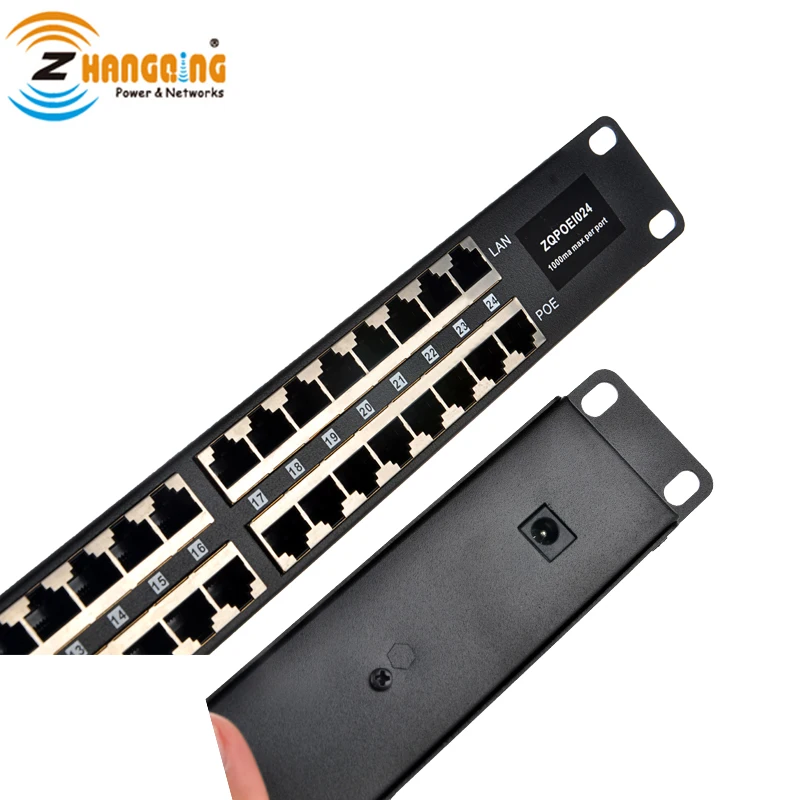

 Product Show :

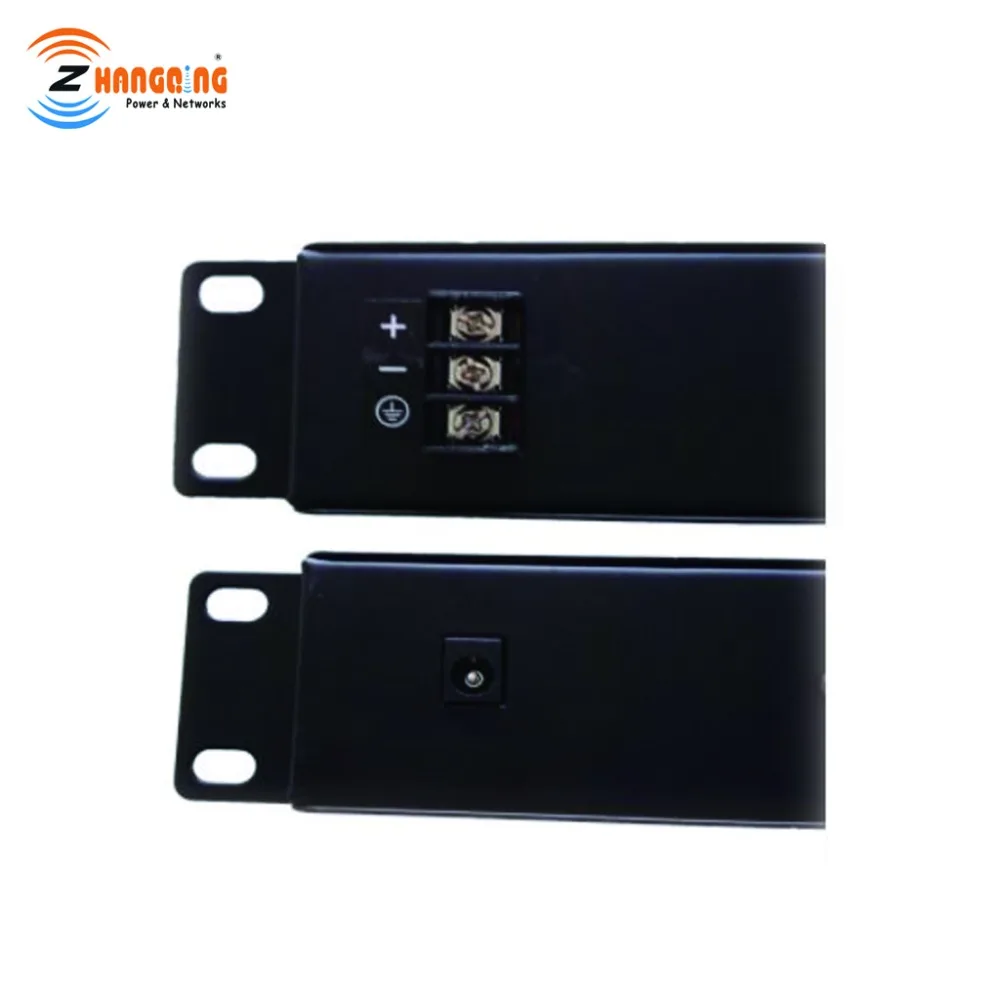

 Input :12 TO 57 V 8A Max(Use DC Jack)

           12 TO 57 V 16A Max(Use 3PIN connector )

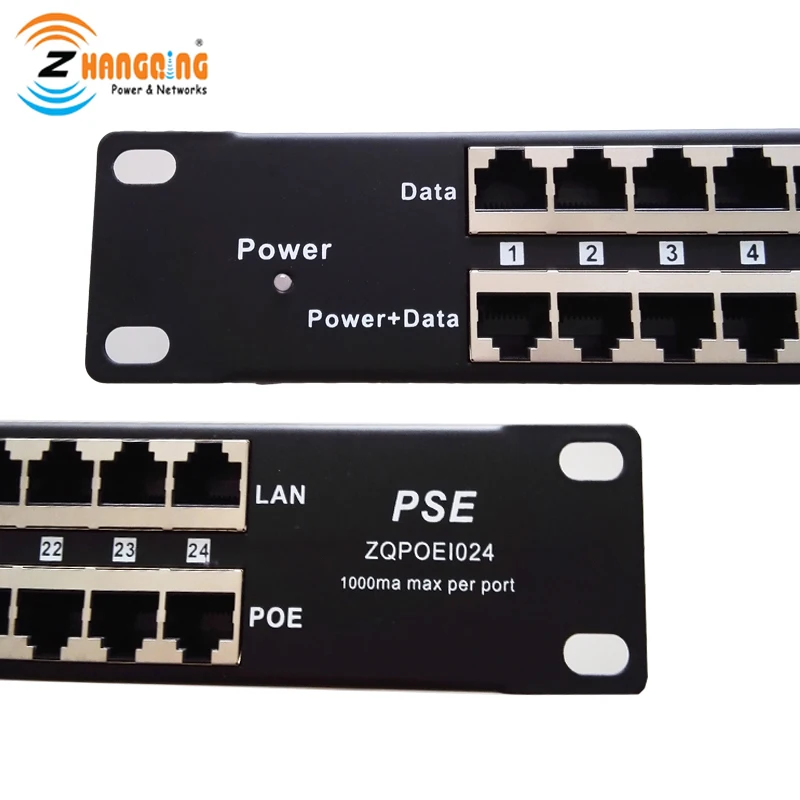

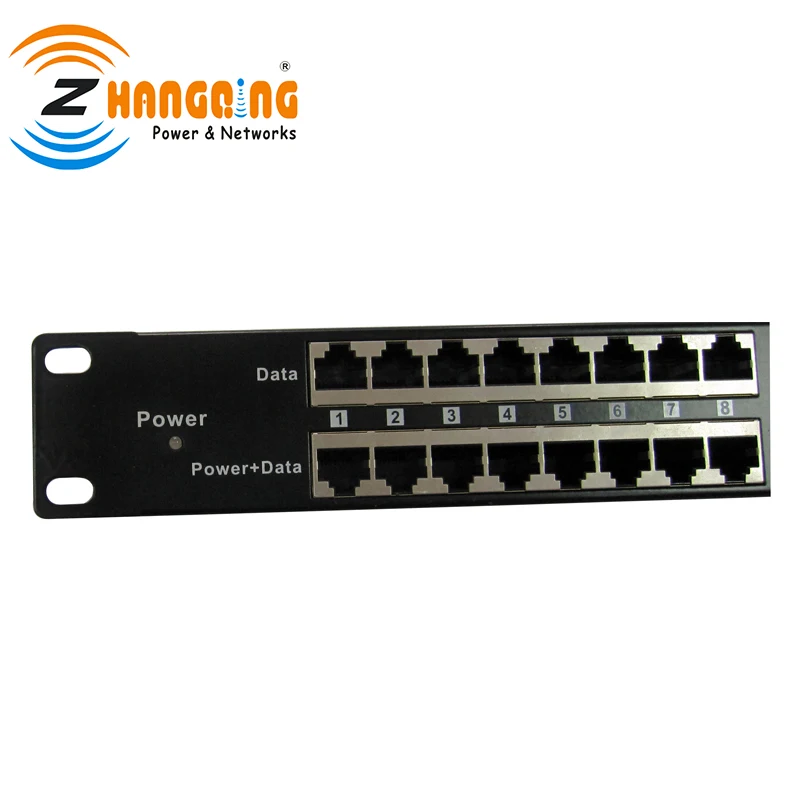

 Data: 1/2&3/6
 Power pins : 4/5 V+ & 7/8 V
 Data in : Connects PC/HUB/Switch
 Weight : 670g
 Dimensions: 482.6mm×44.3mm×25mm
 Case of material: metal work material
 Ethernet Cable : TIA/EIA 568 Cat. 5/5e/6/6e
 Data rate : 10/100Mbps
 Connector : RJ-45
 Operating Temperature : 0°C ~ 40°C
 Storage Temperature : -40°C~+70°C
 Operating Humidity : 10%~80%RH
 Storage Humidity : 5%~90%RH
 Certification: CE RoHS
