100 Liter Laboratory 20L gg17 Borosilicate Glass Industrial Lab Fermentor Stirred Reactor Bioreactor with Agitator
Tips:
1. We can offer 1L - 100L Double Layer(Jacketed) / Single Layer glass reactor.
2. We can offer heater & Chiller for jacket type reactor, aka, Double layer glass reactor.
3. The heating mantle & Cooling coil is optional for single layer glass reactor type.
4. Some other slight customization is optional as your need.
Product Description
Double layer glass reactor set reagents in the inner layer, at the same time, vaacuum can be taken out and mixing speed be adjusted. Interlayer can lead in refrigerating fluid, water or heating liquid to cool or heat the materials.
Single layer glass reactor is through the oil bath pot (tank) into the constant temperature heat solution or coolant to heat or cool the material in the reactor.
So the device can process vacuum stirring, distillation, condensation, extraction and separation, widely used in the experiment, middle-scale test, and production of chemistry, fine chemical engineering, biological pharmacy and synthesis of new materials
Detail Images of Lab Fermentor Stirred Reactor Bioreactor with Agitator:
1-5L
10 - 100L

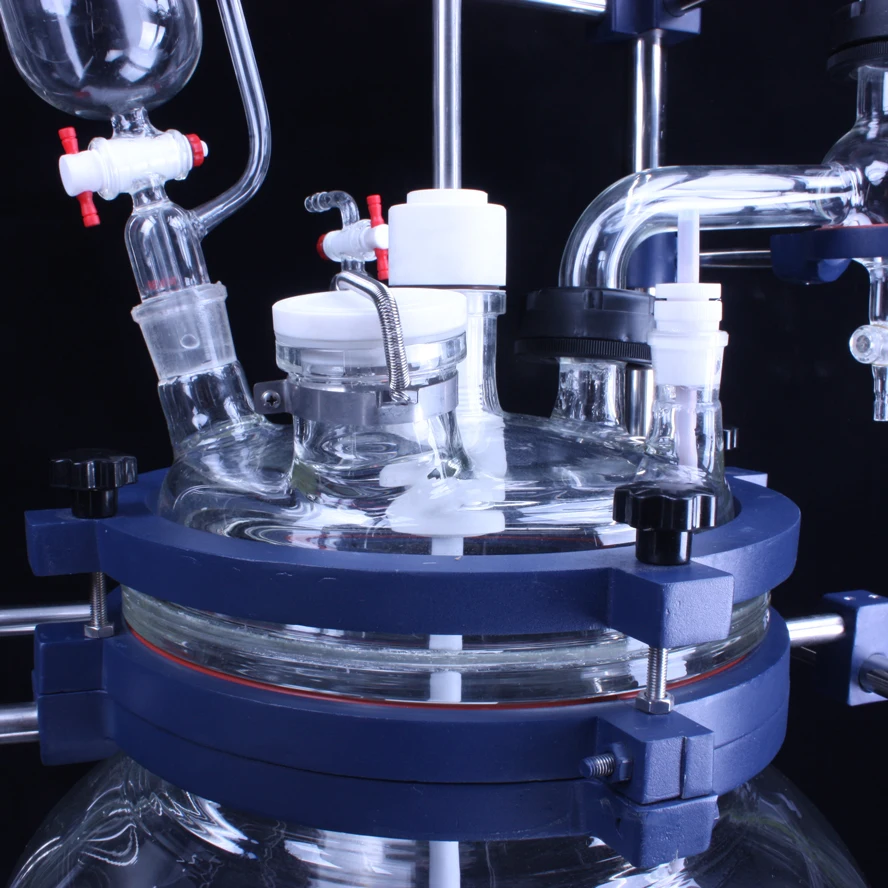

This part is the key to develop multi-function:
1.The large port reserved to help cleaning inside easily.
2.Excellent craft to keep the connection ports under vacuum condition .
3.5/6 ports. could connect thermometer, stirrer, distillation unit, reflux unit, funnel etc. multiple function as you wish.

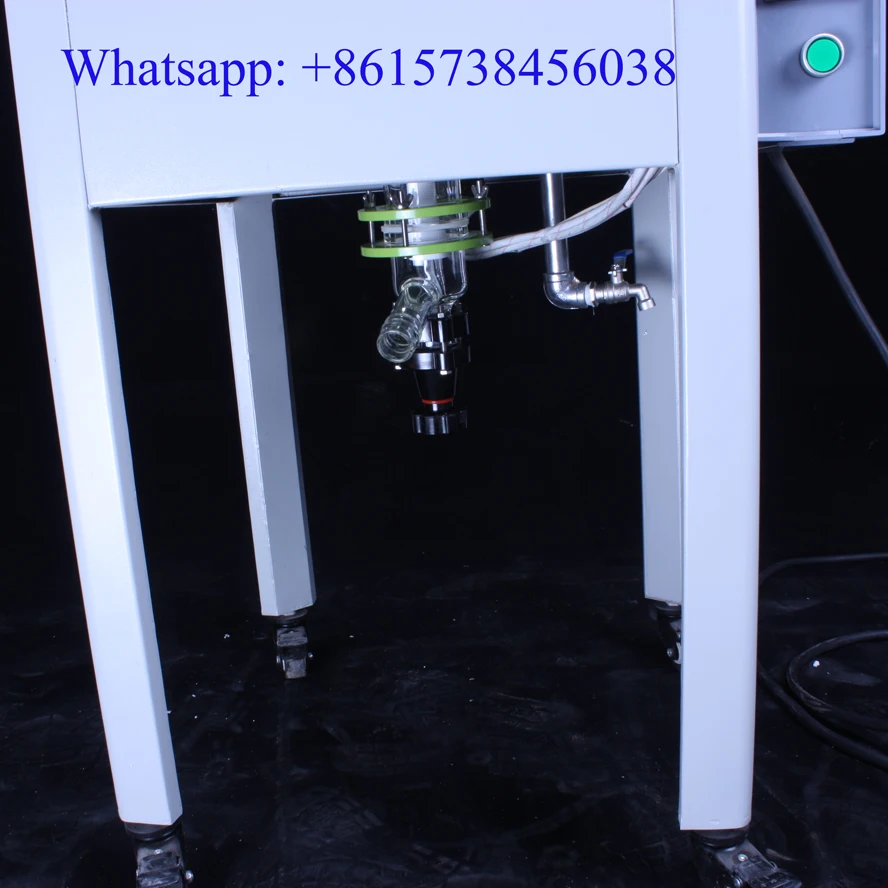

1-5L
10 - 100L

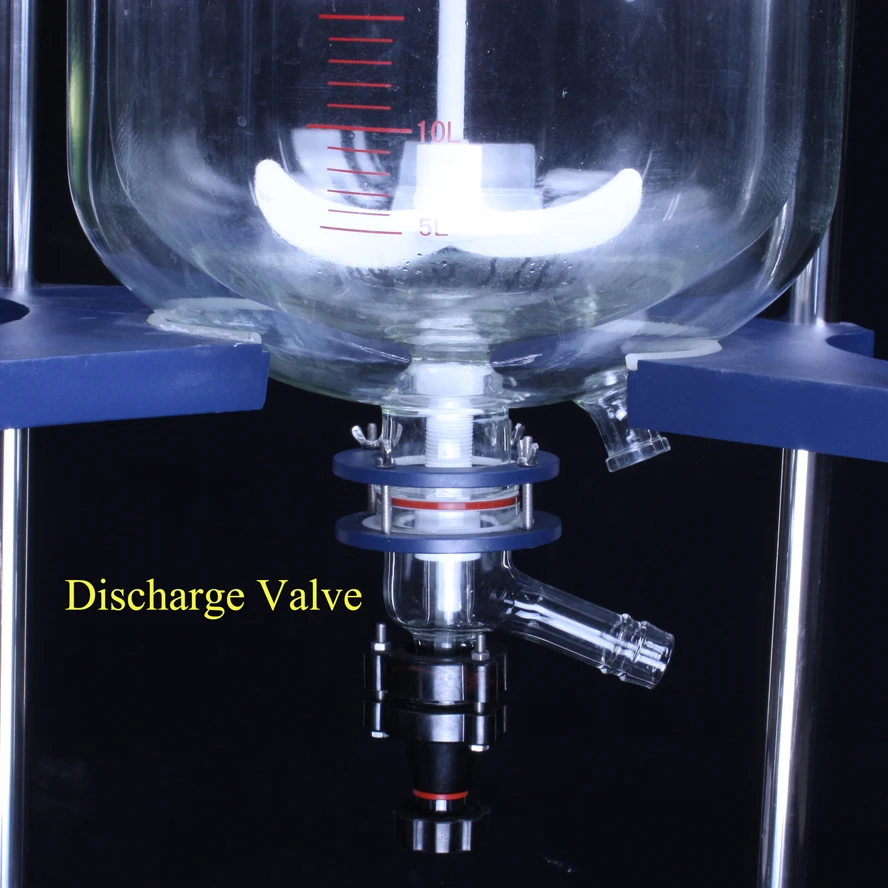

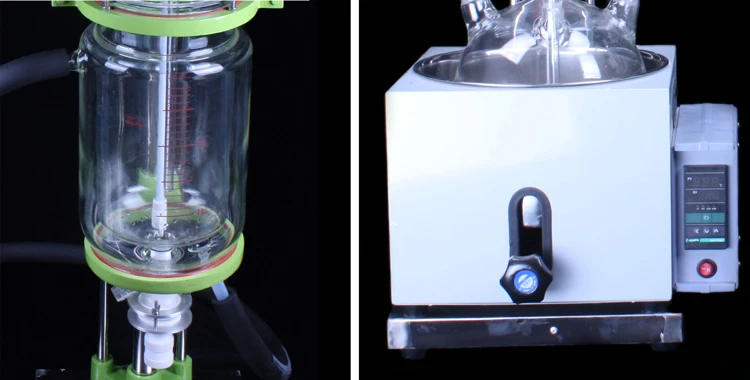

The Tank Body and Heating Model:
1.The high transparent glass can be helpful to monitor the inner reaction.
2.Double layer: The interlayer can inject hot/cold liquid to heat/winterize the inner layer.
Single layer: Digital display heating bath, heat constantly and evenly

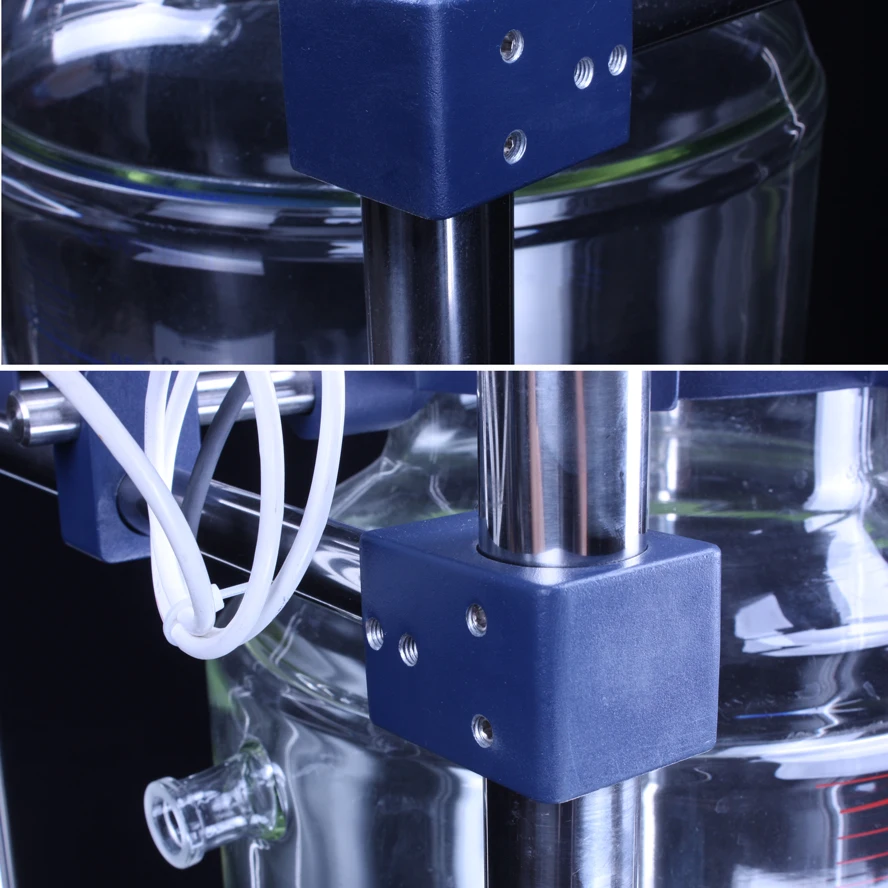

The Overhead Stirrer
1.Universal joint reduces vibration of condenser and make glassware joint safe and flexible.
2.Mechanical sealing, keeps high vacuum degree when operating.
3.Rugged steel-reinforced PTFE stirrer with anchor agitator which is suitable for a wide range of material viscosity.
4.Frequency control speed gear motor, smooth running,high torque, automatic booster, no spark, noise free, long life.
Parameters of Lab Fermentor Stirred Reactor Bioreactor with Agitator:
Double Layer Types:
| Model | S-1L | S-2L | S-3L | S-5L | S-10L | S-20L | S-30L | S-50L | S-100L |
| Power Supply | 220V/50HZ 110V/60HZ | ||||||||
| Stirring Power(W) | 40 | 90 | 120 | 180 | |||||
| Stirring Shaft Dia(mm) | 8 | 12 | 15 | ||||||
| Stirring Speed(rpm) | 0~600 (max. 1300) | ||||||||
| Vacuum degree(Mpa) | -0.098 | ||||||||
| Capacity(L) | 1 | 2 | 3 | 5 | 10 | 20 | 30 | 50 | 100 |
| Note | Floor type | 304 all stainless steel frame | |||||||
Single Layer Types:
| Model | F-1L | F-2L | F-3L | F-5L | F-10L | F-20L | F-30L | F-50L | F-100L |
| Power Supply | 220V/50HZ 110V/60HZ | ||||||||
| Stirring Power(W) | 40 | 90 | 120 | 250 | |||||
| Stirring Shaft Dia(mm) | 8 | 12 | 15 | ||||||
| Stirring Speed(rpm) | 0-800 | 60-600 | |||||||
| Vacuum degree(Mpa) | -0.098 | ||||||||
| Capacity(L) | 1 | 2 | 3 | 5 | 10 | 20 | 30 | 50 | 100 |
| Condenser | 40*400mm | 60*450mm | 100*600 | 120*600 | |||||
| Dropping Funnel(ml) | 250 | 500 | 1000 | 2000 | |||||
| Heating Power(KW) | 1.5 | 2 | 3 | 5 | 8 | ||||
| Temperature Range | -80℃-250℃ | ||||||||

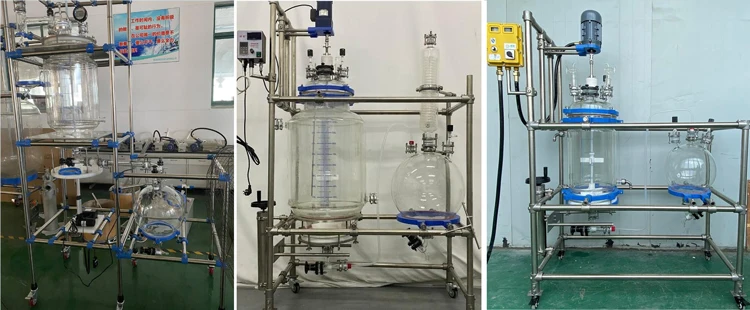

Some changed jacket reactor may be useful:

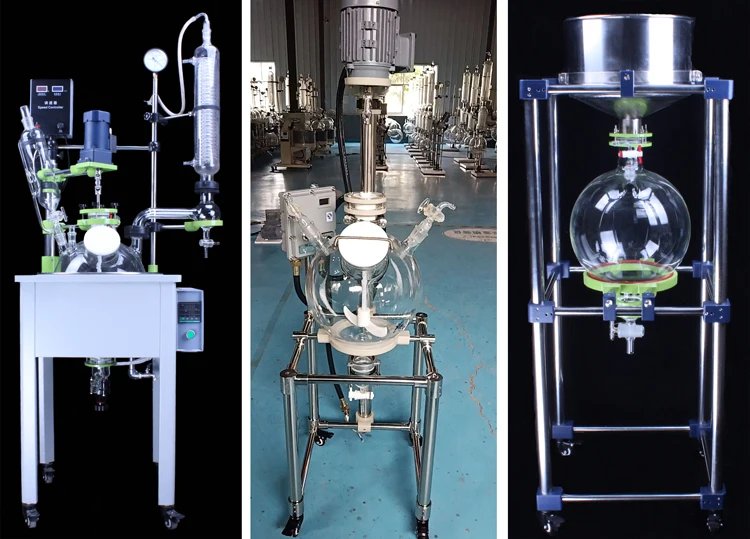

Other Similar Vessel maybe useful for you:
Single Layer Glass Reactor Glass Stirring Vessel Nutch Vacuum Filter

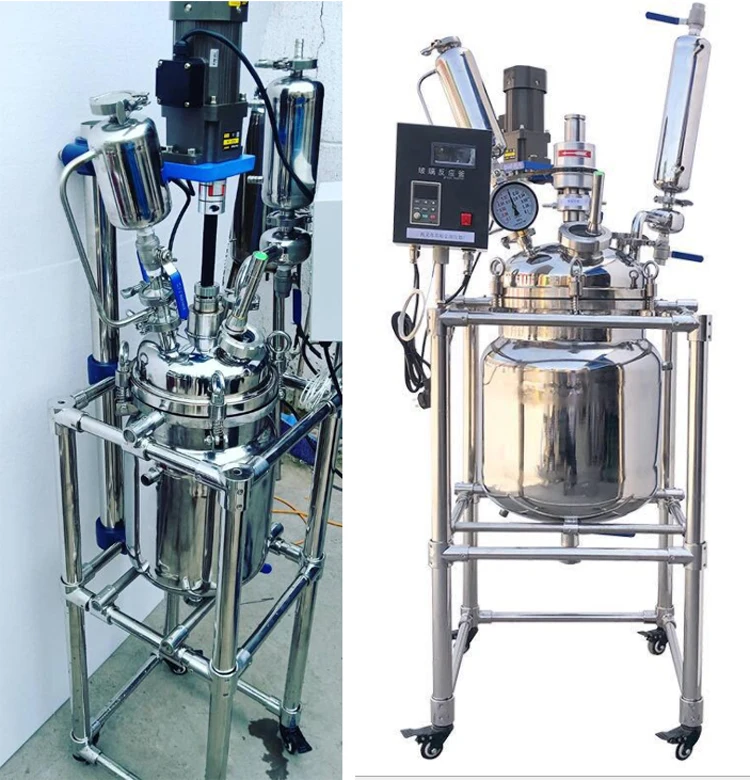

SS Jacketed reactor with condenser, funnel and electric heating:
Or New Larger SS Jacket reactor Can reach 1000L Max:
Tips: 100L- 1000l stainless steel jacket tank, stirrer is optional. exploison proof is optional, steam heating is ok for jacket, we can equip it with electrical heated itself, etc, or other customization, just tell me your requirements
Packaging & Shipping
1. Your choice is our first option of we can make it, whatever the shipping way it is.
2. Our recommendation: In genneral.
About 150kg and below, we prefer the Express.
About 250kg and above, we like the Air, also we can charge the delivery and clearance.
3. The sea cost is cheapest, but, only your order is big enough and no hurry, it will be a excellent choice.
4. Please note:
You need pay the tariff to your customs.
If the customs clearance is delayed due to your reason, you need pay the storage fee.
SO, When you send the inquiry, you can let us know your delivery address and zip code, then we can quote you with shipping cost for better reference.
Support Equipment
Circulating water vacuum pump: Used to provide a vacuum source
Circulation Water Bath: Provide hot circulating liquid for heating
Low temperature coolant circulation pump: For condensation and reducing waste of materials.
Related Product Link

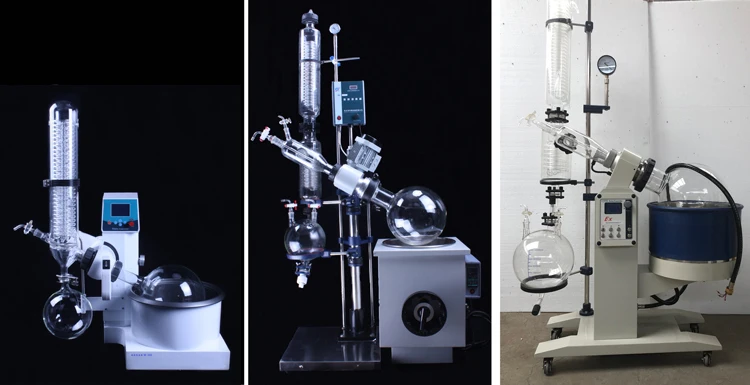

1-5L Small Integrated Rotovap RE Series Old Type Rotovap R Series New Type RotoVap

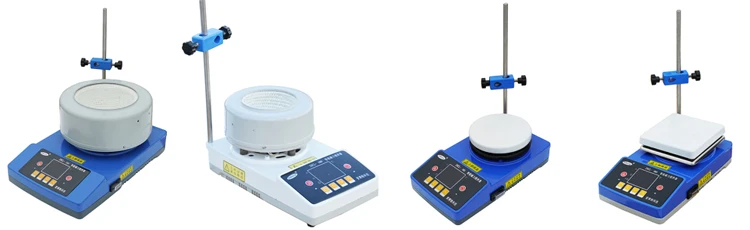

Heating Mantle Hot Plate
