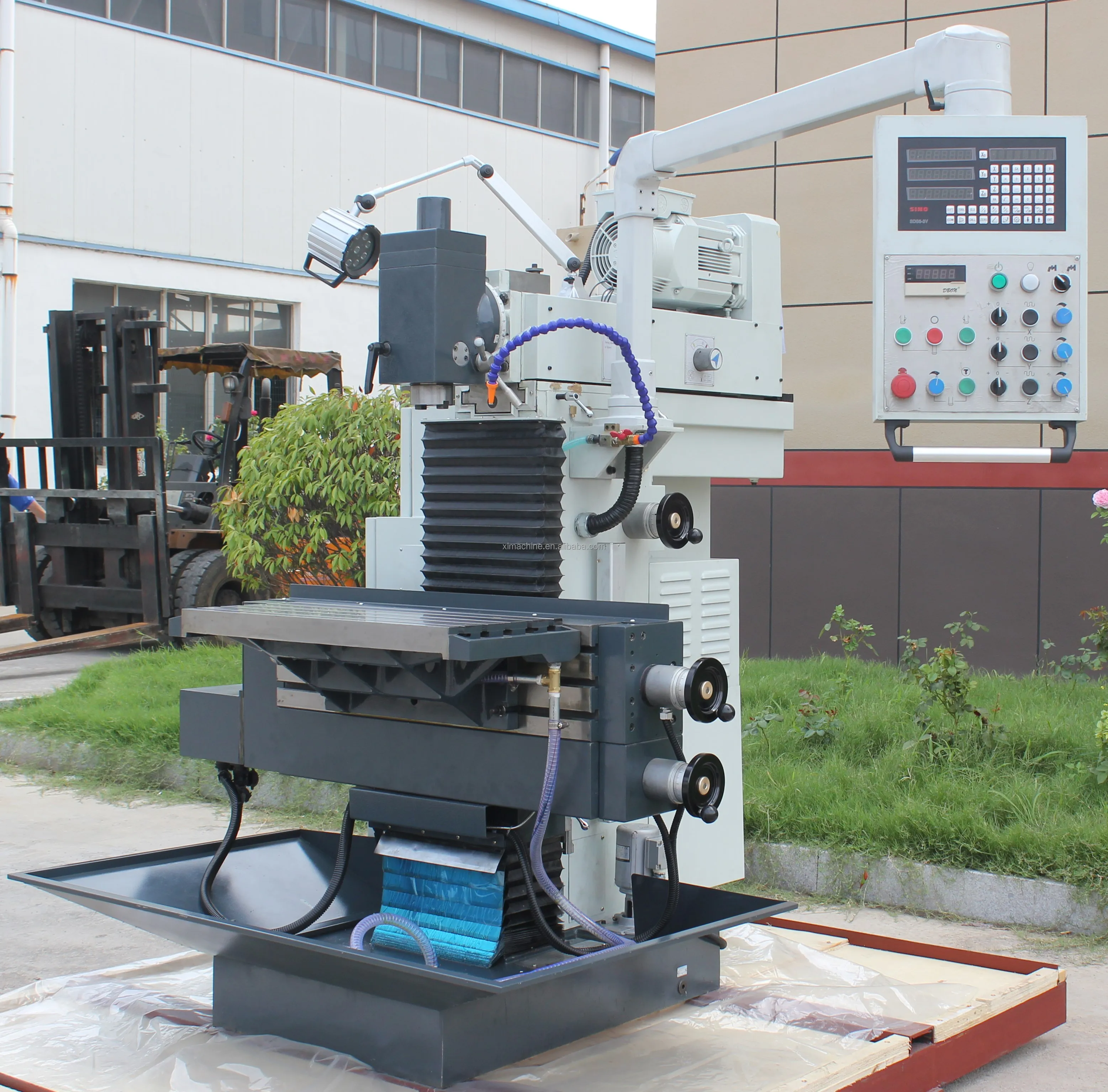

X8132 X8140 Universal tool milling machine
easy to shift between
vertical & horizontal milling type.
CNC machine is optional
Brief Introduction
1). Flexible milling machine with good precision
2). Vertical & horizontal milling is easy to shift3). Vertical & horizontal two work-tables combination
4). Spindle & table are driven by servo motors, good accuracy
5). 3 axis ball screws
6). Equipped with E-handwheels, for manual micro adjusting of table movement
7). Automatic lubrication system
8). CNC system can be installed if customer's special request (Siemens/ KND/ GSK)
Specificaitons of This Series
ITEM | UNIT | XL8132 | XL8140 | XL8145 | ||
horizontal table size | mm | 750*320 | 800*400 | 850*450 | ||
T-slots (N/W/D) | 5/14/63 | 6/14/63 | 7/14/63 | |||
vertical table size | mm | 890*225 | 1020*225 | 1190*250 | ||
T-slots (N/W/D) | 3/14/63 | |||||
max load | kg | 160 | 200 | 300 | ||
X/Y/Z axes travel | mm | 405/305/400 | 500/400/400 | 600/450/450 | ||
spindle taper (H&V) | NT40 | |||||
spindle speed (variable) | rpm | 40-2000 | ||||
stroke of vertical spindle | mm | 60 | ||||
feed speed (X/Y/Z) | mm/min | 10-1000 | ||||
rapid feed speed (X/Y/Z) | mm/min | 1200 | ||||
main motor power | kw | 3.7 | 5.5 | |||
feed motor torque (X/Y/Z) | Nm | 7.7/7.7/10 | 10/10/15 | |||
overall size | mm | 1500*1700*1800 | 1500*1700*1800 | 1600*1800*2000 | ||
N.W. | kg | 1450 | 1550 | 1750 | ||

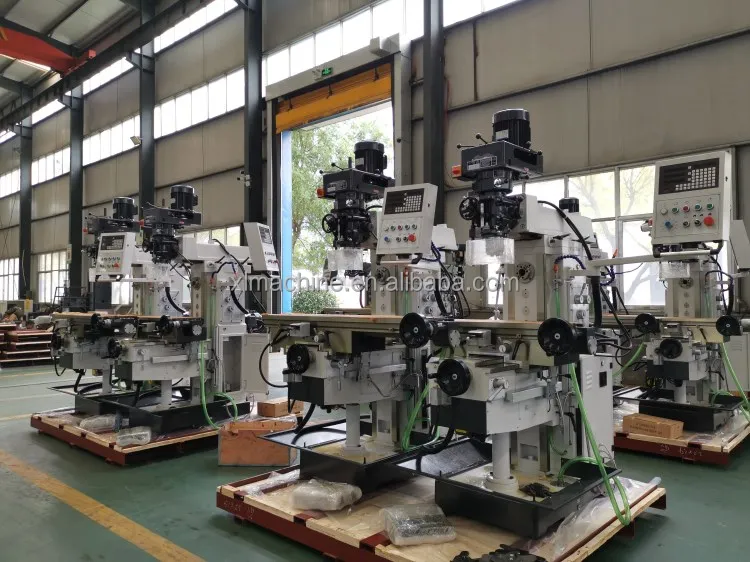

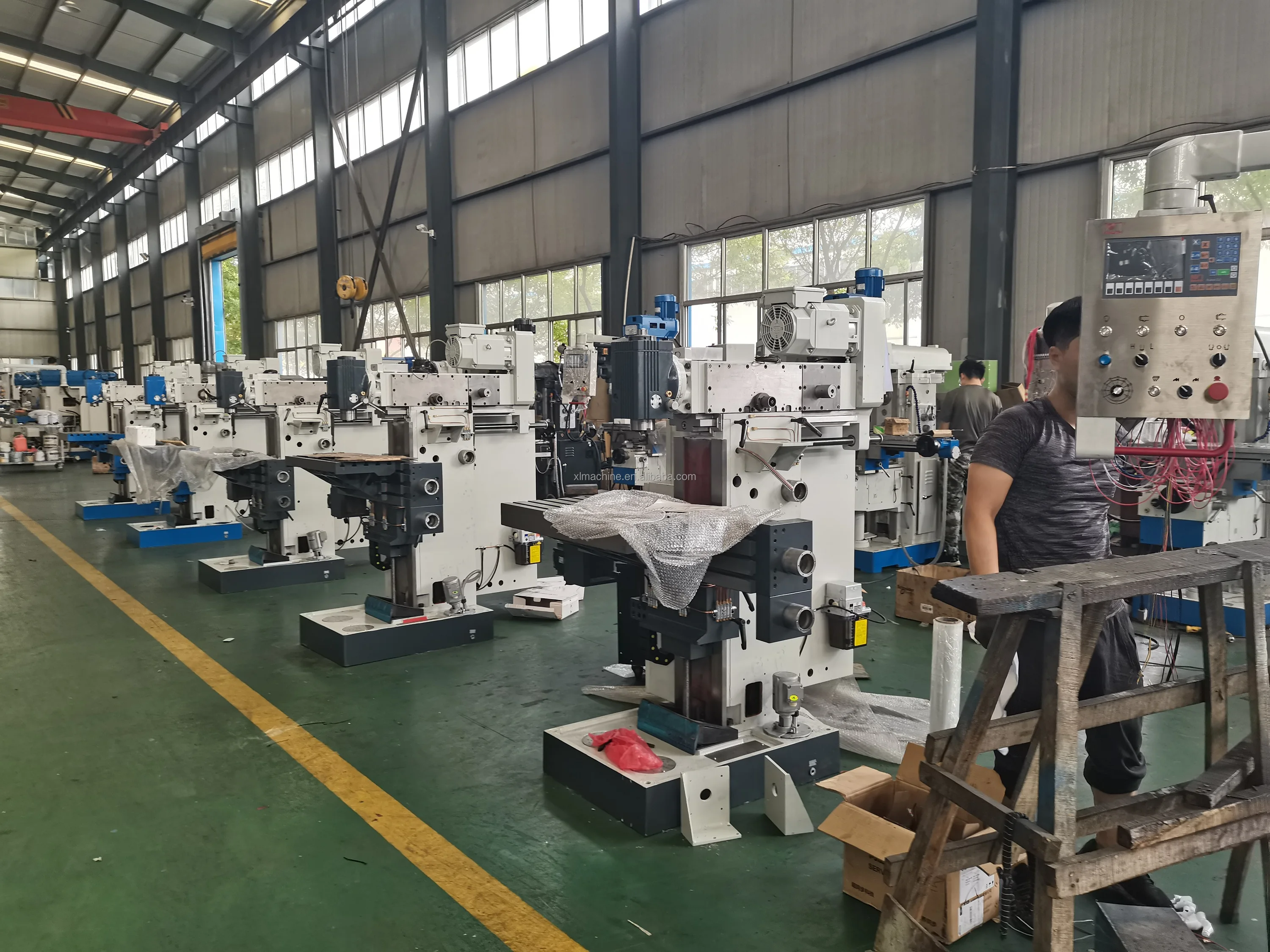

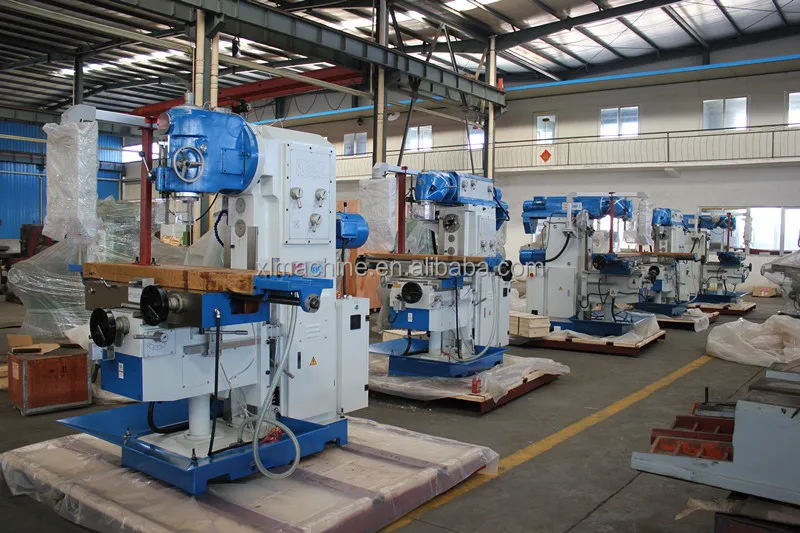

Our Company
Shandong XILI Machine Tool Co., Ltd. is located in Tengzhou City, Shandong Province.
We have nearly 30 years manufacturing history & more than 200 employees.
Our products include: CNC center / CNC gantry machining center / general milling machines (vertical, horizontal, universal swivel head, knee-type, ram-type, bed-type etc.)
Welcome to visit us !
We have nearly 30 years manufacturing history & more than 200 employees.
Our products include: CNC center / CNC gantry machining center / general milling machines (vertical, horizontal, universal swivel head, knee-type, ram-type, bed-type etc.)
Welcome to visit us !
Company is with CE, ISO certificates.
We are now cooperating with many world famous brand, like Knuth, Jet, Bernardo etc.
Please be assured of our products.
We are now cooperating with many world famous brand, like Knuth, Jet, Bernardo etc.
Please be assured of our products.
Every year, we attend several exhibitions at home and abroad, including CIMES, CCMT, CANTON fair, EMO, Metalloobrabotka etc.
