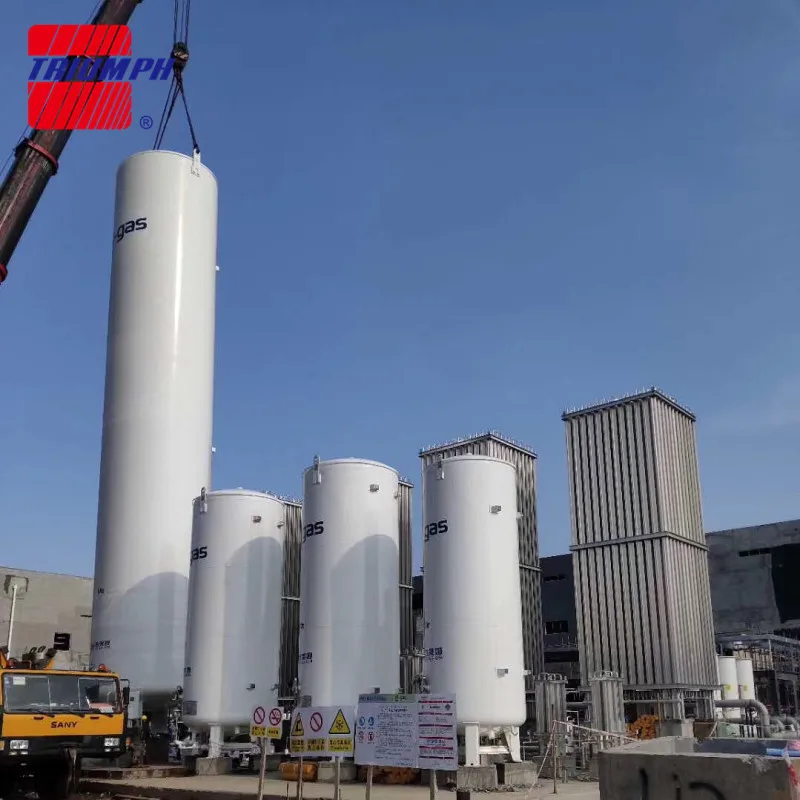

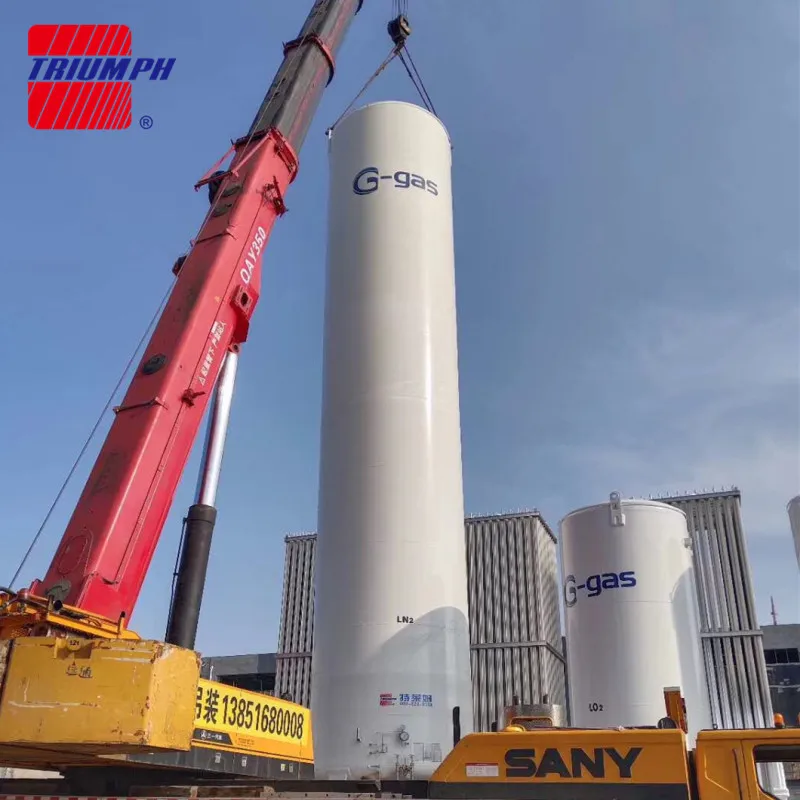

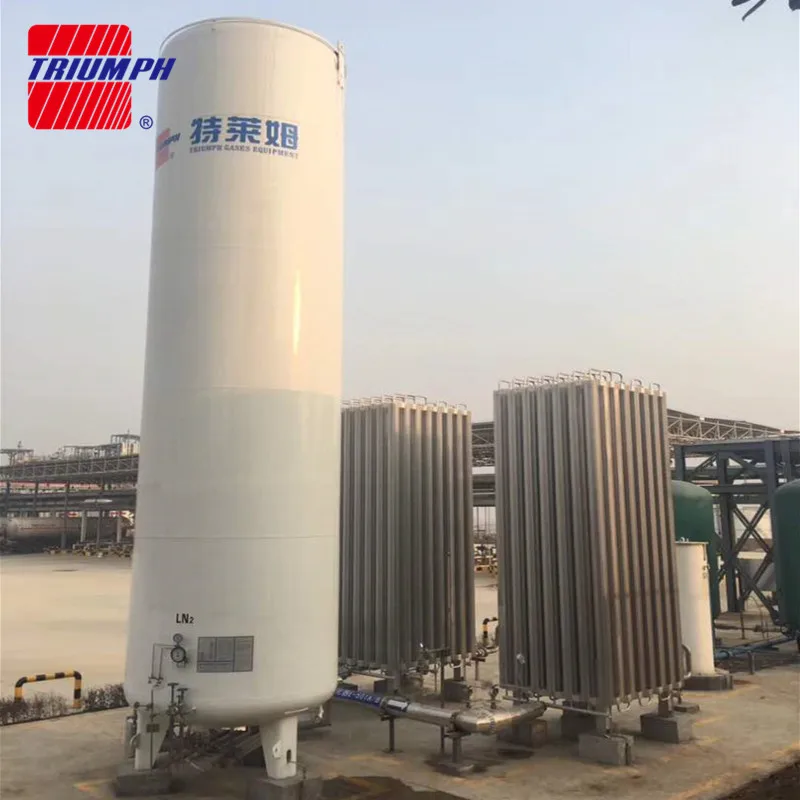

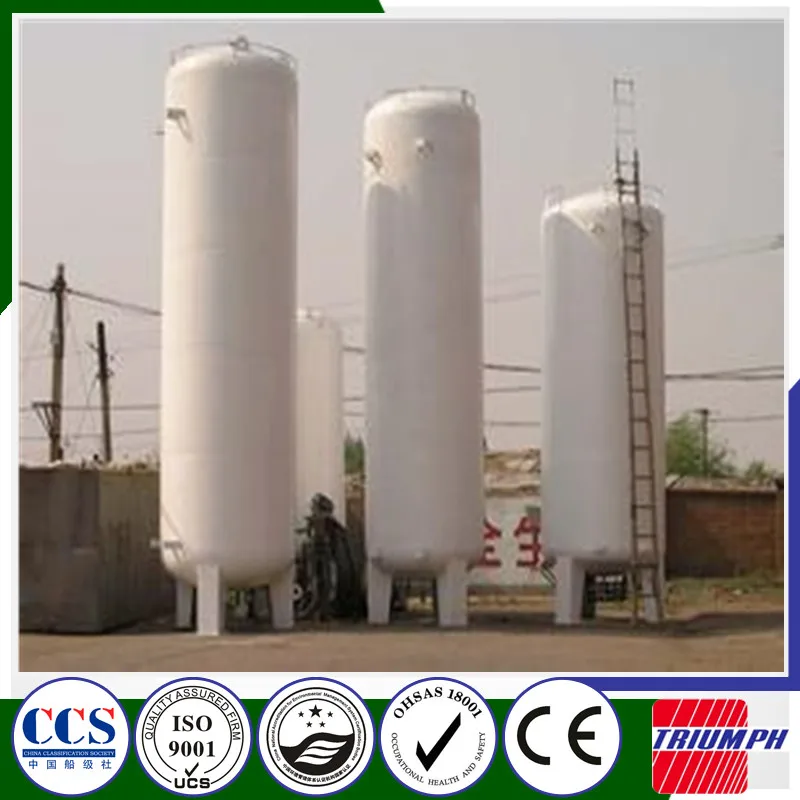

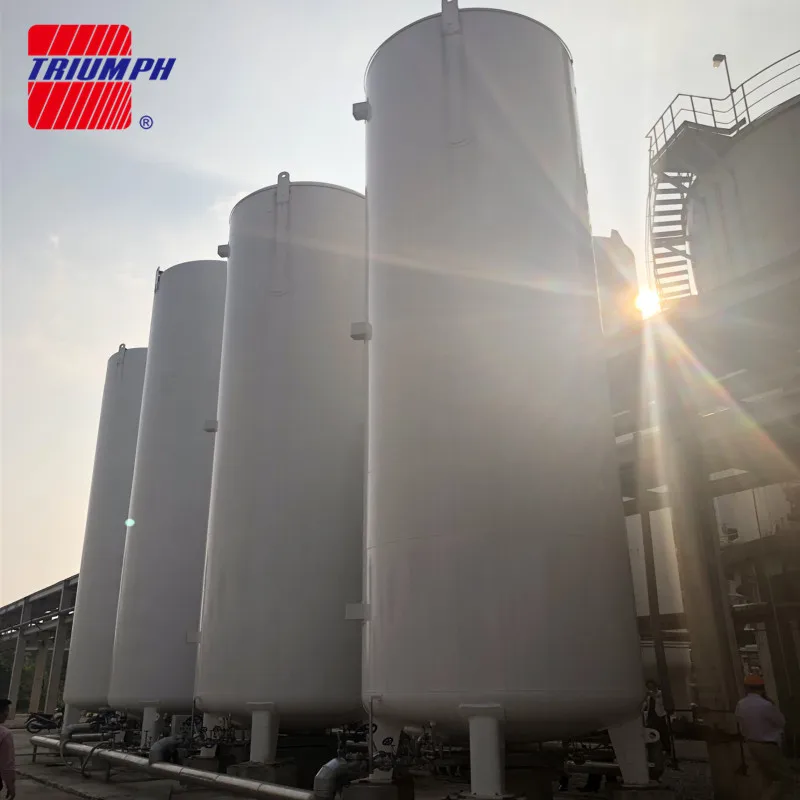

High quality LNG/LOX/LIN/LAr Storage tank
- Category: >>>
- Supplier: Wuxi Triumph Gases Equipment Co. Ltd.
Share on (60658961603):
Product Overview
Description
Product Description
Medium:Liquid gas(LO2,LN2,LAR)
Cryogenic Liquid Storage Tank
Thermal-insulating Mode: Vacuum Powder Insulation and multi-layer entwining thermal insulation
Valid Capacity:2M3--350M3
Working pressure:>=0.2Mpa;
Medium:LOX;LIN; LAr; LNG; LCO; LC;H;
Type:Vertical; Horizonal;
| Model | Nominal Volume | Effective Voiume | Maximum Flling Volume | Daly Evaporalion Rale(N) | Maximum working perssure | Ouler Diameter | Total Height | Empty Weight |
| L | L | kg | ddlly | Mpa | mm | mm | kg | |
| VT18/B | 10,523 | 10,000 | 8,100 11,410 13,930 | 0.495 | 0.8 | 2,300 | 5,850 | 6,280 |
| VT18/16 | 10,523 | 10,000 | 8,100 11,410 13,930 | 0.495 | 1.6 | 2300 | 5,850 | 7,250 |
| VT21/B | 21,000 | 20,000 | 16,200 22,820 27,B60 | 0.45 | 0.8 | 2,600 | 7,880 | 9,850 |
| VT21/16 | 21,000 | 20,000 | 16,200 22,820 27,B60 | 0.45 | 1.6 | 2,600 | 7,880 | 12,335 |
| VT32/B | 31,600 | 30,000 | 24,316 34,255 41,820 | 0.396 | 0.8 | 2,600 | 10,820 | 14,625 |
| VT32/16 | 31,600 | 30,000 | 24,316 34,255 41,820 | 0.396 | 1.6 | 2,600 | 10,820 | 14,625 |
| VT53/8 | 52,600 | 50,000 | 40,500 57,050 69,650 | 0.315 | 0.8 | 3,000 | 12,590 | 21,550 |
| VT53/16 | 52,600 | 50,000 | 40,500 57,050 69,650 | 0.315 | 1.6 | 3,000 | 12,590 | 26,000 |
| VT106/8 | 106,200 | 100 | 81,000 114,100 139,300 | 0.245 | 0.8 | 3,400 | 19,500 | 45,000 |
| VT106/16 | 106,200 | 100,000 | 81,000 114,100 139,300 | 0.245 | 1,6 | 3,400 | 19,500 | 54,000 |
Related Products
Company Infoemation

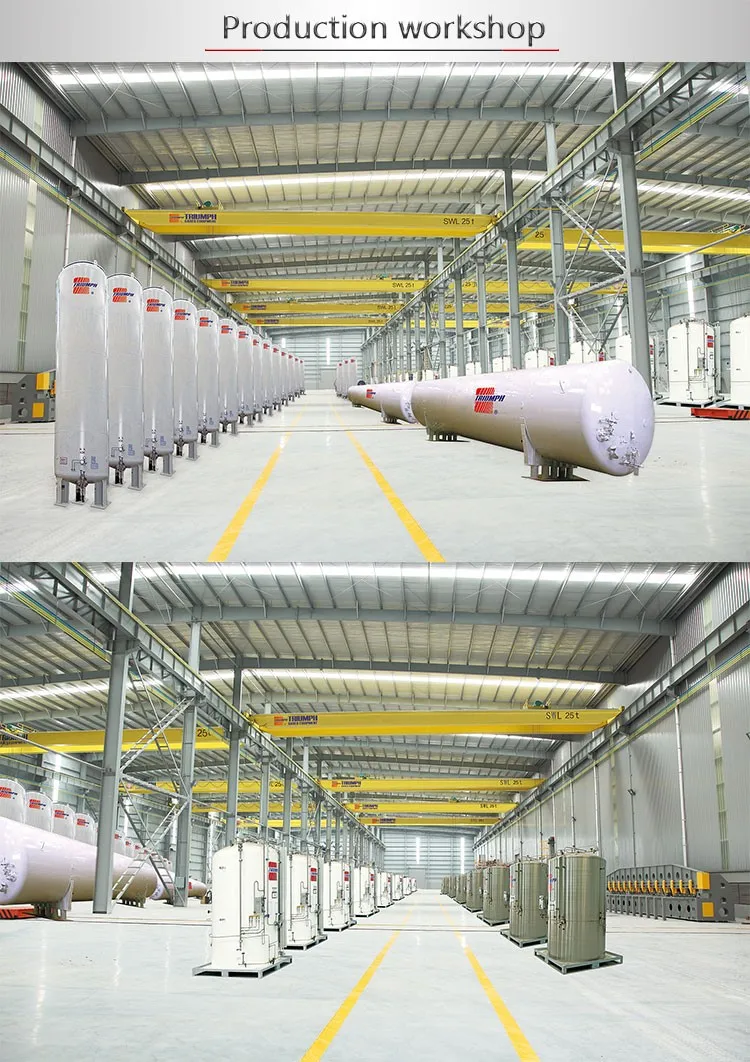

Production workshop

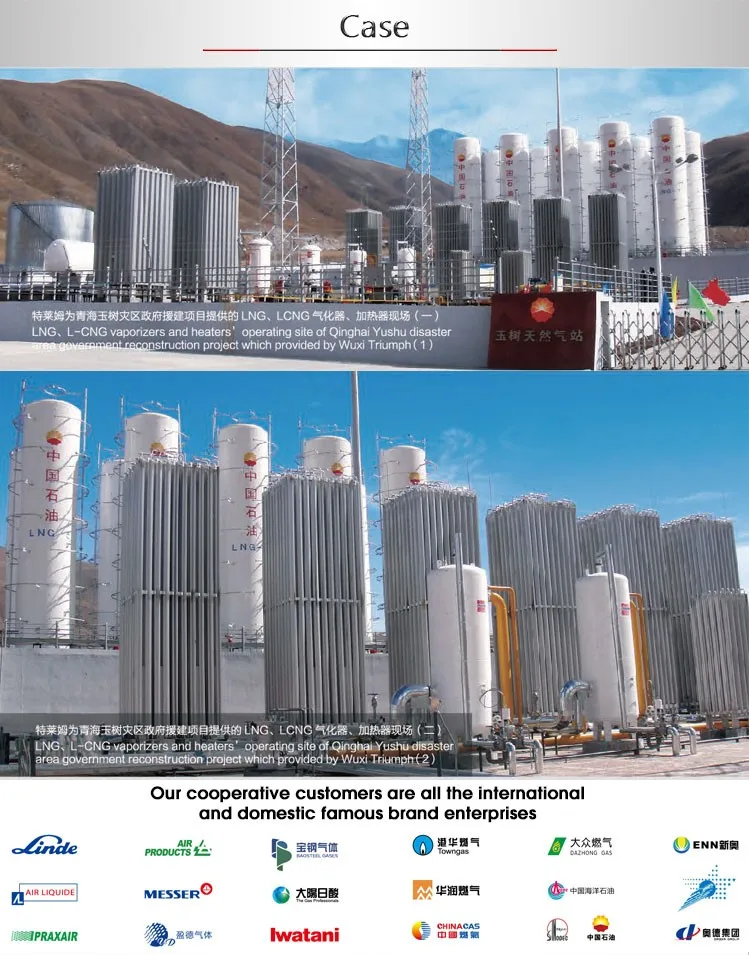

case
