High quality industrial switch fiber ethernet 10/100M 8 ports switch 100M optical fiber 12/24/48 ports switch
- Category: >>>
- Supplier: HiOSO Technology Co. Ltd.
Share on (60659042614):
Product Overview
Description
Product Description
FOWAY1309FC
8 100M SFP + 1 Combo Uplink Fiber Switch
Feature
✔Support SFP hot swap
✔Support DHCP, PPPoE, ACL, LLDP
✔Support 8K MAC learning, 1Mbit storage and forward cache space, 4.6G back plane bandwidth,1632 byte large frame forwarding
✔Supports to substitute central fiber converter, simplify network structure, lower network establishing cost, reduce device fault
✔All optic ports, strengthen the an-interference ability
✔Supports to substitute central fiber converter, simplify network structure, lower network establishing cost, reduce device fault
✔All optic ports, strengthen the an-interference ability
✔Metal casing design (support to hang on the wall), better for heat dissipation
Technical Specification | ||
Parameter | Specification | |
IEEE802.3 10Base-T Ethernet,IEEE802.3u 100Base-TX/FX Fast Ethernet, IEEE802.3ab 1000Base-T , IEEE802.3z 1000Base-SX/LX Gigabit Ethernet, IEEE802.1d Spanning Tree,IEEE802.1w Rapid STP,IEEE802.1s Multiple STP,IEEE802.1q Vlan,IEEE802.1q Qos,IEEE802.3ad Trunk,IEEE802.3X Flow Control | ||
Wavelength | 850nm/1310nm/1490nm/1550nm | |
100M SFP multi-mode: 2Km Single-mode: 25/40/60/80/100/120Km Single-fiber single-mode: 25/40/60/80/100/120Km 1000M SFP multi-mode:220m (fiber 62.5/125μm) / 550m (fiber 50/125μm) Single-mode:10/20/40/60/80/100/120Km Single-fiber single-mode: 10/20/40/60/80/100/120Km Cat5:100m | ||
8 100M SFP fiber ports: 100Mbps 1 Gigabit Combo port:1 Gbps, 100M/1000M SFP&10/100/1000M RJ45 | ||
MAC | 8K | |
Buffer memory space | 1Mbit | |
Bit error rate | <1/1000000000 | |
MTBF | 100000 hours | |
Power | DC12V/AC220V | |
Power consumption | 7.9W | |
Working temperature | -10~60℃ | |
Storage temperature | -40~80℃ | |
Humidity | 5%~90% non-condensing | |
Dimension | 28mm (H)×193mm(W)×119mm (D) | |

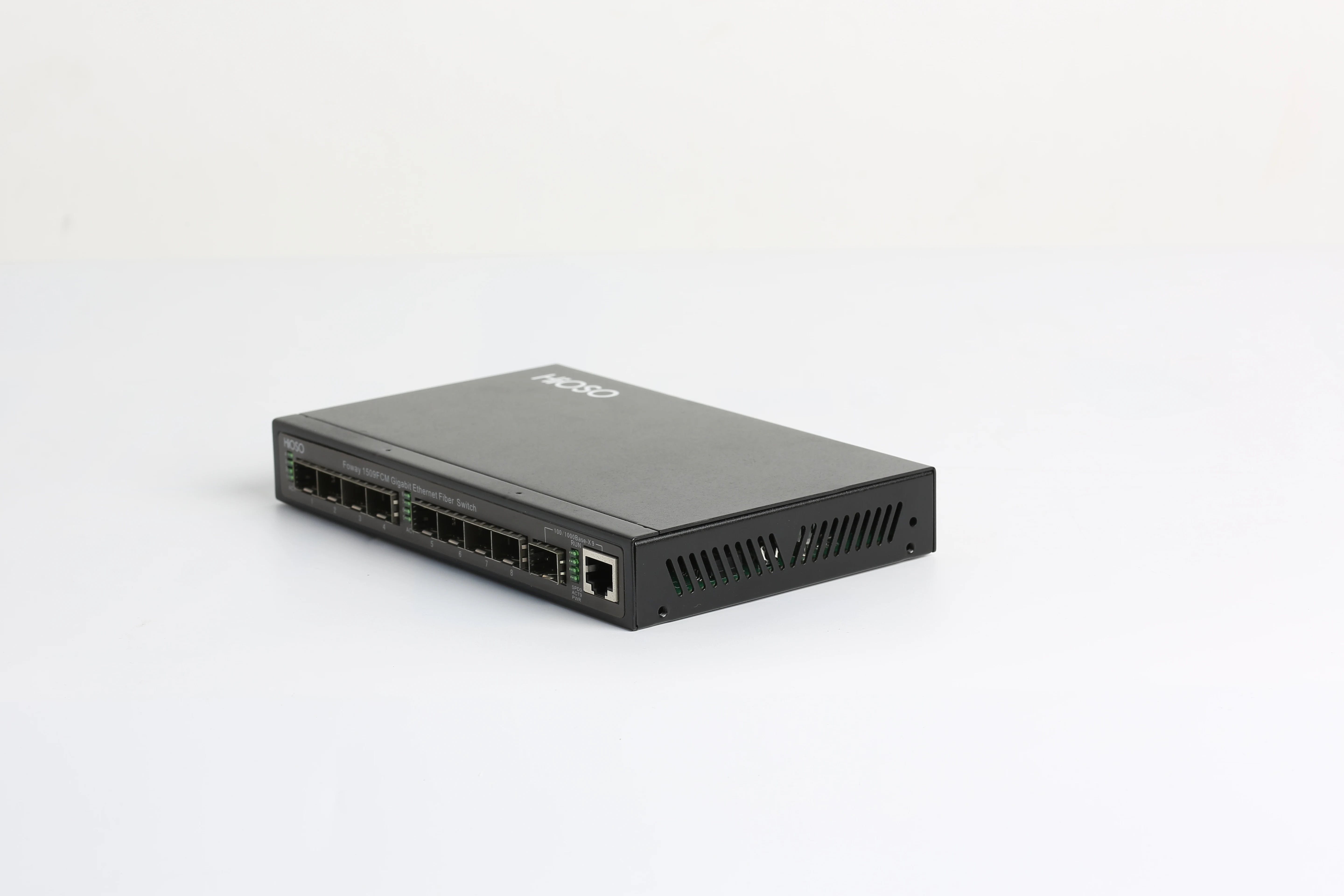

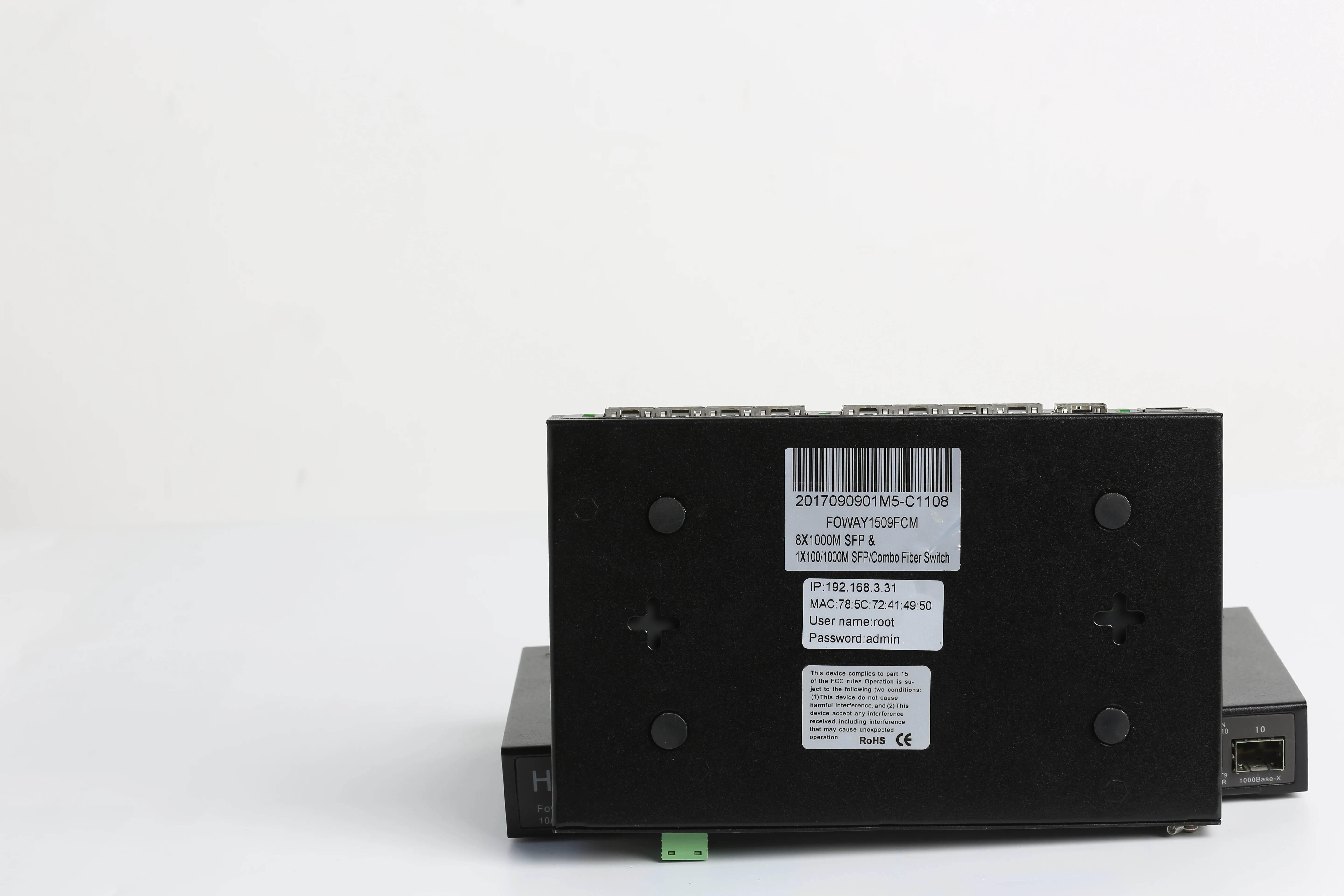

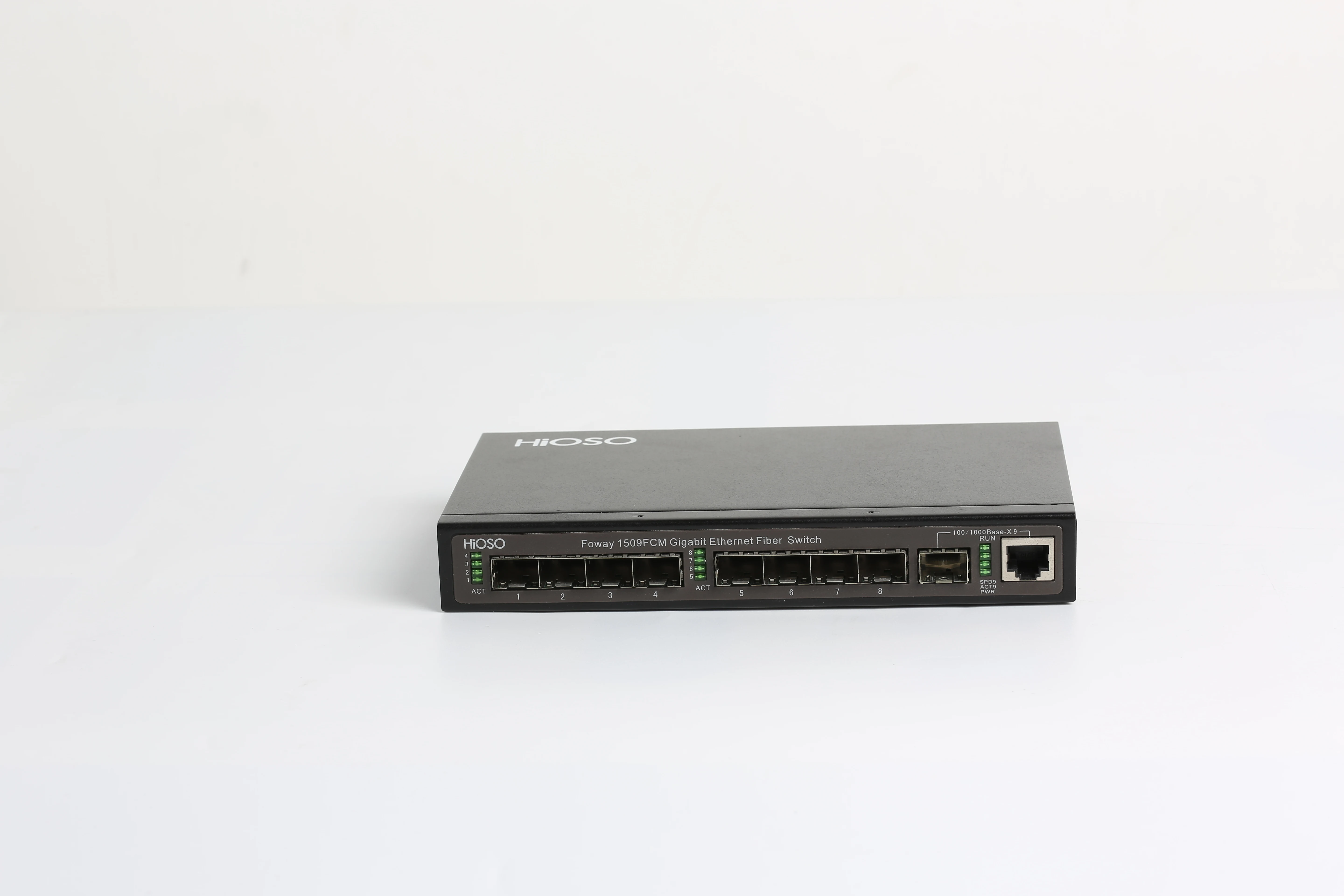

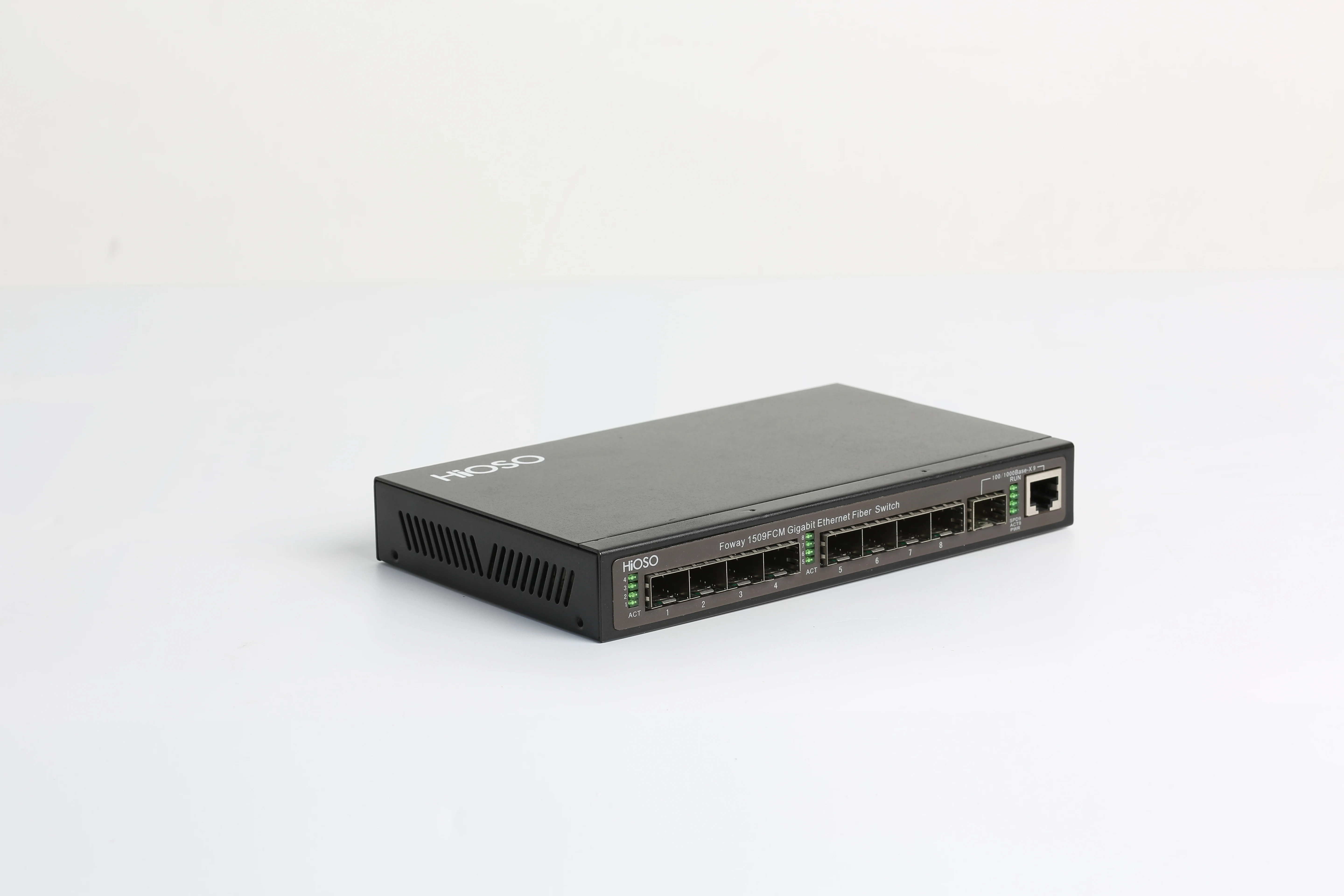

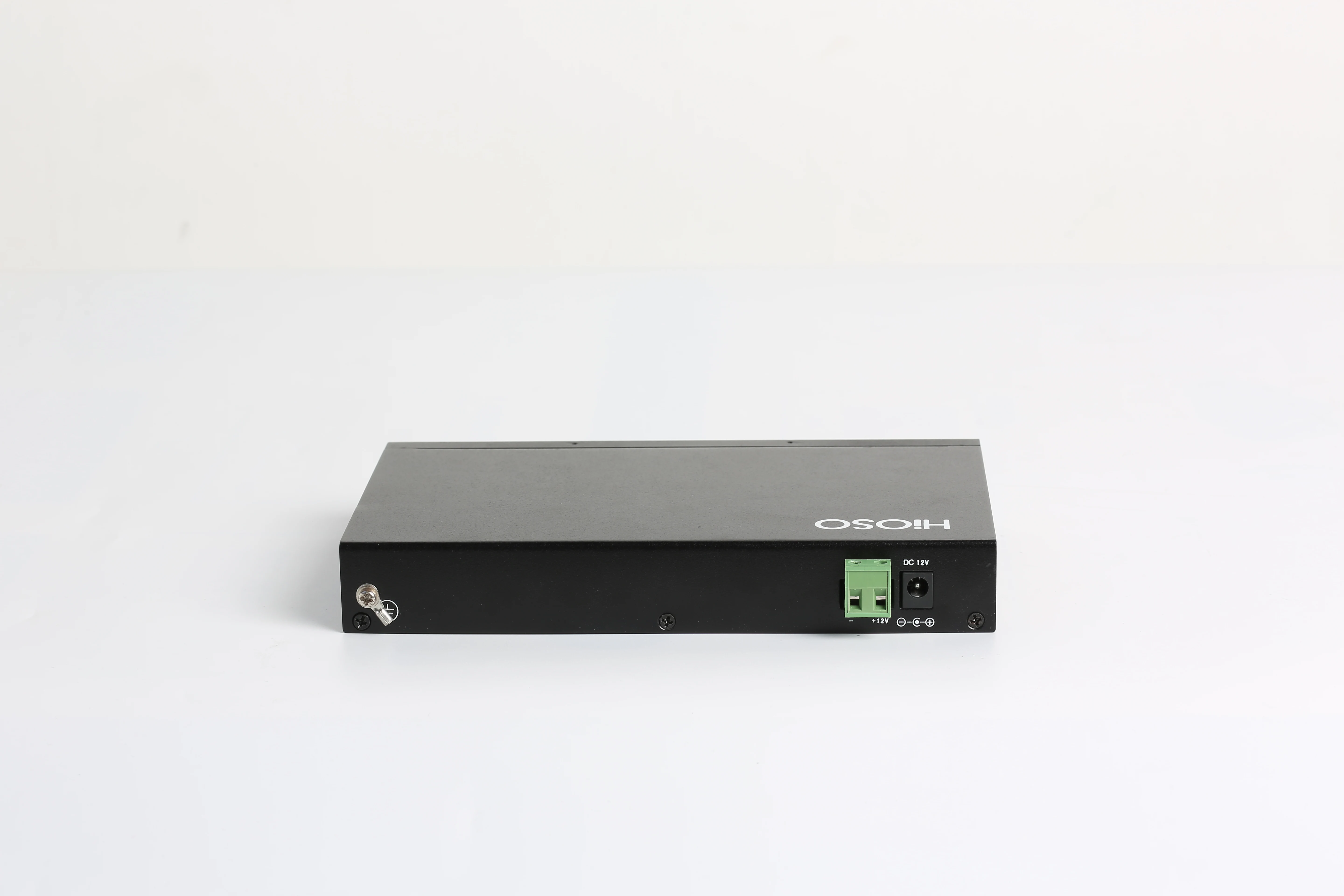

Details Images
Product Usage
Related Products
Packing&Shipping
Company Introduction
HiOSO Technology Co., Ltd. was founded in 2002, being dedicated to the research, production and sale of optical communication network products based on FTTH and FTTD. Our main products include EPON systems, fiber optic media converters, CWDM system equipment, digital video optical transceivers, converter racks, single/multi-mode converters, PDH and fiber modems.
Our Services & Strength
We are manufacturer, support OEM & ODM.
Products are of good quality and Price is competitive.
Products are of good quality and Price is competitive.
