LZL S01 Portable Handle 3D Scanner

Product Overview

Description

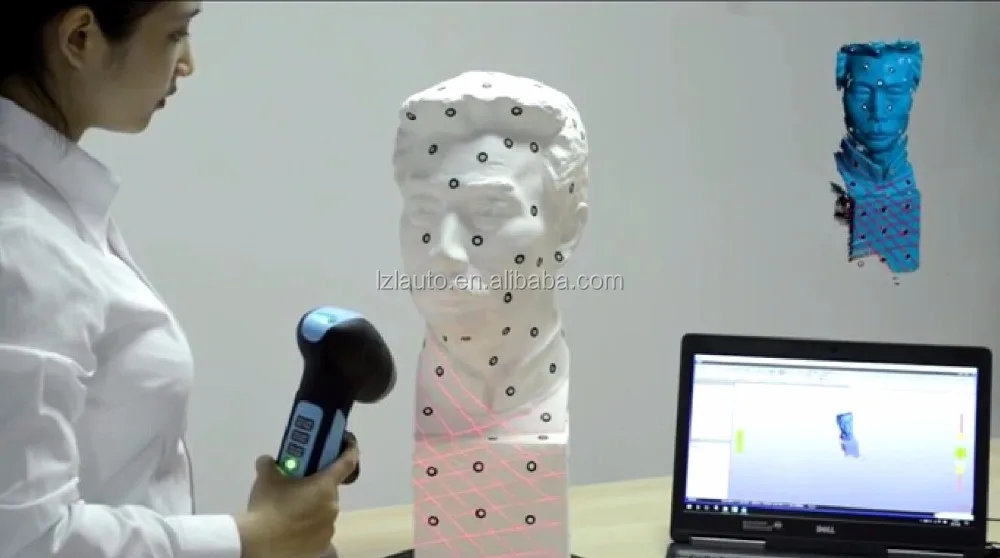

LZL-S01 Portable Handle 3D Scanner

Portable Handle 3D Scanner

Brand Choice Quality Assurance

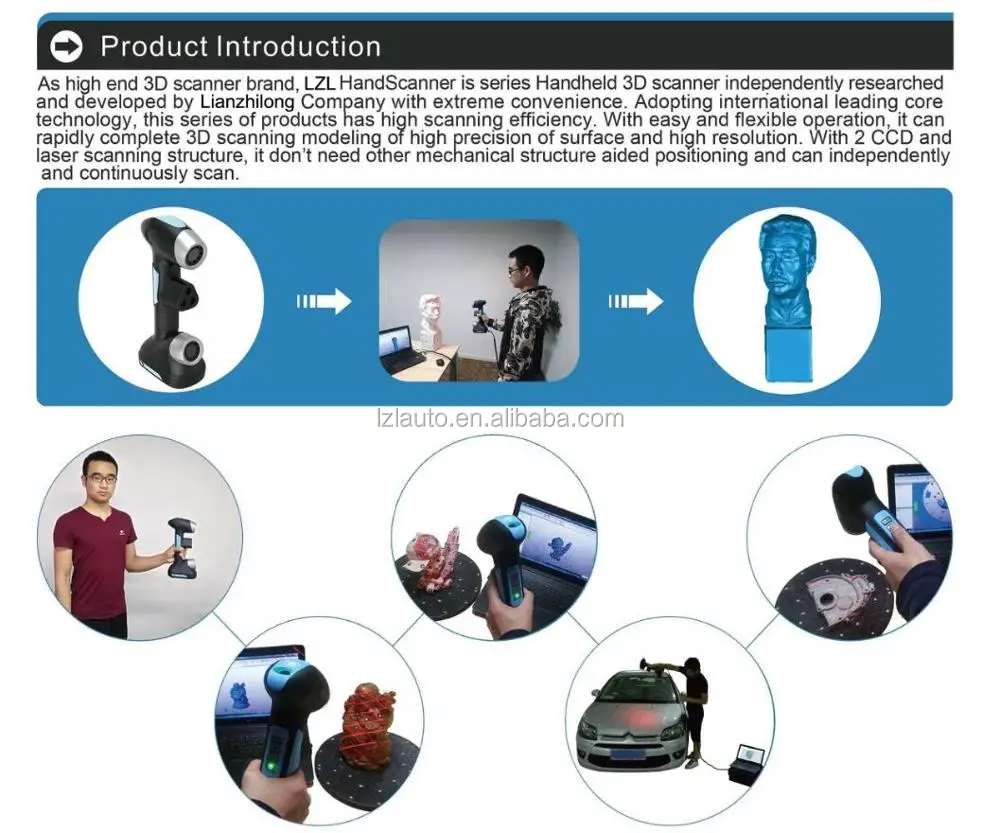

Production Introduction:

As high end 3D canner brand, LZLHandScanner is series Handheld 3D scanner independently researched and developed by Suzhou Lianzhilong Industrial Automation Co.,Ltd. with extreme convenience. Adopting international leading core technology, this series of products. has high scanning efficiency. With easy and flexible operational. It can rapidly complete 3D scanning modeling of high precision of surface and high resolution. With 2 CCD and laser scanning structure, it don't need other mechanical structure aided positioning and can independently and continuously scan.

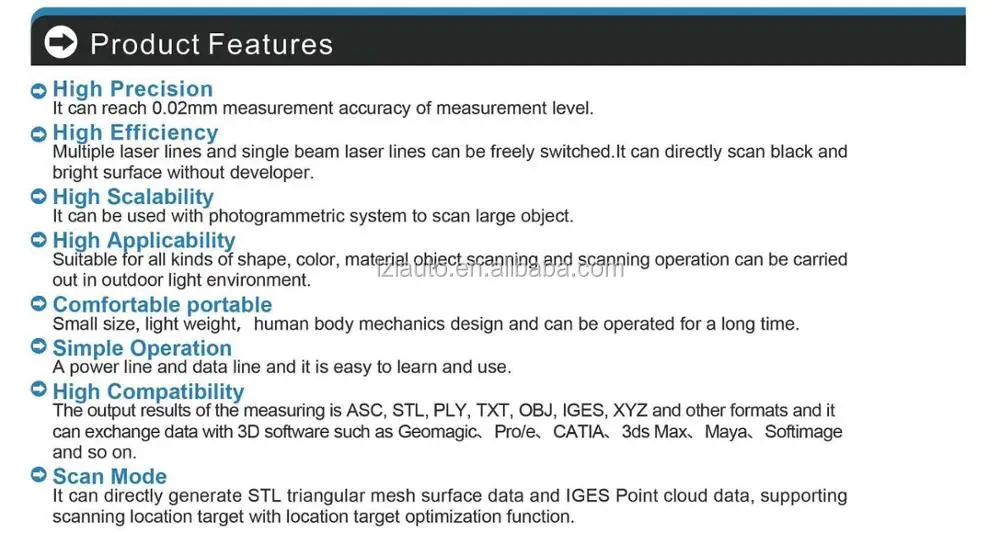

Product Features:

High Precision.

It can reach 0.02mm measurement accuracy of measurement level

High Efficiency.

Multiple laser lines and single beam laser lines can be freely switched.lt can directly scan black and bright surface without developer.

High Scalability.

It can be used with photogrammetric system to scan large object.

High Applicability.

Suitable for all kinds of shape, color, material object scanning and scanning operation can be carried out in outdoor light environment.

Comfortable portable.

Small size, light weight, human body mechanics design and can be operated for a long time.

Simple Operation.

A power line and data line and it is easy to learn and use

High Compatibility.

The output results of the measuring is ASC, STL, PLY, TXT, OBJ, IGES, XYZ and other formats and it can exchange data with 3D software such as Geomagic, Pro/e,CATIA, 3ds Max, Maya, Softimage and so on.

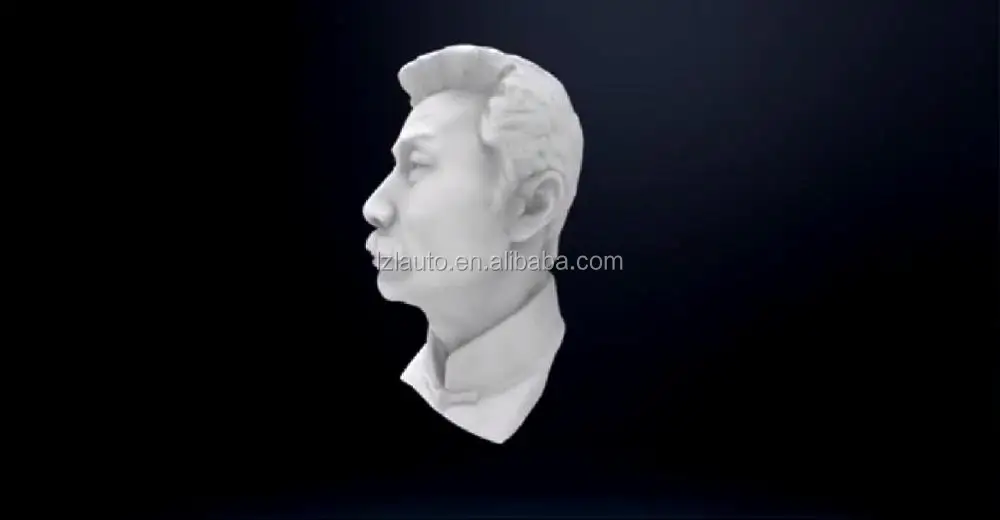

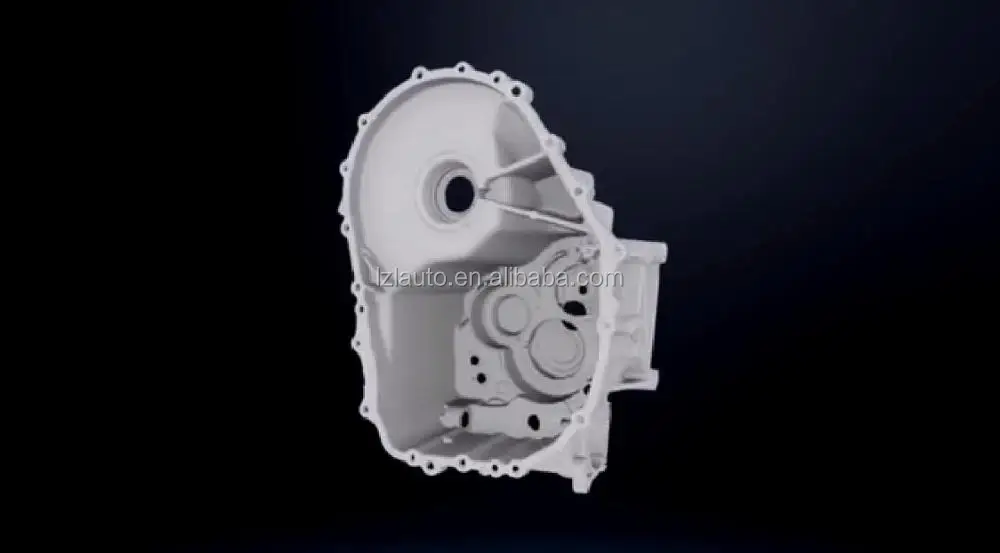

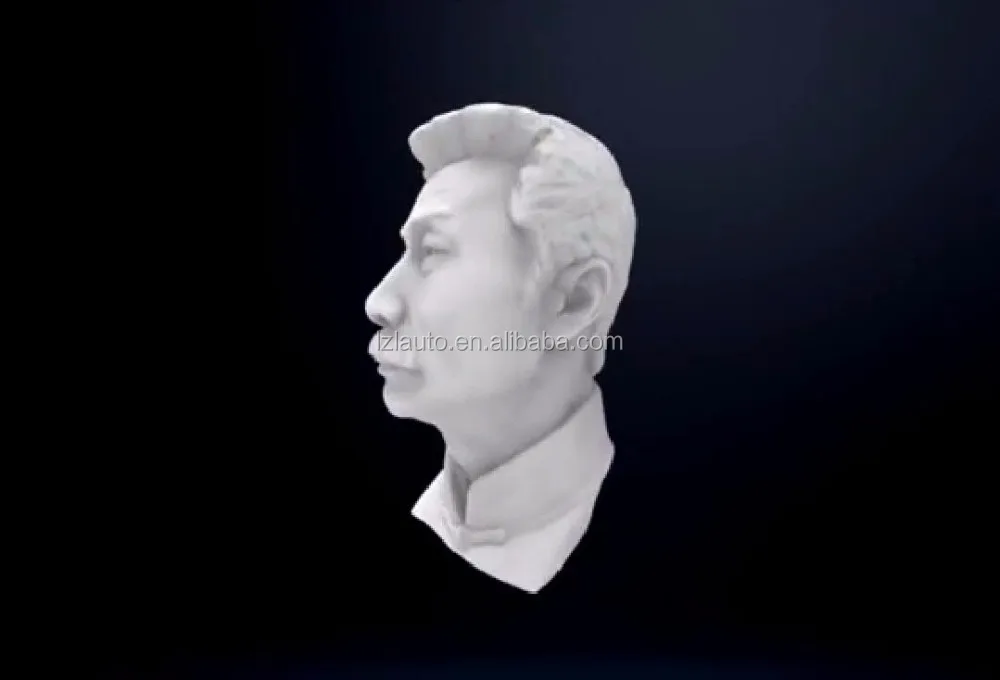

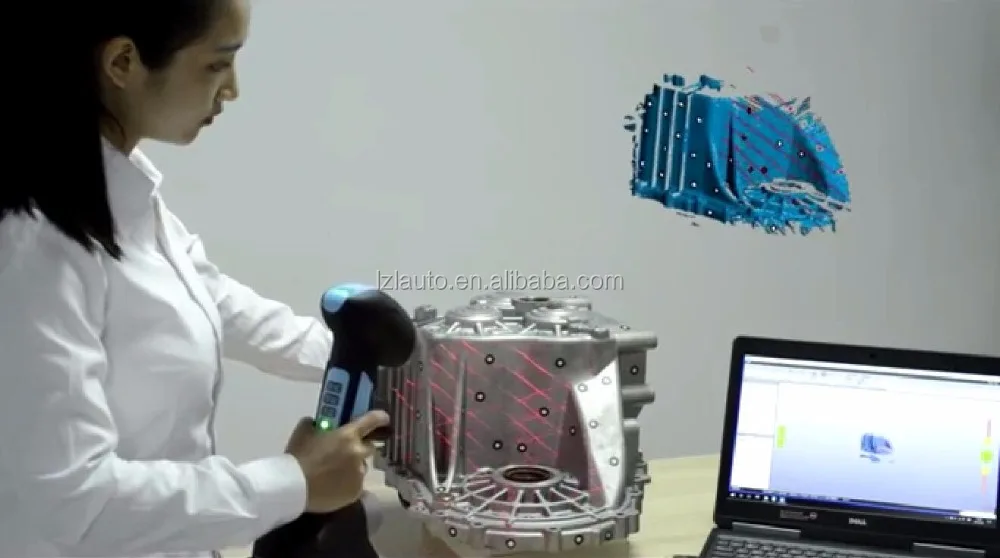

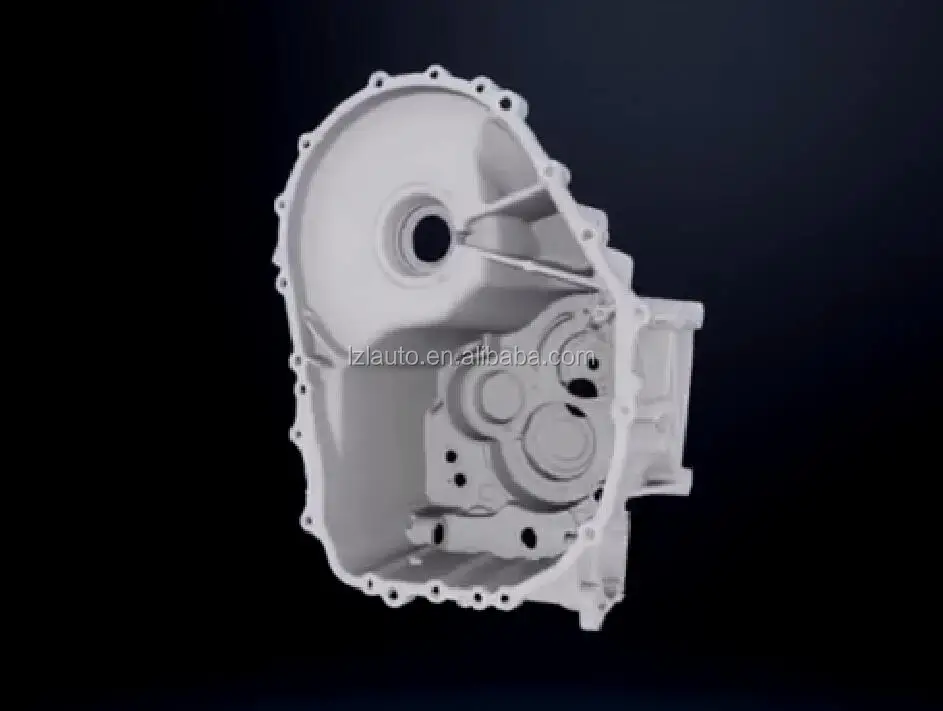

Scan Mode:

It can directly generate STL triangular mesh surface data and IGES Point cloud data, supporting scanning location target with location target optimization function.

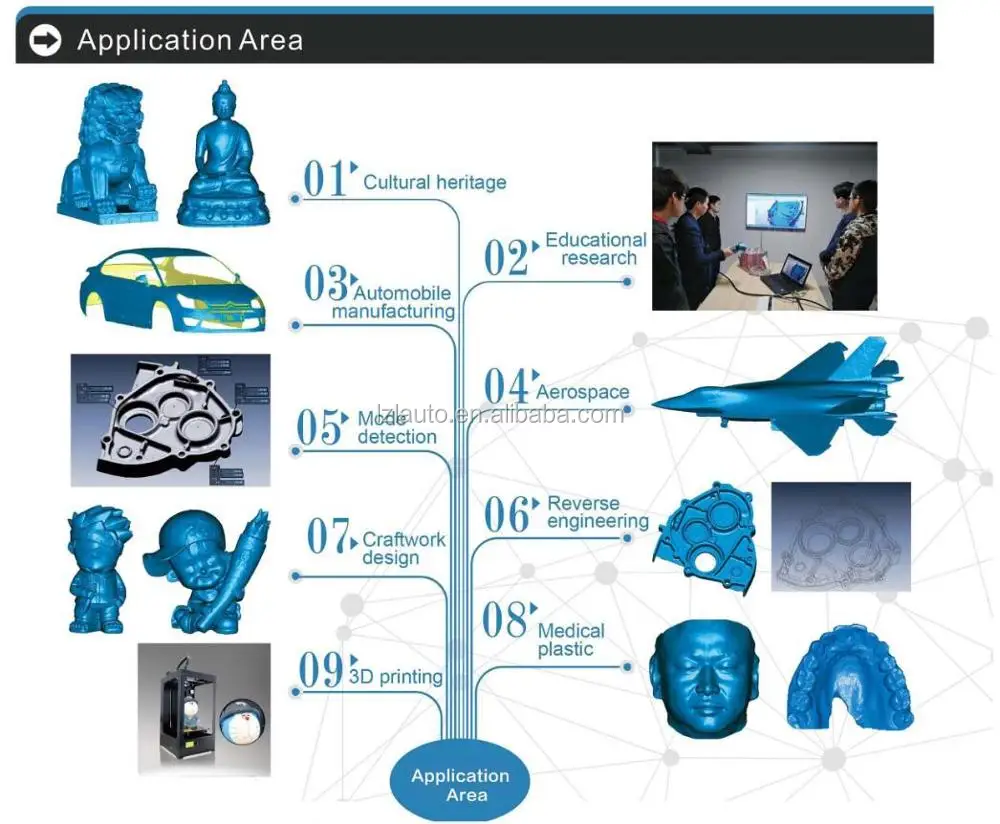

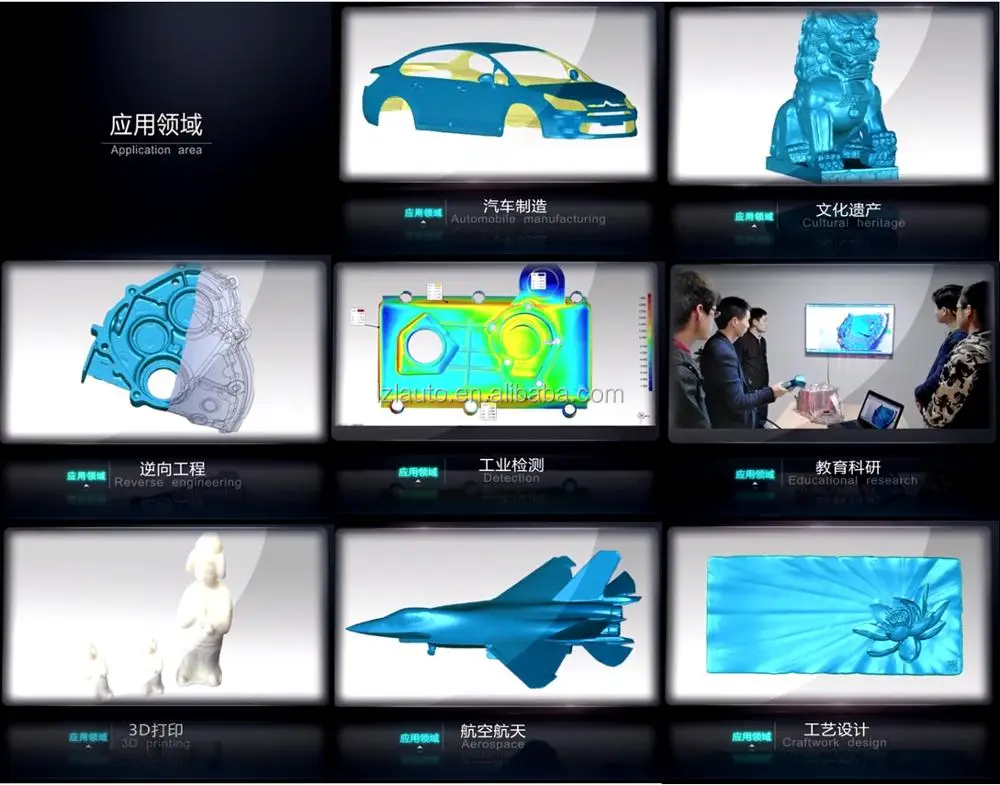

Portable laser 3D Hand Scanner Application Area:

1.Cultural heritage

2. Educational research

3.Automobile manufacturing.

4.Aerospace

5.Mode detection.

6.Reverse engineering.

7.Craftwork design

8.Medical plastic.

9.3D printing.

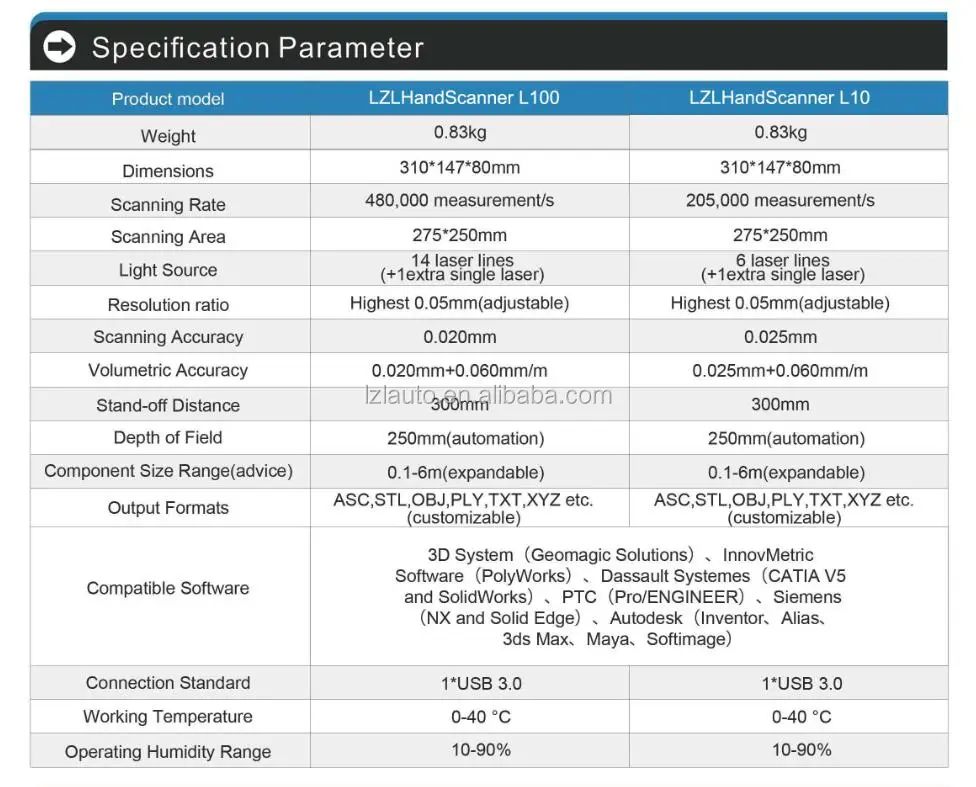

Portable Handle 3D Scanner Specification parameter:

Technical indicators and performance specifications:

LZL HandScanner L100:

Structure: two CCD + laser scanning structure
Weight: 0.83 kg
Size: 310 x147x80 mm
Scan rate: 480000 times /second measurement
Scanning area: 275 x 250 mm
Light source: 14 laser line (+ 1 additional single laser beam)
Resolution: the highest 0.05 mm (adjustable)
Accuracy of measurement: 0.020 mm
Accuracy of volume: 0.020 mm + 0.06 mm/meter
Benchmark distance: 300 mm
The depth of field: 250 mm
Parts size range (recommended) : 0.1 meters ~ 6 meters
output format: ASC, STL, OBJ,PLY,TXT,etc, ASC, STL, OBJ,PLY,TXT etc,
Compatible software: 3D System(Geomagic Solutions),InnovMetric Software(PolyWorks),Dassault Systemes(CATIA V5 and SolidWorks),PTC(Pro/ENGINEER),

Siemens(NX or Solid Edge),

Autodesk(Inventor,Alias,3ds Max,Maya,Softimage)

3D System(Geomagic Solutions),InnovMetric Software(PolyWorks),

Dassault Systemes(CATIA V5 and SolidWorks),PTC(Pro/ENGINEER),

Siemens(NX or Solid Edge),

Autodesk(Inventor,Alias,3ds Max,Maya,Softimage) etc
transmission mode: USB3.0
Working temperature: 0-40 °C
Working humidity: 10-90%

Technical indicators and performance specifications:

LZL HandScanner L10:

Structure: two CCD + laser scanning structure
Weight: 0.83kg
Size:  310x147x80 mm
Scan rate: 205,000 times /second measurement
Scanning area:  275X 250 mm
Light source: 6 laser line (+ 1 additional single laser beam)
Resolution: the highest 0.05 mm (adjustable)
Accuracy of measurement: 0.025 mm

Accuracy of volume: 0.025 mm + 0.06 mm/meter
Benchmark distance: 300 mm
The depth of field: 250 mm
Parts size range (recommended) : 0.1 meters ~ 6 meters
output format: ASC, STL, OBJ,PLY,TXT,etc, ASC, STL, OBJ,PLY,TXT etc,

Technical indicators and performance specifications:

Compatible software:

3D System(Geomagic Solutions),InnovMetric Software(PolyWorks),

Dassault Systemes(CATIA V5 and SolidWorks),PTC(Pro/ENGINEER),

Siemens(NX and Solid Edge),

Autodesk(Inventor,Alias,3ds Max,Maya,Softimage)

3D System(Geomagic Solutions),

InnovMetric Software(PolyWorks),

Dassault Systemes(CATIA V5 and SolidWorks),PTC(Pro/ENGINEER),

Siemens(NX or Solid Edge),

Autodesk(Inventor,Alias,3ds Max,Maya,Softimage)etc
transmission mode:USB3.0
Working temperature: 0-40 °C
Working humidity: 10-90%

LZL scan software-01:

1. Software has automatic mapping function, can provide splicing, integration, networking, simplification, automatic texture mapping and other functions. Mapping software technology to achieve the international advanced level, with international recognition, and provide relevant proof materials.

  2. The mapping software comes with camera lens distortion correction function, to avoid distortion caused by distortion of the lens.

  3. Scanning software with laser shutter automatic adjustment function, scanning device sensor according to the measured surface material and color automatically adjust the laser shutter, identify the optimal parameters

  4. The scanner has a control mode button that enables switching between the view mode of operation and the shutter adjustment mode. Without the need to computer keyboard / mouse operation to complete the scan software-related mode to adjust. Including view zoom function, shutter adjustment function and so on.

  5. With automatic assembly function, the first full mark point scan, and then the various parts of a separate scan, scan the results of each part can be automatically completed splicing.

General equipment will match

workstation:

Dell or HP mobile workstations

15.6 inch mobile workstations,CPU: i7-6700HQ or above
CPU frequency (MHz) : 2800-2800,  Video card : M2000M 4 G
Memory: 32 G,   Hard disk: 256 SSD + 1TB,     Win10 pro,

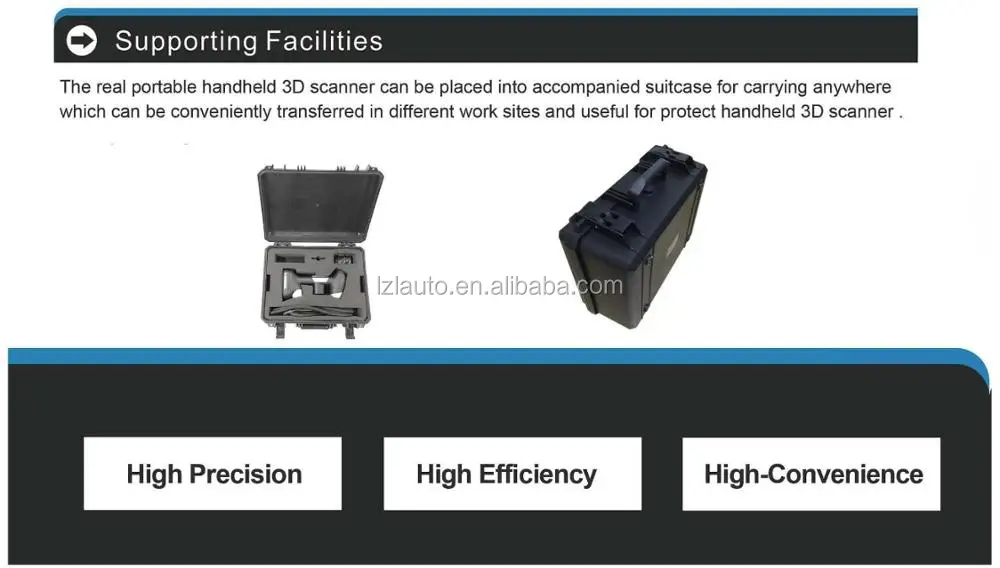

Supporting Facilities:

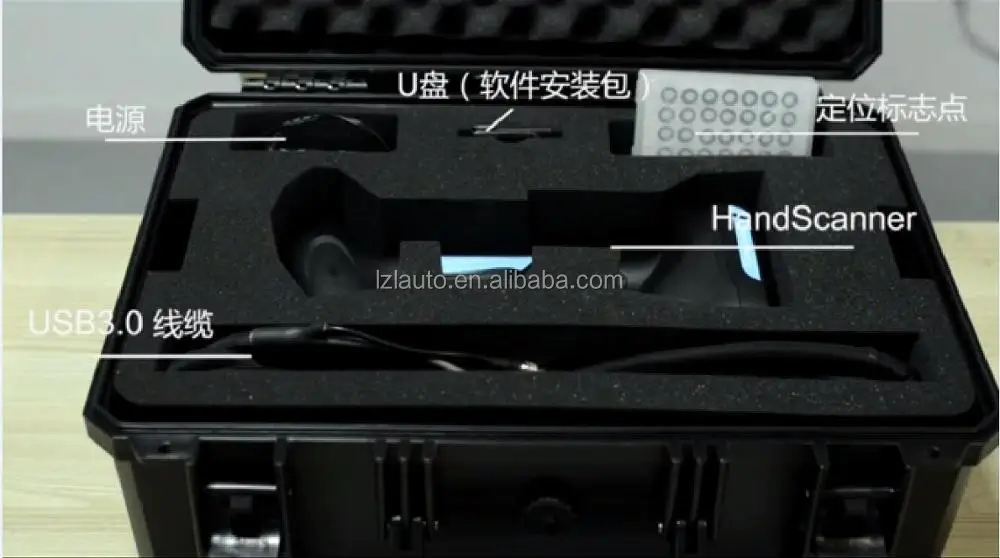

The real portable handheld 3D scanner can be placed into accompanied suitcase for carrying anywhere which can be conveniently transferred in different work sites and useful for protect handheld 3D scanner
