Best Price Ruizhou CNC Grey board Carton box Cardboard Automatic Cutting Machine

Product Overview

Description

Best Price Ruizhou CNC Grey board Carton box Cardboard Automatic Cutting Machine

Product description of CNC automatic fabric cutting machine

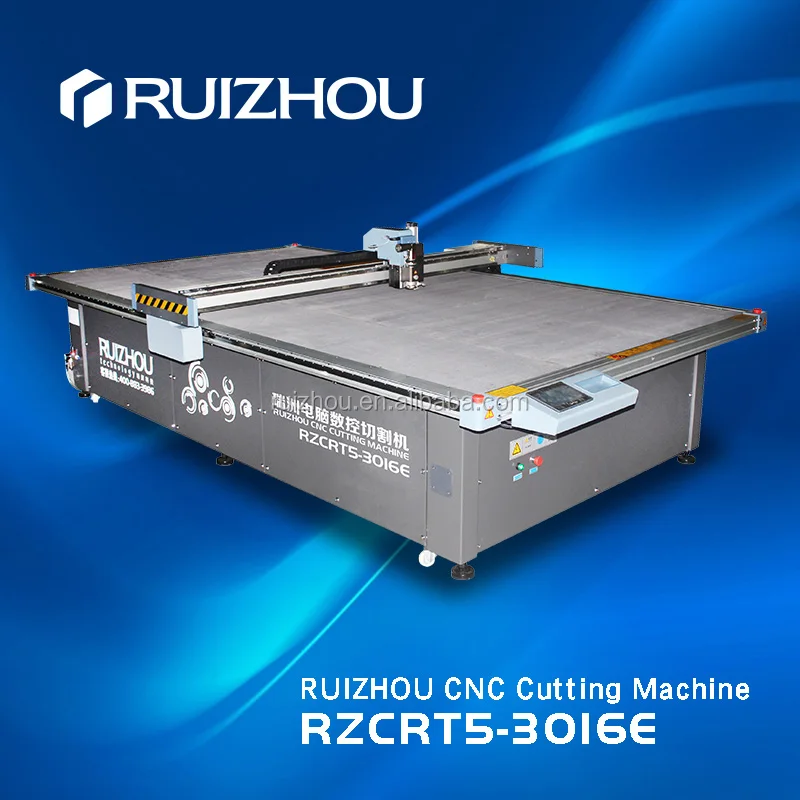

RUIZHOU CNC cutting machines are soft materials cutting experts. RZCRT5-3016E cutting machine is one type of RUIZHOU CNC automatic cutting machine, which is widely used in cutting greyboard, corrugated board, honeycomb board, fabric, car mats, PVC, PU and other composite materials.

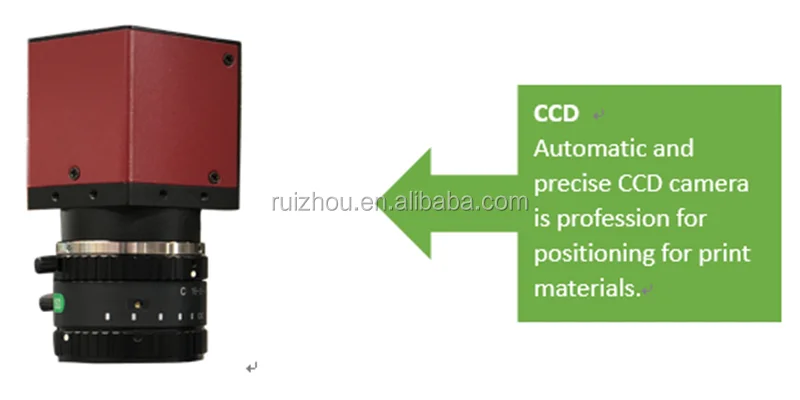

Based on different clients’ requirements, RZCRT5-3016E can be equipped with multi-functional working head, different combined cutting tools, CCD positioning system, advanced frequency converter and some other good quality components or devices. It is unique and user-friendly.



Parameters of Fabric Cutting machine RZCRT5-3016E

Model of cutting machine	RZCRT5-3016E
Effective working area	3000mm×1600mm
Cutting speed	0-1200mm/s
Cutting thickness	0-25mm ( customized cutting machine can up to   50mm)
Our Advantages	1.A whole piece aluminum platform        2.Welding stable machine structure  3.Gear rack & Screw lever                     4.Safety device  5.Fast and convenient tools changing.

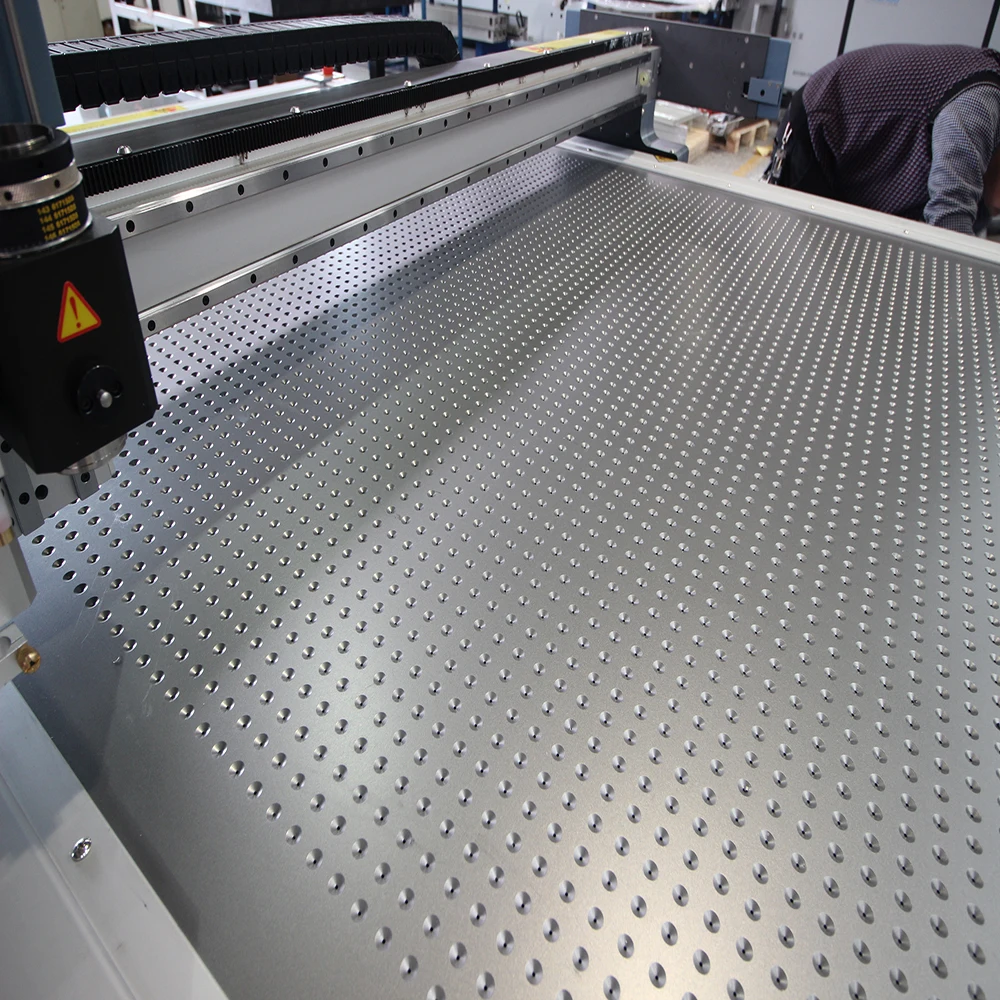

Method of fixing material	Divisional vacuum absorption

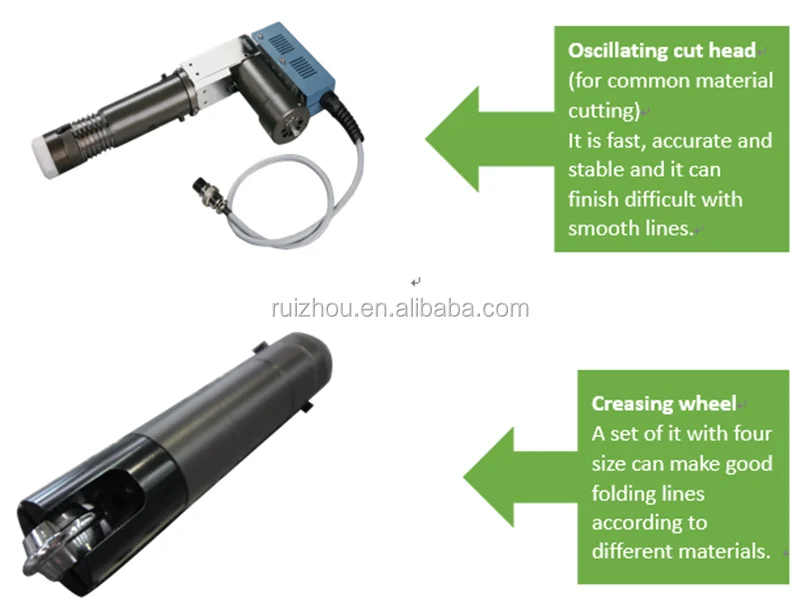

Knife	Oscillating blade head, Milling Cutter, Hobbing Cutter, Creasing Wheel
Pen type	Common signing pen, Oil pen, ball-point pen, Silver pen
Human Machine Interface (HMI)	Touch screen LCD
Machine resolution	0.01mm
Software resolution	0.025mm
Interface of transmission	Network port
Command system	HP-GL and GP-GL compatible formats
Gearing	Linear guide and gear rack
Motor	Servo motor
Machine Working Voltage	220V
Air pump power	9KW
Energy saving device	Frequency converter
Safety device	Automatic laser device
Software system	Independent research and development CNC software
Control system	Cutting table and computer display

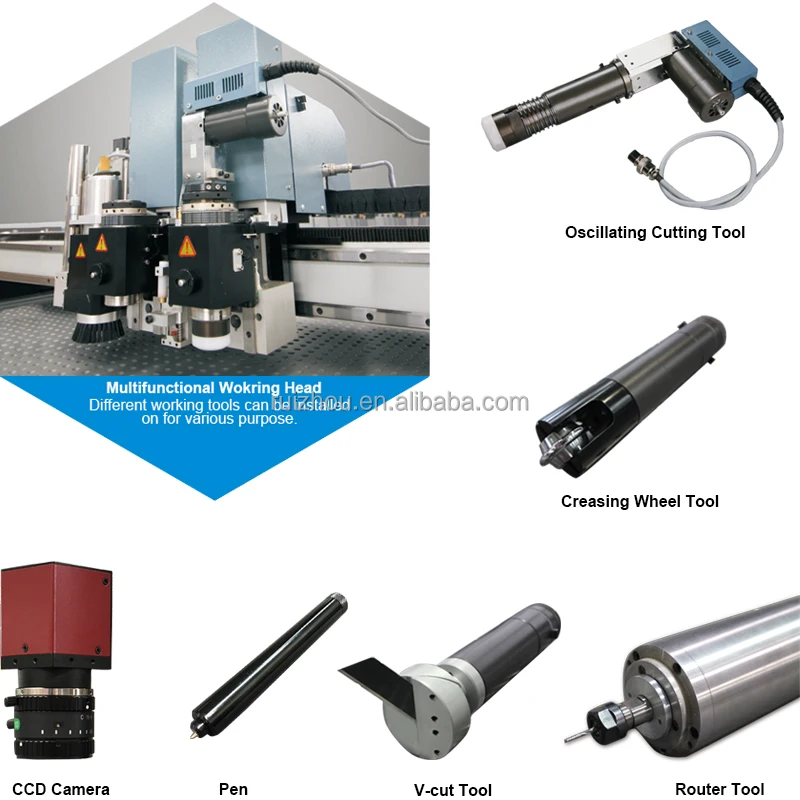

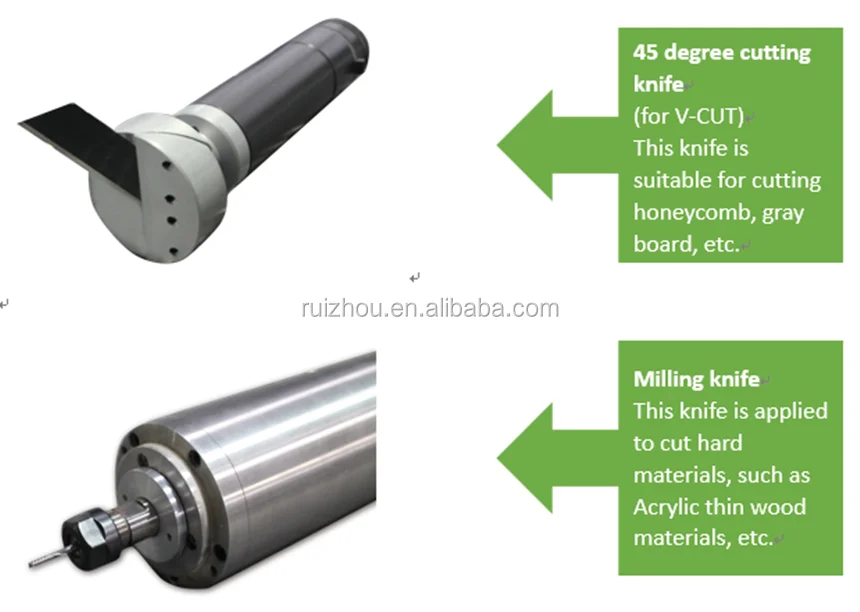

Tools and its functions of RZCRT5-3016E

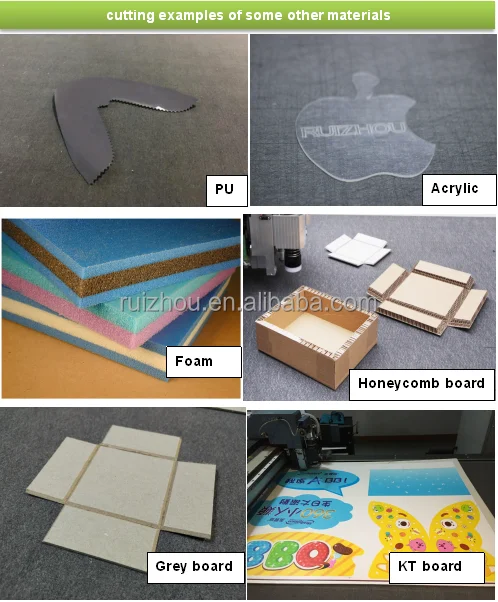

Cutting samples of RZCRT5-3016E

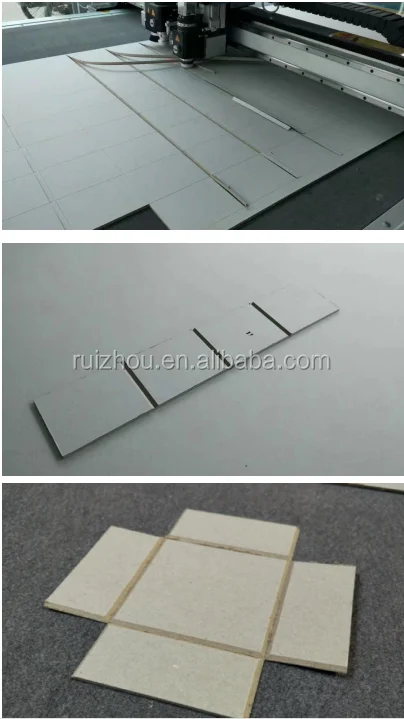

Greyboard cutting samples











Six advantages of RZCRT5-1510E

Packaging of Cutting machines

The cutting machines are packaged with standard export wooden case which can guarantee the cutting machines' safety.

Our Company

Guangdong RUIZHOU Technology Co., Ltd, found in 2004,  is a national Torch Plan High-tech Enterprise, specialized in the research, development, sales and technique service of soft material intelligent CNC cutting machine.

RUIZHOU Technology has been dedicated in supplying informationized and automatic design and whole solution of intelligent production for a broad community of soft material manufacturers, which achieves  the realization of the confluence of informatization and industrialization.
