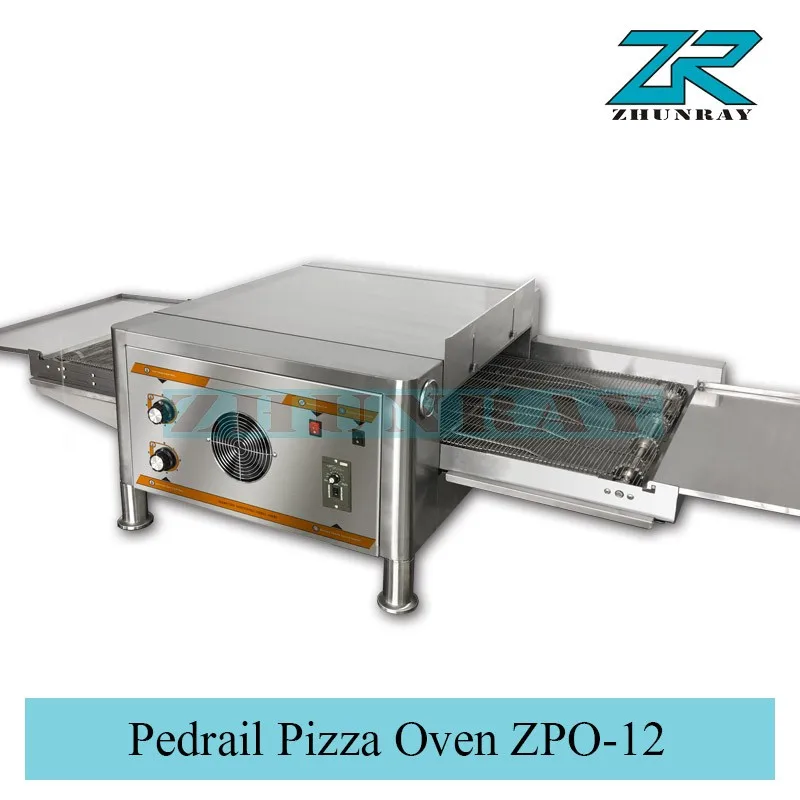

commercial Chain type pizza oven pizza maker
- Category: Built-in Ovens >>>
- Supplier: Foshan Zhunray Kitchen Equipment Co. Ltd.
Share on (60659068440):
Product Overview
Description
Product Description
Product Application
Commercial electric 12 inch pizza oven is suitable for pizza. It is widely used in snack shop,restaurant ,canteen etc.it is very popular in Chinese and top sale in oversea market.
SPECIFICATIONS FOR ZPO-12 | ||||||
Detail | Voltage | Vac | 220 | |||
Power | KW | 5.8 | ||||
Heating element | Pcs | 18 | ||||
Main Size | cm | 150X 60X 43 | ||||
Fan | pcs | 2 (220/240V~AC50/50Hz 0.27A) | ||||
Motor | pcs | 1 (220V 40W) | ||||
Speed | r/min | 0~12 | ||||
Max pizza size | inch | 12 | ||||
Temperature Range | ℃ | 50~500 | ||||
Net Weight | kg | 88.7 | ||||
Main Features
1.Whole body frame is made of stainless steel with specail design.
2. The heating element are strong and durable.
3.Thermal insulation,convenient to install,brief in use.
4.Reliable performance, fast heating, good warm-keeping effect
5.With automatic power-off protection device
Detailed Images
How to use

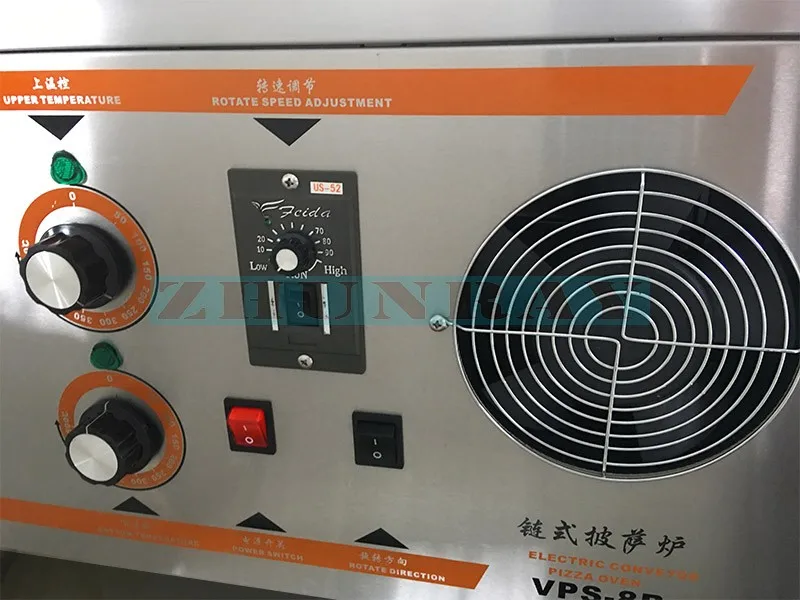

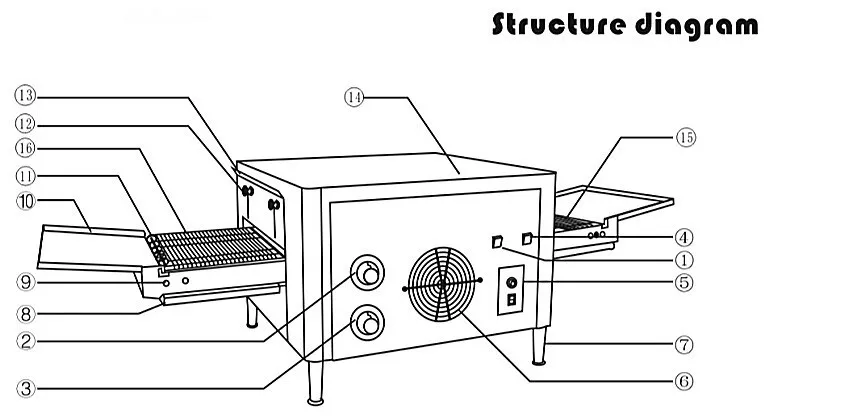

1.Power Switch | 2.Upper thermostat | 3.Bottom thermostat | 4. Direction buttom |
5 Speed-adjuster | 6.Fan | 7.Ajustable Feet | 8.Waste tray |
9.Axle fixation screw | 10.Pizza tray | 11.Driven axle | 12.Baffle fixed screw |
13.Baffle Plate | 14.Main Body | 15.Voluntary axle | 16.Chain |
Using Instruction:
1. Check all electric parts to make sure all operate namally.
2. Check the (2)(3)(5) if on "0" position and all switch is off .
3. Unfold two tray on two side.(10)
4. According the thickness of pizza ,ajust the height of baffle(12)
5. Check the tautness of chain if good enough ,you can ajust axle fixation screw (9).
6. Turn on the machine,the power pilot lamp is on ,than set up the temperature,when the temperature reach up your set one ,then turn on the speed controller( Speed:0~12r/min),put the pizza on the chain,after about 15-20mintues,the finished pizza will come on another side.
Production
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packing & Delivery
Packaging | ||
Size | 122(L) * 61(W) * 51(D) cm | |
Weight | 60kg | |
Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
