factory sale ultrasonic ultrasound horn analyzer ceramic chips transducer testing analyzer machine

PV200A digital screen Ultrasonic horn analyzer ceramic testing IMPEDANCE TESTING ANALYZE METER
Description:
For ultrasonic components measuring instrument, the most important is the admittance chart, logarithmic graph of the two graphics (the two graphics is the main method of qualified qualified), and more than a dozen parameters: resonance frequency Fs, the maximum conductance Gmax, bandwidth F2-F1, anti-resonance frequency Fp, quality factor Qm, free capacitance CT, dynamic resistance R1, dynamic inductance L1, dynamic capacitance C1, static capacitance C0, effective electromechanical coupling coefficient Keff.


Specification:

Impedance Analyzer\t PV200A
Frequency Range\t1KHz~500KHz
Basic Accuracy\t< 0.5%
Scan Speed\t5 sec/one pass (equivalent to 600 scan dots)
Frequency Accuracy\t±10 ppm
Phase Accuracy\t0.15 degree
Temperature Range\t10~40 degree Celsius
Impedance Range\t0.1Ω~1MΩ
Frequency Step\t0.1Hz to Any
Measure Items\tResonance Frequency: Fs
\tHalf Power Frequency: F1 and F2
\tMaximum real admittance at Fs: Gmax
\tDynamic Resistance: R1
\tAnti resonance frequency: Fp
\tMechanical quality factor: Qm
\tFree capacitance: CT
\tDynamic inductance: L1
\tDynamic capacitance: C1
\tStatic capacitance: Co
\telectromechanical coupling coefficient: Keff and Kp
\tMaximum real impedance at Fp: Zmax
Measure Diagram\tG,B-F
\tG-B (admittance circle coordinate)
\tR,X-F
\tR-X (impedance circle coordinate)
\tZ,phase-F
\tY,phase-F
\tZ(Logarithm),phase-F
Amplification\tpiezoelectric ceramic, ultrasonic transducer, power ultrasonic,
ultrasonic weld, ultrasonic clean, ultrasonic sensor
Dimensions : 240mm*190mm*100mm
Size of LCD Screen: 8-inch screen

Applications:

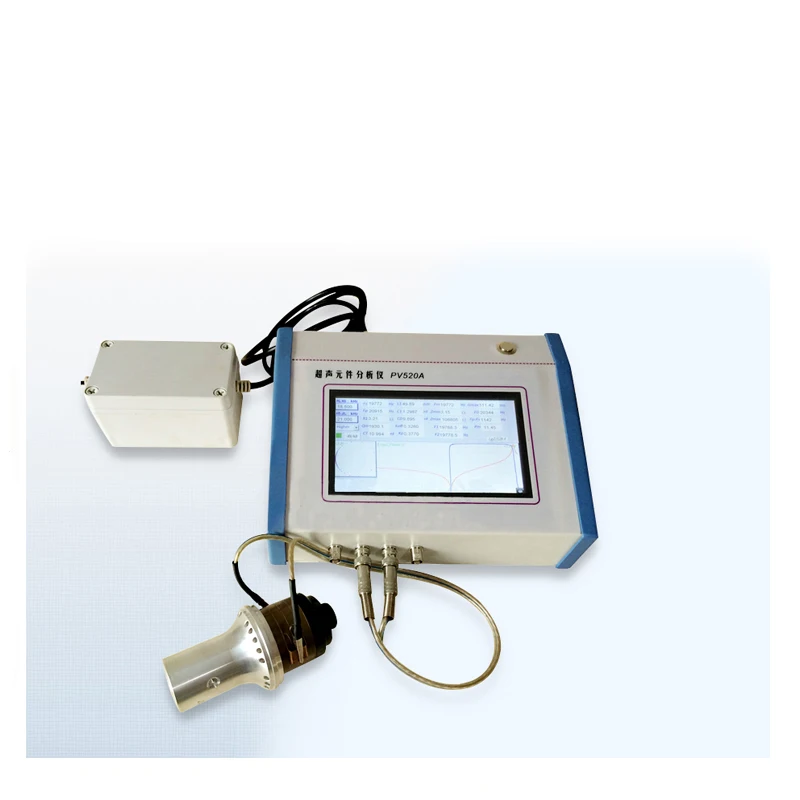

ultrasonic Component Analyzer PV200A series of products for various types of ultrasonic devices for measuring objects, including: piezoelectric ceramics, transducers, ultrasonic cleaning machines, ultrasonic plastic welding machine, underwater acoustic, magnetostrictive materials, ultrasonic grinder, ultrasonic atomization , Ultrasonic cleaning, reversing radar, ultrasonic ranging, phacoemulsification, ultrasonic cleaning, ultrasonic motors, and all other devices and devices used in piezoelectric and ultrasound.

Impedance analyzer is adopted to help the company make much profit,
Product Type:

Item No.\tPV200A-OLD\tPV400A-OLD\tPV200A-NEW
Frequency range\t1KHz ~ 500KHz\t1KHz ~ 1MHz\t1KHz ~ 500KHz
Frequency accuracy\t±10ppm\t±10ppm\t±10ppm
Impedance accuracy\t < 1%\t < 1%\t< 0.5%
Impedance Range\t0.1Ω to 1MΩ\t0.1Ω to 1MΩ\t0.1Ω to 1MΩ
Frequency Step\t0.1 Hz to Any\t0.1 Hz to Any\t0.1 Hz to Any
Measuring speed
(equivalent 600 points scan)\t10 sec/one pass\t5 sec/one pass\t5 sec/one pass
Application\tPower Ultrasonic device\tPiezoelectric ceramic\tAll ultrasonic products and components
Dimensions \t350*200*150mm\t350*200*150mm\t240*190*100mm

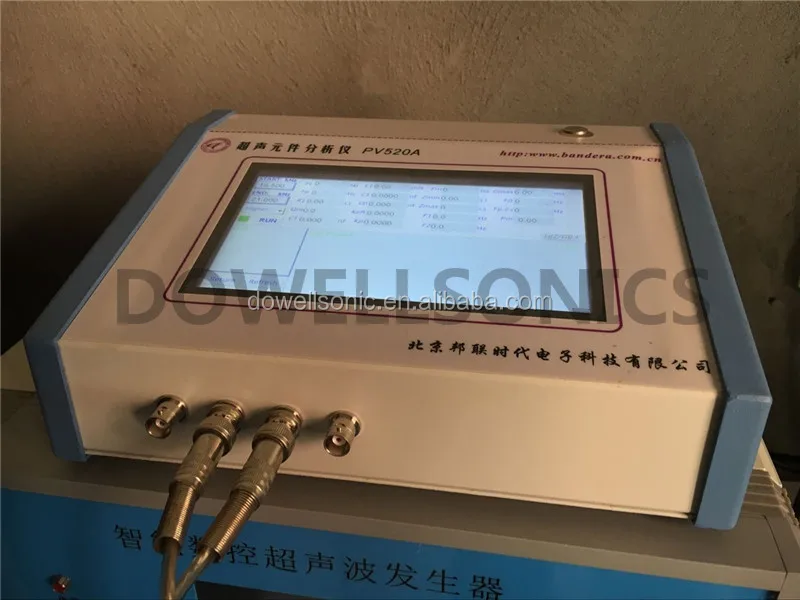

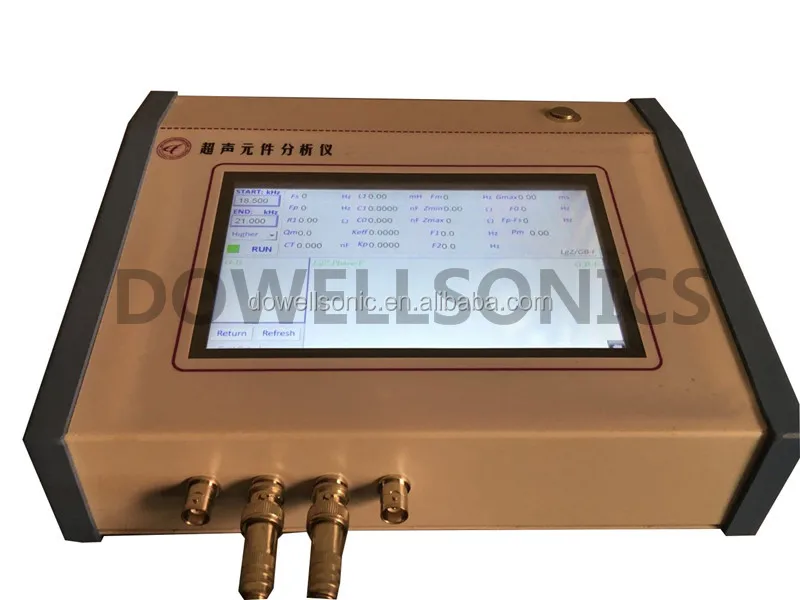

Portable measuring instrument , Horn analyzer , transducer characteristics tesing with full-screen touch

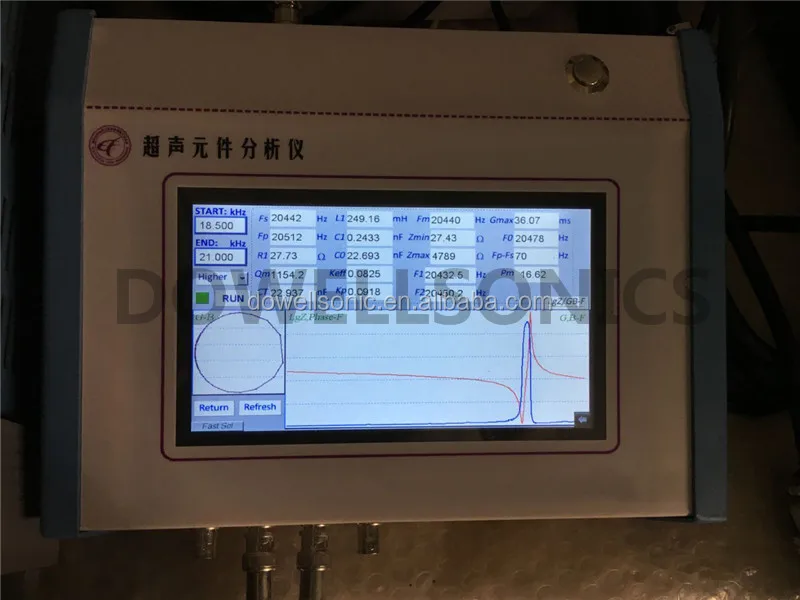

1) Admittance coordinate system GBF coordinate curve:
