Robot 9g Servo 6V 1.5kg Serial Control BUS Servo Spider Hexapod arduinos control servo 360

Product Overview

Description

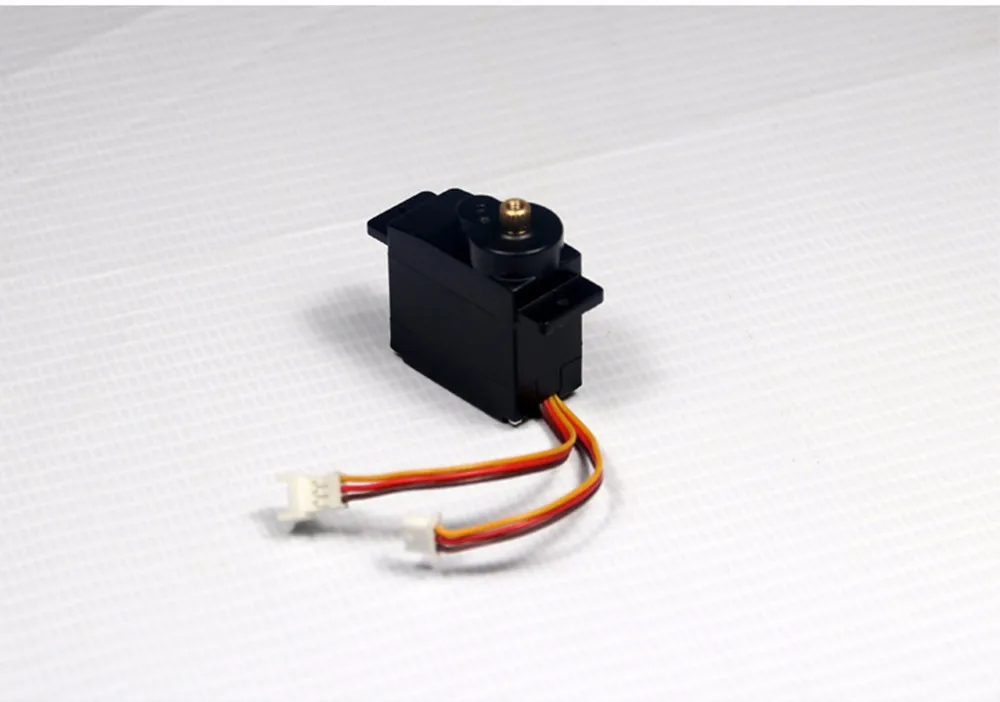

FEETECH SCS009 Robot 9g Servo 6V 1.5kg.cm Serial Control BUS Servo Arduino

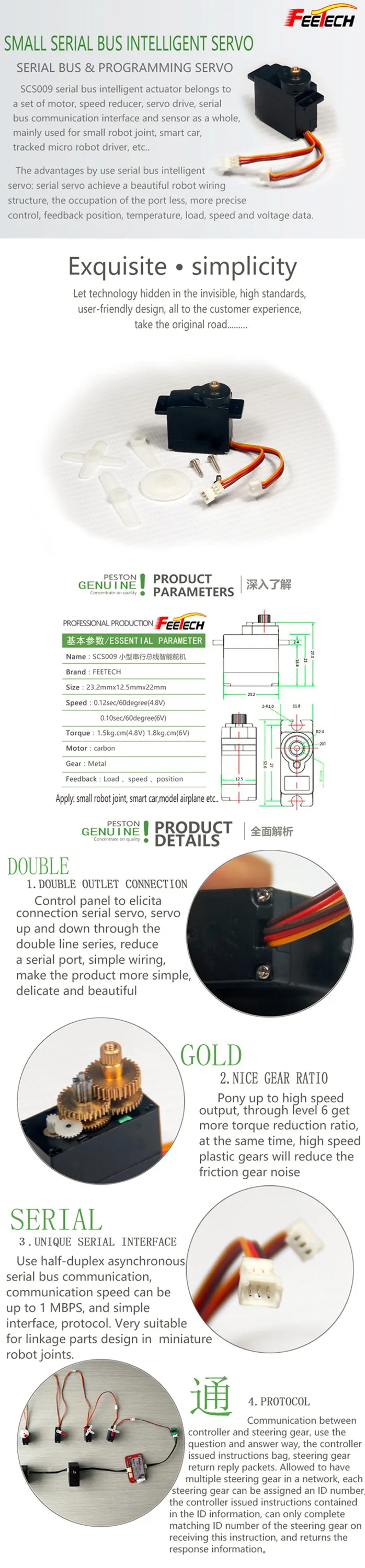

 The advantage of Serial bus servo:

1.Beautiful wiring structure,

2.Easy to control signal,

3.real-time feedback of position,tempreture,speed,voltage,Current data,

4.Less occupied port.

5.Digital transmission signal is

Flexible, convenient, reliable and good compatibility

6.intercommunication;

Now PWM is Simulate Transmission,Pulse width variation stand for control vector,so easily interfered by the outside world.



Feature

FITEC MODEL	SIZE (mm)	WEIGHT		SPEED	Stall Torque
SKU	(LxWxH)	g	oz	sec/60°	kg.cm	oz.in
SCS90	23.2x12.5x22	9	0.32	0.12(4.8V) 0.10(6V)	1.3(4.8V) 1.5(6V)	18.09(4.8V) 20.86(6V)

Serial Bus Servo 9g
Stall Torque:1.5kg.cm/18.09oz.in(6V)

Dimensions:23.2 × 12.5 × 22 mm

Weight:9 g

 Connector Wire Length :20 cm

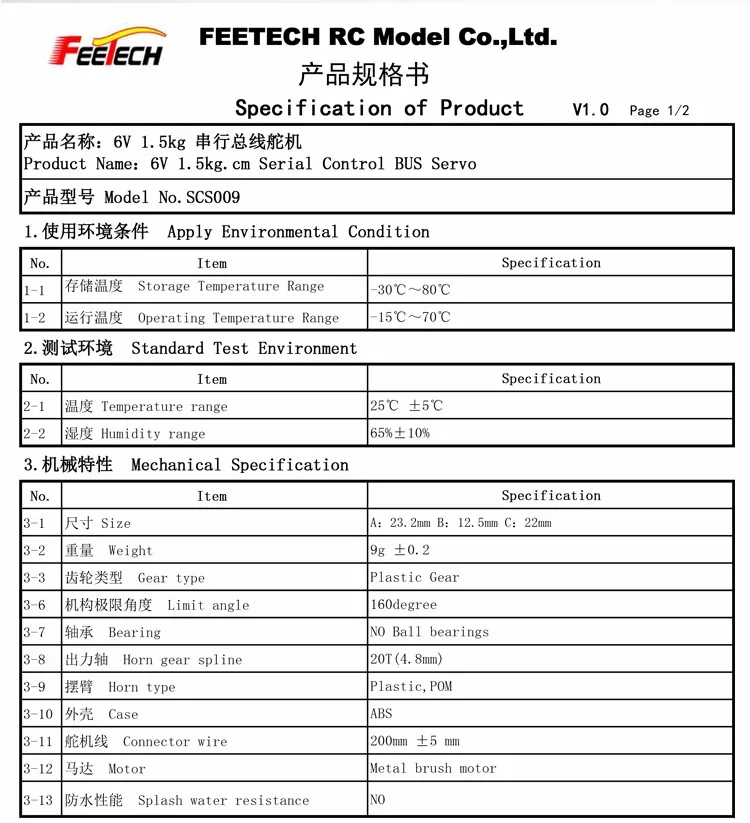

1.Apply Environmental Condition
1-1	Storage Temperature Range	-30℃~80℃
1-2	Operating Temperature Range	-15℃~70℃
2.Standard Test Environment
2-1	Temperature range	25℃ ±5℃
2-2	Humidity range	65%±10%
3.Mechanical Specification

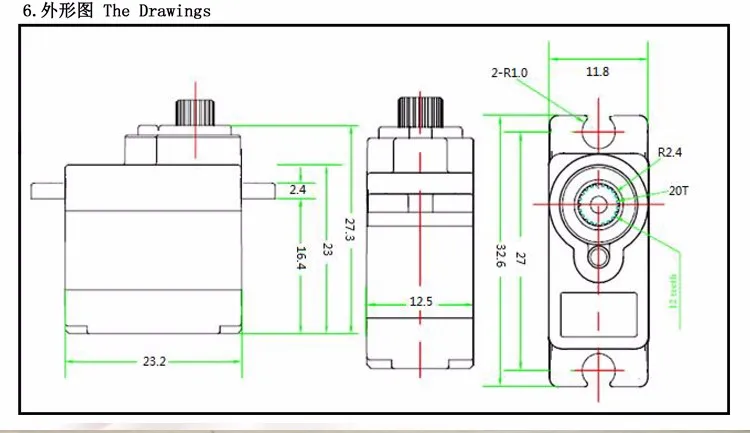

3-1	Size	A:23.2mm B:12.5mm C:22mm
3-2	Weight	9g ±0.2
3-3	Gear type	Metal Gear
3-6	Limit angle	No
3-7	Bearing	NO Ball bearings
3-8	Horn gear spline	20T(4.8mm)
3-9	Horn type	Plastic,POM
3-10	Case	ABS
3-11	Connector wire	200mm ±5 mm
3-12	Motor	Metal brush motor
3-13	Splash water resistance	NO
4.Electrical Specification (Function of the Performance)
4-1*	Idle current(at stopped)	5mA	6mA
4-2*	No load  speed	0.12sec/60degree	0.10sec/60degree
4-3*	Runnig current(at no load)	100 mA	120 mA
4-4	Peak stall torque	1.3kg.cm	1.5kg.cm
		18.09oz.in	20.86oz.in
4-5	Stall current	700 mA	800mA
5.Control Specification:
No.	Item	Specification
5-1	Command signal	Bus Packet Communication TTL level
5-2	Protocol Type	Half duplex Asynchronous Serial Communication
5-3	ID range	0-253
5-4	Communication Speed	38400bps ~ 1 Mbps
5-5	Running degree	280°(when 0~1023)
5-6	Feedback	Load, Speed, Input Voltage
5-7	Position Sensor (Resolution)	Potentiometer (280°/1024)





The Details:

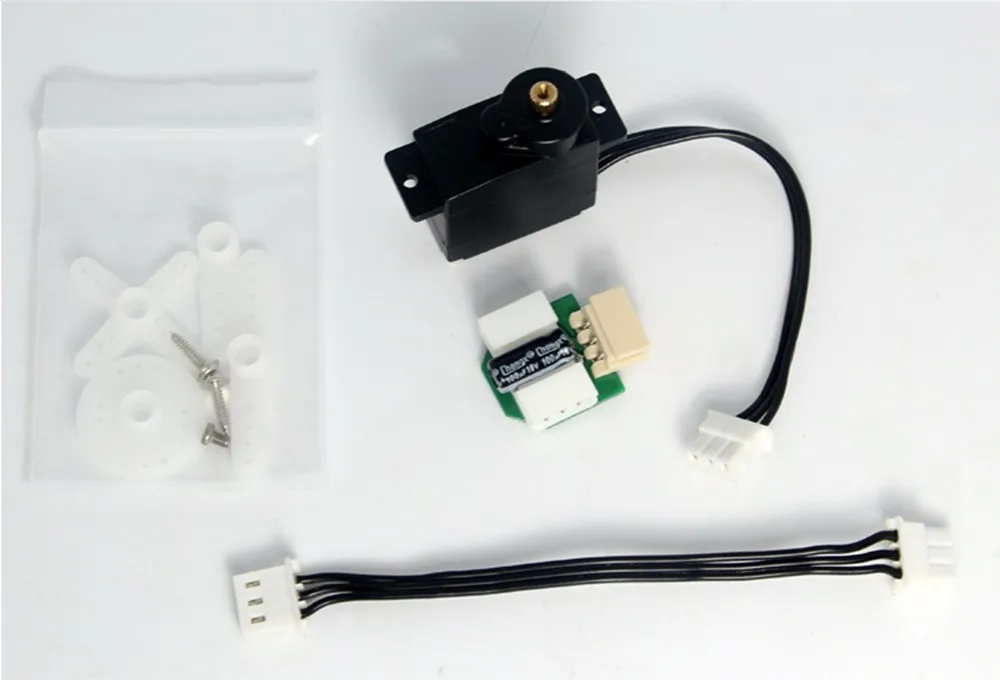

Full Packaged

-Servo×1PCS

-Servo arm×1 bag

-GW:9g







Shipping
We adopt EXW term. Generally, we choose, DHL, FedEx, EMS or UPS as our forwarder. Of course, you can choose your own most favorable forwarder, and we would provide the freight bill according to the quantity and weight of the total products, Freight Collect can also be acceptable.






We also specialized in ODM and OEM

 We can provide Customized service:

1.Customized Various of wide working voltage servo (4.8-12V)



2. Customized Dual working mode servo

(1.continuous rotation motor mode   2.Rc servo work mode)



3.Customized large angle servo(0-360°& 360* n °multi circles

and any angle controllable servo)



4.Customized Various of special function servo



5.Customized Various of Communication level Serial Bus servo(TTL,RS485)



We have a strong R&D team,Perfect matching supply system,

we can finish R&D for various of special customized needs in short time

We expect to creat new value with clients together.



Payment
We adopt T/T,west union,paypal payment methods. After we receive your payment, we will arrange shipment. All banking charges and interest are charged to purchasers.
Warranty Procedure
As long as you choose to use FEETECH products, you can enjoy the warranty service that we provide. Please print our Repair Request Form (.PDF, .DOC) and fill it out in its entirety, being as comprehensive as possible, in order to receive the best possible service.
Warranty Period
All FEETECH products are warranted against defects for a period of one (1) years from the date of purchase. During this period we will repair or replace (at our discretion) any defective products. You should always retain your original receipt as proof of the date of purchase.
