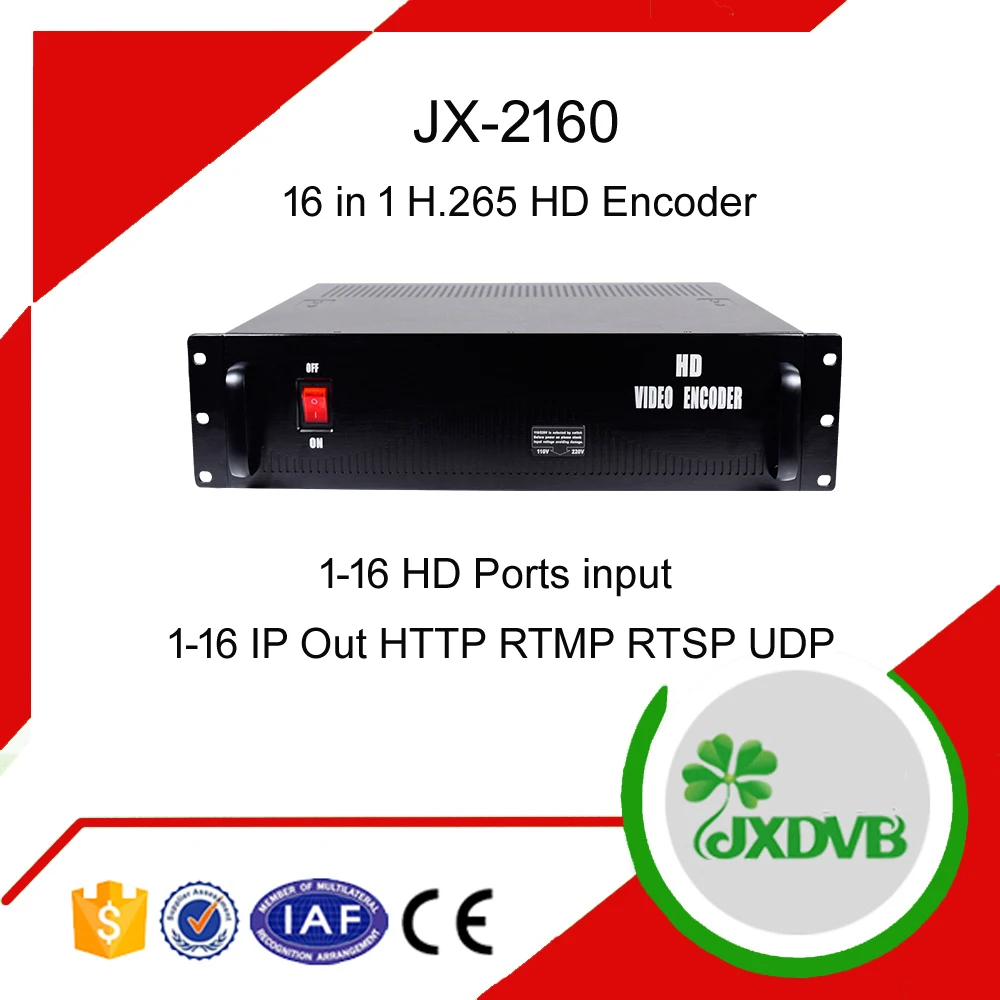

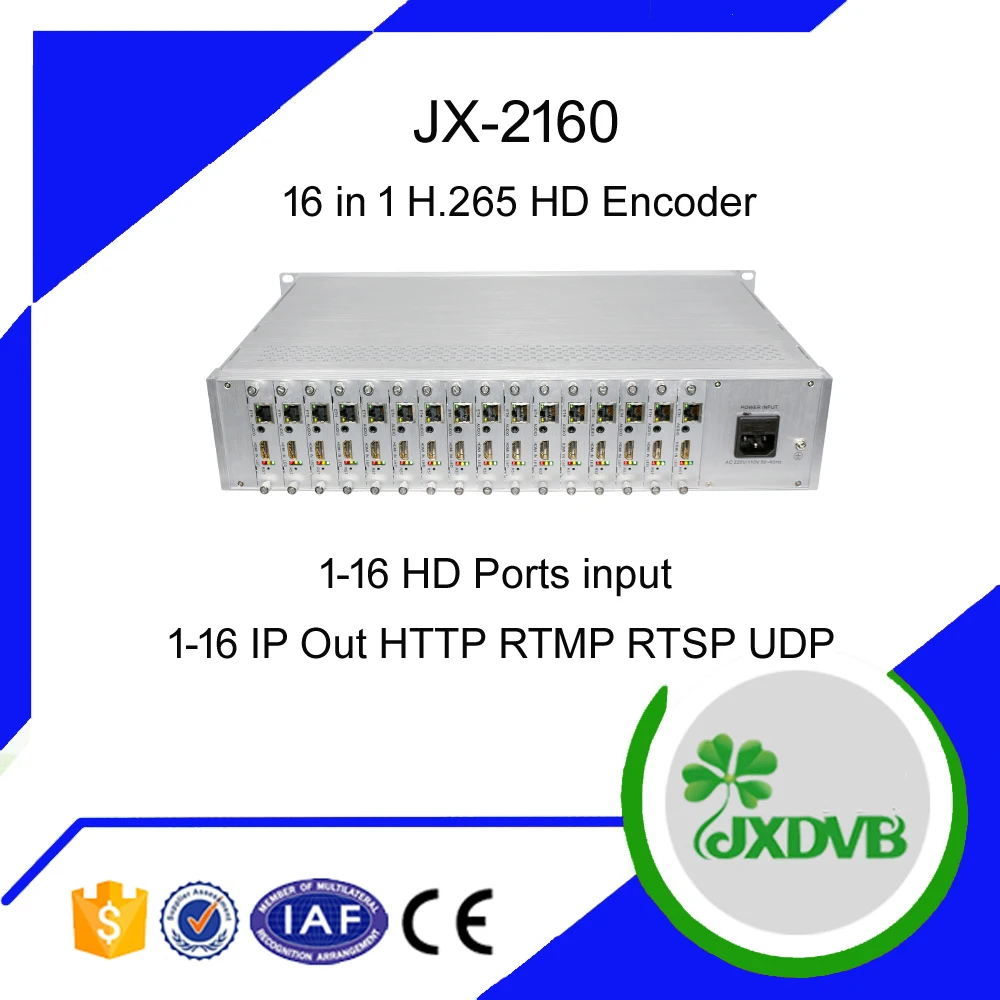

Low Bitrate 16Channels HD 1080P H 265 IPTV Video Hardware Encoder
- Category: >>>
- Supplier: Chengdu Jiexiang Technology Company Ltd.
Share on (60659124178):
Product Overview
Description
Low Bitrate 16Channels HD 1080P H 265 IPTV Video Hardware Encoder
Skype: live:jiexiang02 to contact Jaylyn for final price
Product model | 2U HD encoder | |
Input | 16-channel HD input, 16-channel 3.5MM audio input | |
Output | 16-channel IP signal output | |
Video | Input resolution | 1920x1080p/1920x1080i/1280x720p/720*576i/720*576p /640*480i etc |
| Coding standard | H.265/H.264 |
| Coding level | H.265 MAIN PROFILE H.264 BASELINE PROFILE H.264 MAIN PROFILE H.264 HIGH PROFILE |
|
Encoded size | 640*360~1920*1080( customized) |
| Video bit rate | Rate control: CBR/VBR 16KBIT/S~12MBIT/S |
| Video frame rate | 30/60 |
Audio | Input selection | 16- channel embedded audio HD, 16 -channel 3.5MM independent audio (Support audio gain) |
| Audio coding | AAC/MP3/G711 |
| Audio bit rate | 64Kb/s~384Kb/s |
| Sampling rate | 32000,44100 48000 etc |
IP output | 16 RJ 100M / 1000M adaptive Ethernet port, TS stream standard, dual-stream, ONVIF protocol | |
System | Network protocol | Supports HTTP, RTSP, RTMP, UDP, multicast, unicast |
| Configuration management | Support IE configuration, remote upgrade |
The common use | Power supply | AC 110~220V |
| power consumption | <100W |
| Size | 360mm * 485mm *98mm(length*width*height) |
| Operating temperature | -20℃+ 60℃ |
| Working humidity | <90%,Non-condensing |
