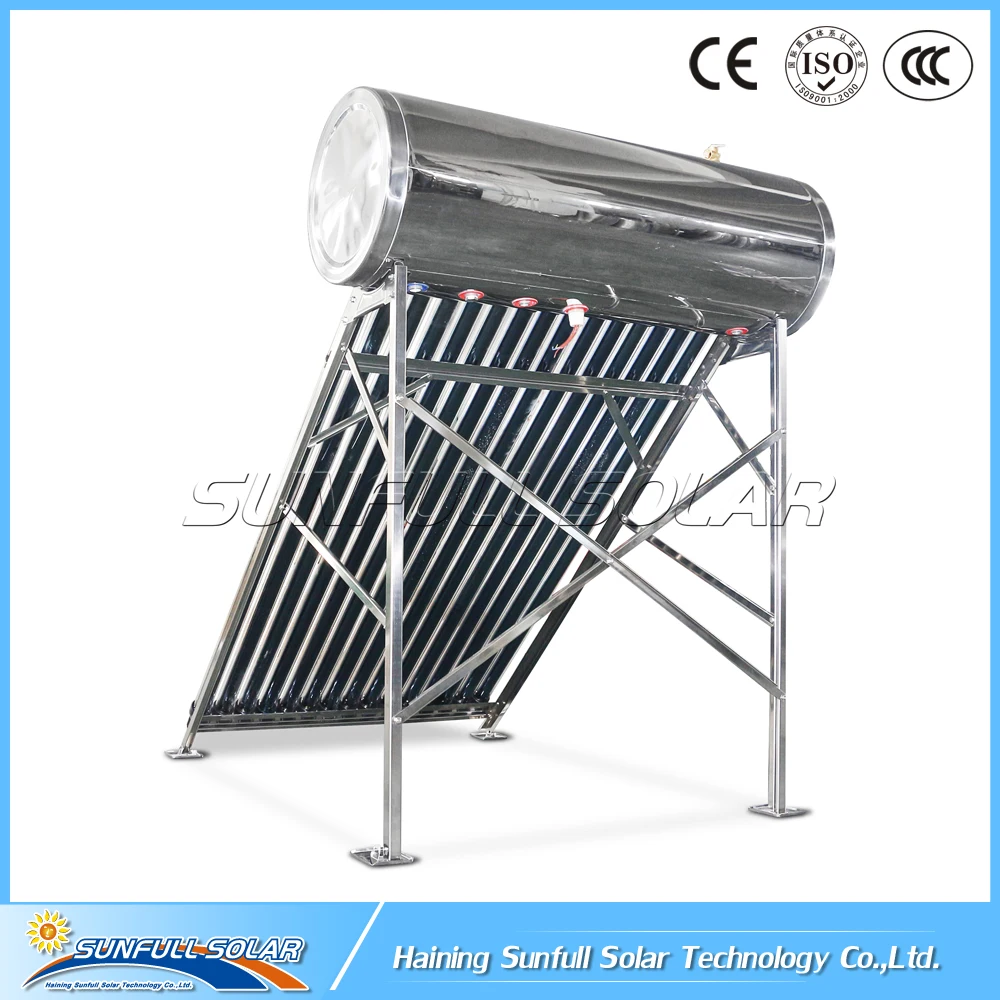

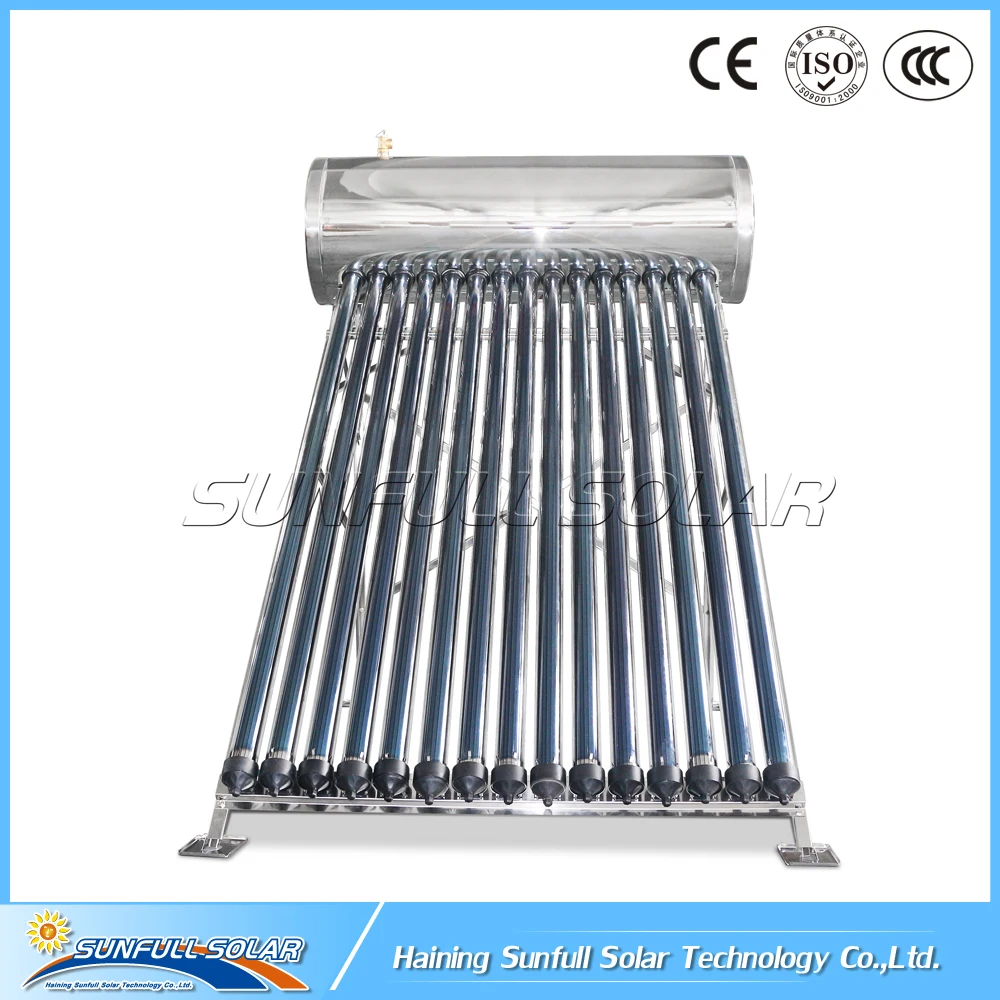

New design compact pressurized stainls steel solar water heater 150L

Product Overview

Description



Feature:

-Pressurized type supplies hot water efficiently,and can be connected directly with city water.

-It uses heat pipes to transmit heat energy and works rapidly.

-Because of no water in the vacuum tubes,the tubes will not be frozen to break in the winter.

-Each vacuum tube works alone,so the system can be still in service even with occasional tube breakage.

-Simple structure,easy to assemble and install.



Specifications:

-Inner Tank:SUS304-2B(food grade)Stainless Steel

-Outer Tank:Stainless Steel/Galvanized Steel

-Insulation Layer:Polyurethane Foaming

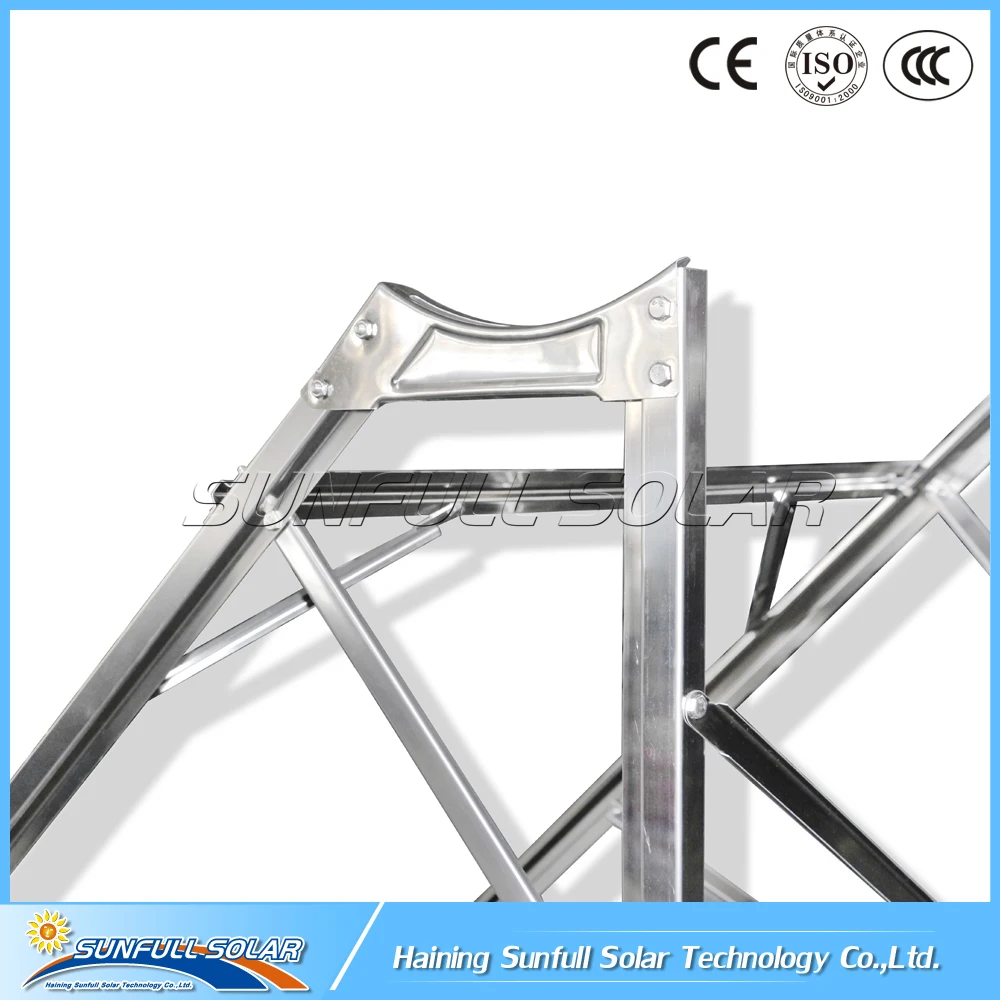

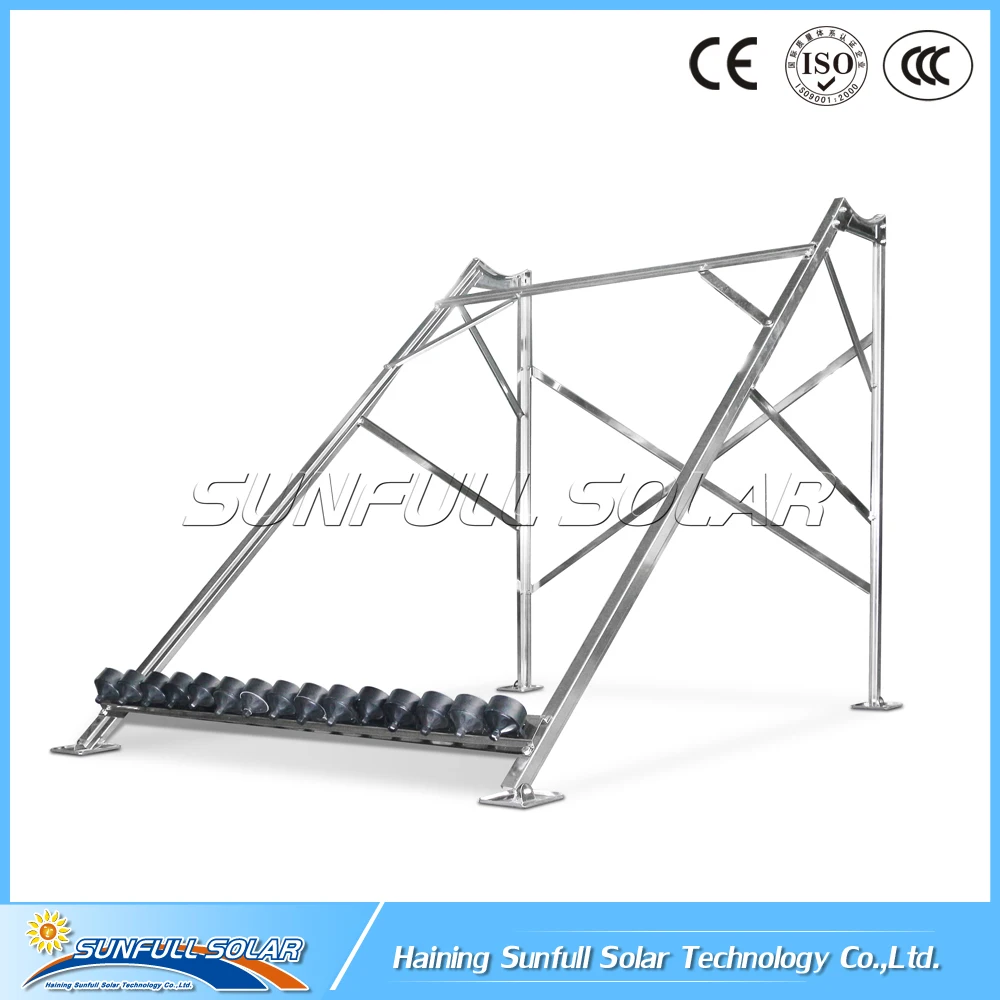

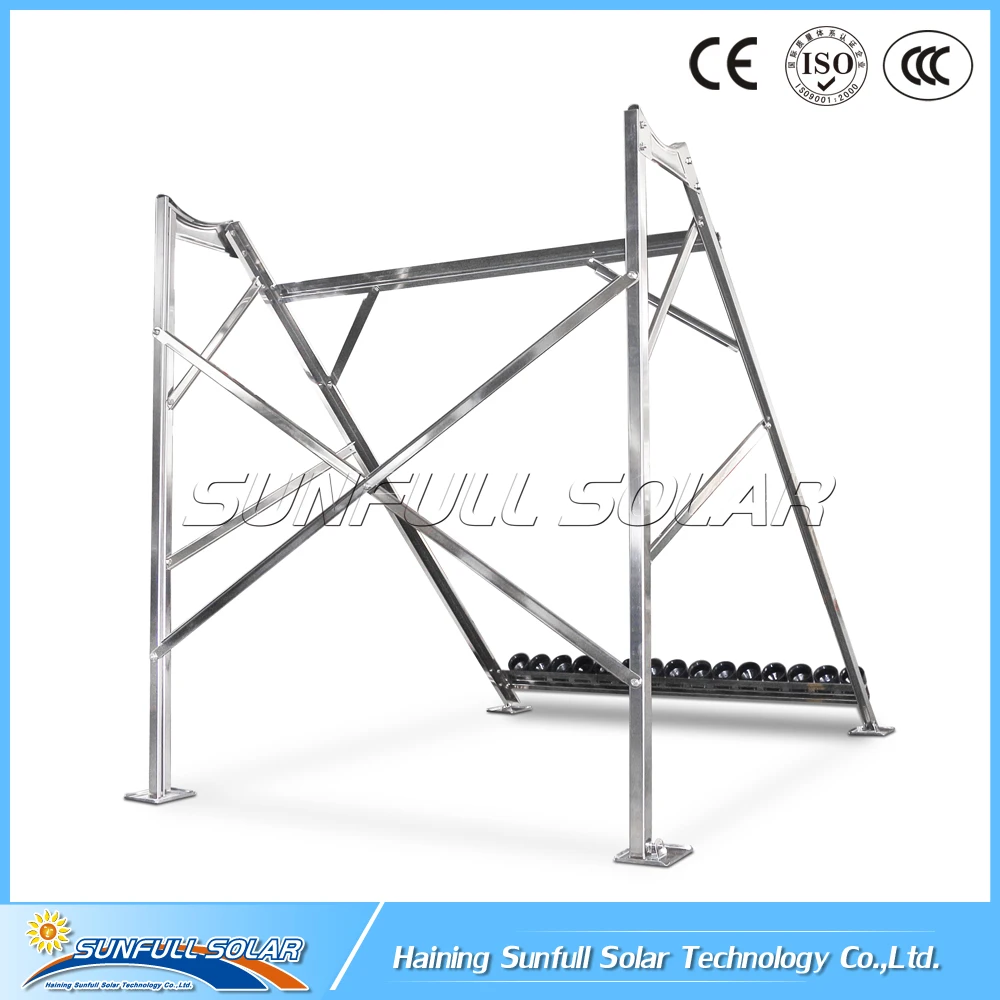

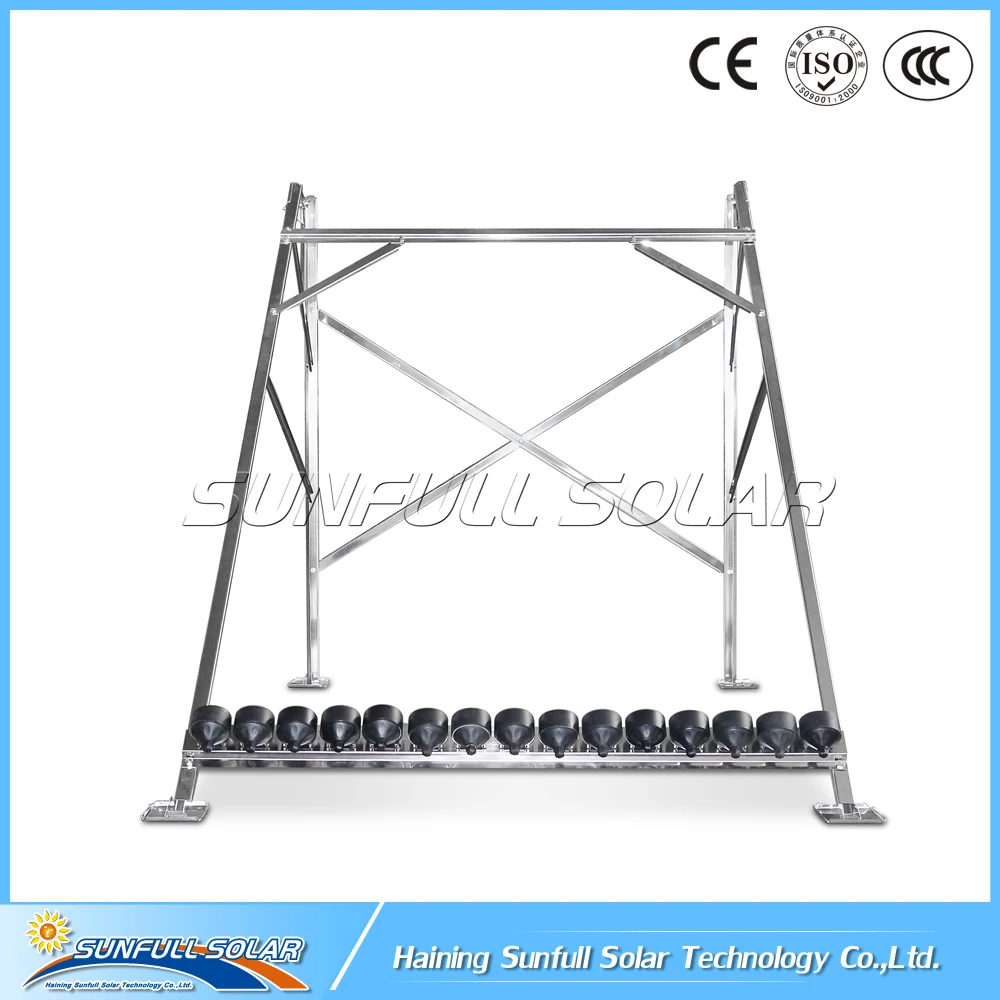

-Bracket:Stainless Steel/Galvanized Steel

-Heat Pipe Vacuum Tube:3-Target Vacuum Tube with AIN/AIN-SS/CU coating and -Copper Heat Pipe inside

-Size:φ58×1800mm

-Tube:15,18,20,24,30pcs

-System Capacity:150-300L

-Working Pressure:0.7Mpa(7 Bars)

-Optional Accessories:Electric Heater,Controller,Magnesium Stick,Reflector and so on.
