-Most of hot air is circled in the oven. The hot efficiency is very high, so that the energy source can be saved.
- There are adjustable distributing plate in the oven, the raw material can be dried evenly by the effect of forced ventilation. The heat source can be adopted by steam, hot water, electricity, far infrared.
-The whole machine has the characteristic of low noise, running balance, automatic temperature control, so that it is easy to installation and maintenance.
-There are wide scope of application, it is suitable to all kinds of raw material, and it is universal dryer.
Relevant explanation

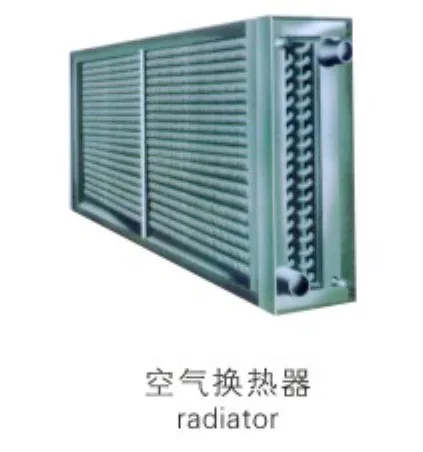

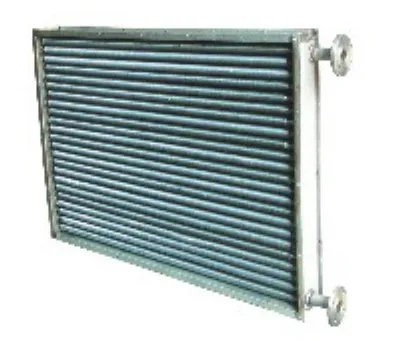

-The heat source can be steam, electricity, far infrared, or steam + electricity. Customer can select one of heating ways in accordance with actual conditions.
-The temperature of operation: steam heating: 50-140℃, max: 150℃
-The temperature of far infrared: 50-500℃
-There are automatic and computer control system can be selected by customer.
-The normal pressure of steam: 0.02-0.8Mpa(0.2-8kg/cm2)
-The heating of power distribution: 15kw is calculated according to Model I and the operational power is 5-8kw/h
-It should indicate it in order if there are special requirements.
-The price of non-standard oven shall be discussed additionally.
-It should indicate it in order if the operation temperature is more than 140℃ or less than 60℃.

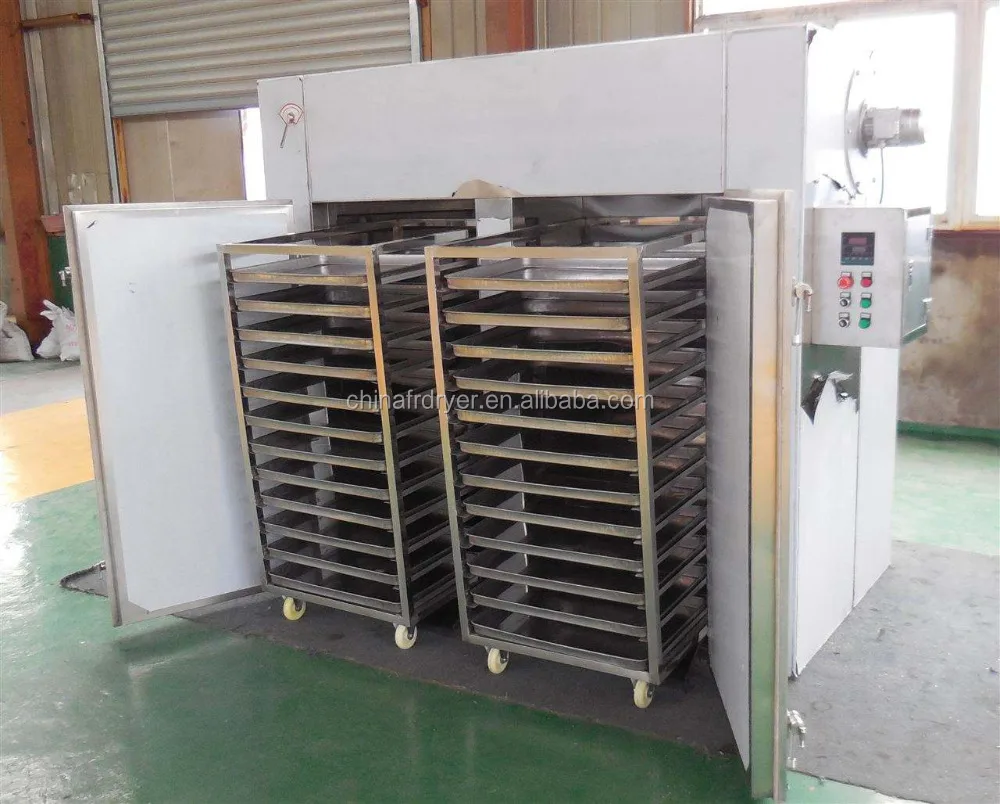

-The size of drying trolley and tray is standardized. They can be exchanged each other.
-The size of drying tray: 460mm*640mm*45mm

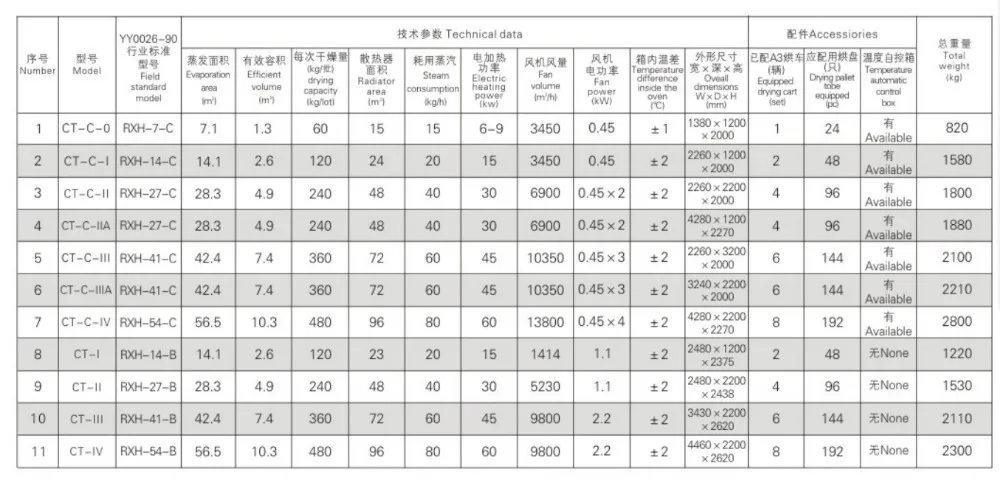

Technique Parameters
Outer wall materials of oven include A steel, staineless steel, inner wall material of oven include aluminium alloy, stainless steel, drying trolly material including stainless steel plate, galvanized plate.
