High Temp Ex proof Water Cooling air cooled cctv camera housing
- Category: >>>
- Supplier: Shenzhen SafeEye Technology Co. Ltd.
Share on (60659363634):
Product Overview
Description
Product Description

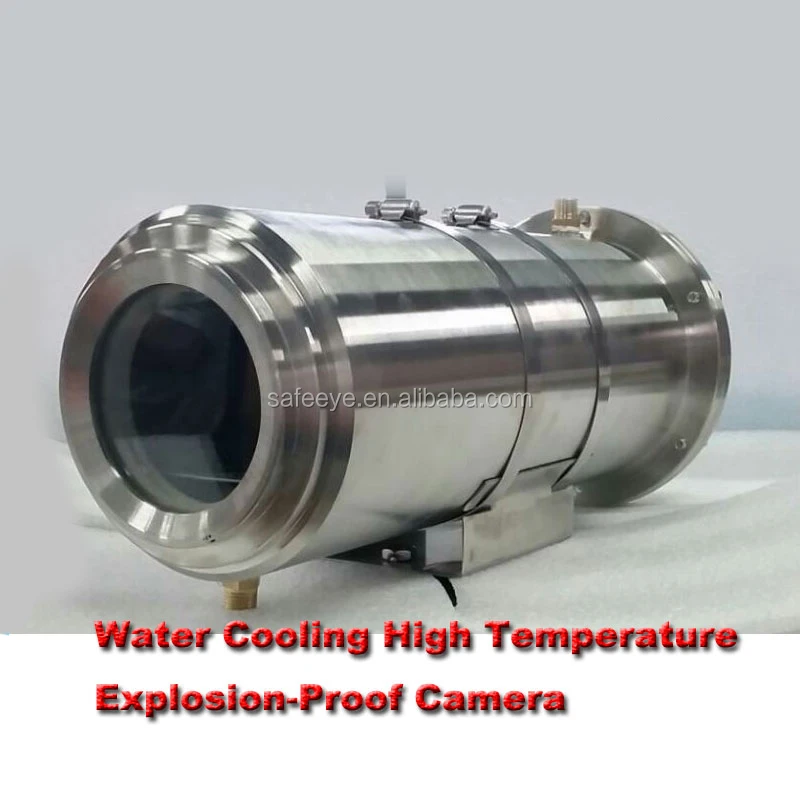

IP68 High Temp Ex-proof Water Cooling air-cooled cctv camera housing
Model: EX109
Ex-mark: ExdⅡCT6/DIP A20 TA,T6 IP68 explosion proof cameras
Material:304Stainless Steel
Description:
SafeEye EX109 high temperature explosion proof camera housing takes the double stainless steel,
dissection can be water, cold air and other cool media. It suits for the circumstances with high
temperature, and with explosive gas and dust. The inner construction is broad, and can install any
kinds of CCD camera or integration camera. It is used in a wide range, the enclosure protection is
high. It is widely used in steel, glass factory.
Housing Specifications
| 1 | Atmospheric Pressure | 80KPa~106Kpa |
| 2 | Ambient Temperature | Air cooling: –25°c~+150°c |
| Water cooling: 0°c~+200°c | ||
| 3 | Relative Humidity | No more than 95% (+25°c) |
| 4 | Ex-proof Marking | ExdⅡCT5/DIP A20 TA, T5 |
| 5 | Enclosure Protection | IP67 |
| 6 | Voltage Input | 220VAC, 50Hz (optional) |

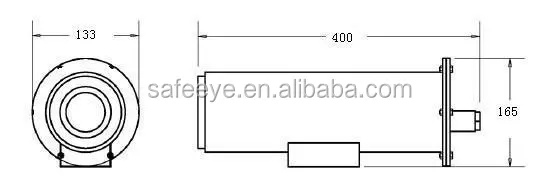

| 7 | Outer Dimension | 400(L) mm×165mm × (W) 133mm (H) |
| 8 | Largest installation | 290(L) mm x 100mm (H) x 90mm (W) |
| 9 | Material | SS304 (chemical factories, outdoors and so on) |
| SS316L(sea environment, oil tankers and so on) | ||
| 10 | Net weight | 9.1Kg |
| 11 | Installation | Wall, hanging or put it on the pan/tilt. |
Camera Parameters:
Model | EX109(1080P) | |
Certificate of Conformity (Electrical Apparatus for Explosive Atmospheres) | ||
Marking | ExdⅡCT6 / DIP A20 TA,T6 | |
Cer. No | CNEx11.0277 | |
Electrical features | ||
Input voltage | DC12V(PoE power Supply) | |
Working current | ≤2A | |
Camera | Image sensor | 1/2.8" IP Sony CMOS sensor |
| Resolution | 1920×1080 |
| Backlight Mode | digital broad dynamic technology, backlight compensation |
| Accumulating frames | automatic,four times maximum |
| Lens | 4mm/6mm/8mm/12mm, Varifocal (2.8-12mm) optional |
| Signal-to-Noise Rati | >52dB |
| WDR,high dynamic range ,control over automatic gain correction | |
IR | switch | Optional |
distance | Optional | |
Wavelength | Optional | |
Electrical Connectivity | Composite cable | |
Environmental | ||
Rated Temperature | Water cooling: 0°c~+200°c ;Air cooling: –25°c~+150°c | |
Atmospheric Pressure | 86~106kpa | |
Relative Humidity | ≤95%RH(±25°C) | |
Explosion-proof mark | ExdⅡCT6 / DIP A20 TA, T6 | |
Camera Working current | ≤ 0.3A | |
Wiper power supply | 220VAC /DC12V/100V-240V Optional | |
When the heater (optional) | / | |
Power consumption | / | |
Material Stainless steel | 304 or 316L | |
Weight | 10kg | |
Protection class | IP68 | |
Outer Dimension | 400(L) mm×165mm × (W) 133mm (H) | |
Inner dimension | 290(L) mm x 100mm (H) x 90mm (W) | |
Number of outlet holes | 4 | |
Outlet thread size | G-3/4 " | |
Installation | Eelectric PT head, semi-fixed head | |
Our Services
- The product is based on Ex-works for 1-50pcs, FCA shenzhen for 50-500pcs, FOB shenzhen for above 500pcs.
- Payment term:100% payment in advance before shIpment (T/T, Western Union ,paypal,cash or any other means at your convenience)
- Delivery Time:sample order: 1-3 working day, Normal order:longer than 3 working days according to the order quanity
- All the above products have CE ,FCC and ROHS certificates
- Welcome OEM & ODM order,MOQ for OEM is 50pcs/model
- Power adapter isn't included in above prices, it's optional
- Price Validity: 30 days from issuing date.
- Warranty: 2 years after receiving goods,unlimited lifetime Technique support.
- If quanity more than 100pcs one model, we will free supply some camera parts for preapre exchange
FAQ
What the Payment terms:
T/T,Western Union,VISA,Mastercard,Escrow, paypal and so on.
1. We can arrange to produce in advance once we get the bank slip of deposit.
2. Order value less than 20,000USD, 100% payment before production;
3. Order value more than 20,000USD, 30% deposit. 100% paid before shipment.
Q.May I print our company logo on package box and products?
A:Of course,buyer logo is welcome in our company.We have one production line for printing buyer logo.
Q.Do you provide warranty for your products?
A:Yes,we promise two years warranty for all our products.
Q.What is Minimum Order Quantity?
A:Min Order Quantity is 10pcs,but sample order is welcome.
Q: Can We to be your Agency in our Country?
A: Of Course, welcome to be SafeEye Security Products agency in your country, we will try best support for you.
