Explosion Proof Mini dome Infrared Camera for oil tank truck POE network and Analog optional
- Category: >>>
- Supplier: Shenzhen SafeEye Technology Co. Ltd.
Share on (60659452756):
Product Overview
Description
Product Description

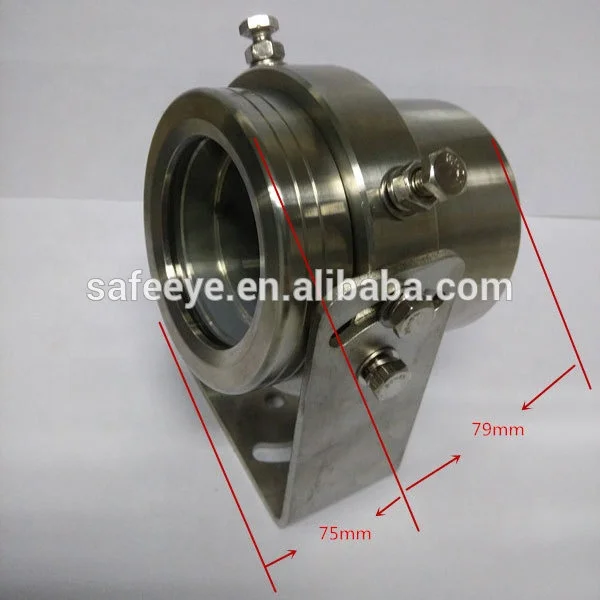

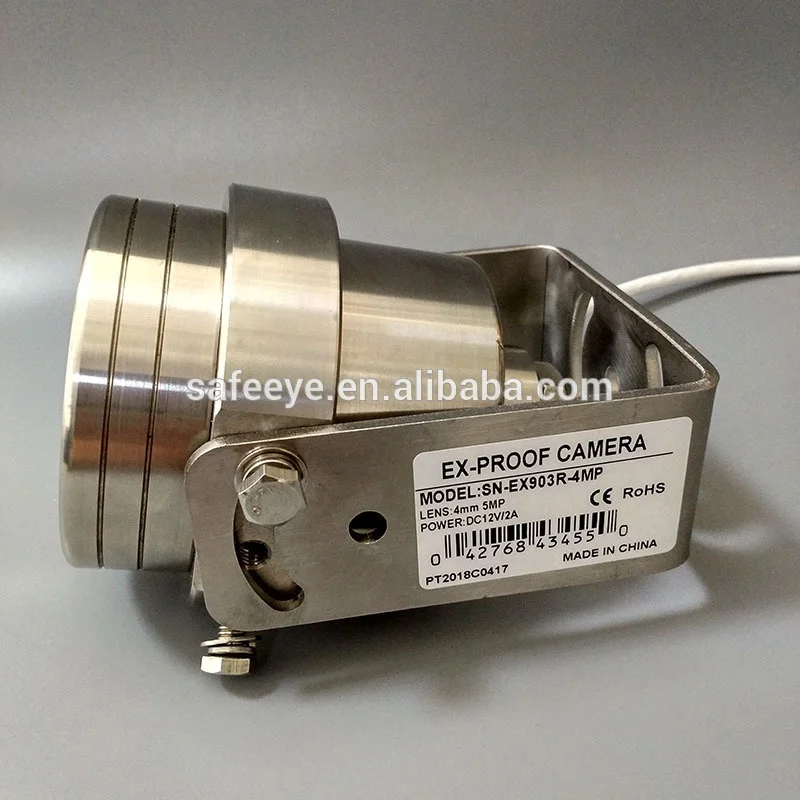

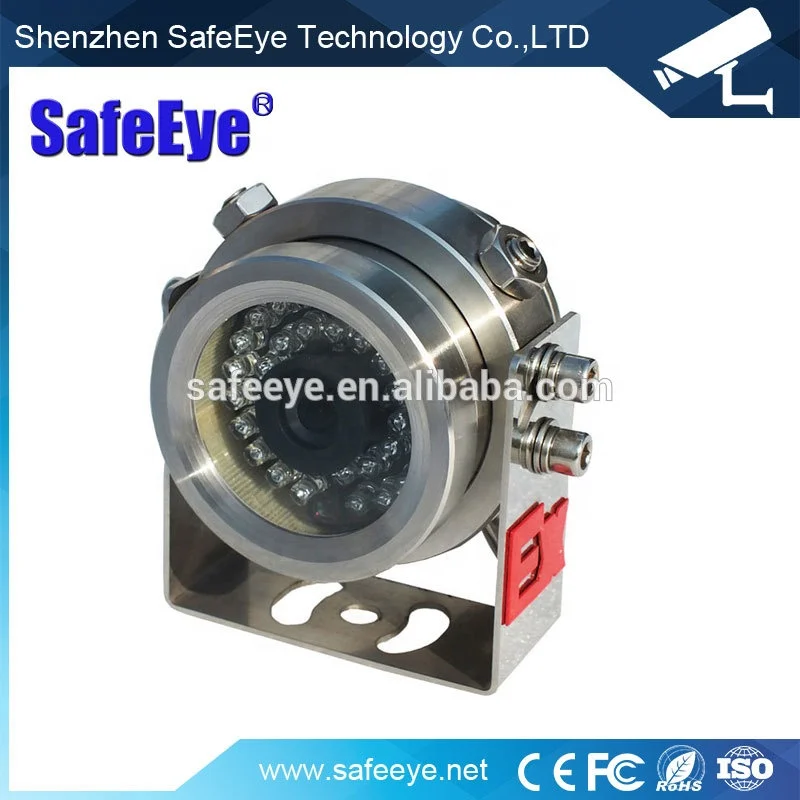

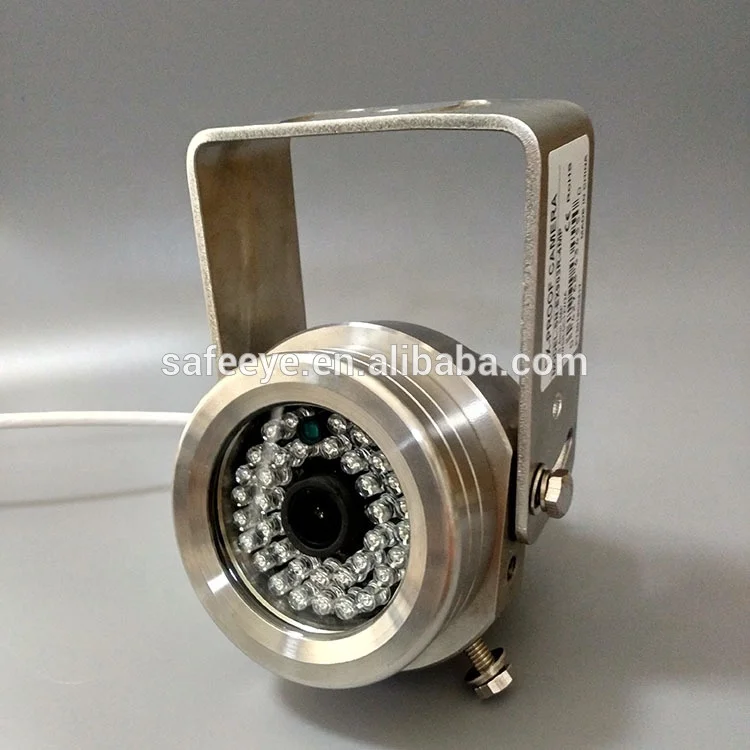

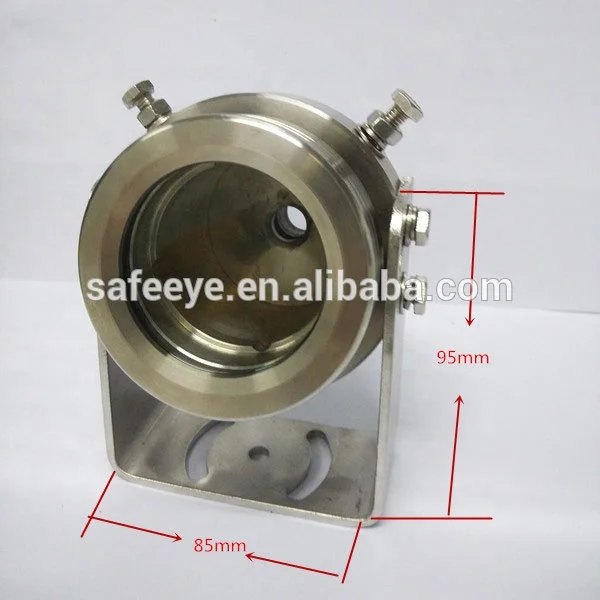

Analog Explosion Proof Mini dome Infrared Camera for oil tank truck
The explosion-proof performance accord with GB3836.1-2000 << Electrical apparatus use general requirements:Part1,which used under explosive gas atmospheres environment>>, GB3836.2-2000 << use explosion-proof electrical equipment under explosive gas environment : Part 2, Exd explosion proof "d" >> standard and make Exd explosion proof structure.
Explosion-proof level :
ExdⅡCT6 / ExdⅡBT6
Product Material:
high quality Carbon steel(optional to select to use stainless-steel material in corrosion environment)
Specifications
Explosion proof camera
Cgrade EX-proof, night vision, waterproof
Explosion proof mark: ExdIICT6
Ideal for oil tank truck
C grade Ex-proof,true color ,infrared light auto work in 15-30meters distance,
2.8mm/3.6mm/4mm/6mm lens optional
aluminum alloy material,protection level IP68,
small size, less weight and could be used in special place
which has limit space and weight requirements,such
as:oil tank truck,oil adding machine,small
warehouse,explosion -proof lift etc.
| model/signal type | KBA303R PAL/NTSC |
| Ex mark | ExdIICT6 |
| Protection grade | IP68 |
| connection type | composite cable output |
| Image sensor | SONY CCD/COMS |
| resolution | 1200 TVLine/1080p AHD& IP 1080P Optional |
| Min illumination | 0.0013LUX/0Lux(infrared on) |
| Infrared invisible distance | 10/15/30 meter |
| Infrared switch | Infrared light automatic on (infrared light on when light sum less than 0Lux) |
| lens | Standard 4mm;3.6mm-12MM optional |
| Material | Acid-base environment:304 Stainless steel Hydrogen environment:316L Stainless steel 45#carbon steel surface treatment |
| Work voltage | DC12V;POE optional |
| Work current | ≤500mA |
| Noise ratio | >50dB |
| Environment temperature | -40°C~+65°C |
| Atmosphere pressure | 86~106KPa |
| Relative humility | ≤95%RH(+25°C) |
| dimensions | :Φ160*130(mm) |
| Cable outlet specifications | G 1/2" |
| weight | ≤3Kg |
