Product Overview
Description

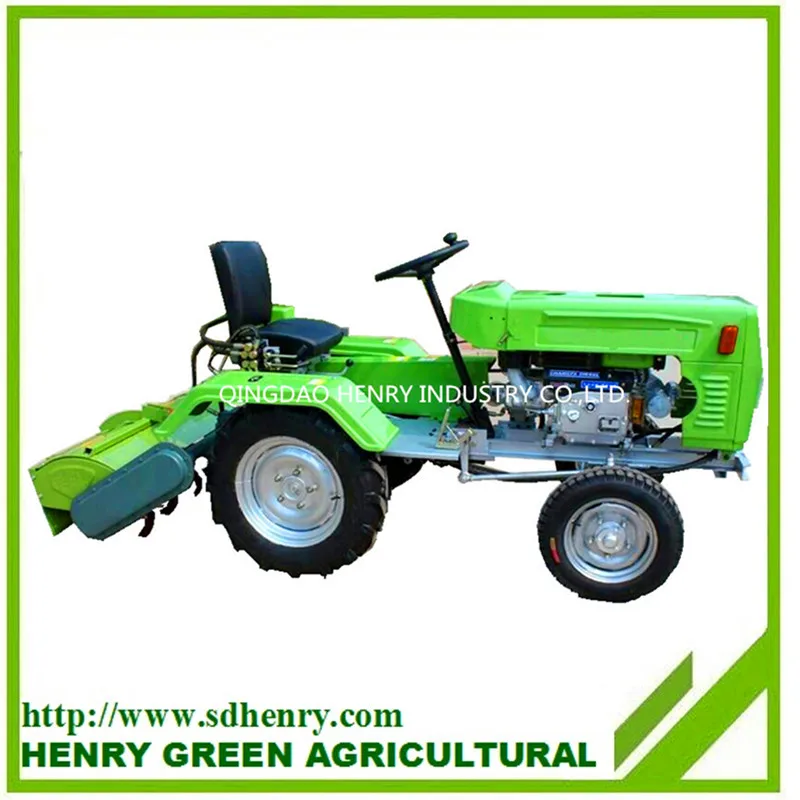

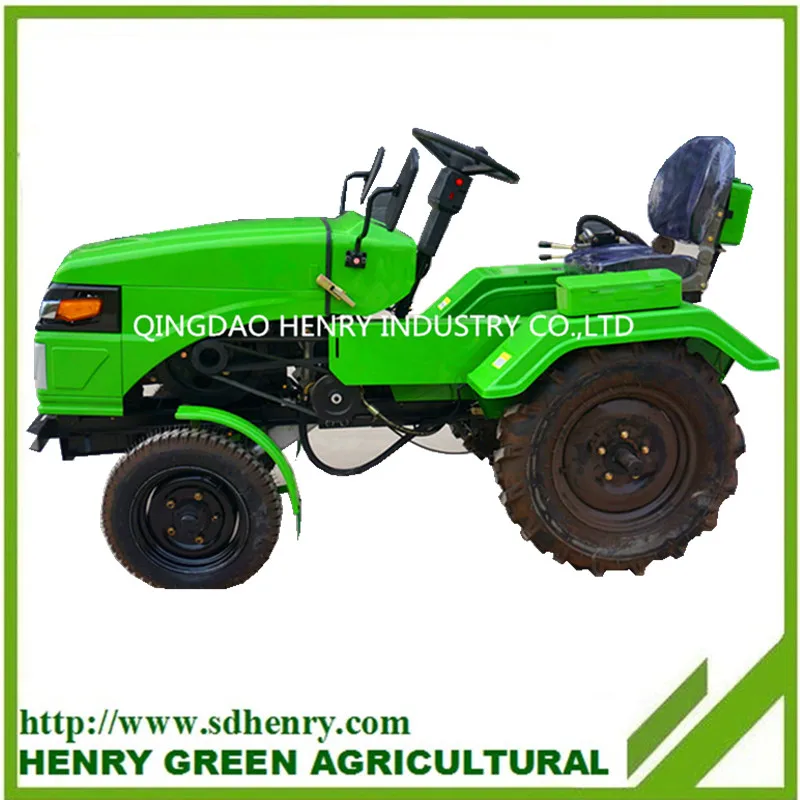

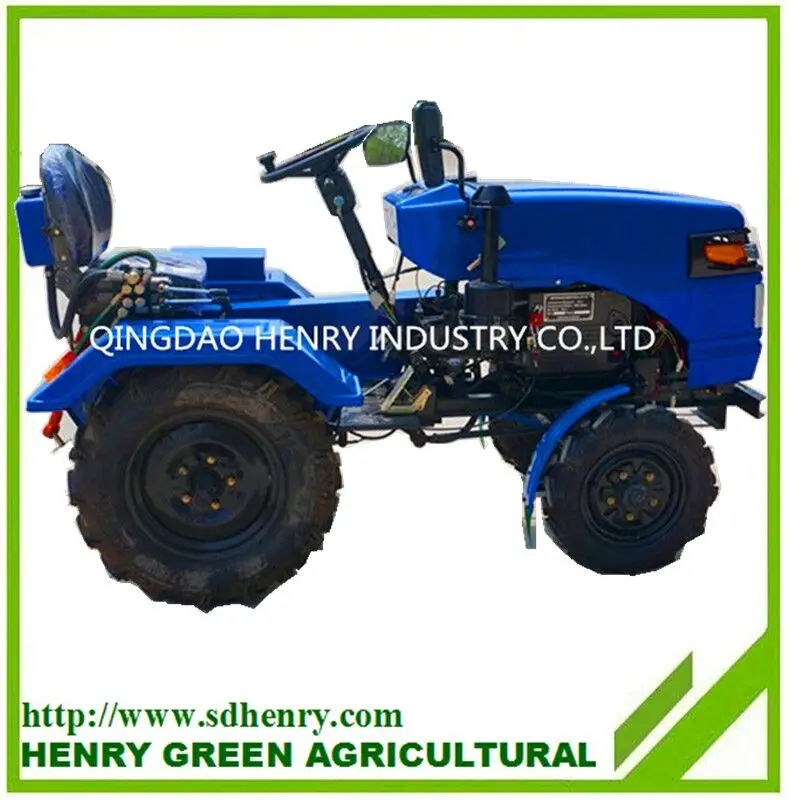

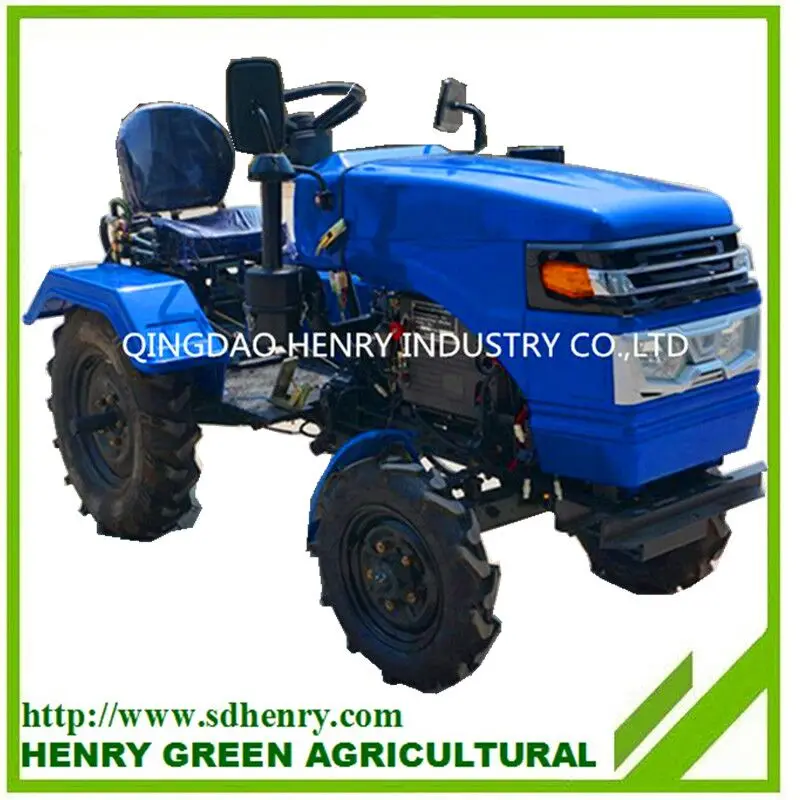

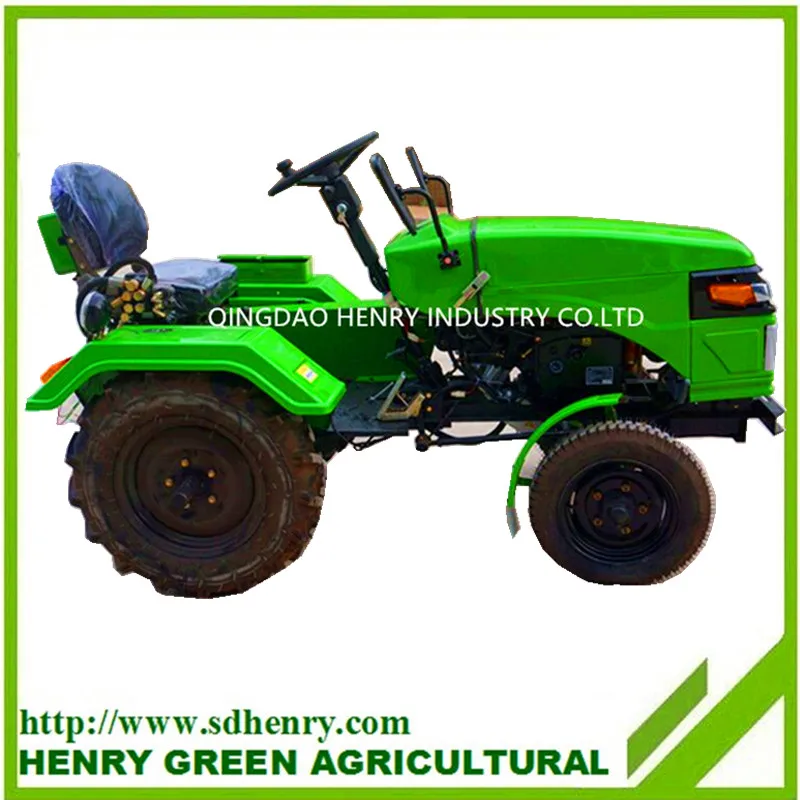

tractor agricole

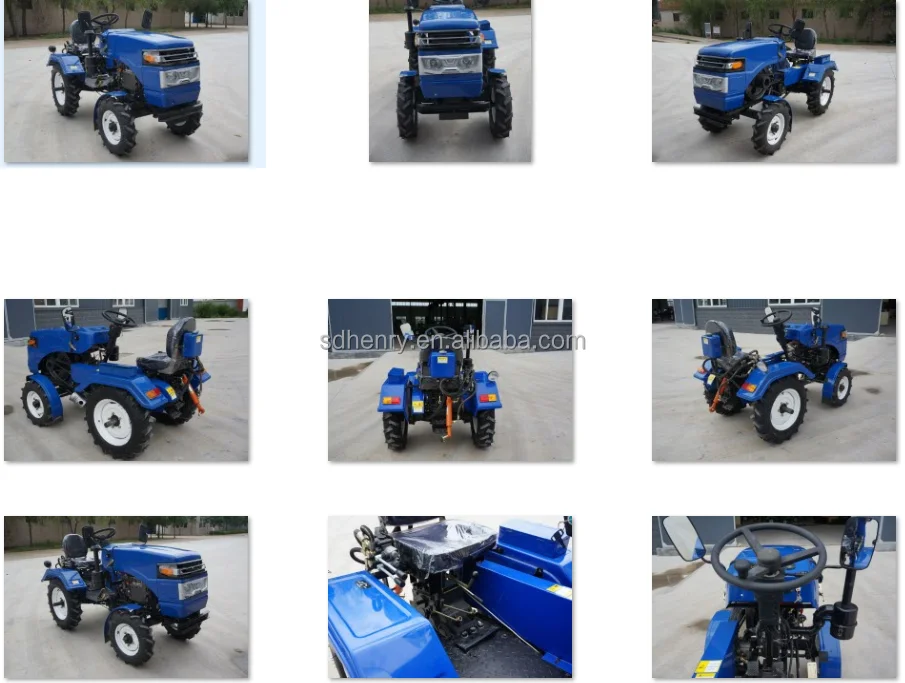

The mini tractor main have 12hp ,13hp ,15hp,18hp , they are suit for kinds of farm work and garden work.
| MODEL | HR120/130/150 | ||||||
| Overall dimensions:(L×W×H) | 2140×905×1175mm Without tiller | ||||||
| Overall dimensions:(L×W×H) | 2600×1000×1175mm With tiller | ||||||
| Front wheel size | 4.00-8/4.00-12 | ||||||
| Back wheel size | 6.00-12/6.50-16 | ||||||
| Ground clearance | 180mm | ||||||
| Working weight (with rotary tiller,plough) | 483kg/538kgs | ||||||
| Working weight (without anything) | 433kg/488kgs | ||||||
| Transmission style | Vee-belt tension | ||||||
| Vee-belt model | B3200 | ||||||
| Steering style | Steering wheel power steering system | ||||||
| Brakes | Two side wheel brake | ||||||
| Starter | Electric start | ||||||
| Seat | Adjustable | ||||||
| Gear style | (3+1)*2; 6 Forward, 2 Reverse | ||||||
| Speed | Forward | 1.68, 2.61, 4.22, 6.79, 10.57, 17.08 | |||||
| Reverse | 1.29, 5.22 | ||||||
| Rotary tiller | Transmission Type | Middle Gears Transmission | |||||
| Width | 1000mm Adjustable | ||||||
| Number of blades | 20pcs | ||||||
| Working depth | 150-250mm | ||||||
| Up and down control | Hydraulic system | ||||||
| Engine | Model | R195NDL | |||||
| Type | 1cylinder,4-stroke,horizontal,water-cooled,diesel | ||||||
| Cooling mode | Condenser (Radiator) | ||||||
| 1 hour power | 8.8kw/12hp | ||||||
| 12 hour power | 8kw/10.38hp | ||||||
| Combustion system | Direct Injection | ||||||
| Cylinder bore | 95mm | ||||||
| Piston stroke | 95mm | ||||||
| Compression ratio | 18:01 | ||||||
| Rated speed | 2400rpm | ||||||
| Fuel efficiency: | ≤245g/kw.hr | ||||||
| Displacement | 0.694L | ||||||
| Main farm implements | |||||||
| Seeder | Single Plow | Mower | 1 Ton Trailer | ||||

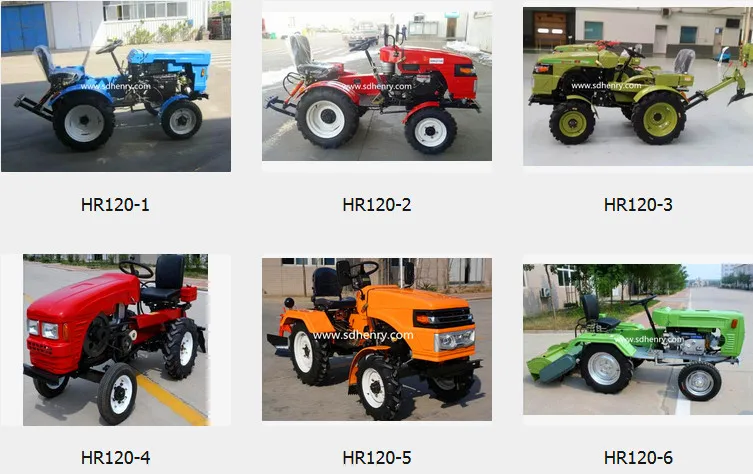

MORE MODEL CAN CHOICE:
Package:

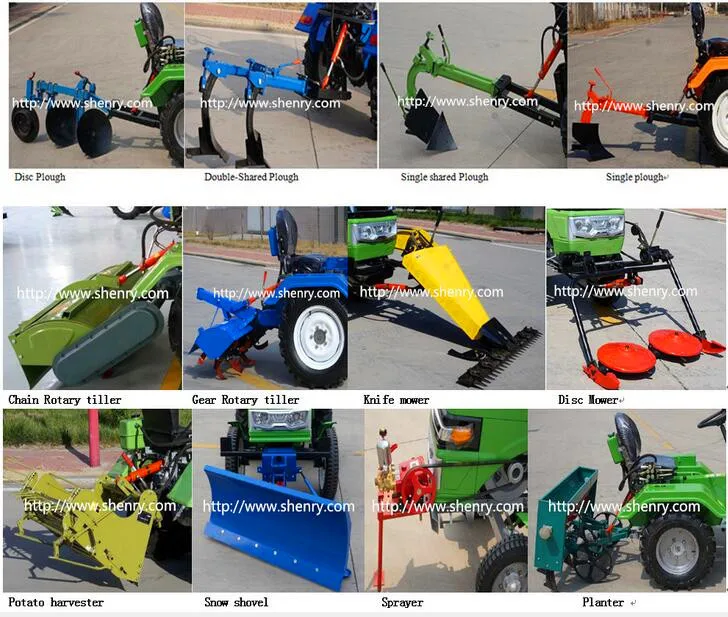

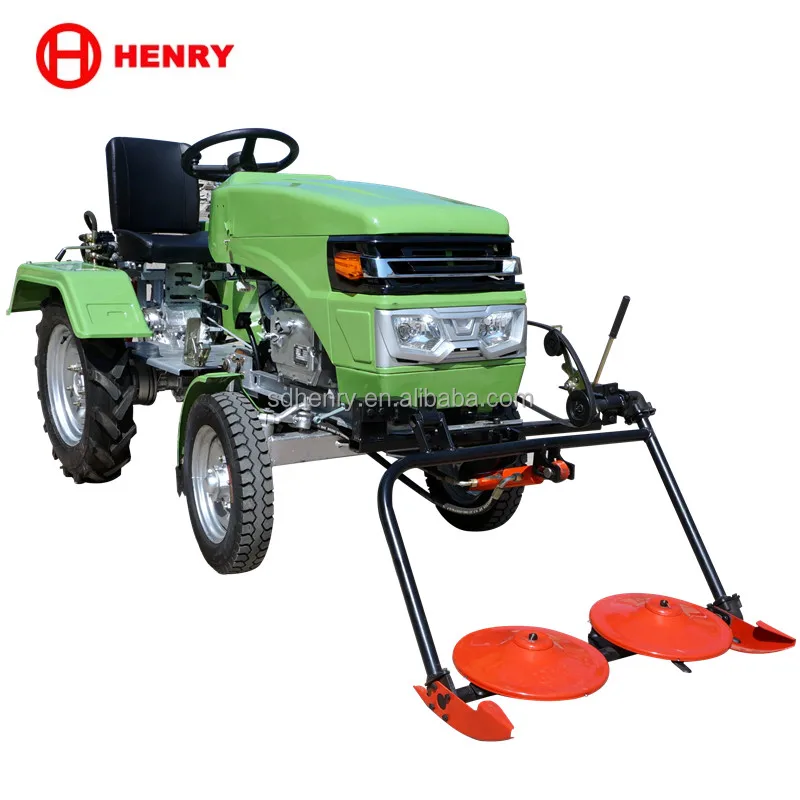

FOLLOW IMPLEMENTS CAN CHOICE:
OTHER MODEL CAN CHOICE: 13HP , 16HP ,18HP ,20HP 4X2WD,AND 4X4WD ,Big model 25hp,28hp,30hp, 35-260hp 4X2WD,4X4WD.

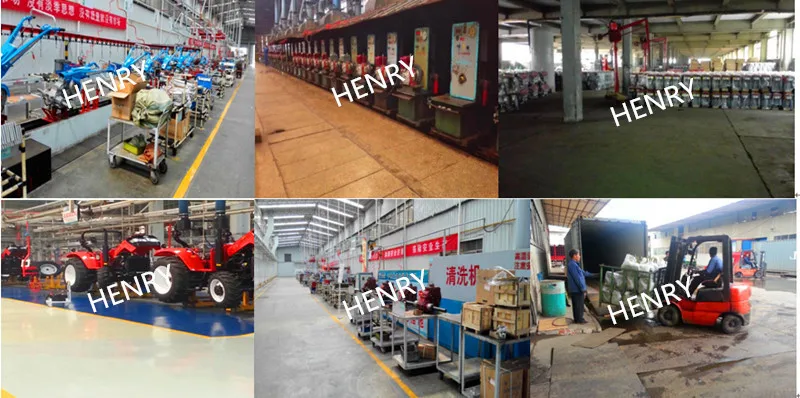

FACTORY SHOW
WHY CHOOSE US
1. Professional supply with certification: CCC, ISO,CE,DOT and so on
2. Perfect quality program. 100% test before delivery
3. One year guarantee.
4. OEM cervice.
5. Creative design team and first class quality equipments.
6. Design and Producing be customized.
7. Flexible payment. T/T L/C D/P,WESTERN UNION be accept.
BOTA BRAND walking tractor looking for sole agnt from every country and city.
