1000kg Platform scales Single Point Load cell Price

Product Overview

Description

1000kg Platform scales Single Point Load cell Price

Model: DLC629

Category: single point load cell

Range: 50kg,100kg,150kg,200kg,300kg,350kg,500kg,750kg,1000kg

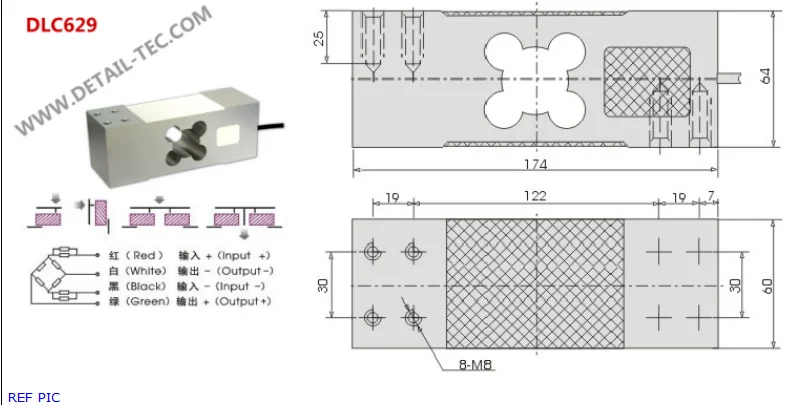

Dimension: 174*64*60mm

Material: Alloy aluminum

Application: electronic top scale, floor scale and other weighing equipment

Characteristic: platform scale load cell, 1000kg aluminum load cell





Specification of single point load cell



Specification
comprehensive error:	C2/C3	output resistance:	350±3Ω
Rated output:	2.0±0.2mv/v	Insulation resistance:	≥5000MΩ(100VDC)
Non-linearity:	0.02/0.017%FS	Excitation voltage:	9~12VDC
Hysteresis:	0.02/0.017%FS	compensated temp:	-10~+40ºC
Repeatability:	0.02/0.017%FS	use temperature:	-20~+60ºC
Creep:	0.02/0.017%FS/30min	temp effect on zero:	0.03/0.017%FS/10ºC
Zero balance:	±1%	Temp effect on span:	0.02/0.014%FS/10ºC
Input resistance:	405±10Ω	defend grade:	IP66





Working process of single point load cell















 Price,Package and Service

1. Price : EXW, FOB, C&F

2. Payment: T/T in advance, PayPal, Western Union.

3. Packing : standard export packing, including instructions and certificate

4. Leading time : 3-20 working days according to order quantity

5. OEM available

6. Shipment: Express (FedEx, DHL, UPS & TNT) or forwarder

7. 7 days free replace & 1 year free repair for quality warranty
