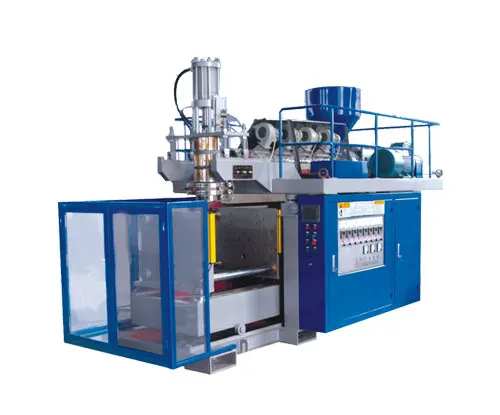

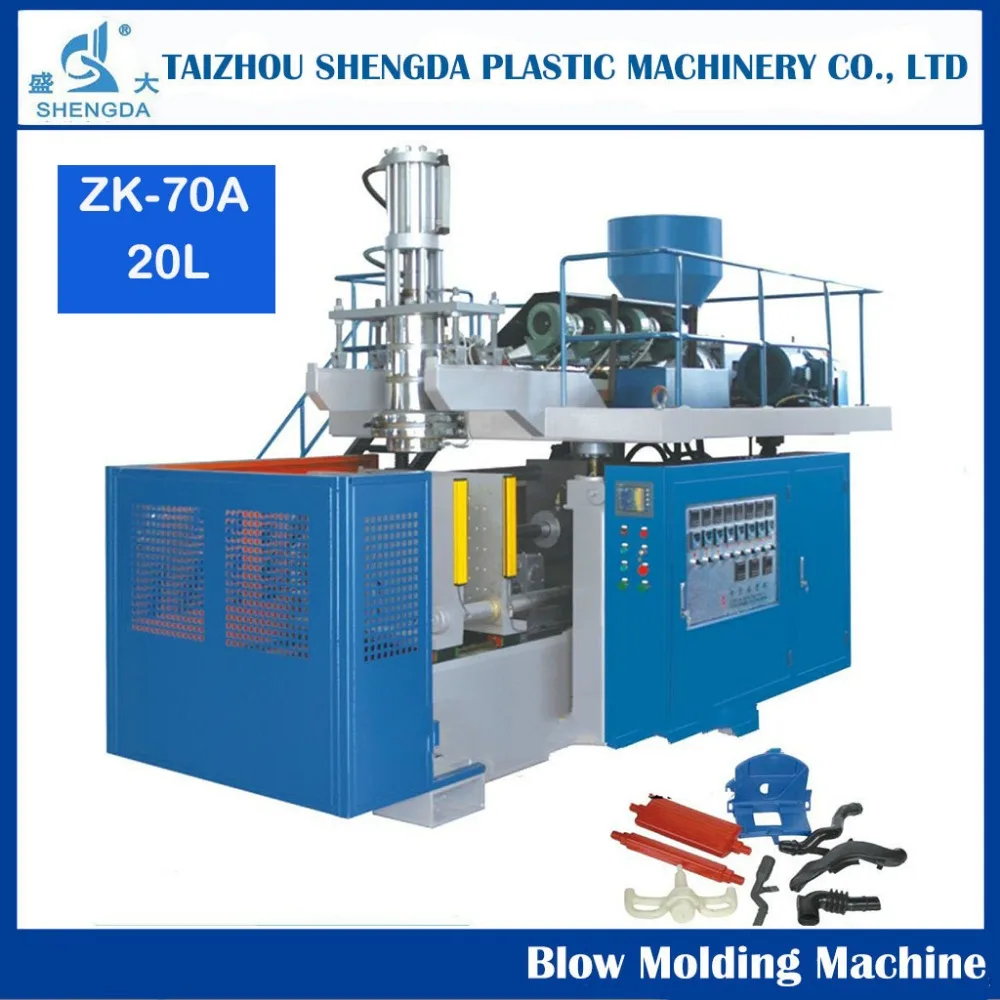

PC HDPE Hydraulic extrusion plastic blow molding machine
- Category: >>>
- Supplier: Taizhou Shengda Plastic Machinery Co. Ltd. [Zhejiang China]Taizhou
Share on (60659605334):
Product Overview
Description
WELCOME TO "SHENGDA"
Features:
1) Controlled by Japan mitsubishi PLC
2) Temperature controlled model

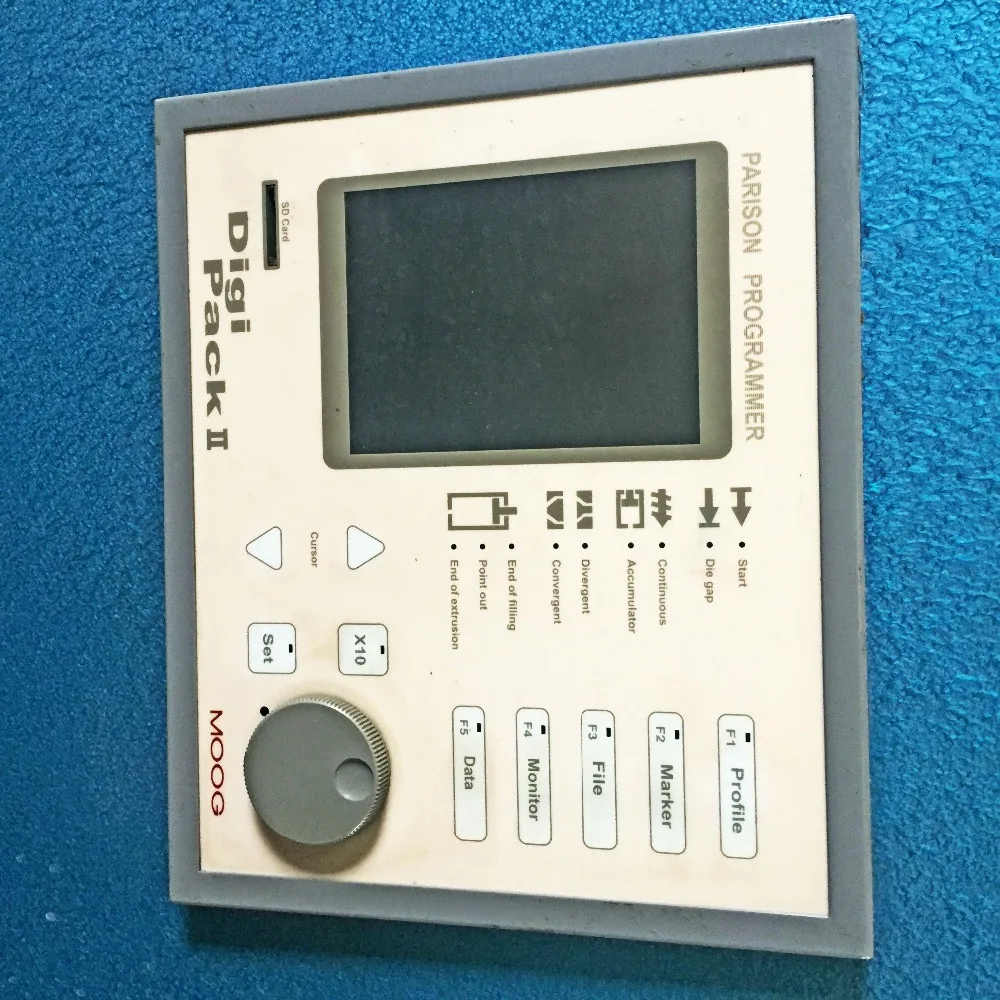

3) Interactive monitor with machine-human interface
4) Imported hydraulic elements
5) Proportional control
6) Imported electric elements
7) Hard gear surface reducer
8) Accumulator head with special steel
9) Vicker hydraulic valve, seal and proportional control
10) Japan mitsubishi PLC+ Taiwan human machine interface +software in touch type +famous brand electric elements.
Technical specifications:
specification | unit | ZK-70A |
max container capacity | L | 20 |
machine dimension | M | 4*2.6*2.7 |
total weight | ton | 4.5 |
clamping system |
|
|
clamping force | KN | 160 |
plate opening stroke | mm | 250-800 |
max mould size(W*H) | mm | 520*600 |
mould thickness | mm | 260-400 |
power |
|
|
max drive | KW | 7.5 |
total power | KW | 40 |
fan power for screw | KW | 0.72 |
air pressure | Mpa | 0.7 |
air consumption | m3/min | 0.9 |
average energy consumption | KW | 20 |
extruding system |
|
|
screw diameter | mm | 70 |
screw L/D ratio | L/D | 25:1 |
plasticising capacity | kg/hr | 60 |
number of heating zone | zone | 4 |
extruder heating power | KW | 10 |

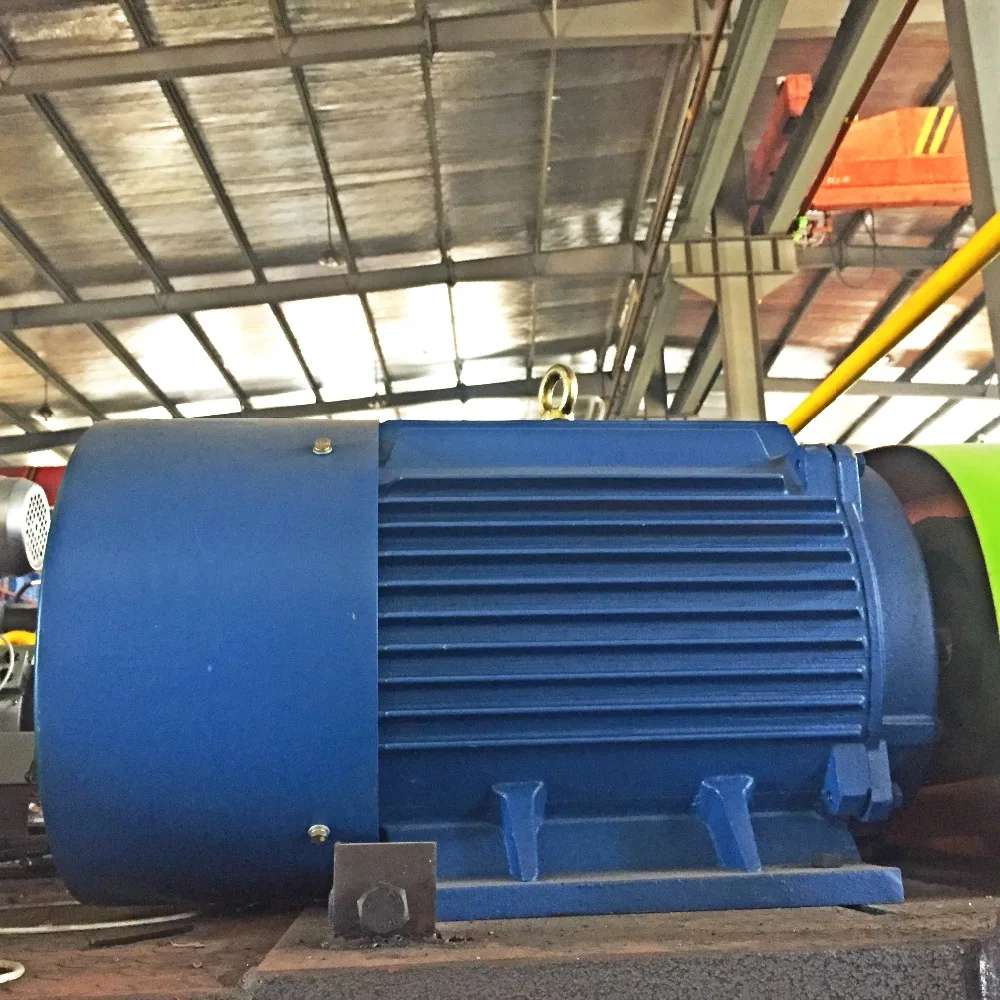

extruder driving power | KW | 11 |

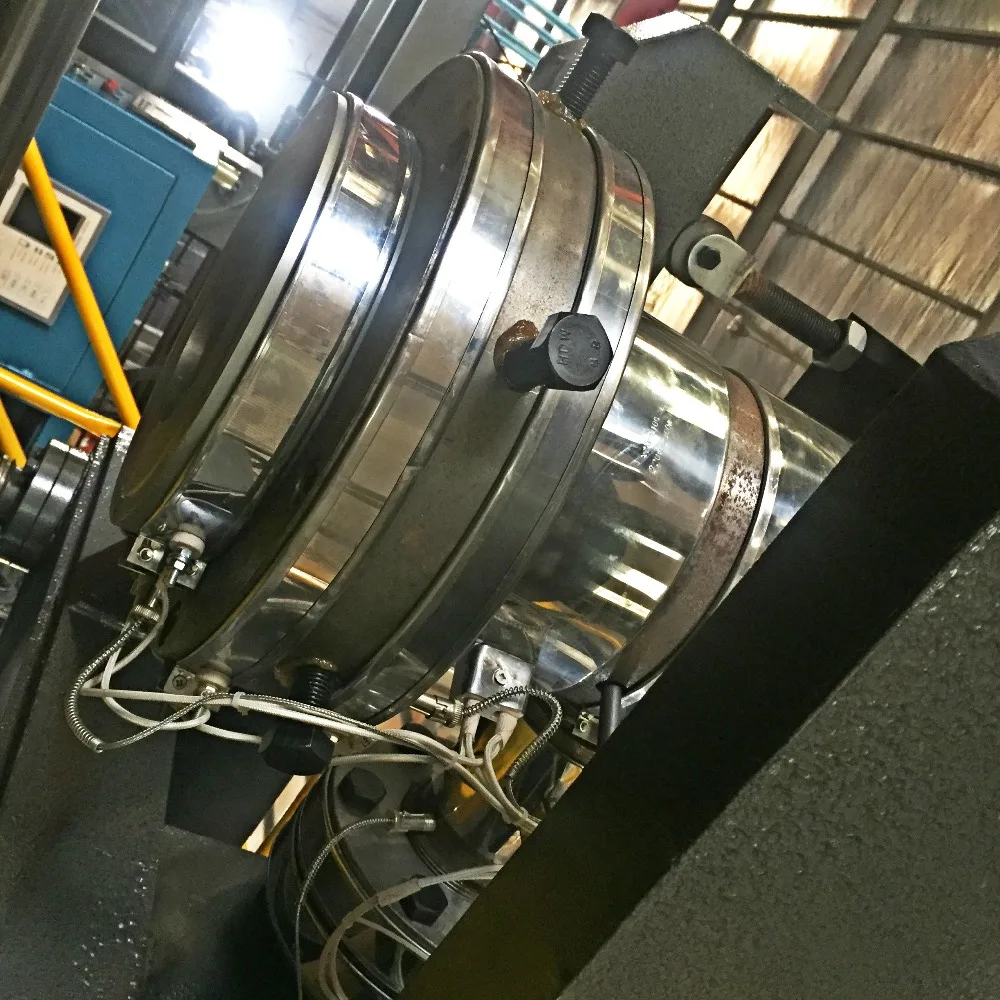

die head |
|
|
number of heating zone | zone | 3 |
power of die heating | KW | 4 |
max die-pin diameter | mm | 250 |
accumulator capacity | L | 2.5 |

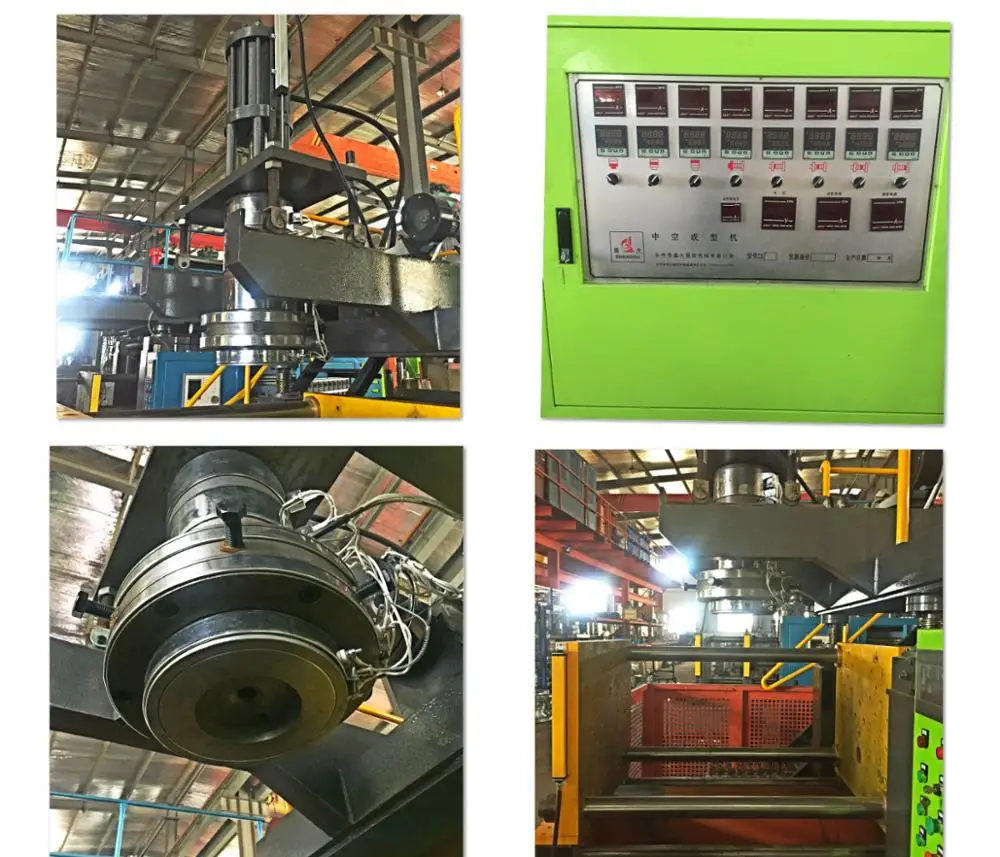

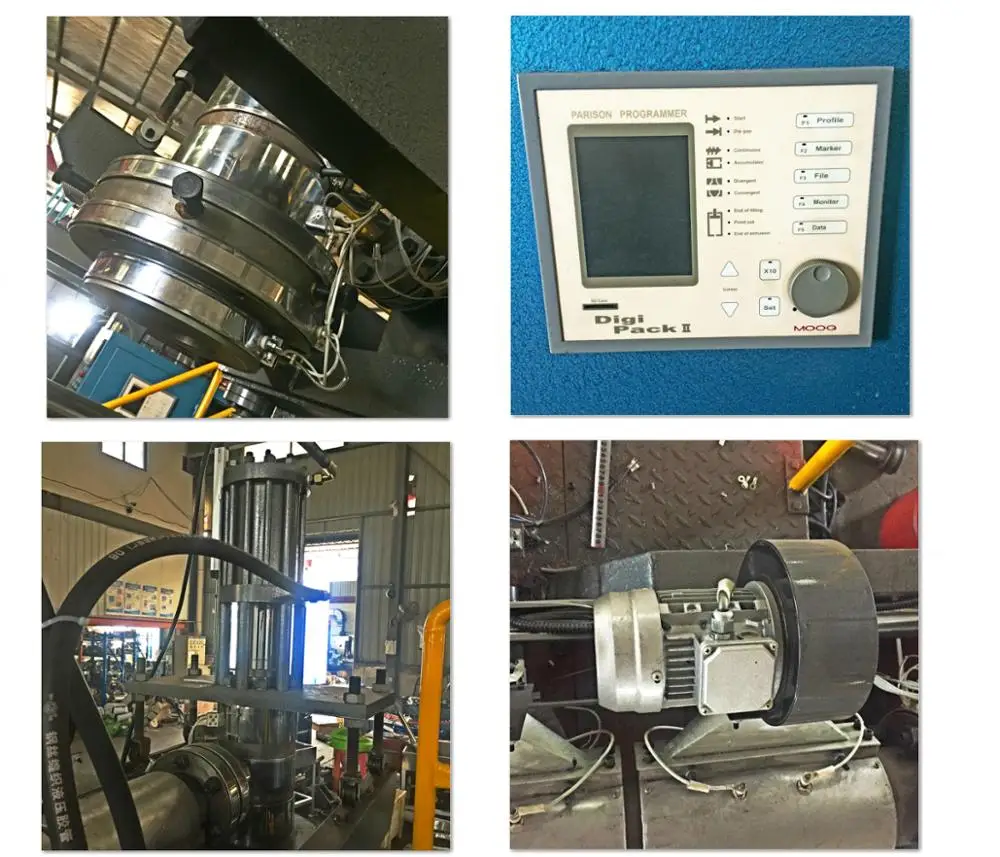

THE DETAIL
