Yushi Ultrasonic Flaw Detector YUT 2600 DAC Curve for Metal Crack, Welding and Air Hole Flaw Detection Display Freeze RS232 Port

Product Overview

Description

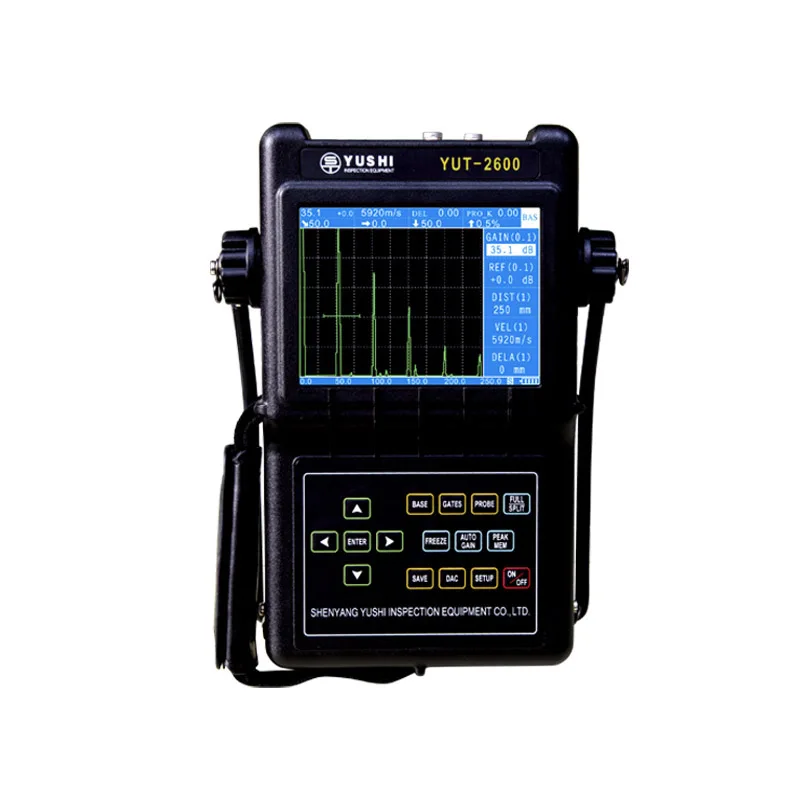

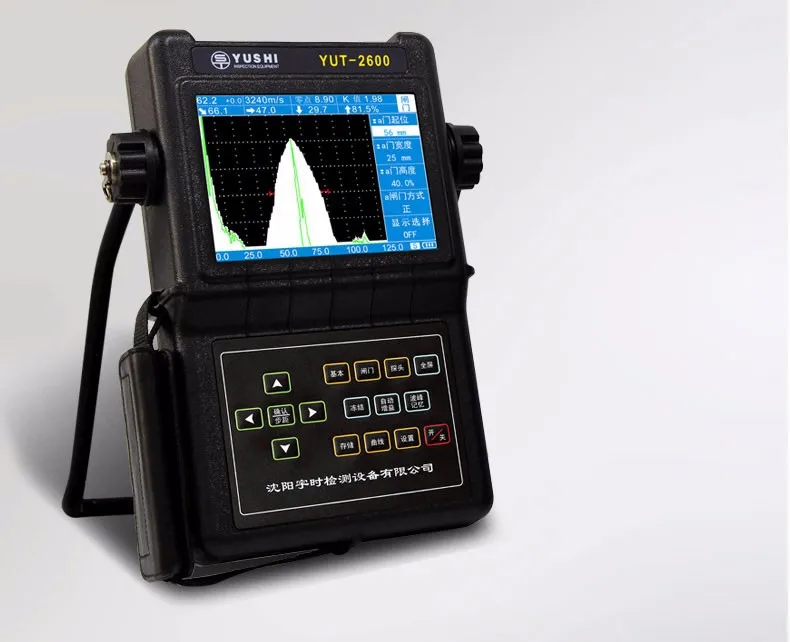

Yushi ultrasonic flaw detector YUT-2600



Features of YUT-2600 Ultrasonic Flaw Detector

♥ The firm and durable YUT2600 is designed for the severe environment.

♥  Full Screen Display Function-The echo display area covers the entire screen.

♥  The solid waveform can enchancing the waveform visual contrast so the omission will hardly happen during the fast testing.

♥  Bulk storage, up to 1000 data sets can be stored, including waveforms, curves and parameters, etc.

♥  Echo-echo thickness measurement, zero calibration can be avoided, and the net thickness of the base material can be directly measured through the coating.

♥  Wave Crest Memory-Real time envelopes show the highest wave of the flaws and record the maximum value of the flaws, it is helpful to exact positioning and fast testing of the flaws.

♥  Automatic gain: Automatically adjust the gain to the preset amplitude height.

♥  Alarming function: afferent echo/echo loss alarming.

♥  Real-time clock: automatically record the date and time of the stored waveforms.

♥  Display freezing: catching the waveform and sound path data at any moment.

♥  Flaw positioning: real-time display sound path S, horizontal X, depth Y, and wave height H.

♥ Real time display the dB difference value and sl quantitative value.

♥  Digital inhibition: 0-80%, increase by 1%, not affecting the linearity and gain.

♥  Two independent measurement gates, monitoring the echo amplitude and the sound path distance.

♥  When using transverse wave to detect flaws, the depths of the second and third waves are automatically calculated according to the slab thickness.

♥  Perfect DAC curve functions enable the curves to change along with the changes of the gain, sound path, and displacement.

♥  True color TFT LCD display, whose brightness is adjustable.

♥  Two operation interfaces: Chinese and English.

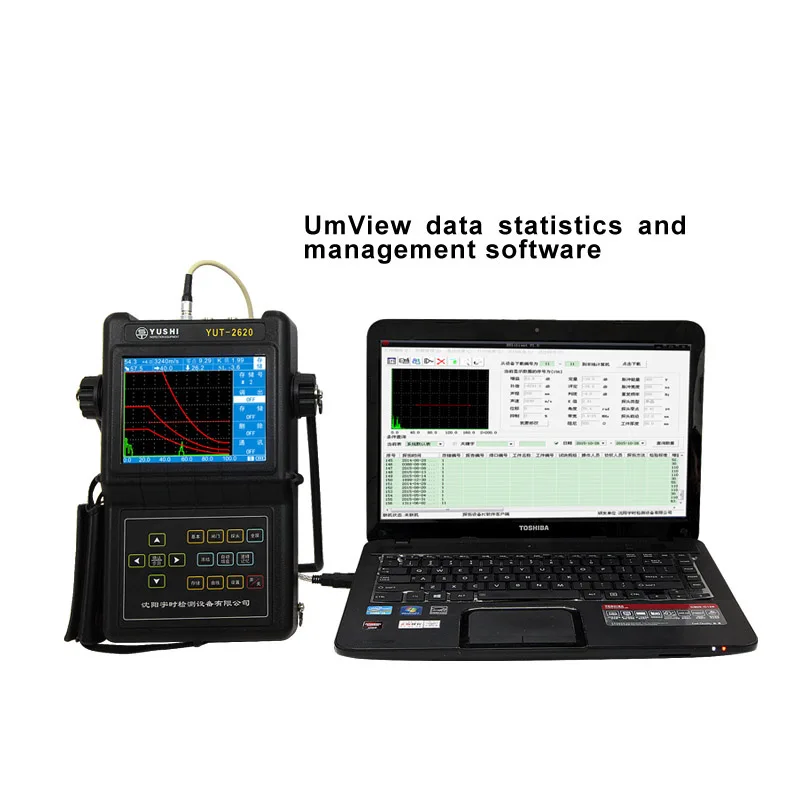

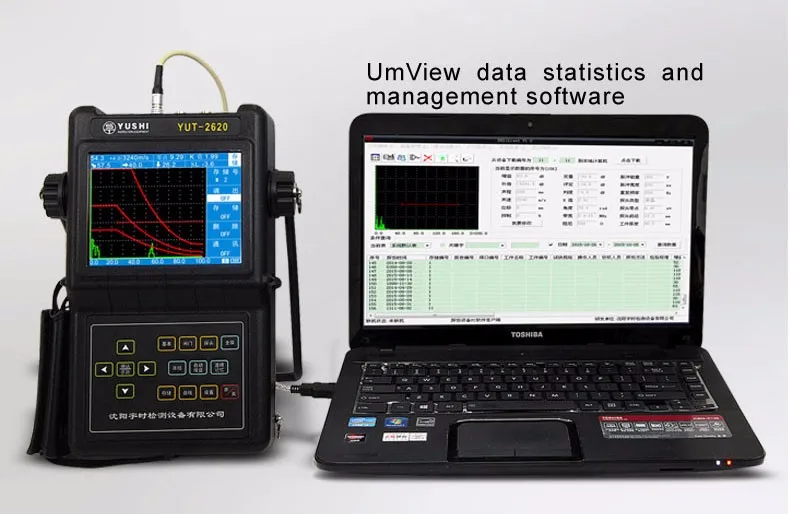

♥  Data communication: communicate with the computer via RS232 port to transmit waveforms and data.



The Actual Application of DAC Curve in detection

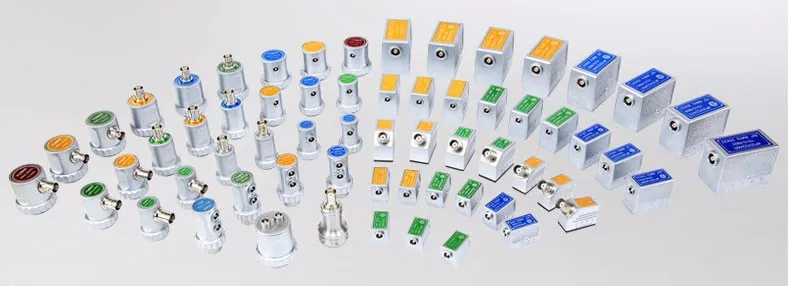

With industry-leading probe production technology,We select the high performance of piezoelectric ceramic chips,regardless of the cost to build high quality.



Demension and Weight of YUT-2600 Ultrasonic Flaw Detector

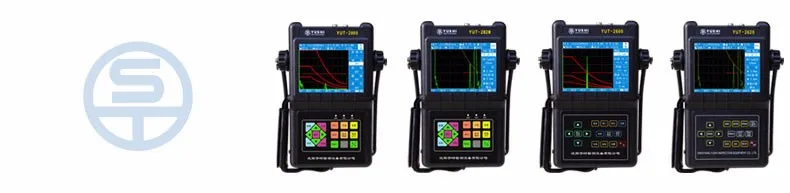

Main Comparison Between Different Models





Model	YUT-2600	YUT-2620	YUT-2800	YUT-2820
True Color TFT LCD	√	√	√	√
DAC Curve	√	√	√	√
AVG Curve	χ	√	χ	√
Φ Value Calculation	χ	√	χ	√
Distance Compensation	χ	√	χ	√
Changeable Squared Ultrasonic Pulse	χ	χ	√	√
Wide/Narrow Band Filters	χ	χ	√	√
Four Impedance Matching	χ	χ	√	√
Data Logger	√	√	√	√
UtView Software	√	√	√	√



Specifications of YUT-2600 Ultrasonic Flaw Detector

Item	Index	Item	Index
Working Frequency	(0.5-15)MHz	Sensitivity Excess	≥60dB  (deep Φ2 Flat-bottom hole)
Material Sound Vecocity	(1000-9999) m/s	Definition	≥32dB
Operation Mode	Pulse echo, double crystal	Dynamic Range	≥30dB
Pulse Shift	(0-1000)mm	Average Noise Level	≤10%
Probe Zero	(0-199.99)us	Battery Working Time	9 hours
Gain Control	(0-110)dB,(0.1,1-2,6)dB stepping	Power Supply	12V DC ,220V AC
Vertical Linearity Error	≤3%	Dimensions	270mm x190mm x 60mm
Horizontal Linearity Error	≤0.3%	Weight	2kg(including batteries)

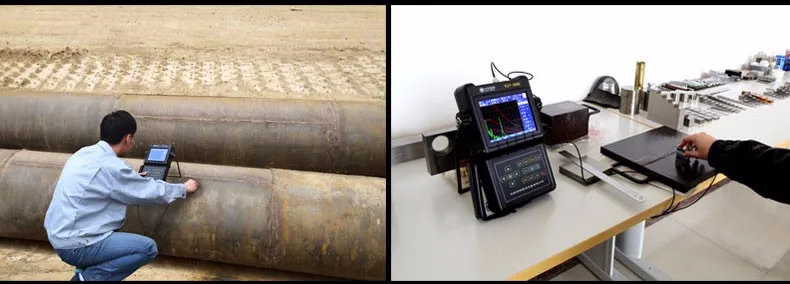

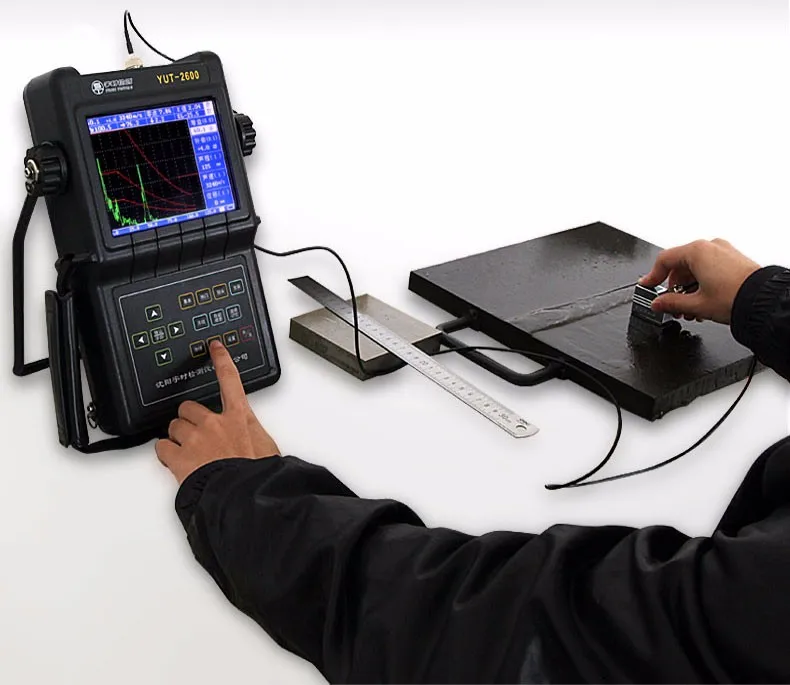

Field Measurements of YUT-2600 Ultrasonic Flaw Detector

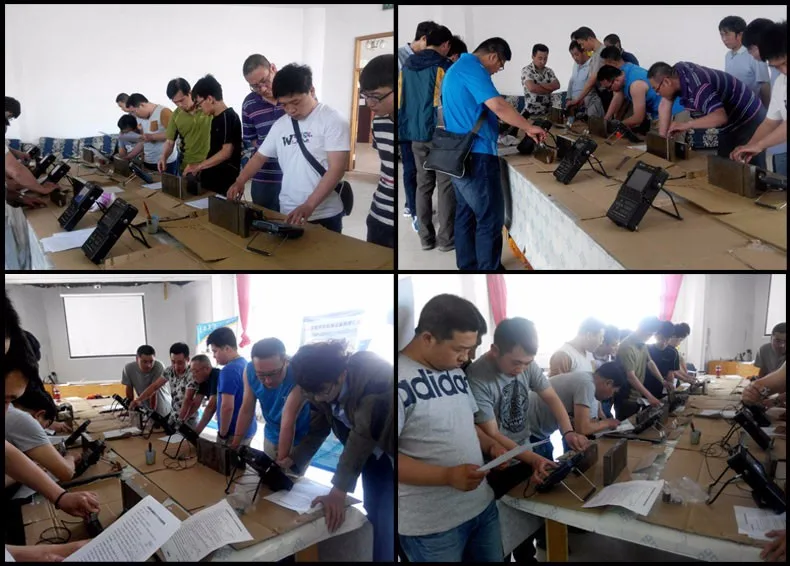

Specially Used For Training Institutions

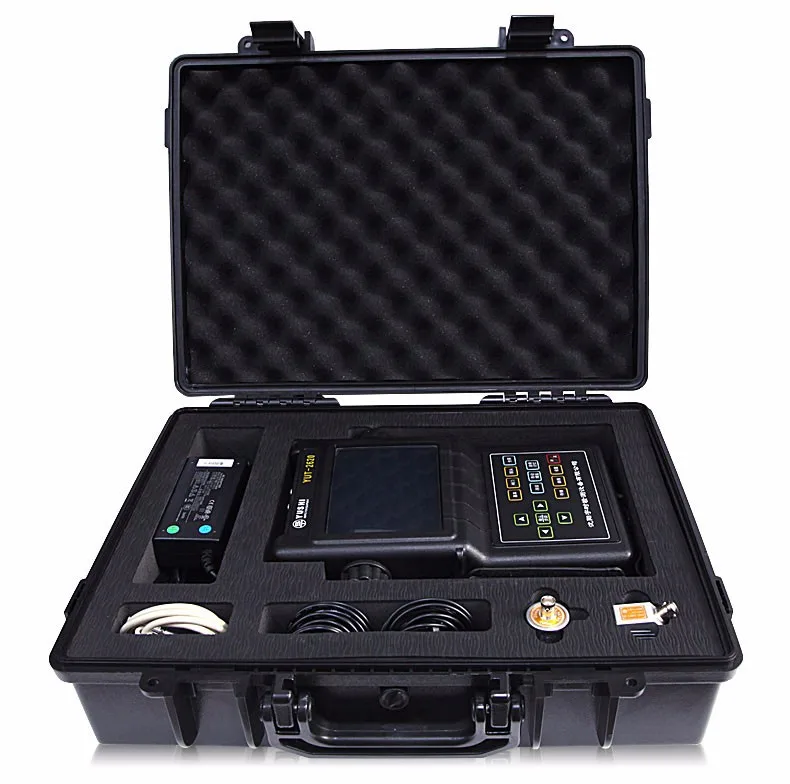

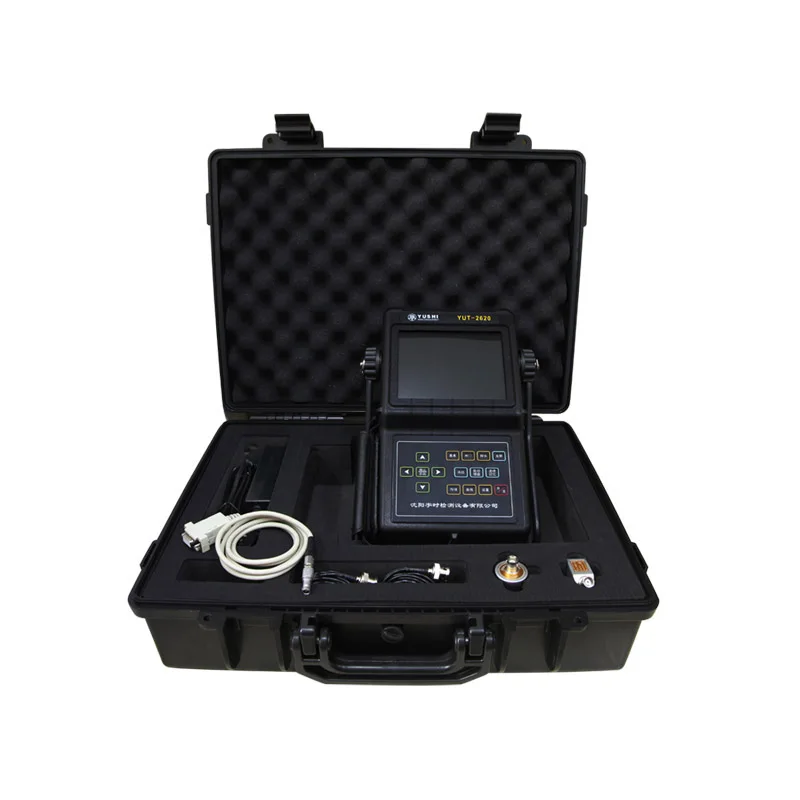

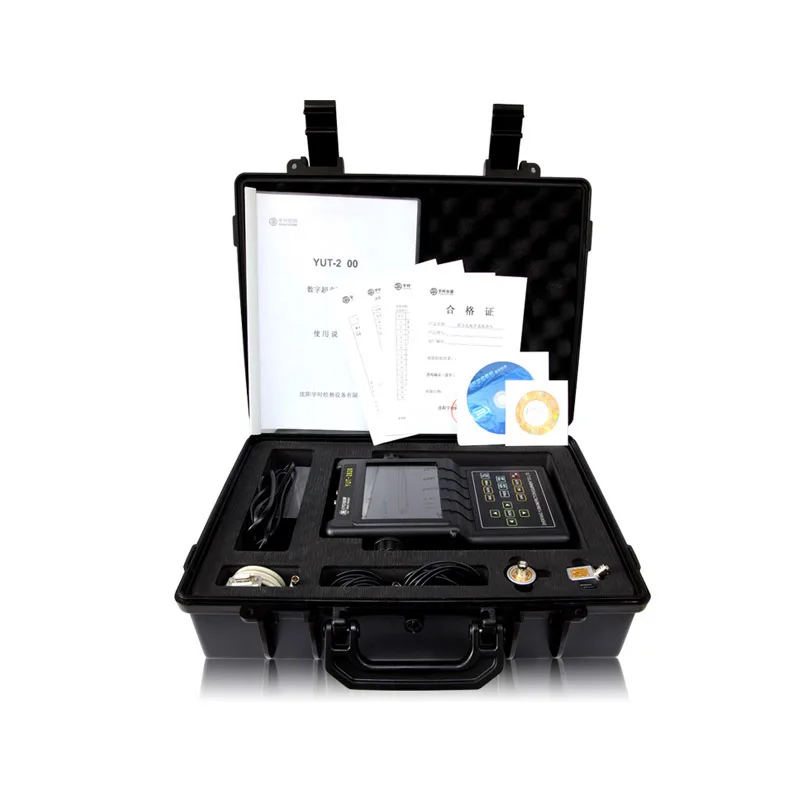

Standard Configuration of YUT-2600 Ultrasonic Flaw Detector

NO.	Item	Quantity
1	Ultrasonic Flaw Detector	1
2	Lithium battery	1
3	Charger (with power line)	1
4	Communication Cable	1
5	Straight Beam Probe	1
6	Angle Probe	1
7	Probe Cable (BNC-BNC)	2
8	Instrument Case	1
9	Instrument Case Belt	1
10	User Manual, Packing List, Warranty Card	1
11	Data Communication Software (electronic-directions inside)	1
12	Demo Disc	1
